Production Lead Time Required for This Product

This item requires 1- to 2-week production lead time.

  • Drum Brake Axle Assembly, 77.5 Axle Track, 16.5x7.0 Brakes, 23k Beam, Straight Beam With 5 in Dia and P Spindle 1640239A
1 1

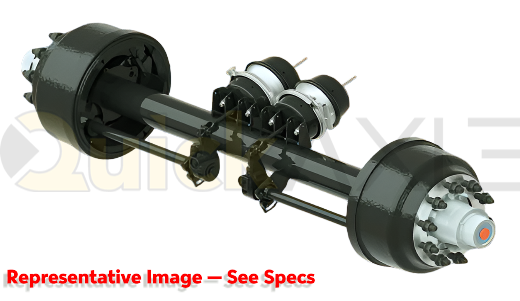

Drum Brake Axle Assembly, 77.5 Axle Track, 16.5x7.0 Brakes, 23k Beam, Straight Beam With 5 in Dia and P Spindle 1640239A

Drum Brake Axle Assembly, 77.5 Axle Track, 16.5x7.0 Brakes, 23k Beam, Straight Beam With 5 in Dia and P Spindle 1640239A

$902.26 USD
$0.00 USD $902.26 USD
Sale Sold out
  • QA Part Number: AAHD-00015
  • Axle Track: 77.5" Track
  • Spindle Type: P
  • Axle Beam Rating: 23,000 lbs. Beam Rating
  • Beam Style: Straight Beam
  • Axle Beam Diameter: 5.00" Axle Diameter
  • Axle Beam Wall Thickness: 0.59" Axle Wall Thickness
  • Spindle Nuts : Castle Nut Kit
  • Brake Type: Drum Brake
  • Brake Size: 16.5" x 7.0"
  • Brake Rating: 22000 lbs. Brake Rating
  • Chamber: Chambers Not Included
  • Slack Adjusters : Slack Not Included
  • Shoes: FMSI-4707
  • Cam Spline: 28 Spline
  • Cam Spline Diameter: 1.50" Spline Diameter
  • Cam Length: 24.13" Cam Length
  • Cam Covers Included: No Cam Cover
  • Dust Cover: No Dust Cover
  • ABS: No ABS Sensors
  • Lubrication: No Lubrication
  • Seal: No Seal
  • Hub Cap: Hub Cap No Included
  • Hub MFG: Hub Not Included
  • Hub Type: N/A
  • Hub Material: N/A
  • Side Fill: N/A
  • Stud: N/A
  • Tone Ring: N/A
  • Drum MFG: Drum Not Included
  • Drum Type: N/A
