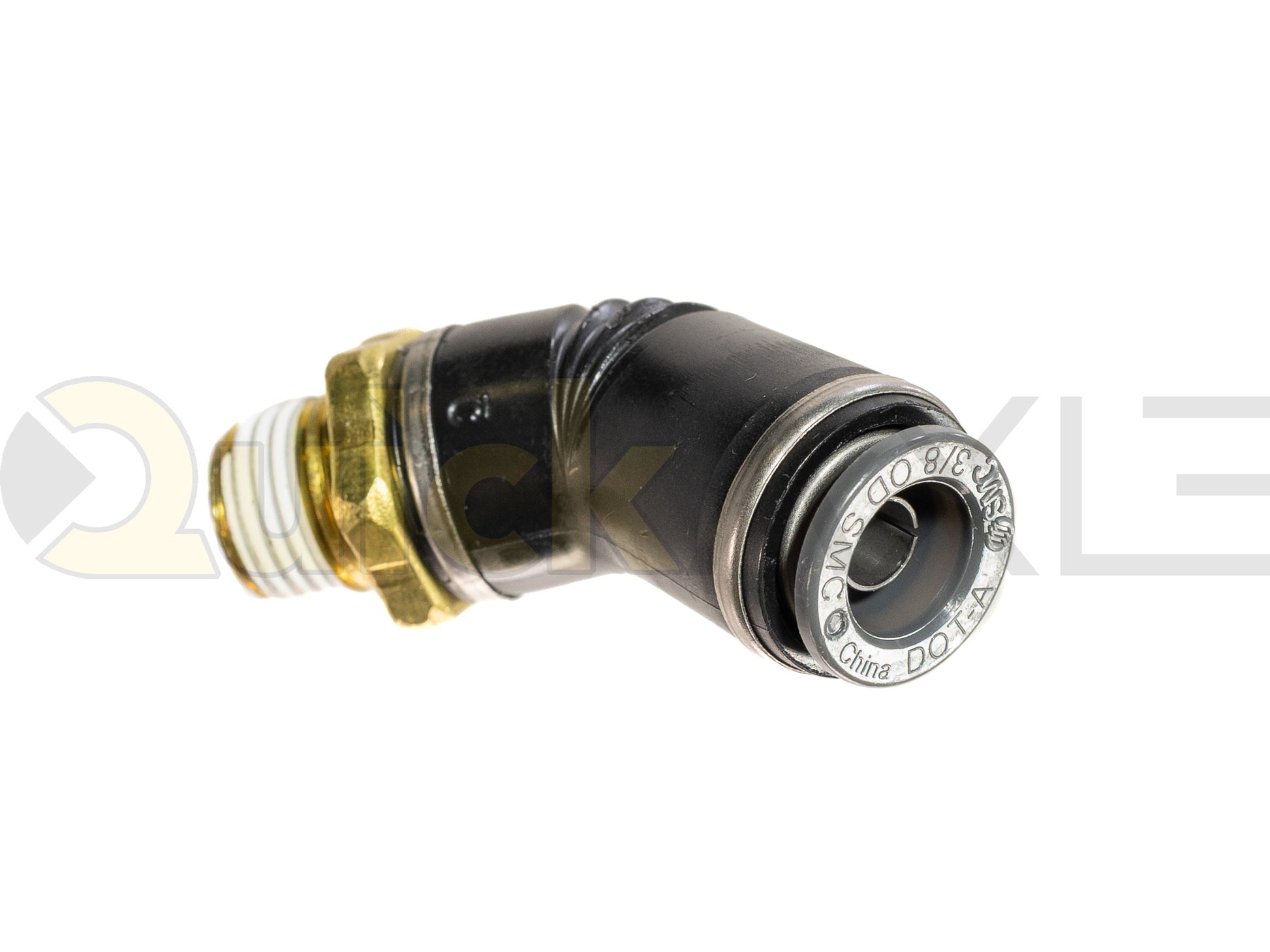

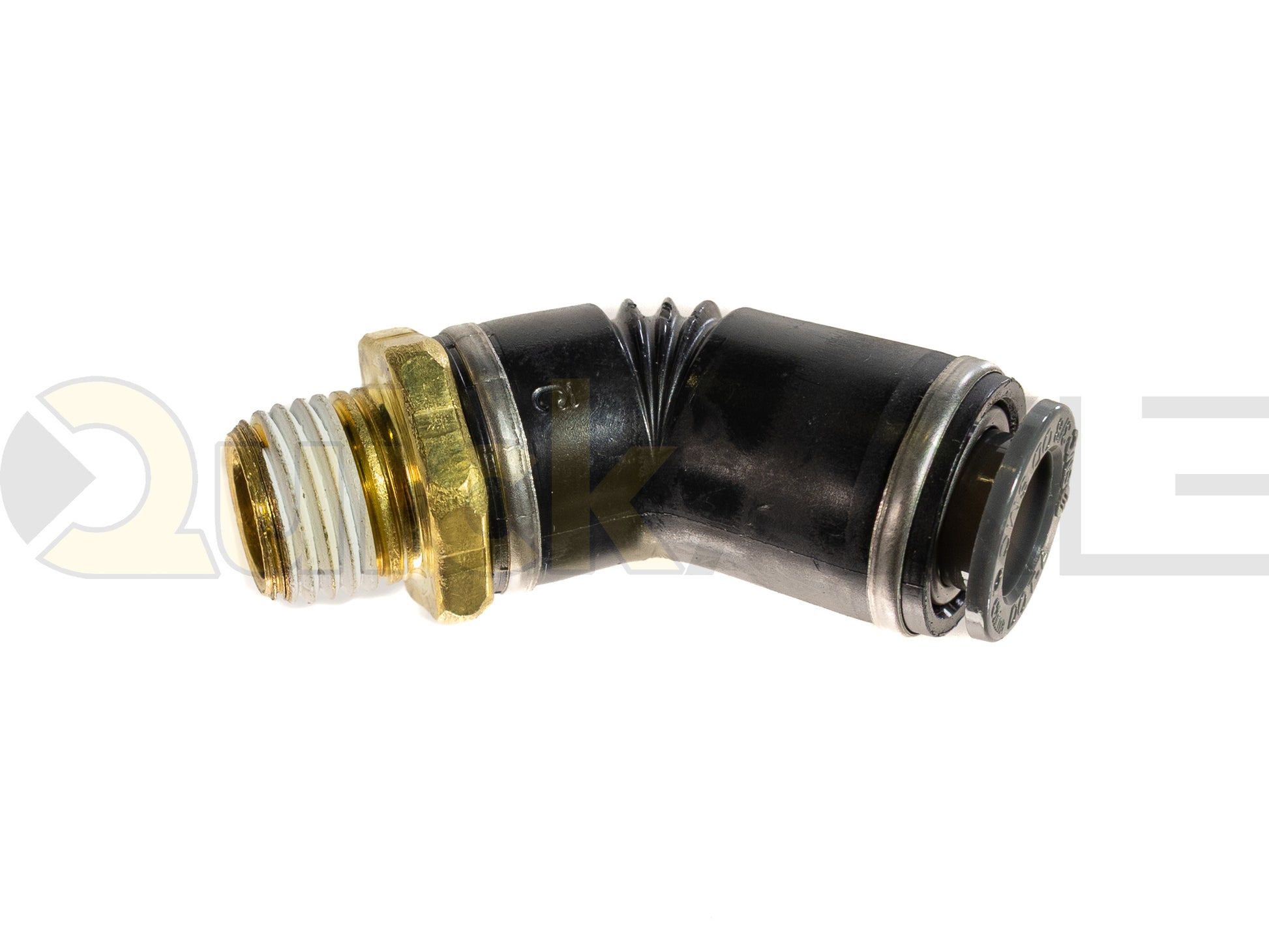

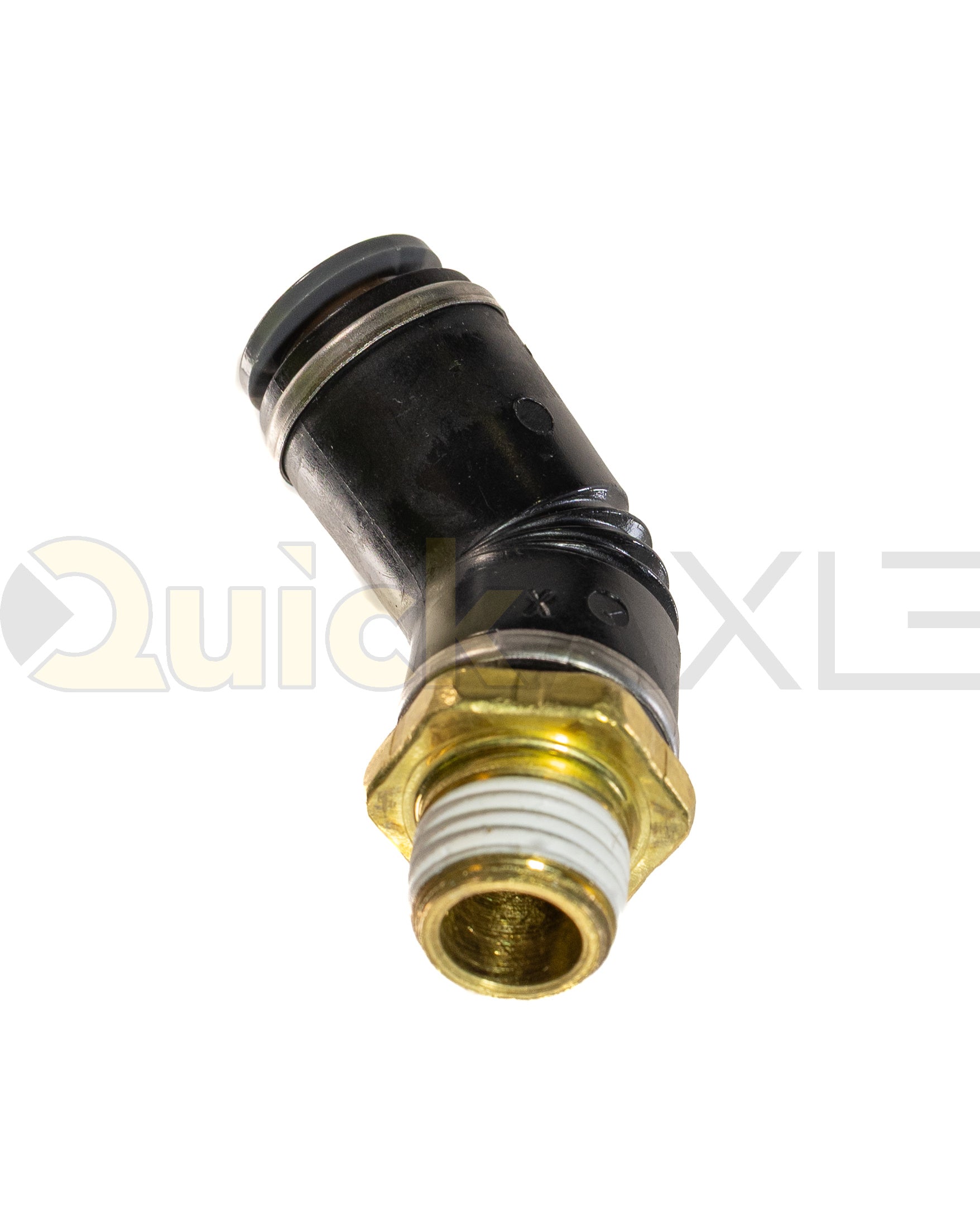

The SMC KV2K11-35S is a 45-degree elbow push-to-connect fitting. The SMC reference chart identifies the highlighted configuration with 3/8 in applicable tube outside diameter and 1/4-18 NPT thread. It is used where a compact angled pneumatic tube connection is required.
Product Details
SKU 1350029
Brand: SMC
Part Number: KV2K11-35S
Product Type: 45-Degree Elbow
Applicable Tube OD: 3/8 in
Thread: 1/4-18 NPT
Hex: 19.00 mm
D1: 17.9 mm
D2: 18.1 mm
L1: 26.2 mm
L2: 29.6 mm
Minimum Flow Diameter: 5.4 mm
Common Uses
Angled pneumatic tube connection
Height control valve fitting service
Truck and trailer air system maintenance
Verify tube size, thread size, and original part number before ordering.
