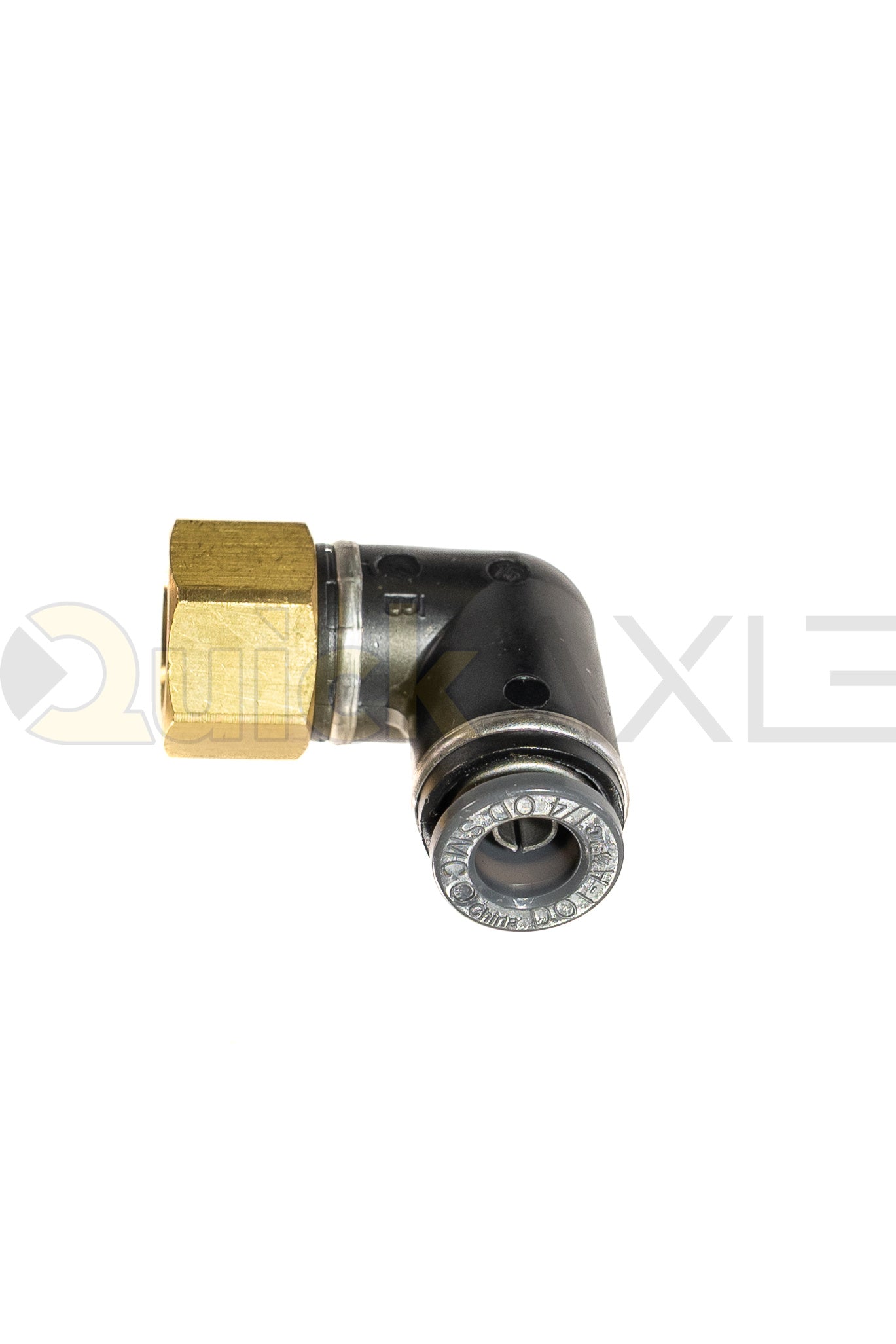

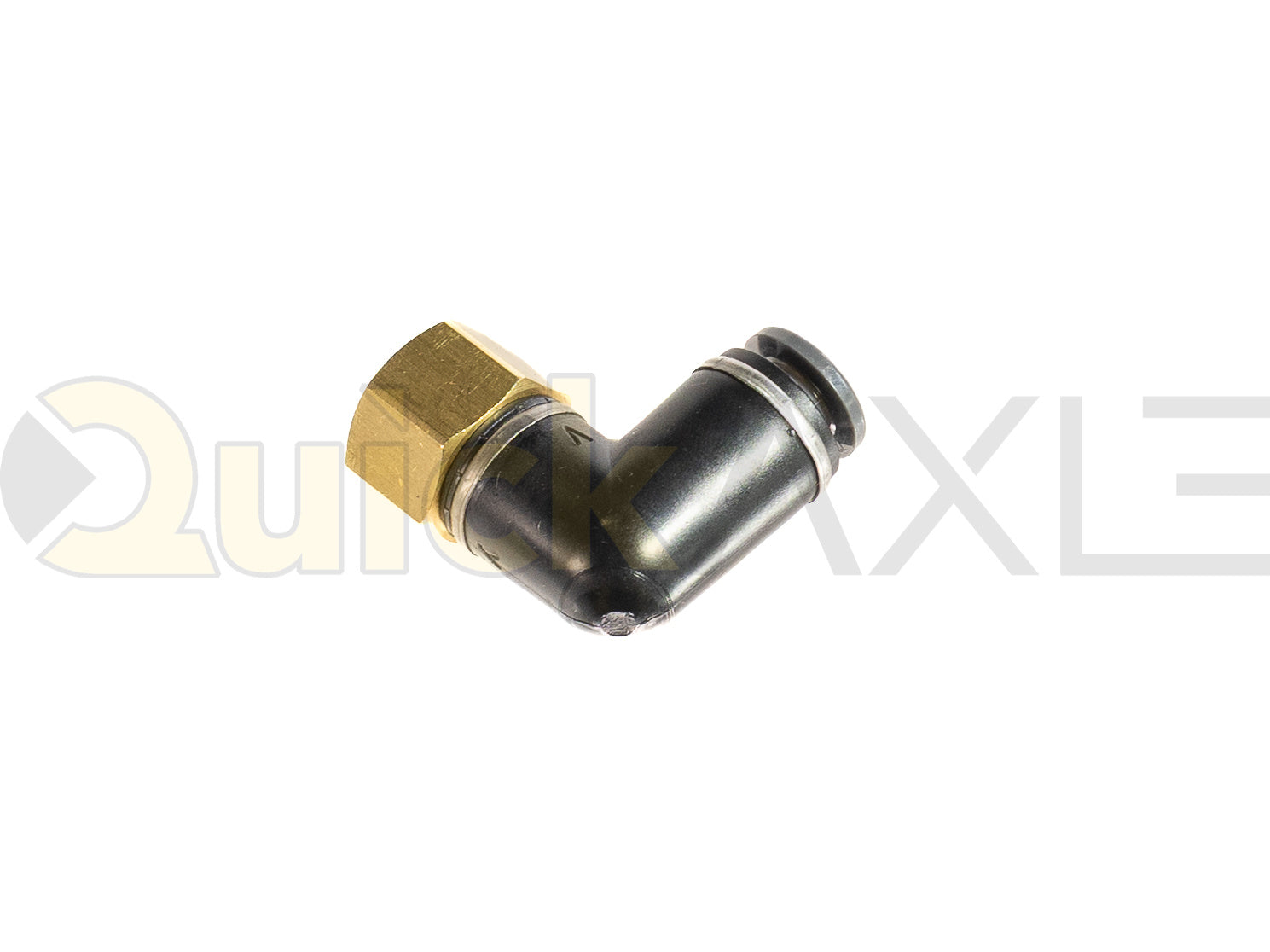

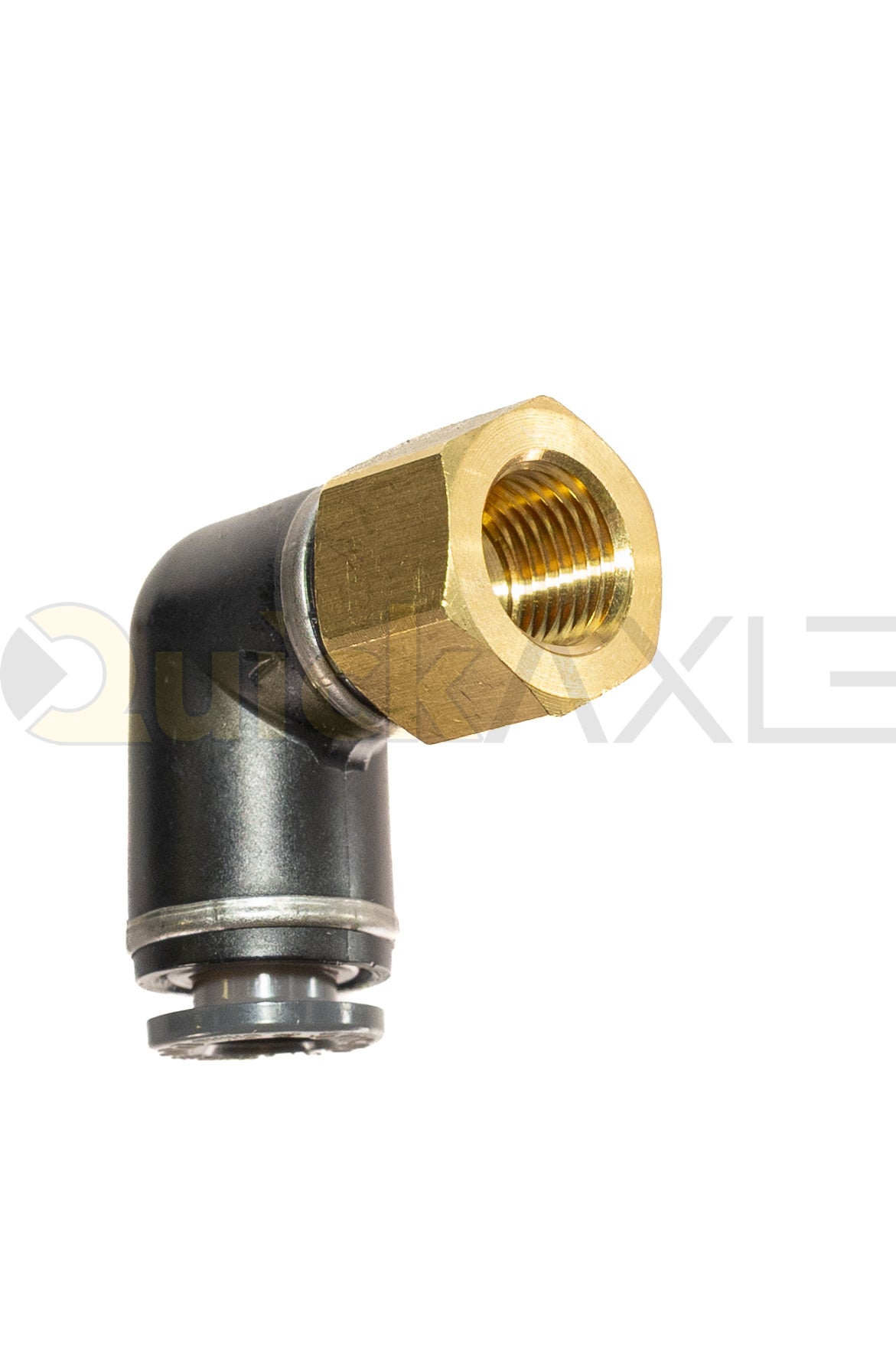

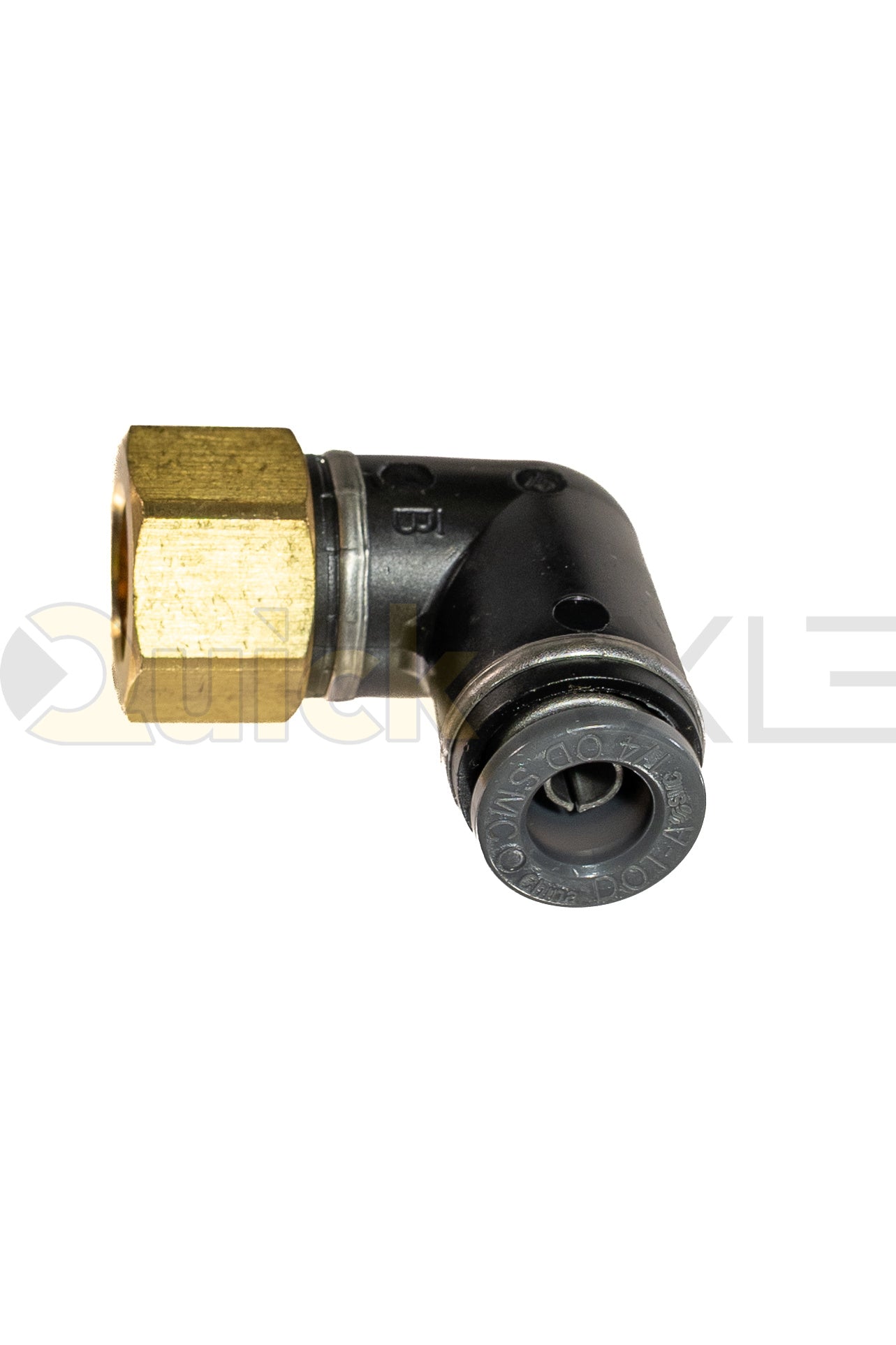

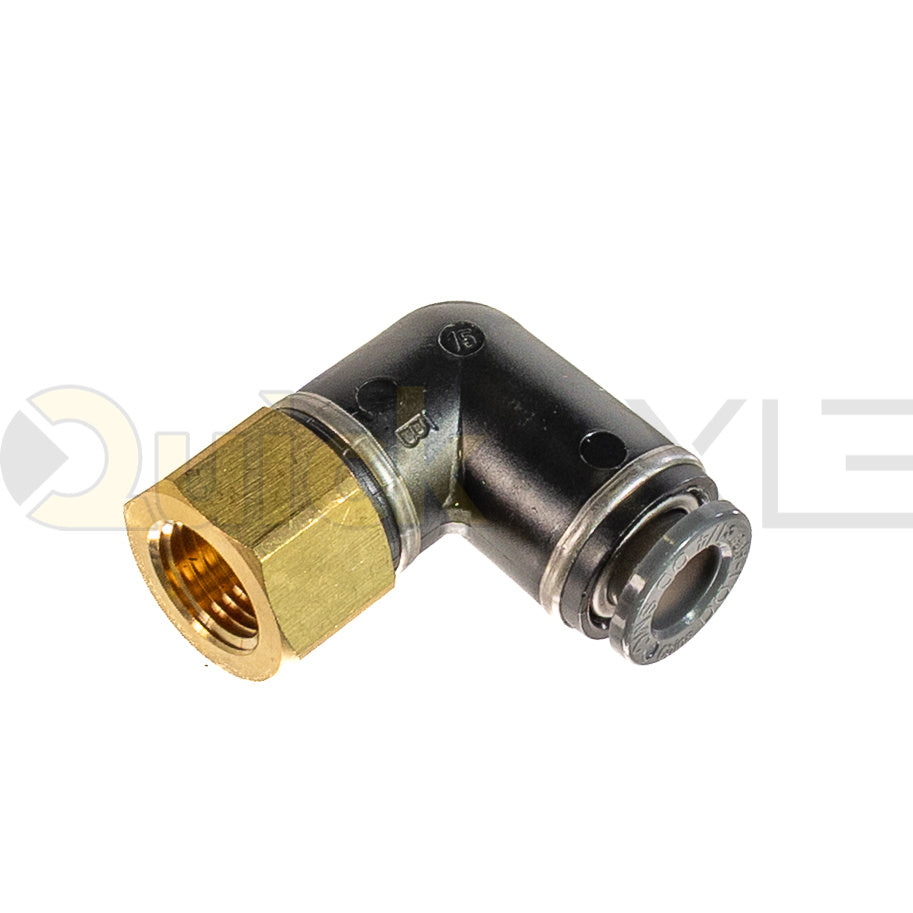

The SMC KV2LF07-34 is a 90-degree female elbow push-to-connect fitting. The SMC reference chart identifies the highlighted configuration with 1/4 in applicable tube outside diameter and 1/8-27 NPT thread. It is used where a compact right-angle pneumatic tube connection to a female threaded port is required.
Product Details
SKU 1230115
Brand: SMC
Part Number: KV2LF07-34
Product Type: 90-Degree Female Elbow
Applicable Tube OD: 1/4 in
Thread: 1/8-27 NPT
Hex: 14.29 mm
D1: 13.2 mm
D2: 13.3 mm
L1: 20.6 mm
Minimum Flow Diameter: 3.5 mm
Common Uses
Right-angle pneumatic tube connection
Height control valve fitting service
Truck and trailer air system maintenance
Verify tube size, thread size, and original part number before ordering.
