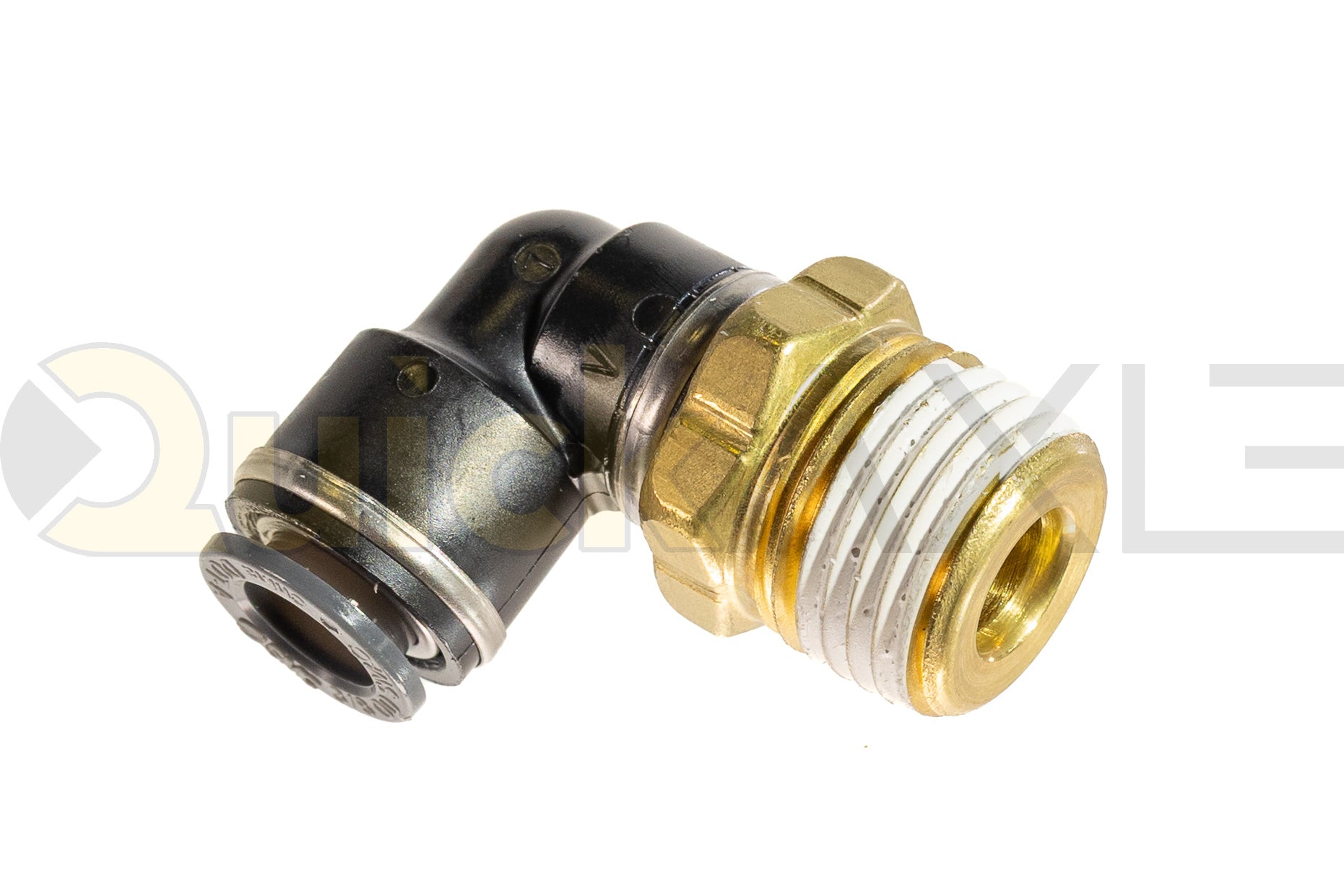

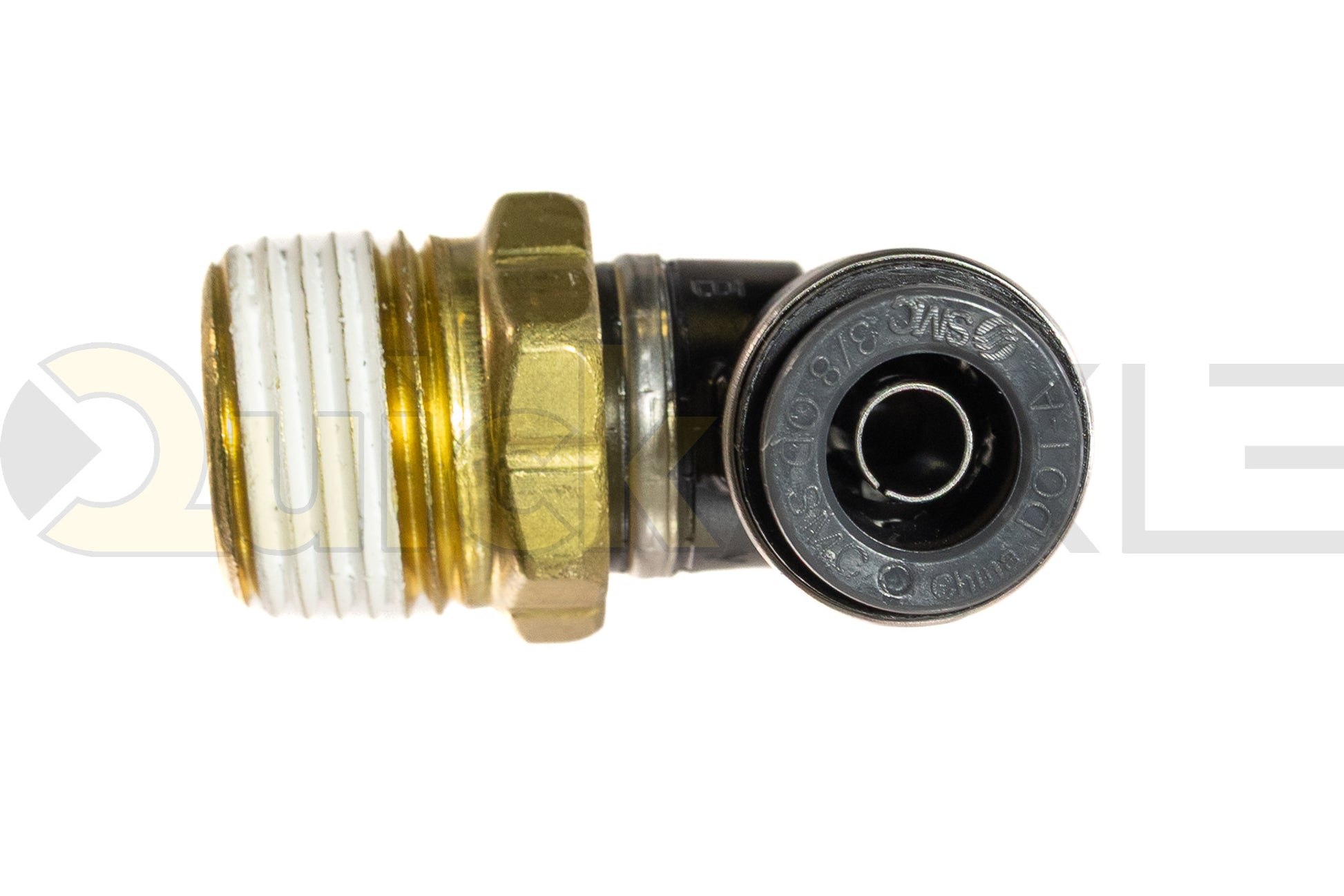

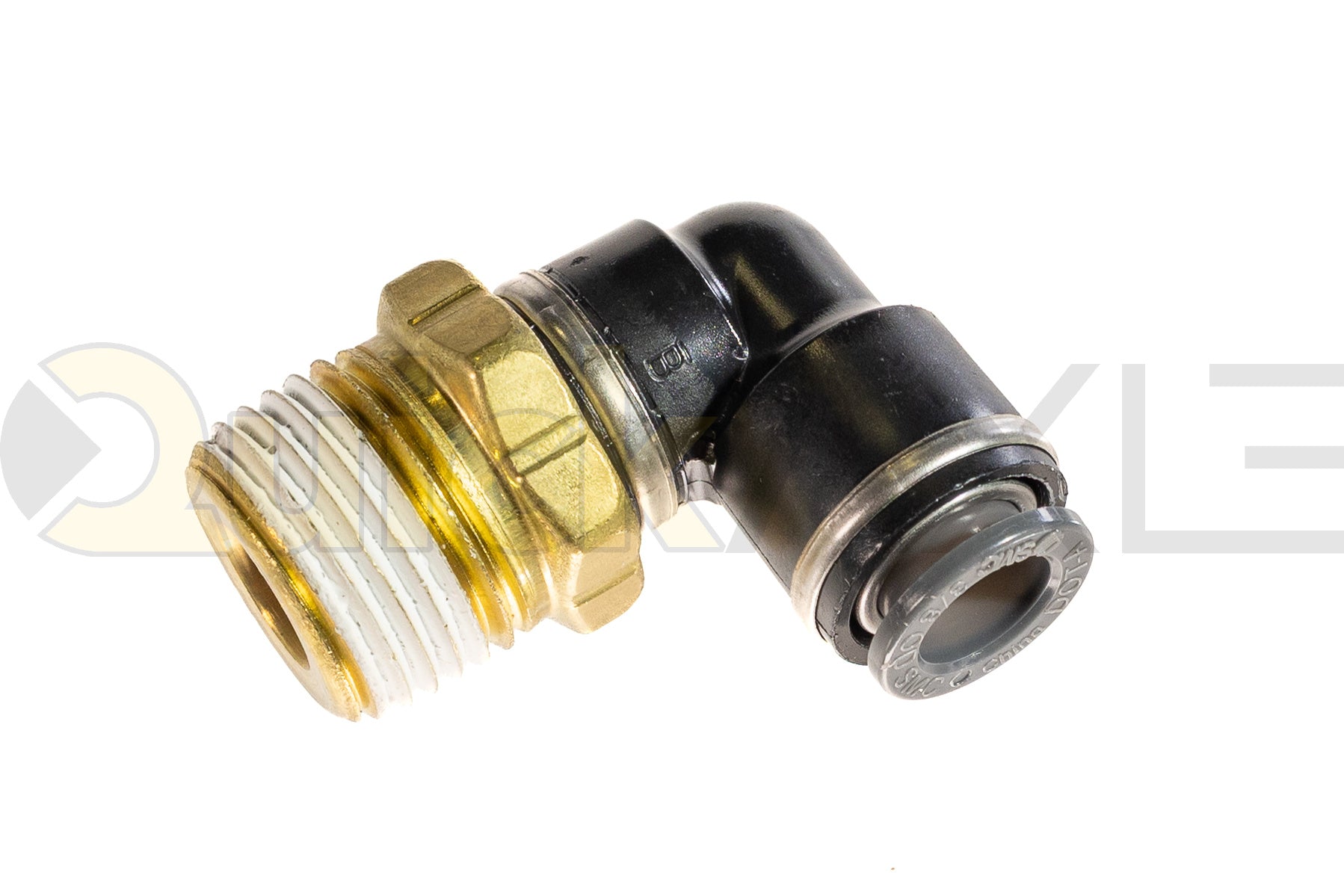

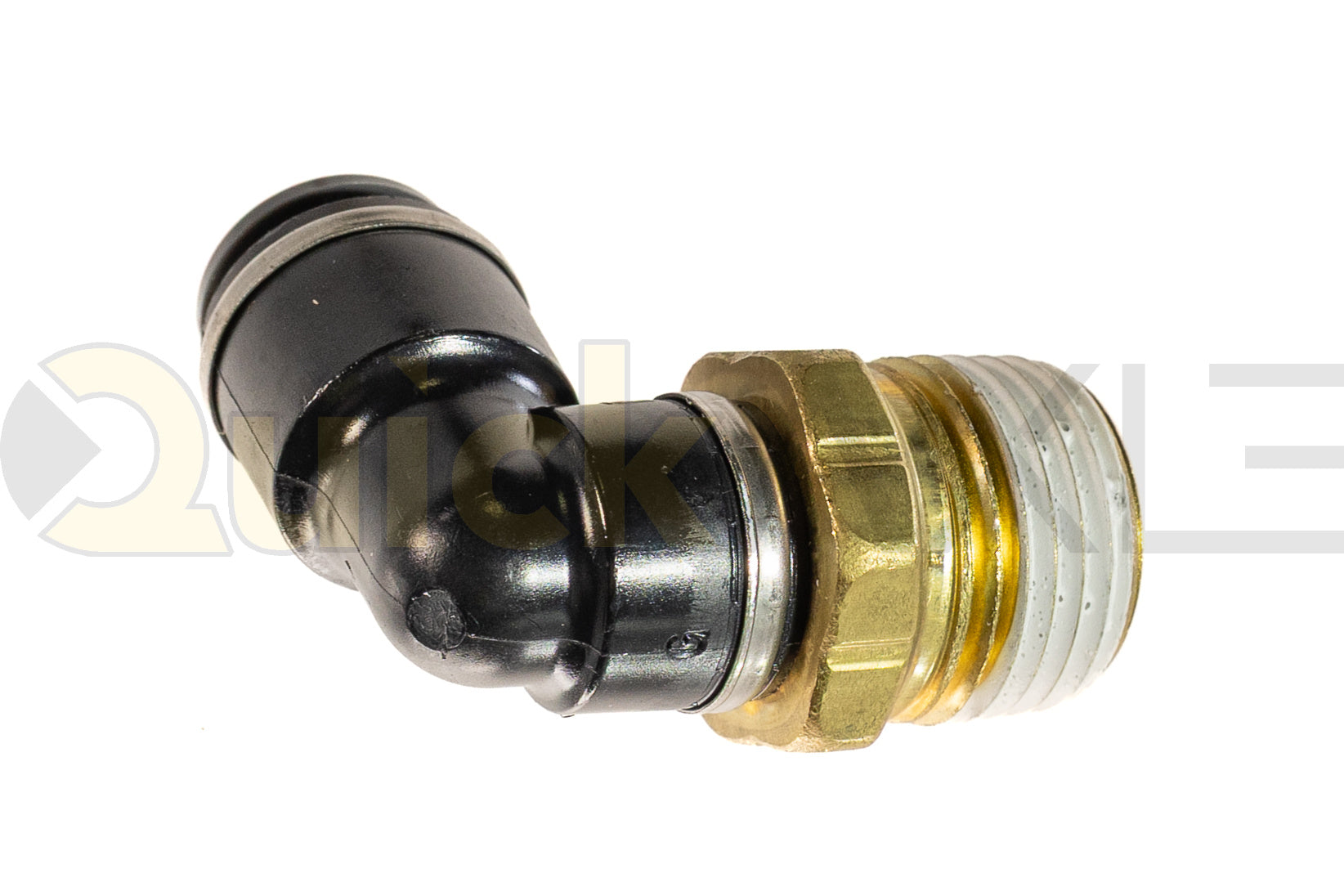

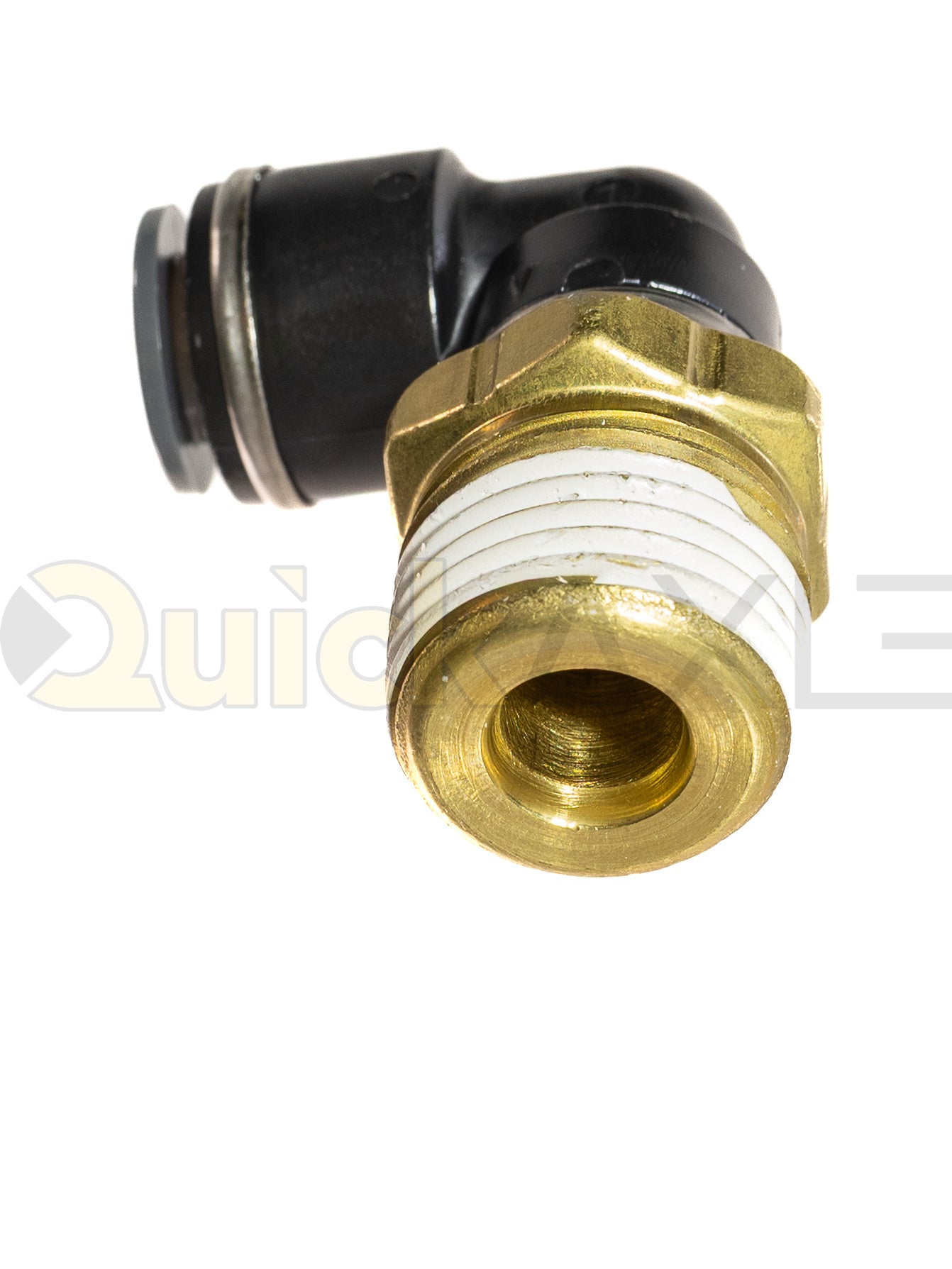

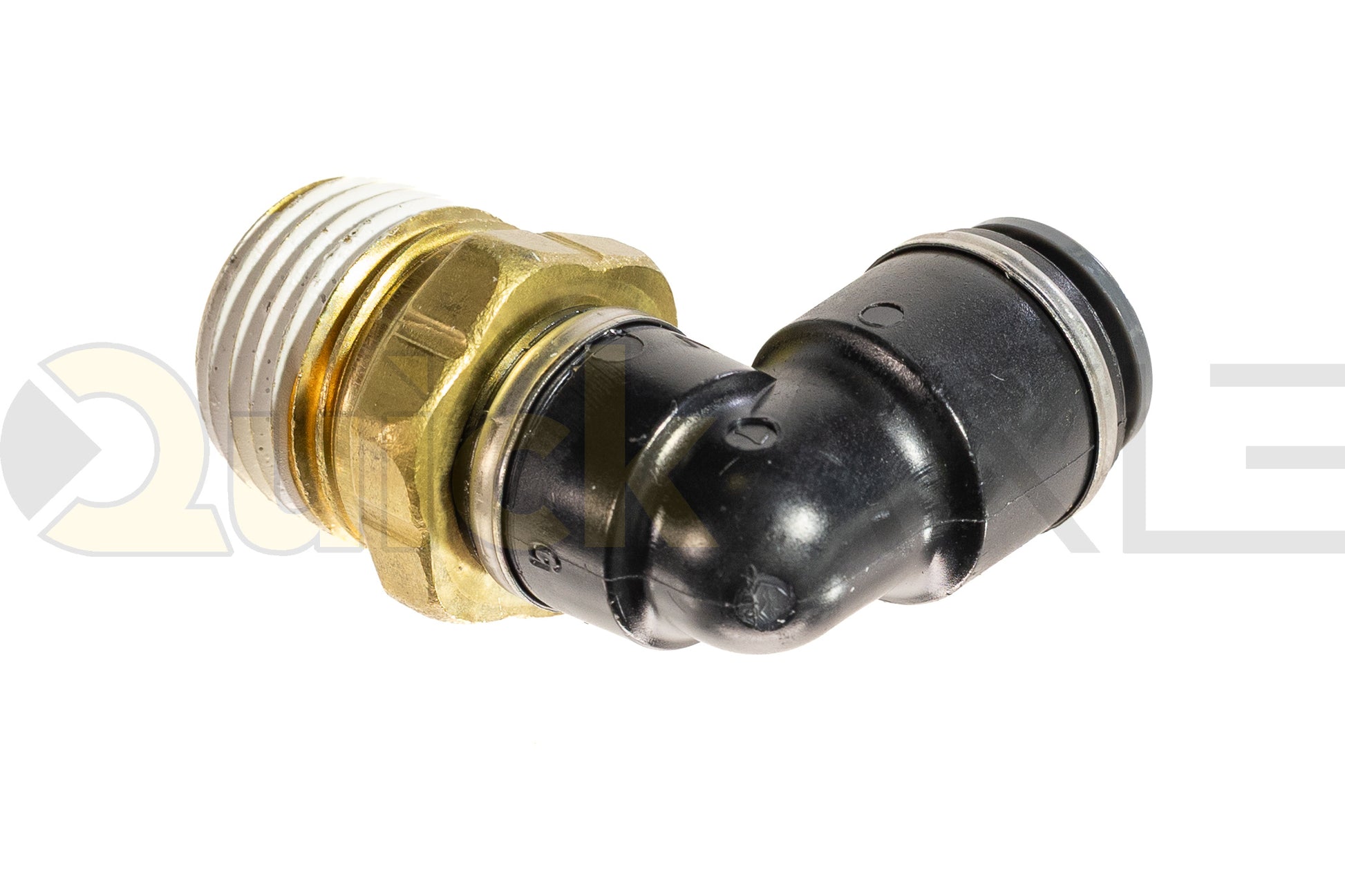

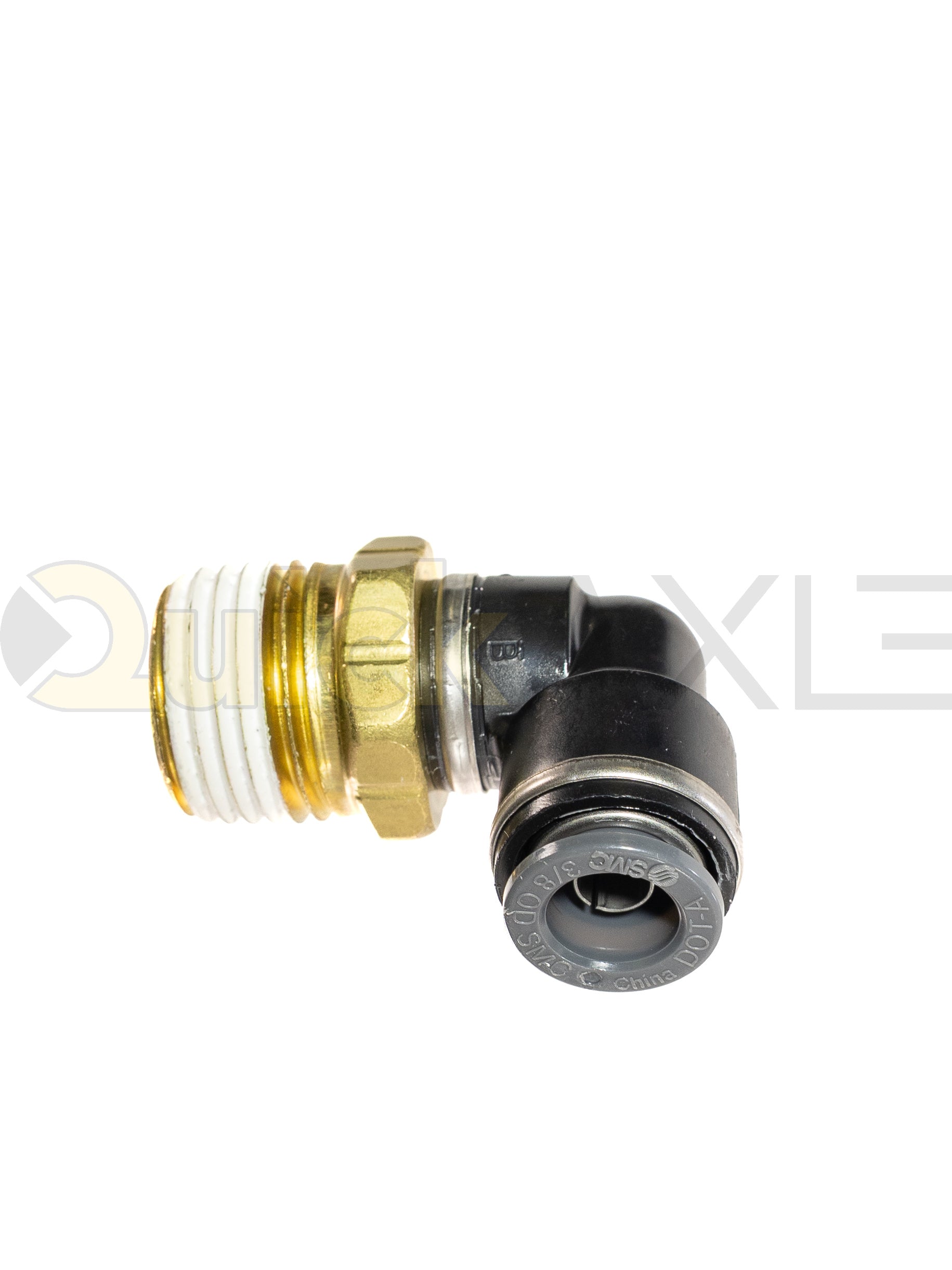

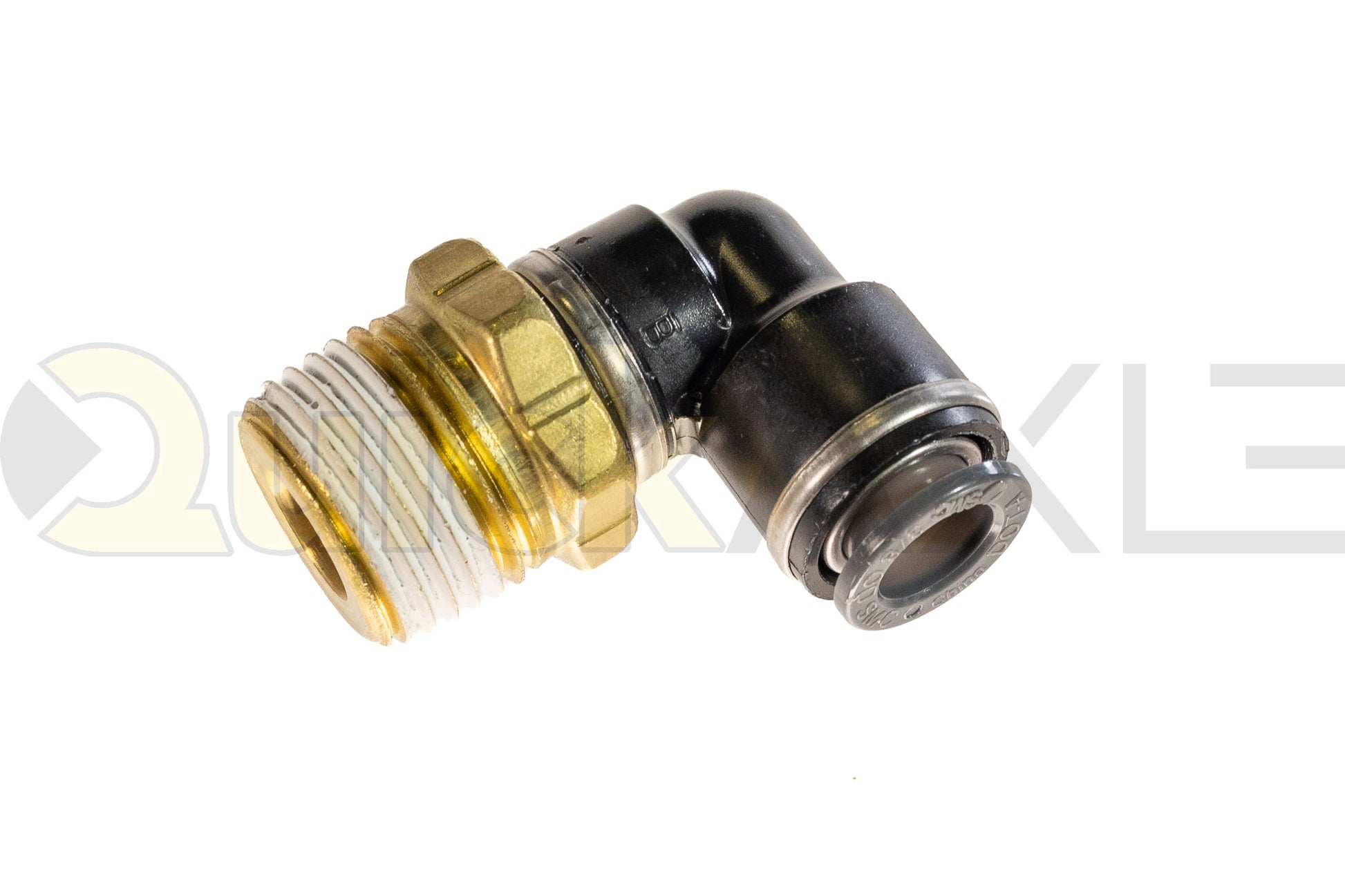

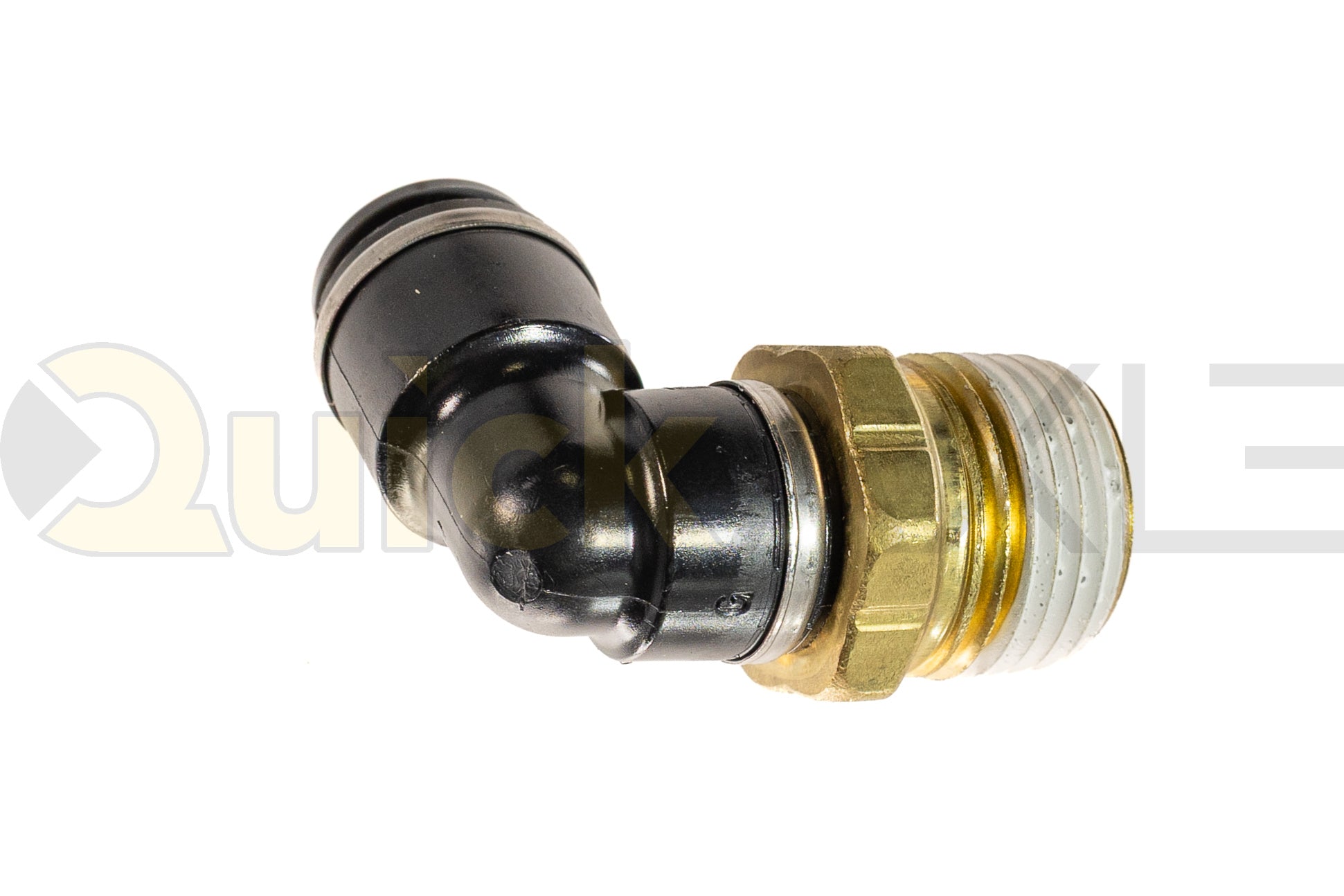

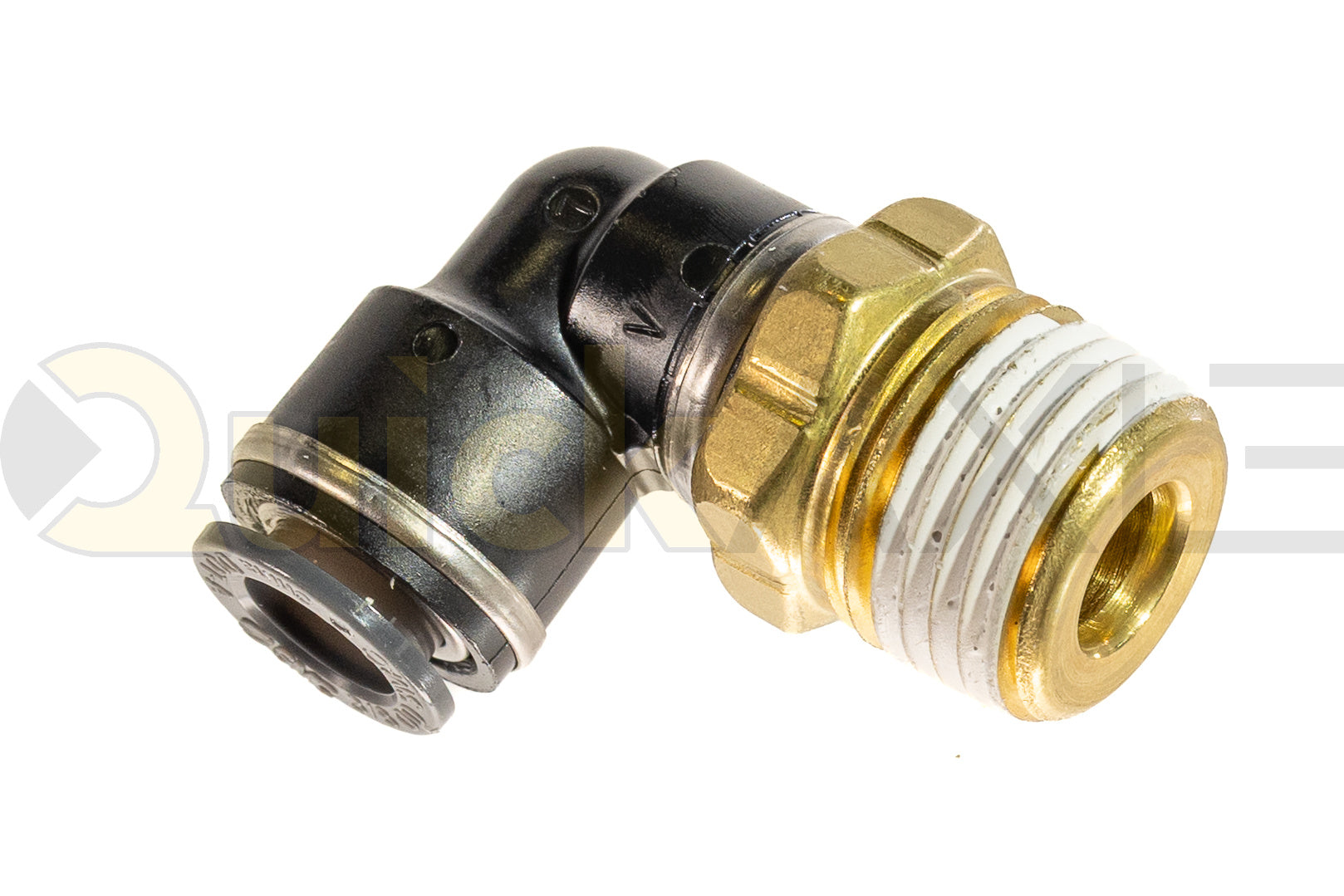

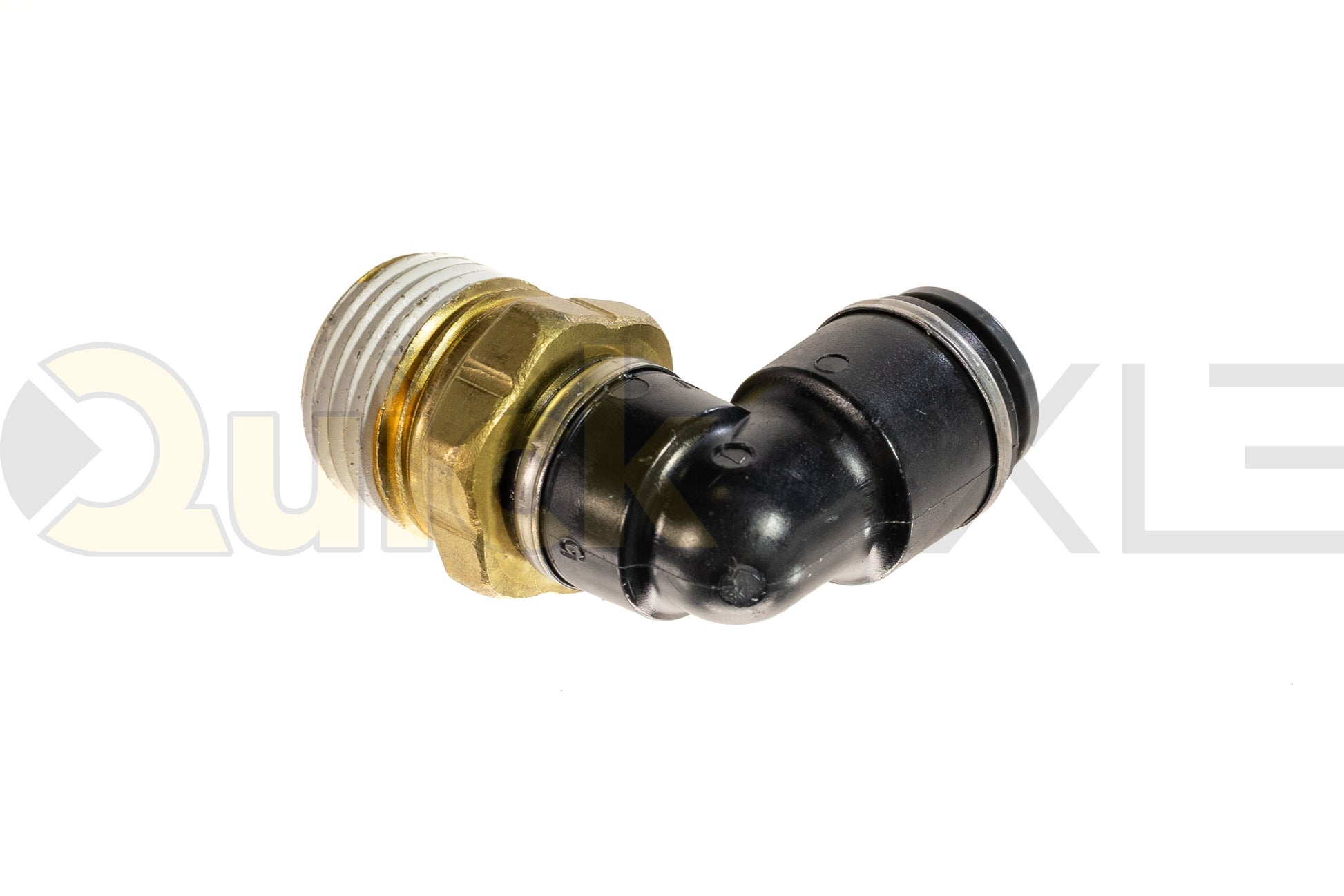

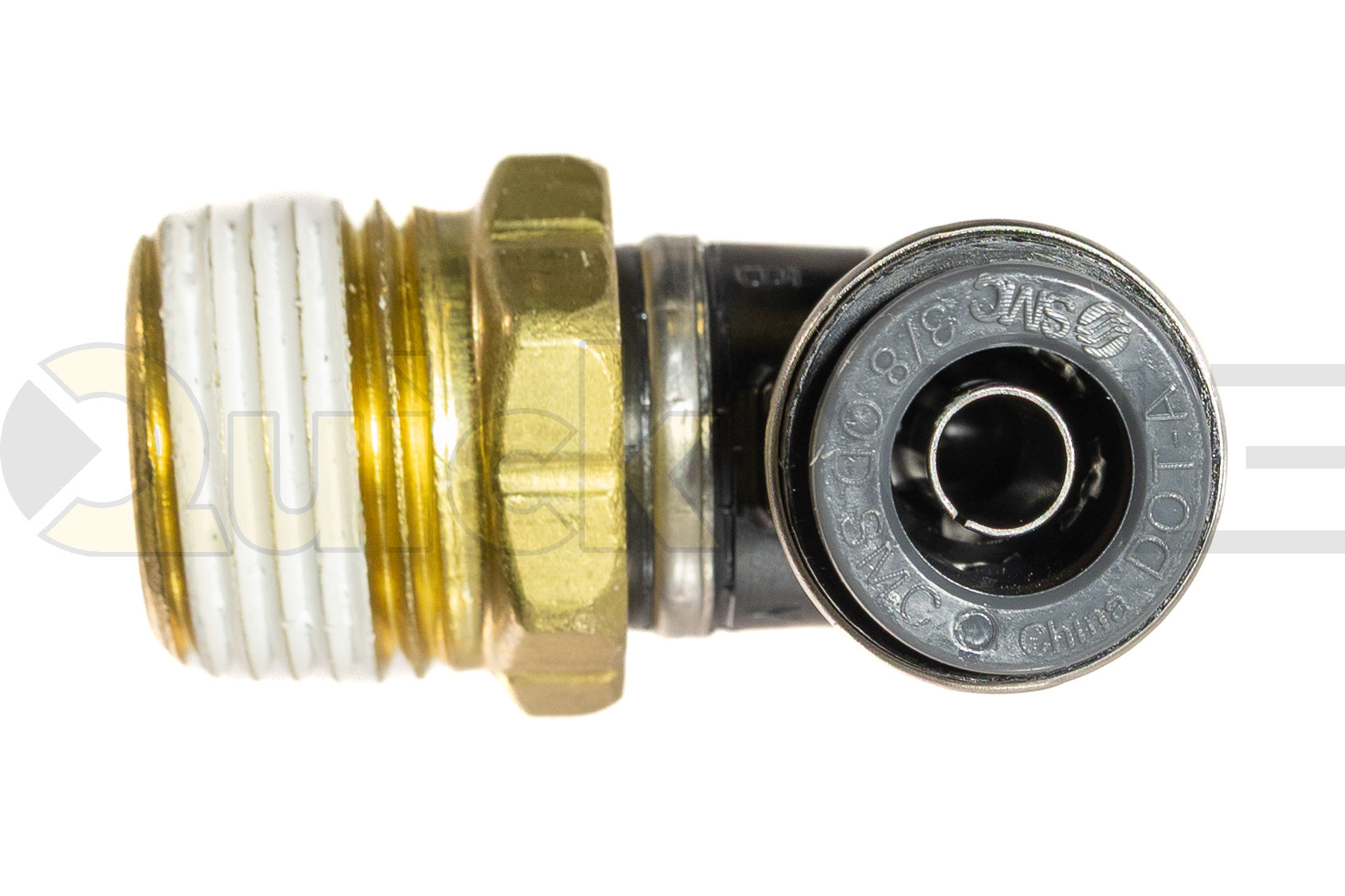

The SMC KV2L11-37S is a 90-degree male elbow push-to-connect fitting. The SMC Series KV2 reference chart identifies the highlighted configuration with 3/8 in applicable tube outside diameter and 1/2-14 NPT thread. It is used where a compact right-angle pneumatic connection is required.
Product Details
SKU 1230132
Brand: SMC
Part Number: KV2L11-37S
Product Type: 90-Degree Male Elbow
Applicable Tube OD: 3/8 in
Thread: 1/2-14 NPT
Hex: 22.23 mm
L1: 26.2 mm
L2: 35.6 mm
M Dimension: 21 mm
Minimum Flow Diameter: 5.4 mm
Common Uses
Right-angle air line connection
Height control valve fitting service
Pneumatic system maintenance
Verify tube size, NPT thread size, and original part number before ordering.
