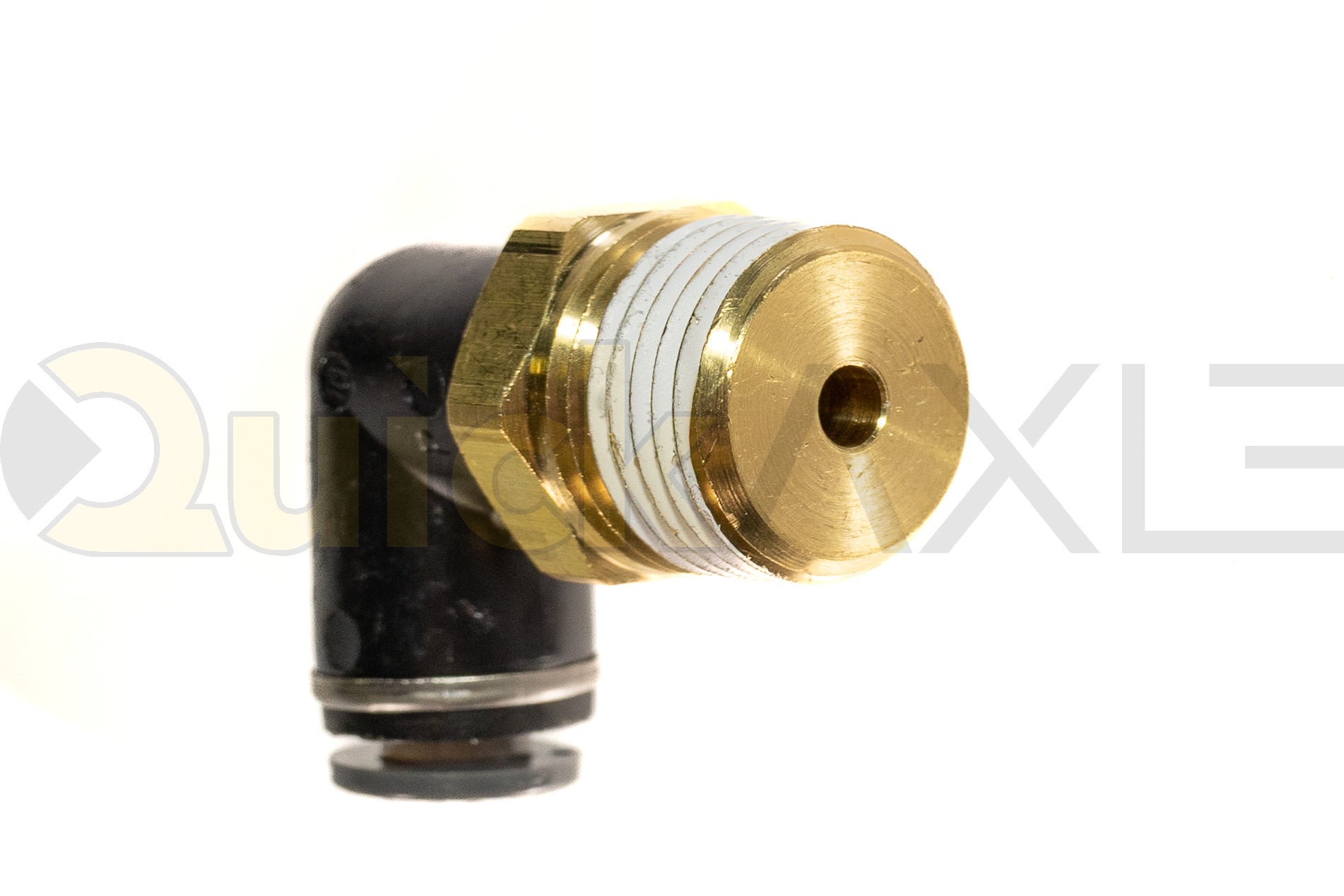

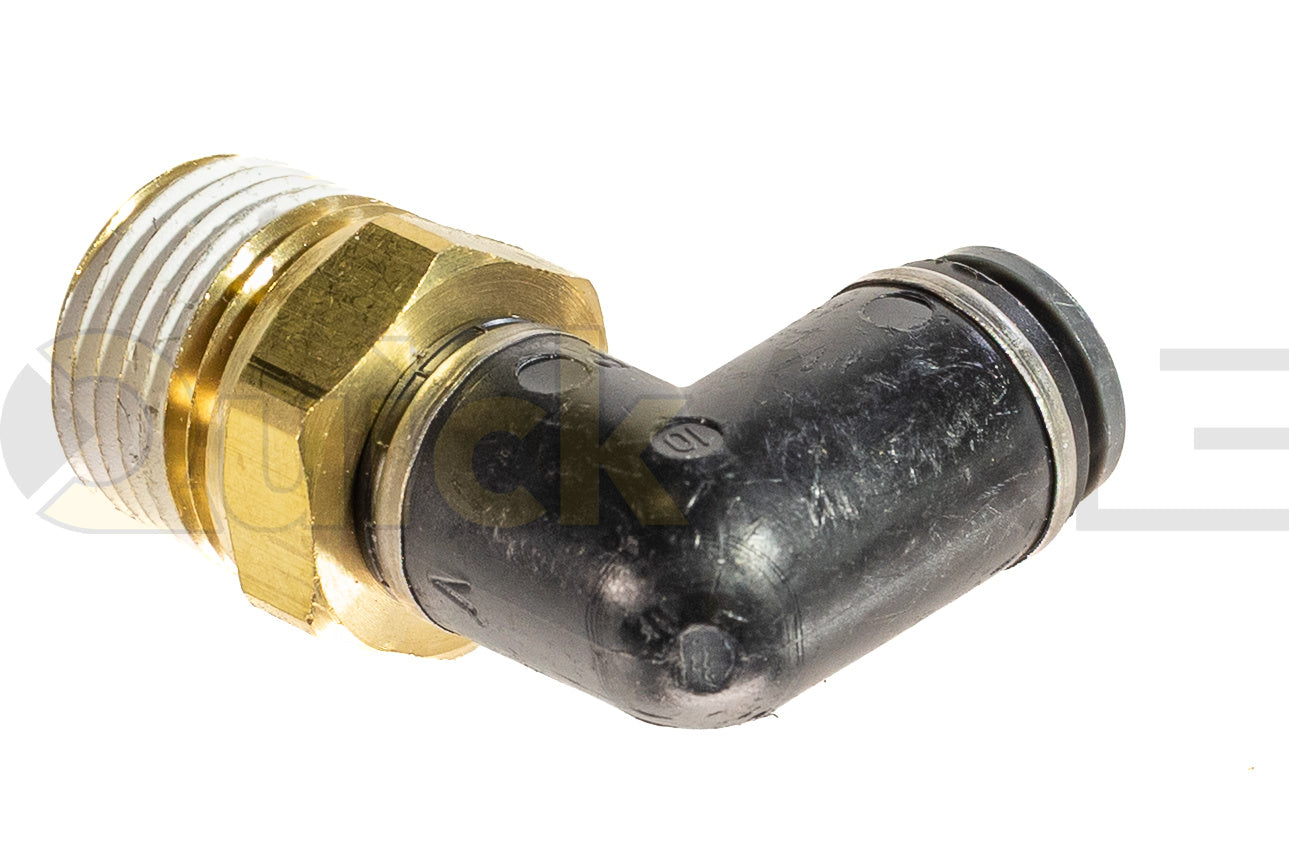

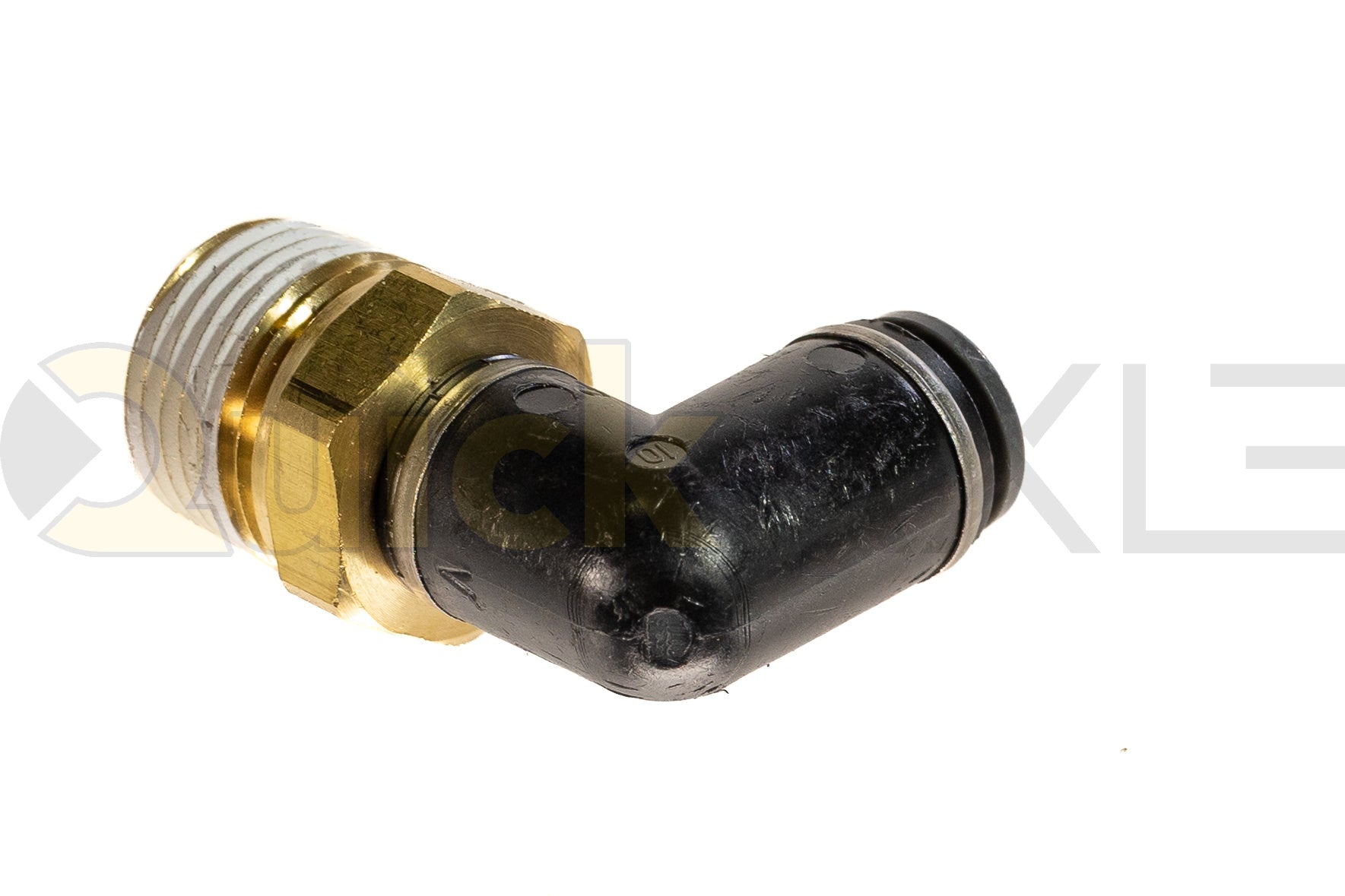

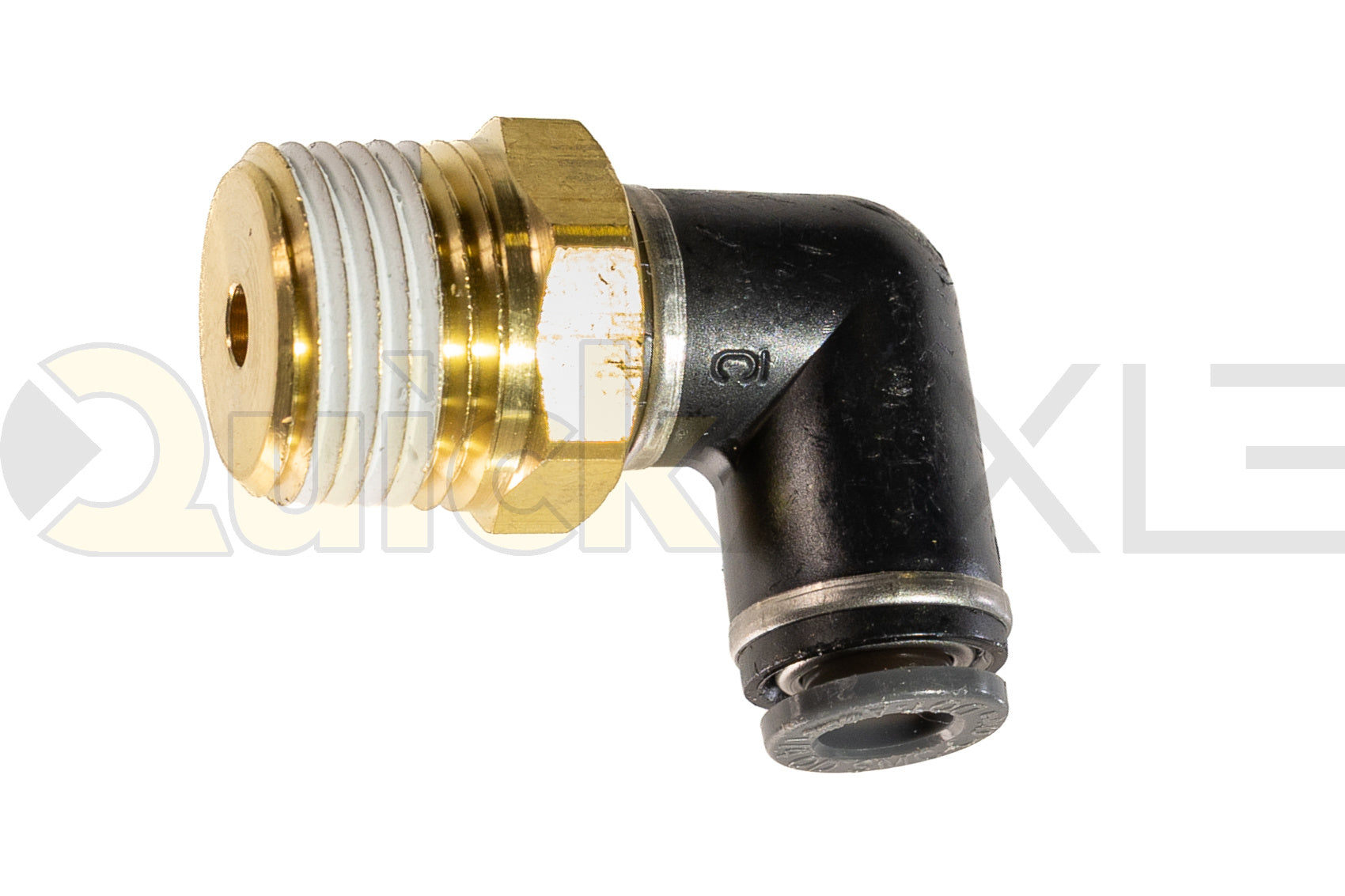

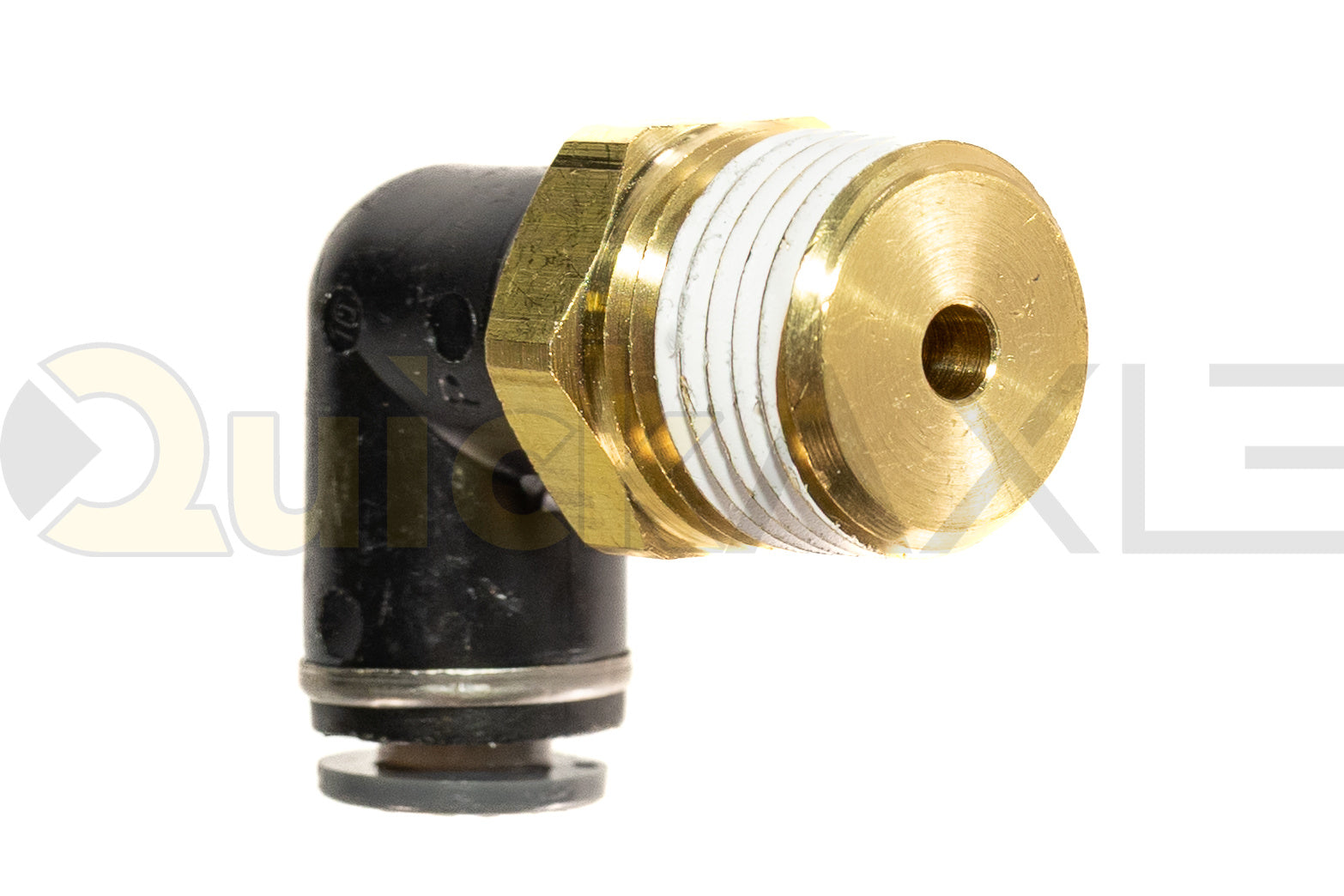

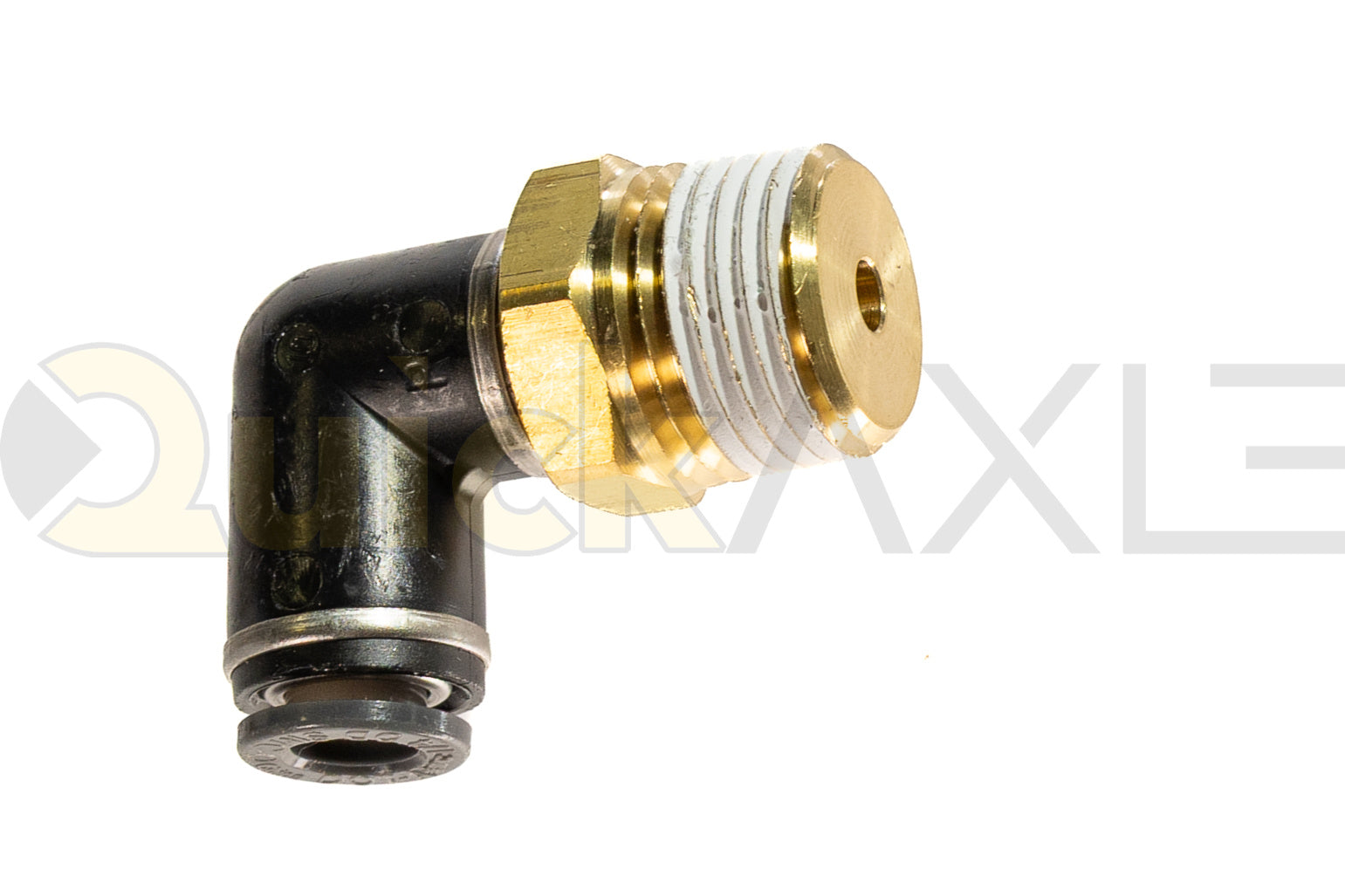

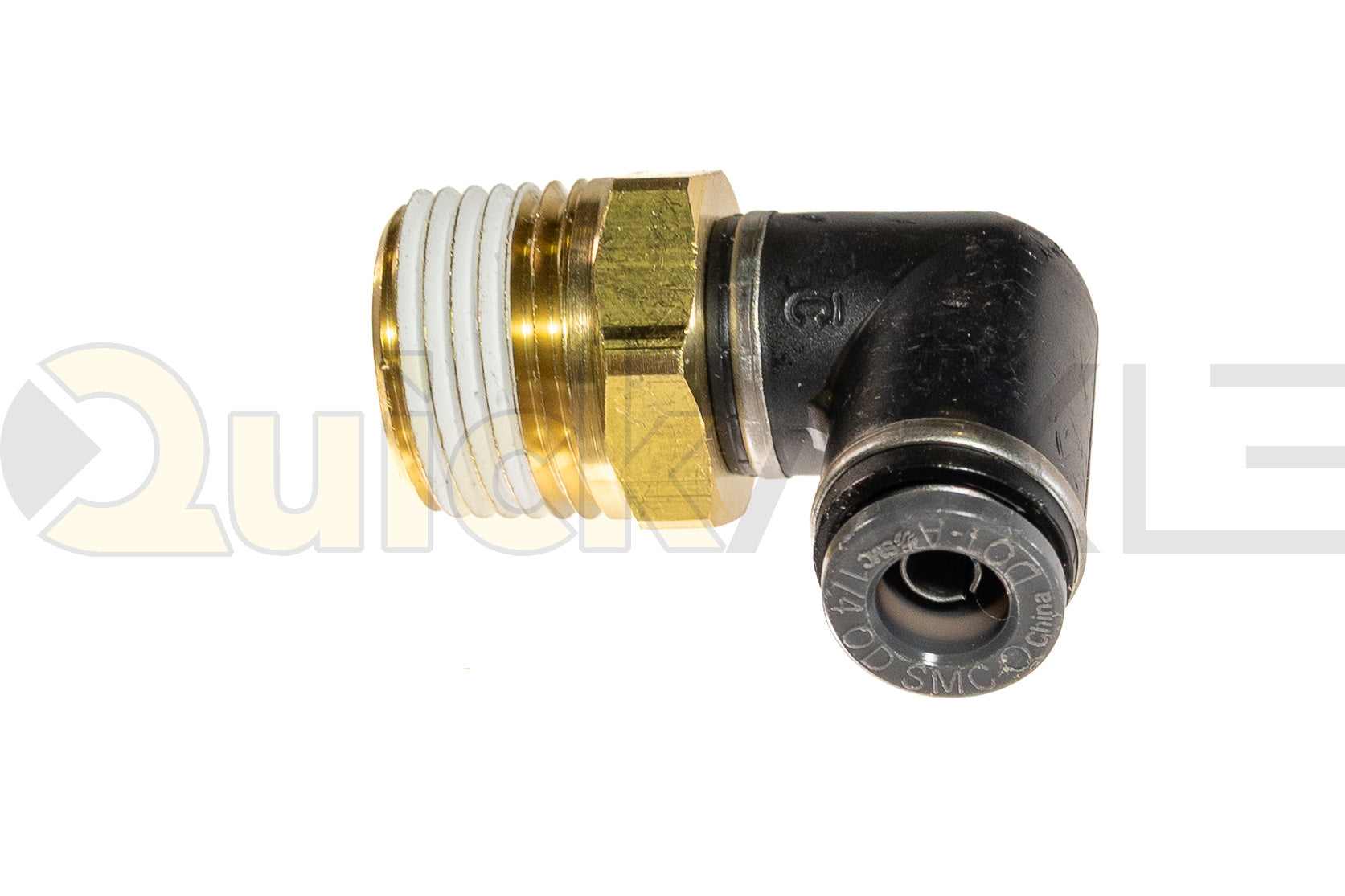

The SMC KV2L07-36S is a 90-degree male elbow push-to-connect fitting. The SMC Series KV2 reference chart identifies the highlighted configuration with 1/4 in applicable tube outside diameter and 3/8-18 NPT thread. It is used where a compact right-angle pneumatic tube connection is required.
Product Details
SKU 1230303
Brand: SMC
Part Number: KV2L07-36S
Product Type: 90-Degree Male Elbow
Applicable Tube OD: 1/4 in
Thread: 3/8-18 NPT
Hex: 17.46 mm
D1: 13.2 mm
D2: 13.3 mm
L1: 20.6 mm
L2: 29.4 mm
Minimum Flow Diameter: 3.5 mm
Common Uses
Right-angle pneumatic tube connection
Height control valve fitting service
Truck and trailer air system maintenance
Verify tube size, thread size, and original part number before ordering.
