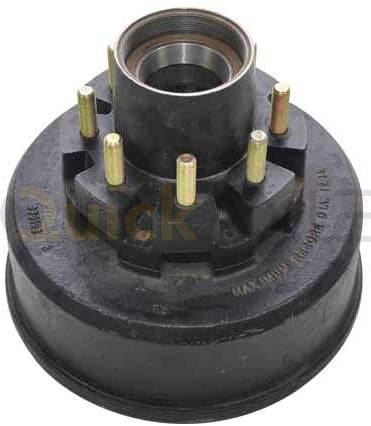

AxleTek BD-86510-16 Hub and Drum - 12-1/4 x 3-3/8 in - 8 on 6.5 in - 5/8 in Studs
AxleTek BD-86510-16 Hub and Drum - 12-1/4 x 3-3/8 in - 8 on 6.5 in - 5/8 in Studs
12 in stock
Regular price
$283.08 USD
Regular price
Sale price
$283.08 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Overview
AxleTek BD-86510-16 two-piece hub and drum assembly for compatible Dexter 9,000-10,000 lb general-duty axles. The drum measures 12-1/4 inches in diameter by 3-3/8 inches wide, with an 8 on 6.5-inch bolt pattern and 5/8-inch studs.
- Manufacturer
- AxleTek
- Manufacturer Part Number
- BD-86510-16
Key Features
- AxleTek Product Type: Two-piece hub and drum assembly with races and studs installed; not a complete bearing kit
Specifications
- Axle Application
- Dexter 9,000 lb axles built after October 1989 and 10,000 lb general-duty axles with two-piece hub/drums built before July 2009. Verify the original hub/drum configuration, axle build date and dimensions before ordering.
- Drum Size
- 12-1/4 in diameter x 3-3/8 in wide
- Bolt Pattern
- 8 on 6.5 in
- Stud Diameter
- 5/8 in
- Inner Bearing / Race
- 387A bearing (not included); 382A race (installed)
- Outer Bearing / Race
- 25580 bearing (not included); 25520 race (installed)
Cross-References and Interchange
- AxleTek Part Number: BD-86510-16
