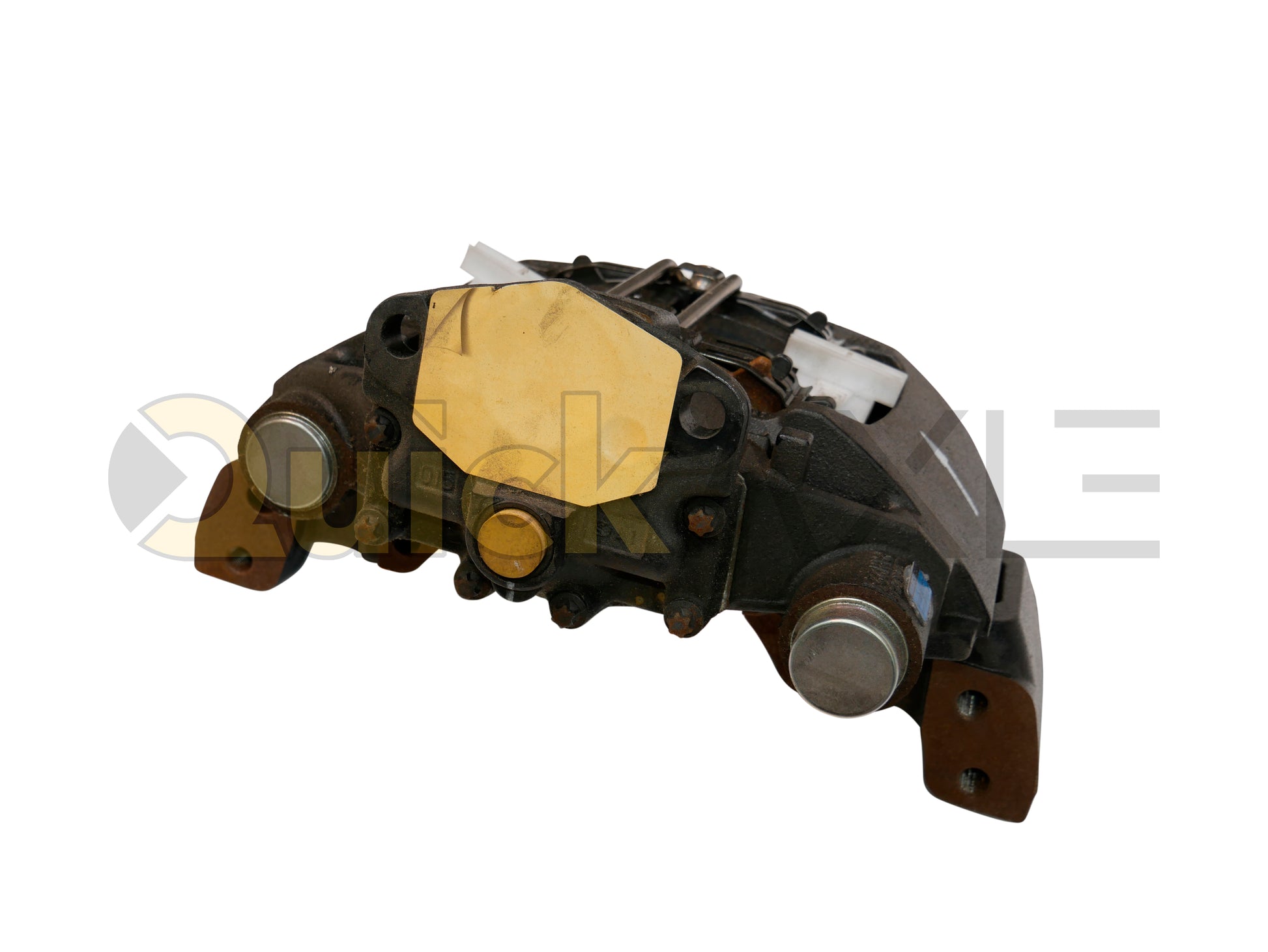

Calipers, Wabco Brand, PAN22 Type, 6402250330 Brand Part Number

WABCO Manufacturer-Branded PAN 22 Air Disc Brake Caliper - 6402250330

This WABCO manufacturer-branded air disc brake caliper is a PAN 22-1 right-hand caliper assembly for heavy-duty trailer air disc brake applications. The WABCO brand part number is 6402250330, and the Ridewell vendor reference is 1660361. This listing is for the WABCO-branded caliper assembly, not a generic aftermarket substitute.

Features and Benefits

• WABCO manufacturer-branded PAN 22-1 air disc brake caliper for trailer wheel-end applications.
• Right-hand caliper assembly for applications requiring WABCO 6402250330 or Ridewell 1660361.
• Supplied as a with-pads WABCO configuration according to WABCO catalog data.
• JURID 539 friction material reference supports proper pad and brake-system identification.
• Helps distinguish this right-hand caliper from left-hand calipers, pad kits, repair kits, no-pads references, and aftermarket-only references.

Specifications

• Brand: WABCO
• Brand Part Number: 6402250330
• Vendor Reference: Ridewell 1660361
• Product Type: Air Disc Brake Caliper
• Brake Series: PAN 22
• Brake Type: PAN 22-1
• Application Type: Trailer
• Position: Right Hand
• Friction Material: JURID 539
• Replacement Type: Manufacturer-branded replacement
• Version: With pads
• Mounting: 6x M16 x 1.5
• Brake Disc: 1.77 in / 45 mm
• Diameter: 16.93 in / 430 mm
• Stroke: 1.04 in / 26.5 mm
• Size: 460 x 250 x 320 mm
• Weight: 79.053 lb / 35.858 kg
• Related Pad / Brake Shoe Reference: 12999796 / 6402259222
• Related No-Pads WABCO Reference: 40225016 / 40-225-016

OEM / Manufacturer Cross-Reference

• WABCO 6402250330
• Ridewell 1660361
• WABCO 40225016 / 40-225-016 - PAN 22-1 right-hand reference
• WABCO 40225008 - PAN 22-1 right-hand related reference
• WABCO 40225012 - PAN 22-1 right-hand related reference

Aftermarket Cross-Reference

• Automann 158.40225016 / 15840225016 - PAN 22-1 right-hand aftermarket cross-reference
• BWP-NSI BADC04R - PAN 22-1 right-hand aftermarket caliper, listed as without pads
• Haldex RDB40225016CX - aftermarket or reman-style cross-reference
• Haldex RDB40225016CXCV - aftermarket or reman-style cross-reference
• Haldex RDB40225016CXHD - aftermarket or reman-style cross-reference
• Haldex RDB40225016CXXT - aftermarket or reman-style cross-reference
• Meritor 40225016NX - aftermarket or reman-style cross-reference
• OTR OTRP2201A - aftermarket PAN 22 right-hand caliper reference, listed as without pads
• VIPAR 40225016X - aftermarket cross-reference

Product Details

• Brand: WABCO
• Part Number: 6402250330
• Vendor Reference: 1660361
• Product Type: Air Disc Brake Caliper
• Brake Series: PAN 22
• Brake Type: PAN 22-1
• Application: Heavy-duty trailer air disc brake applications using WABCO PAN 22 components
• Position: Right Hand
• Friction Material: JURID 539
• Assembly Type: Caliper assembly with pads
• Condition: Manufacturer-branded replacement

Fitment Verification

Confirm the WABCO part number, Ridewell vendor reference, PAN 22-1 brake type, right-hand position, wheel-end application, and required assembly type before ordering. Some cross-reference numbers may represent the same right-hand caliper without pads, without carrier, or in an aftermarket replacement configuration.

Related Opposite-Hand Caliper

• WABCO 6402250320 - Left Hand PAN 22-1 caliper reference
• Ridewell 1660360 - Left Hand PAN 22-1 caliper reference
• WABCO 40225015 / 40-225-015 - Left Hand PAN 22-1 related reference
