Ridewell Pacbrake HP625 12V Air Compressor Kit -- Vertical Head, 3/4 HP, 150 PSI -- 1230236 / HP10632
Ridewell Pacbrake HP625 12V Air Compressor Kit -- Vertical Head, 3/4 HP, 150 PSI -- 1230236 / HP10632
10 in stock
Regular price
$794.53 USD
Regular price
Sale price
$794.53 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Overview

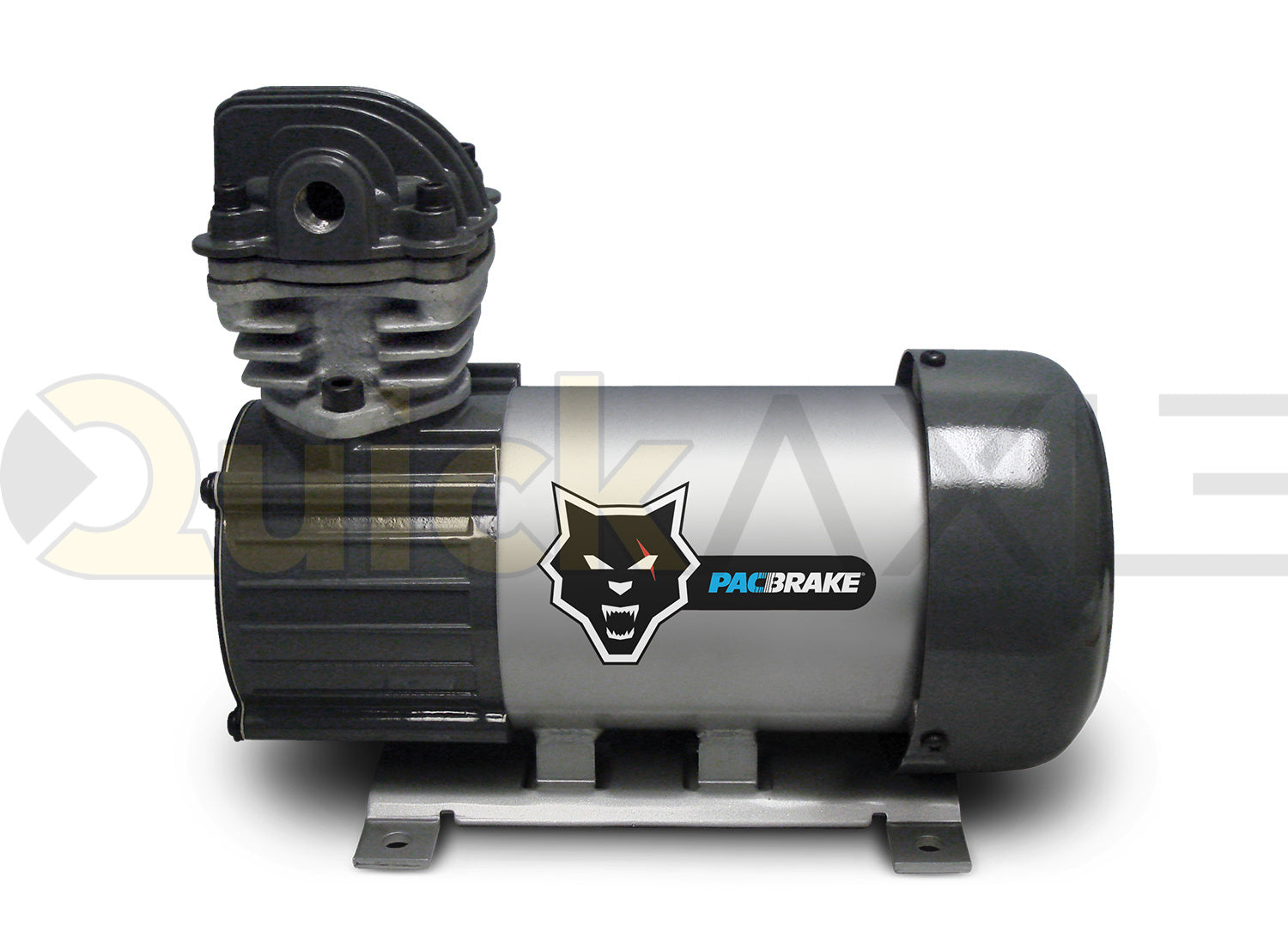

The Ridewell 1230236 air compressor is a Pacbrake HP625 Series 12VDC Basic Air Compressor Kit, Pacbrake part number HP10632. This kit uses the HP625 3/4 HP compressor in a vertical pump head configuration and is built for air tank applications requiring 150 PSI maximum working pressure and 100% duty cycle at 100 PSI.
Key Details
- Ridewell Part Number: 1230236
- Pacbrake Part Number: HP10632
- Brand / Manufacturer: Pacbrake
- Series: HP625
- Product Type: 12V air compressor kit
- Configuration: Vertical pump head
- Horsepower: 3/4 HP
- Voltage: 12V DC
- Duty Cycle: 100% at 100 PSI
- Maximum Working Pressure: 150 PSI
- Rated Flow: 3.4 SCFM
- Maximum Current Draw: 42 amps
Specifications
| Specification | Value |
|---|---|
| Voltage | 12V DC |
| Operating Voltage | 12V DC +/- 15% |
| Horsepower | 3/4 HP |
| Motor Type | Permanent magnet DC |
| Nominal Speed | 3000 RPM |
| Maximum Current Draw | 42 amps |
| Rated Flow | 3.4 SCFM |
| Maximum Working Pressure | 150 PSI |
| Maximum Restart Pressure | 5 PSI |
| Duty Cycle | 100% at 100 PSI |
| Maximum Continuous Run Time | 60 minutes |
| Ingress Protection | IP52 |
| Ingress Protection with Remote Intake | IP55 with HP10115 remote air intake kit |
| Ambient Temperature Range | -22 deg F to 158 deg F |
| Finish | Gunmetal grey / silver |
| Head Configuration | Vertical |
| Dimensions | 11.5 in L x 6 in W x 9.5 in H |
| Weight | 18.5 lb |
Compressor Features
- Oil-less compressor design
- Sealed bearings
- PTFE piston ring
- Copper wire wound permanent magnet motor
- Cast steel cylinder with hard anodized aluminum sleeve
- Mountable in any orientation
- Vertical pump head configuration
12V Compressor Fill Times
| Tank Size | Tank Part Number | 0 to 100 PSI | 100 to 150 PSI |
|---|---|---|---|
| 1/2 gallon | HP10053 | 12 seconds | 8 seconds |
| 2-1/2 gallon | HP10050 | 60 seconds | 46 seconds |
| 5 gallon | HP10094 | 156 seconds | 127 seconds |

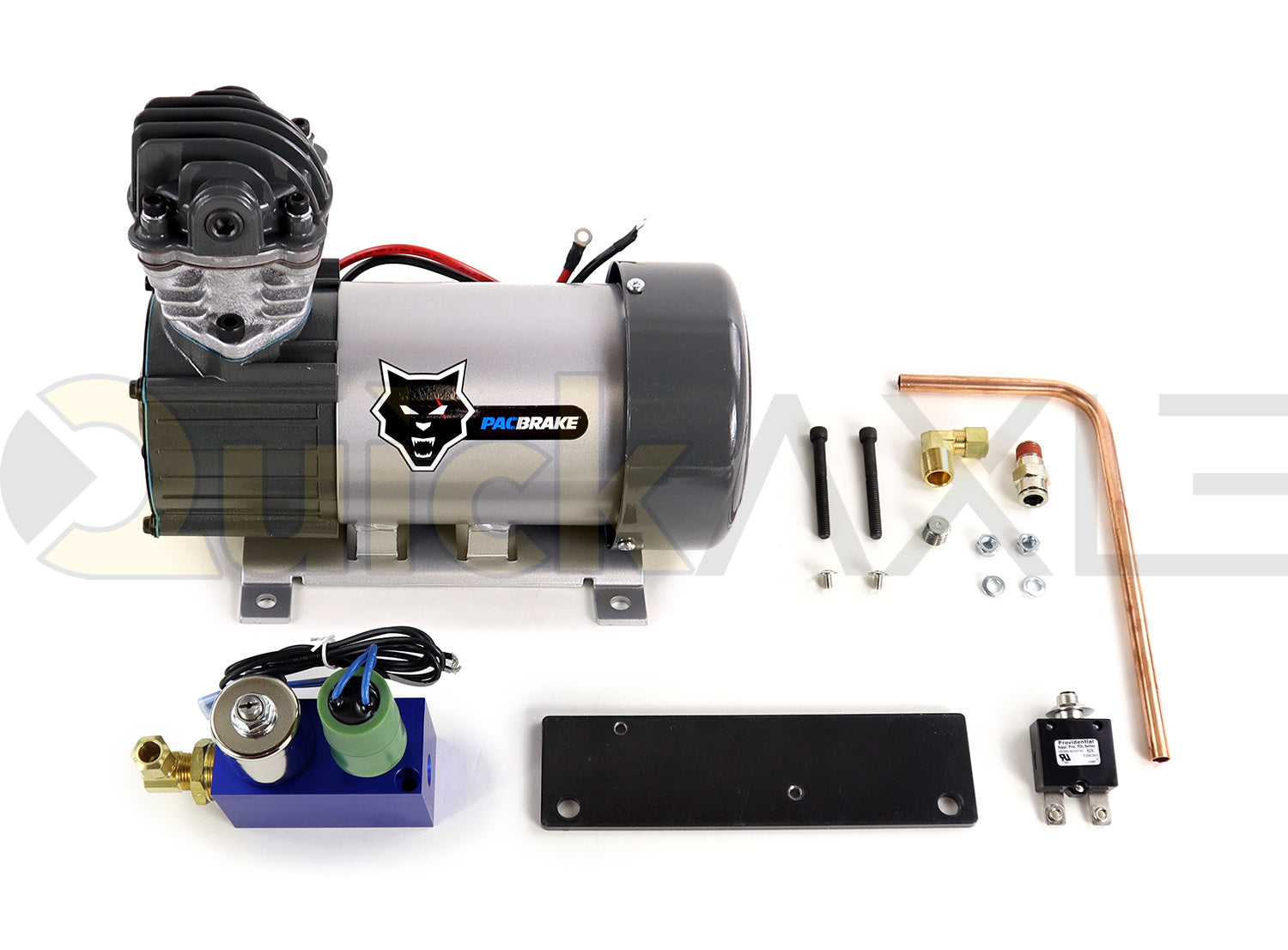

Included Items
- HP625 Series 12V air compressor
- Vertical pump head configuration
- Unloader assembly components
- Air distribution block
- Pressure switch
- Unloader valve
- One-way check valve
- Air inlet port and two air outlet ports
- 60 amp circuit breaker
- Brass fittings
- Copper discharge tube
- Mounting hardware
- Installation sheet
Notes
- This listing is for the 12V Pacbrake HP625 vertical head compressor kit, Pacbrake part number HP10632.
- HP625 Series compressors require an unloader assembly when used with an air tank. This kit includes unloader assembly components.
- The optional HP10115 remote air intake kit is sold separately and is used for installations with significant exposure to the elements.
- This is not the 12V horizontal head version HP10631 or the 24V vertical head version HP10633.
- Performance specifications are for the 12V HP625 compressor only.
