Disc Brake Axle Assembly, 71.5 Axle Track, Bendix LT Calipers, 23k Beam, Straight Beam With 5 in Dia and P Spindle 164122LB011

Fully assembled air disc brake trailer axle with Bendix ADB22XLT calipers. Buy online with no account required.

• QA Part Number: QSAHD-00006
• Vendor Part Number: 164122LB011
• Axle Track: 71.5" Track
• Spindle Type: P - Parallel
• Axle Beam Rating: 23000 lbs. Beam Rating (Air Ride)
• Axle Beam Rating: 25000 lbs. Beam Rating (Spring Ride)
• Beam Style: Straight Beam
• Axle Beam Diameter: 5.00" Axle Diameter
• Axle Beam Wall Thickness: 0.591" Axle Wall Thickness
• Spindle Nuts : Precision Nut
• Brake Type: Bendix ADB22XLT
• Brake Rating: 20000 lbs. Brake Rating
• Calipers: Bendix ADB22XLT
• Chamber: 18/24 Bendix
• Dust Cover: No Dust Covers
• ABS: No ABS Sensors
• Lubrication: OIL 80W-90
• Seal: ConMet - Seal
• Hub Cap Included: Hub Cap Included
• Hub Cap Manufacturer: STEMCO - Brand
• Hub Cap MFG part number: 343-4195
• Hub MFG: ConMet - Hub
• Hub Type: Hub Pilot
• Hub Material: Cast Iron - Hub
• Side Fill: Side Fill Port Included
• Stud Length: Long
• Stud Quantity: 10
• Stud Bolt Circle: 11.25" (285.75mm)
• Tone Ring: Yes 6.77" PDC
• Drum/Rotor Manufacturer: ConMet - Rotor
• Drum/Rotor Type: Cast Iron - Rotor

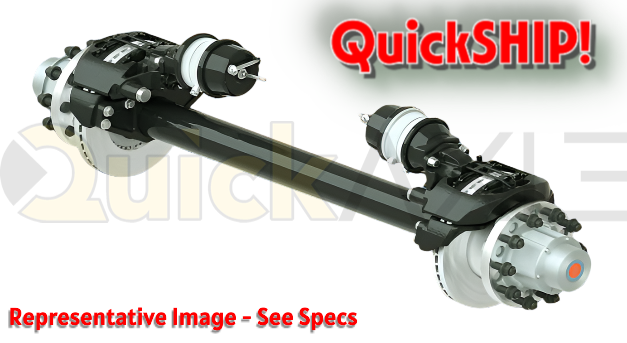

This 71.5" track complete air disc brake axle assembly from QuickAxle is equipped with Bendix ADB22XLT calipers and cast iron rotors for reliable, low-maintenance braking performance. The axle ships fully assembled with air chambers, hubs, bearings, and seals installed, allowing for fast installation and minimal downtime.

Available for online purchase with transparent pricing and no account required, this axle is ideal for fleets, owner-operators, and trailer manufacturers requiring a dependable air disc brake solution.
