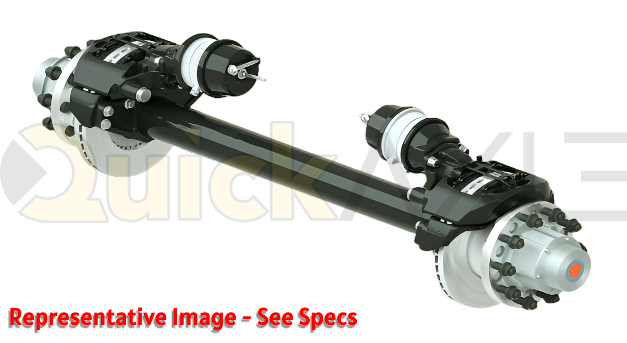

Disc Brake Axle Assembly, 71.5 Axle Track, Haldex LT Calipers, 23k Beam, Straight Beam With 5 in Dia and P spindle 164123HB004
Disc Brake Axle Assembly, 71.5 Axle Track, Haldex LT Calipers, 23k Beam, Straight Beam With 5 in Dia and P spindle 164123HB004
Regular price
$3,098.52 USD
Regular price
$0.00 USD
Sale price
$3,098.52 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- QA Part Number: AADHD-00003
- Vendor Part Number: 164123HB004
- Axle Track: 71.5" Track
- Spindle Type: P - Parallel
- Axle Beam Rating: 23000 lbs. Beam Rating (Air Ride)
- Axle Beam Rating: 25000 lbs. Beam Rating (Spring Ride)
- Beam Style: Straight Beam
- Axle Beam Diameter: 5.00" Axle Diameter
- Axle Beam Wall Thickness: 0.591" Axle Wall Thickness
- Spindle Nuts included: Precision Nut
- Brake Size: HLDX DBT22
- Brake Rating: 23000 lbs. Brake Rating
- Calipers: Haldex DBT22LT
- Chamber: TYP 18 Haldex
- Dust Cover: Dust Covers Included
- ABS: Bendix ABS Sensors Included
- Lubrication: OIL 80W-90
- Seal: ConMet - Seal
- Hub Cap Included: Hub Cap Included
- Hub Cap Manufacturer: STEMCO - Brand
- Hub Cap MFG part number: 343-4195
- Hub MFG: ConMet - Hub
- Hub Type: Hub Pilot
- Hub Material: Aluminum - Hub
- Side Fill: Side Fill Port Included
- Stud Length: Long
- Stud Quantity: 10
- Stud Bolt Circle: 11.25" (285.75mm)
- Tone Ring: Yes 7.25" PDC
- Drum/Rotor Manufacturer: ConMet - Rotor
- Drum/Rotor Type: Cast Iron - Rotor
