Production Lead Time Required for This Product
These items require 1- to 2-weeks production lead time.
1
/
of
1

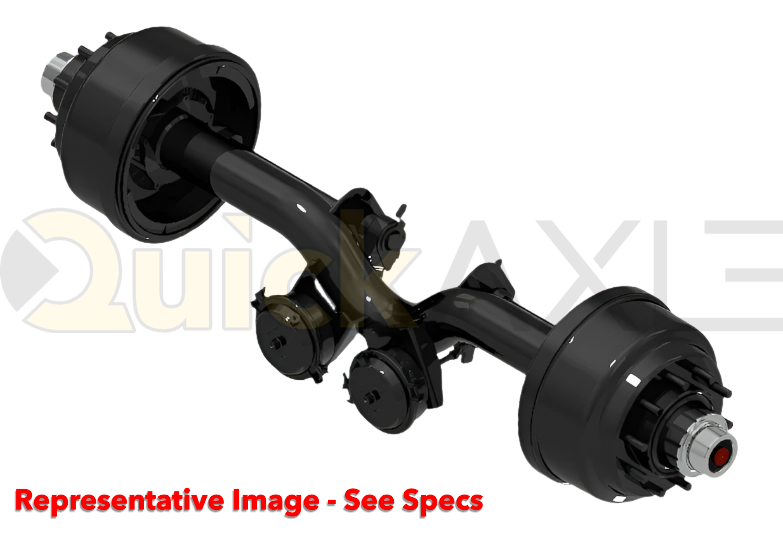

Drum Brake Axle Assembly, 71.5 Axle Track, 16.5x7.0 Brakes, 20k Beam, 6.25" Bent Tube With 5 in Dia and N Spindle 1647511F031
Drum Brake Axle Assembly, 71.5 Axle Track, 16.5x7.0 Brakes, 20k Beam, 6.25" Bent Tube With 5 in Dia and N Spindle 1647511F031
Regular price
$2,403.55 USD
Regular price
$0.00 USD
Sale price
$2,403.55 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- QA Part Number: AAHD-00065
- Vendor Part Number: 1647511F031
- Axle Track: 71.5" Track
- Spindle Type: N - Tapered
- Axle Beam Rating: 20,000 lbs. Beam Rating
- Beam Style: 6.25" Bent Tube
- Axle Beam Diameter: 5.00" Axle Diameter
- Axle Beam Wall Thickness: 0.59" Axle Wall Thickness
- Spindle Nuts : Precision Nut Included
- Brake Type: Drum Brake
- Brake Size: 16.5" x 7.0"
- Brake Rating: 16000 lbs. Brake Rating
- Chamber: TYP 24 DiPro
- Slack Adjusters : 5.5"Bendix
- Shoes: FMSI-4515
- Cam Spline: 28 Spline
- Cam Spline Diameter: 1.50" Spline Diameter
- Cam Length: 22.63" Cam Length
- Cam Covers Included: No Cam Cover
- Dust Cover: No Dust Cover
- ABS: No ABS Sensors
- Lubrication: OIL 80W-90
- Seal: ConMet
- Hub Cap: STEMCO 343-4009
-
Hub MFG: ConMet
- Hub Type: Hub Pilot
- Hub Material: Cast Iron
- Side Fill: Yes
- Stud Length: Long
- Stud Quantity: 10
- Stud Bolt Circle: 11.25" (285.75mm)
- Tone Ring: Yes 6.77" PDC
- Drum MFG: ConMet
- Drum Type: Cast Iron
