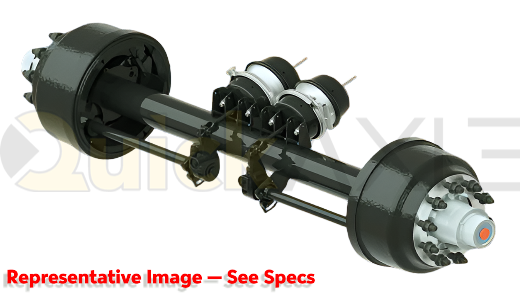

Drum Brake Axle Assembly, 71.5 Axle Track, 16.5x7.0 Brakes, 23k Beam, Straight Beam With 5 in Dia and N Spindle 1640085A
Drum Brake Axle Assembly, 71.5 Axle Track, 16.5x7.0 Brakes, 23k Beam, Straight Beam With 5 in Dia and N Spindle 1640085A
Regular price
$1,010.18 USD
Regular price
$0.00 USD
Sale price
$1,010.18 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- QA Part Number: AAHD-00007
- Vendor Part Number: 1640085A
- Axle Track: 71.5" Track
- Spindle Type: N - Tapered
- Axle Beam Rating: 23000 lbs. Beam Rating (Air Ride)
- Axle Beam Rating: 25000 lbs. Beam Rating (Spring Ride)
- Beam Style: Straight Beam
- Axle Beam Diameter: 5.00" Axle Diameter
- Axle Beam Wall Thickness: 0.59" Axle Wall Thickness
- Spindle Nuts : 4 Piece Nut Kit
- Brake Type: Drum Brake
- Brake Size: 16.5" x 7.0"
- Brake Rating: 22000 lbs. Brake Rating
- Chamber: Chambers Not Included
- Slack Adjusters : Slack Not Included
- Shoes: FMSI-4707
- Cam Spline: 28 Spline
- Cam Spline Diameter: 1.50" Spline Diameter
- Cam Length: 24.13" Cam Length
- Cam Covers Included: No Cam Cover
- Dust Cover: No Dust Cover
- ABS: No ABS Sensors
- Lubrication: No Lubrication
- Seal: No Seal
- Hub Cap: Hub Cap No Included
-
Hub MFG: Hub Not Included
- Hub Type: N/A
- Hub Material: N/A
- Side Fill: N/A
- Stud: N/A
- Tone Ring: N/A
- Drum MFG: Drum Not Included
- Drum Type: N/A
