Production Lead Time Required for This Product
These items require 1- to 2-weeks production lead time.
1
/
of
1

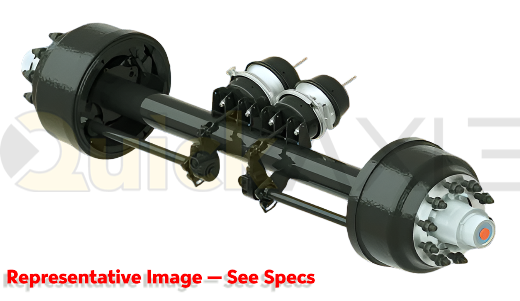

Drum Brake Axle Assembly, 71.5 Axle Track, 16.5x7.0 Brakes, 25k Beam, Straight Beam With 5 in Dia and N Spindle 1641324B003
Drum Brake Axle Assembly, 71.5 Axle Track, 16.5x7.0 Brakes, 25k Beam, Straight Beam With 5 in Dia and N Spindle 1641324B003
Regular price
$3,046.49 USD
Regular price
$0.00 USD
Sale price
$3,046.49 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- QA Part Number: AAHD-00033
- Vendor Part Number: 1641324B003
- Axle Track: 71.5" Track
- Spindle Type: N - Tapered
- Axle Beam Rating: 25000 lbs. Beam Rating (Air Ride)
- Axle Beam Rating: 27000 lbs. Beam Rating (Spring Ride)
- Beam Style: Straight Beam
- Axle Beam Diameter: 5.00" Axle Diameter
- Axle Beam Wall Thickness: 0.748" Axle Wall Thickness
- Spindle Nuts : Precision Nut Included
- Brake Type: Drum Brake
- Brake Size: 16.5" x 7.0"
- Brake Rating: 23000 lbs. Brake Rating
- Chamber: 30/30
- Slack Adjusters : 6"
- Shoes: FMSI-4707
- Cam Spline: 28 Spline
- Cam Spline Diameter: 1.50" Spline Diameter
- Cam Length: 24.13" Cam Length
- Cam Covers Included: No Cam Cover
- Dust Cover: No Dust Cover
- ABS: No ABS Sensors
- Lubrication: OIL 80W-90
- Seal: ConMet
- Hub Cap: STEMCO 343-4009
-
Hub MFG: ConMet
- Hub Type: Hub Pilot
- Hub Material: ALUMINUM
- Side Fill: Yes
- Stud Length: Long
- Stud Quantity: 10
- Stud Bolt Circle: 11.25" (285.75mm)
- Tone Ring: Yes 6.77" PDC
- Drum MFG: Webb
- Drum Type: Lightweight Composite
