Production Lead Time Required for This Product
These items require 1- to 2-weeks production lead time.
1
/
of
1

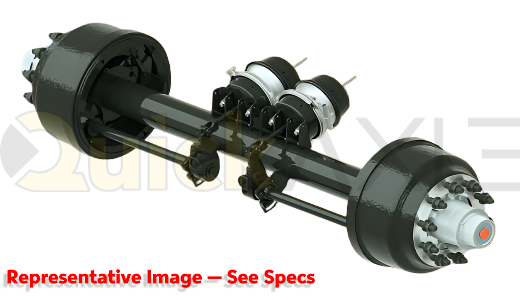

Drum Brake Axle Assembly, 77.5 Axle Track, 12.25x7.5 Brakes, 25k Beam, Straight Beam With 5 in Dia and N Spindle 1644204B047
Drum Brake Axle Assembly, 77.5 Axle Track, 12.25x7.5 Brakes, 25k Beam, Straight Beam With 5 in Dia and N Spindle 1644204B047
Regular price
$2,941.49 USD
Regular price
$0.00 USD
Sale price
$2,941.49 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- QA Part Number: AAHD-00068
- Vendor Part Number: 1644204B047
- Axle Track: 77.5" Track
- Spindle Type: N - Tapered
- Axle Beam Rating: 25000 lbs. Beam Rating (Air Ride)
- Axle Beam Rating: 27000 lbs. Beam Rating (Spring Ride)
- Beam Style: Straight Beam
- Axle Beam Diameter: 5.00"
- Axle Beam Wall Thickness: 0.748"
- Spindle Nuts: 4 Piece Nut Kit
- Brake Type: Drum Brake
- Brake Size: 12.25" x 7.5"
- Brake Rating: 20,000 lbs
- Chamber: 30/30 DiPro
- Slack Adjusters: 6" FUWA
- Shoes: FMSI-4692
- Cam Spline: 28 Spline
- Cam Spline Diameter: 1.50"
- Cam Length: 23.38"
- Cam Covers Included: No
- Dust Cover: No
- ABS: Bendix ABS Sensors Included
- Lubrication: OIL 80W-90
- Seal: Guardian HP
- Hub Cap: STEMCO 343-4009
- Hub MFG: Walther EMC
- Hub Type: Hub Pilot
- Hub Material: Cast Iron
- Side Fill: No
- Stud Length: Long
- Stud Quantity: 8
- Stud Bolt Circle: 10.83" (275mm)
- Tone Ring: Yes (6.77" PDC)
- Drum MFG: Walther EMC
- Drum Type: Cast Iron
