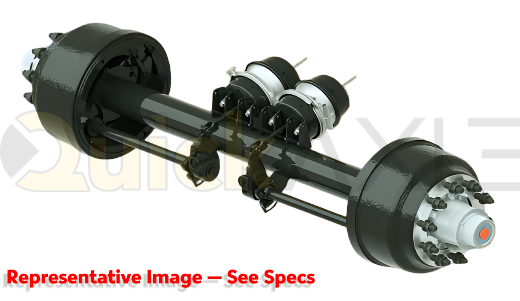

Drum Brake Axle Assembly, 77.5 Axle Track, 12.25x7.5 Brakes, 25k Beam, Straight Beam With 5 in Dia and N Spindle 1644204B117
Drum Brake Axle Assembly, 77.5 Axle Track, 12.25x7.5 Brakes, 25k Beam, Straight Beam With 5 in Dia and N Spindle 1644204B117
Regular price
$2,982.26 USD
Regular price
$0.00 USD
Sale price
$2,982.26 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- QA Part Number: AAHD-00063
- Vendor Part Number: 1644204B117
- Axle Track: 77.5" Track
- Spindle Type: N - Tapered
- Axle Beam Rating: 25000 lbs. Beam Rating (Air Ride)
- Axle Beam Rating: 27000 lbs. Beam Rating (Spring Ride)
- Beam Style: Straight Beam
- Axle Beam Diameter: 5.00" Axle Diameter
- Axle Beam Wall Thickness: 0.748" Axle Wall Thickness
- Spindle Nuts : 4 Piece Nut Kit
- Brake Type: Drum Brake
- Brake Size: 12.25" x 7.5"
- Brake Rating: 20000 lbs. Brake Rating
- Chamber: 30/30 DiPro
- Slack Adjusters : 6"FUWA
- Shoes: FMSI-4692
- Cam Spline: 28 Spline
- Cam Spline Diameter: 1.50" Spline Diameter
- Cam Length: 23.38" Cam Length
- Cam Covers Included: No Cam Cover
- Dust Cover: No Dust Cover
- ABS: Bendix ABS Sensors Included
- Lubrication: OIL 80W-90
- Seal: Guardian HP
- Hub Cap: STEMCO 343-4009
-
Hub MFG: Walther EMC
- Hub Type: Hub Pilot
- Hub Material: Cast Iron
- Side Fill: No
- Stud Length: Short
- Stud Quantity: 8
- Stud Bolt Circle: 10.83" (275mm)
- Tone Ring: Yes 6.77" PDC
- Drum MFG: Walther EMC
- Drum Type: Cast Iron Iron
