Quick Ship Production Lead Time

These items requires 2- to 3-Day production lead time.

  • Drum Brake Axle Assembly, 77.5 Axle Track, 16.5x7.0 Brakes, 23k Beam, Straight Beam With 5 in Dia and P Spindle 1642223B008
1 1

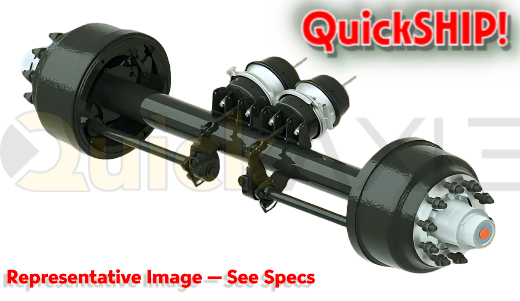

Drum Brake Axle Assembly, 77.5 Axle Track, 16.5x7.0 Brakes, 23k Beam, Straight Beam With 5 in Dia and P Spindle 1642223B008

Drum Brake Axle Assembly, 77.5 Axle Track, 16.5x7.0 Brakes, 23k Beam, Straight Beam With 5 in Dia and P Spindle 1642223B008

$2,158.49 USD
$0.00 USD $2,158.49 USD
Sale Sold out
  • QA Part Number: QSAHD-00003
  • Axle Track: 77.5 Track
  • Spindle Type: P
  • Axle Beam Rating: 23000 lbs. Beam Rating (Air Ride)
  • Axle Beam Rating: 25000 lbs. Beam Rating (Spring Ride)
  • Beam Style: Straight Beam
  • Axle Beam Diameter: 5.00 Axle Diameter
  • Axle Beam Wall Thickness: 0.591" Axle Wall Thickness
  • Spindle Nuts : Precision Nut
  • Brake Type: Drum Brake
  • Brake Size: 16.5 x 7.0
  • Brake Rating: 20000 lbs. Brake Rating
  • Chamber: 30/30 Value
  • Slack Adjusters : 6 Value
  • Shoes: FMSI-4707
  • Cam Spline: 28 Spline
  • Cam Spline Diameter: 1.50 Spline Diameter
  • Cam Length: 24.13 Cam Length
  • Cam Covers Included: No Cam Covers
  • Dust Cover: No Dust Covers
  • ABS: No ABS Sensors
  • Lubrication: OIL 80W-90
  • Seal: ConMet - Seal
  • Hub Cap Included: Hub Cap Included
  • Hub Cap Manufacturer: STEMCO - Brand
  • Hub Cap MFG part number: 343-4195
  • Hub MFG: ConMet - Hub
  • Hub Type: Hub Pilot
  • Hub Material: Cast Iron - Hub
  • Side Fill: Side Fill Port Included
  • Stud: Long Stud
  • Tone Ring: Yes 6.77 PDC
  • Drum/Rotor Manufacturer: ConMet - Drum
  • Drum/Rotor Type: Cast Iron - Drum
  • Meritor Similar: TP-8671-LH-XXXX
  • Ridewell Similar: 1642223B008
