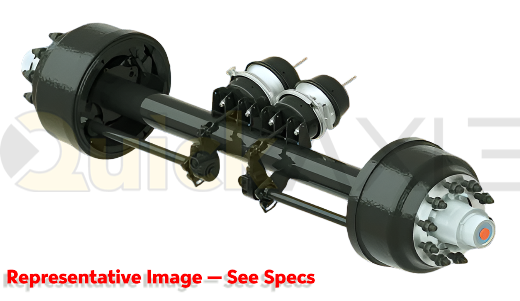

Drum Brake Axle Assembly, 77.5 Axle Track, 16.5x7.0 Brakes, 23k Beam, Straight Beam With 5 in Dia and P Spindle 1642234B015
Drum Brake Axle Assembly, 77.5 Axle Track, 16.5x7.0 Brakes, 23k Beam, Straight Beam With 5 in Dia and P Spindle 1642234B015
Regular price
$2,329.96 USD
Regular price
$0.00 USD
Sale price
$2,329.96 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- QA Part Number: AAHD-00048
- Vendor Part Number: 1642234B015
- Axle Track: 77.5" Track
- Spindle Type: P - Parallel
- Axle Beam Rating: 23000 lbs. Beam Rating (Air Ride)
- Axle Beam Rating: 25000 lbs. Beam Rating (Spring Ride)
- Beam Style: Straight Beam
- Axle Beam Diameter: 5.00" Axle Diameter
- Axle Beam Wall Thickness: 0.59" Axle Wall Thickness
- Spindle Nuts : Castle Nut Kit
- Brake Type: Drum Brake
- Brake Size: 16.5" x 7.0"
- Brake Rating: 20000 lbs. Brake Rating
- Chamber: 30/30
- Slack Adjusters : 6"Bendix
- Shoes: FMSI-4707
- Cam Spline: 28 Spline
- Cam Spline Diameter: 1.50" Spline Diameter
- Cam Length: 24.13" Cam Length
- Cam Covers Included: No Cam Cover
- Dust Cover: No Dust Cover
- ABS: Bendix ABS Sensors Included
- Lubrication: Synthetic Hard-Pack Grease
- Seal: Guardian HP
- Hub Cap: STEMCO 352-4195
-
Hub MFG: Walther EMC
- Hub Type: Hub Pilot
- Hub Material: Cast Iron
- Side Fill: No
- Stud Length: Long
- Stud Quantity: 10
- Stud Bolt Circle: 11.25" (285.75mm)
- Tone Ring: Yes 6.77" PDC
- Drum MFG: Webb
- Drum Type: Cast Iron
