Production Lead Time Required for This Product

These items require 1- to 2-weeks production lead time.

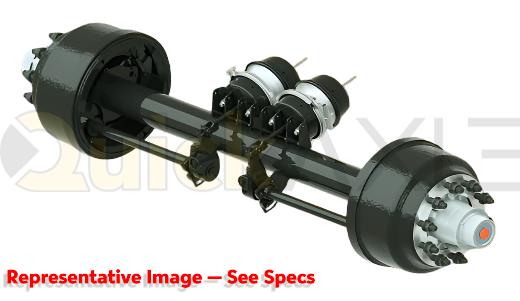

  • Drum Brake Axle Assembly, 77.5 Axle Track, 16.5x7.0 Brakes, 25k Beam, Straight Beam With 5 in Dia and N Spindle 1642334B007
1 1

Drum Brake Axle Assembly, 77.5 Axle Track, 16.5x7.0 Brakes, 25k Beam, Straight Beam With 5 in Dia and N Spindle 1642334B007

Drum Brake Axle Assembly, 77.5 Axle Track, 16.5x7.0 Brakes, 25k Beam, Straight Beam With 5 in Dia and N Spindle 1642334B007

$2,526.02 USD
$0.00 USD $2,526.02 USD
Sale
Shipping calculated at checkout.
  • QA Part Number: AAHD-00050
  • Vendor Part Number: 1642334B007
  • Axle Track: 77.5" Track
  • Spindle Type: N - Tapered
  • Axle Beam Rating: 25000 lbs. Beam Rating (Air Ride)
  • Axle Beam Rating: 27000 lbs. Beam Rating (Spring Ride)
  • Beam Style: Straight Beam
  • Axle Beam Diameter: 5.00" Axle Diameter
  • Axle Beam Wall Thickness: 0.748" Axle Wall Thickness
  • Spindle Nuts : Precision Nut Included
  • Brake Type: Drum Brake
  • Brake Size: 16.5" x 7.0"
  • Brake Rating: 23000 lbs. Brake Rating
  • Chamber: 30/30
  • Slack Adjusters : 6"Bendix
  • Shoes: FMSI-4707
  • Cam Spline: 28 Spline
  • Cam Spline Diameter: 1.50" Spline Diameter
  • Cam Length: 24.13" Cam Length
  • Cam Covers Included: No Cam Cover
  • Dust Cover: Dust Cover Included
  • ABS: Bendix ABS Sensors Included
  • Lubrication: OIL 80W-90
  • Seal: ConMet
  • Hub Cap: STEMCO 343-4009
  • Hub MFG: ConMet
  • Hub Type: Hub Pilot
  • Hub Material: Cast Iron
  • Side Fill: Yes
  • Stud Length: Long
  • Stud Quantity: 10
  • Stud Bolt Circle: 11.25" (285.75mm)
  • Tone Ring: Yes 6.77" PDC
  • Drum MFG: ConMet
  • Drum Type: Cast Iron
