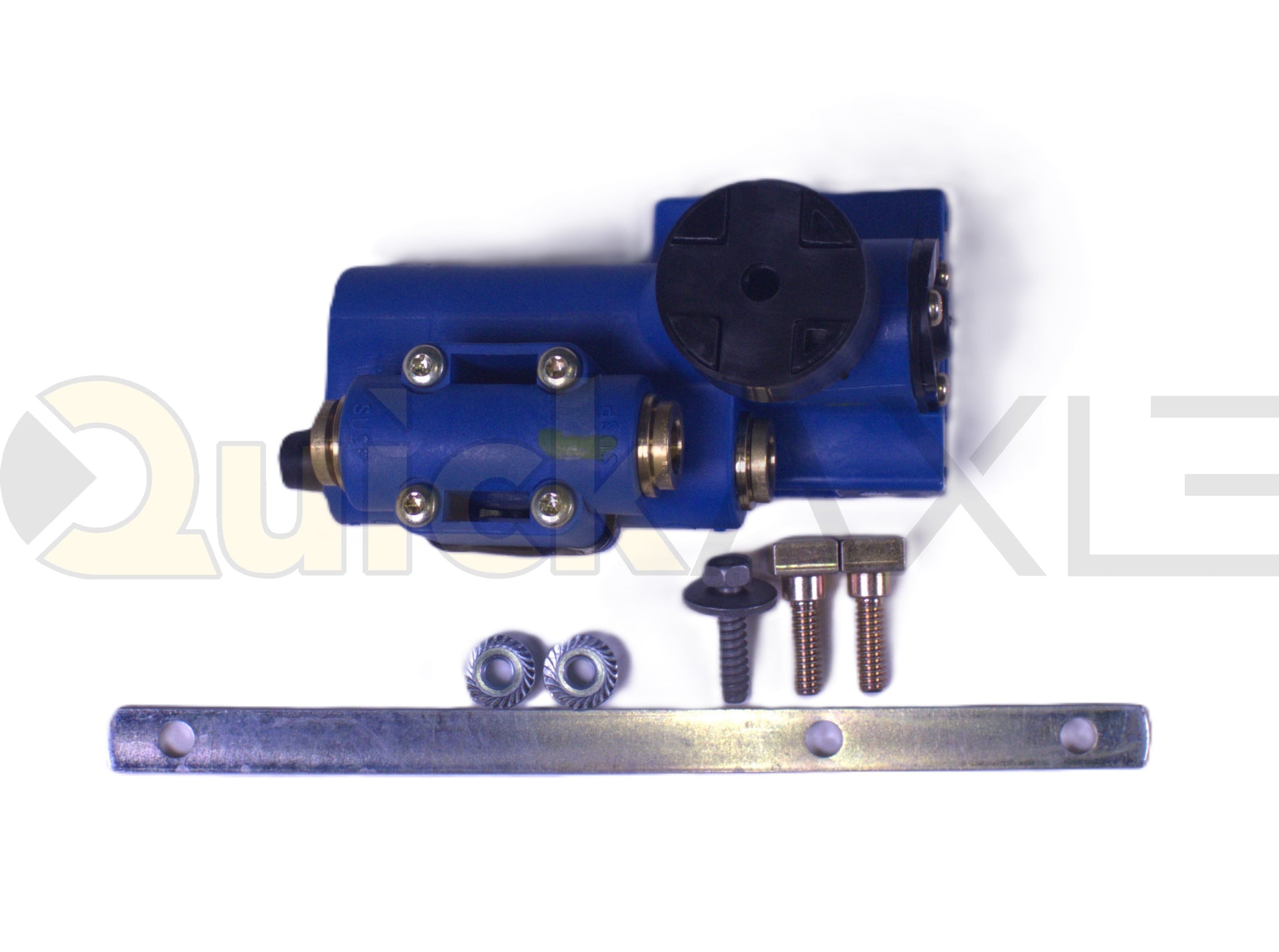

Height Control Kit, Dump HCV (pilot dump), (1) 3/8" push-to-connect supply, (2) 3/8" push-to-connect suspension, No PPV, No delay, Standard lever

• QA Part Number: HCK-00007
• Vendor Part Number: 6310BAAA00
• Valve Type: Dump Height Control Valve (Pilot-Operated)
• Supply Port: (1) 3/8" Push to Connect
• Suspension Ports: (2) 3/8" Push to Connect
• Dump Pilot Port: Present (pilot port for remote dump control)
• Exhaust: Rubber-boot exhaust; mount at or below horizontal
• PPV (Pressure Protection Valve): Not included
• Lever: Option B
• Vertical Link: Option A
• Lower Pin Assembly: Option A
• Upper Mounting Bracket: Option 0
• Fittings Pack: Option 0
• Band Clamp (Axle Dia.): Not included
• Installation Notes: Lever-to-HCV angle 20°–45°; typical torques — lever screw 50–55 in-lb, T-bolts 60–80 in-lb, lower pin 90–120 in-lb, self-tapping screw 50–55 in-lb
• Application Family: HCK family 63XXBAAA0X (this part resolves HCV=1, PPV=0, Lever=B, Link=A, Reserved=A, Pin=A, Bracket=0, Fittings=0)
