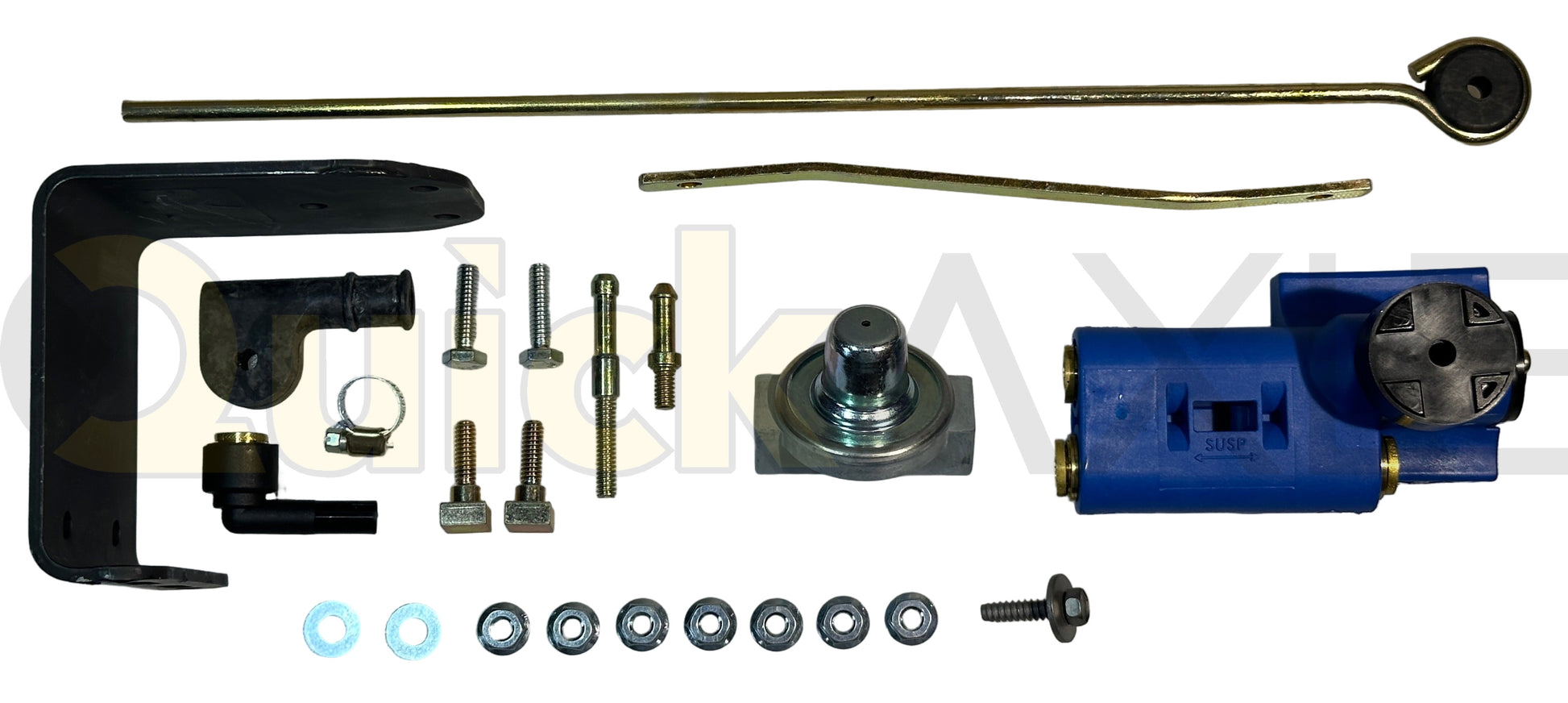

Height Control Kit, RAR-240 Overslung, Standard HCV (Non-Dump), Includes PPV, (1) 3/8" Push to Connect Supply Port, (2) 3/8" Push to Connect Suspension Ports

• QA Part Number: HCK-00003
• Vendor Part Number: 6301CGAE21
• Valve Type: Standard Height Control Valve (Non-Dump)
• Supply Port: (1) 3/8" Push to Connect
• Suspension Ports: (2) 3/8" Push to Connect
• Dump Pilot Port: Not present (applies only to dump-style valves)
• Exhaust: Rubber-boot exhaust; mount at or below horizontal
• PPV (Pressure Protection Valve): Included
• Lever: Option C (round, cut-to-length style)
• Vertical Link: Option G
• Lower Pin Assembly: Option E

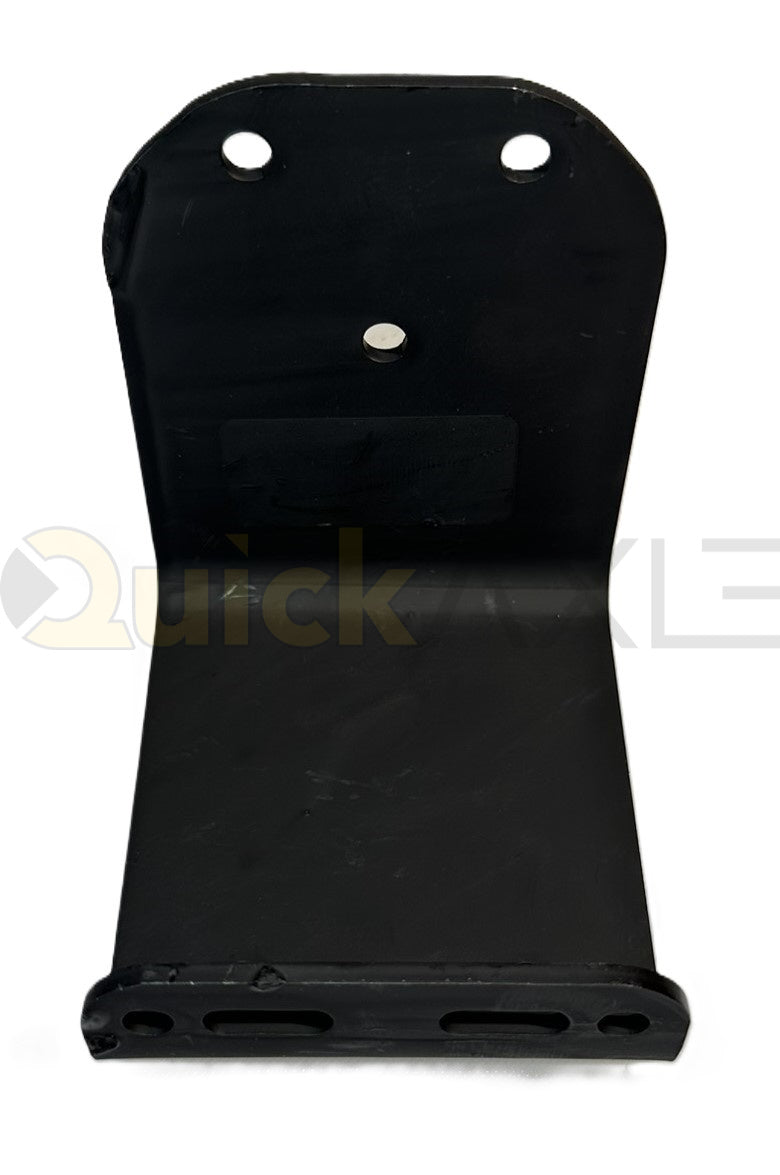

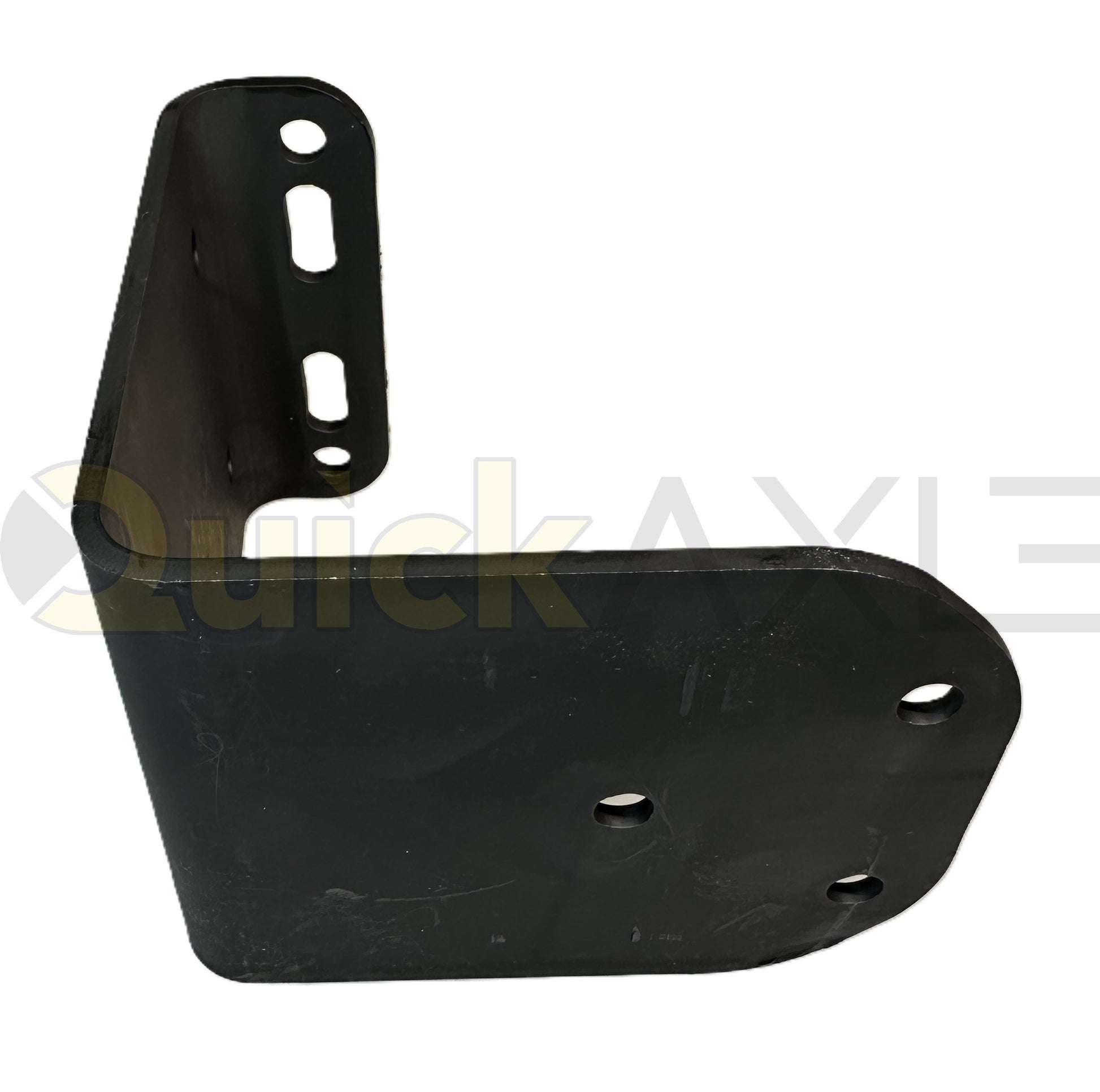

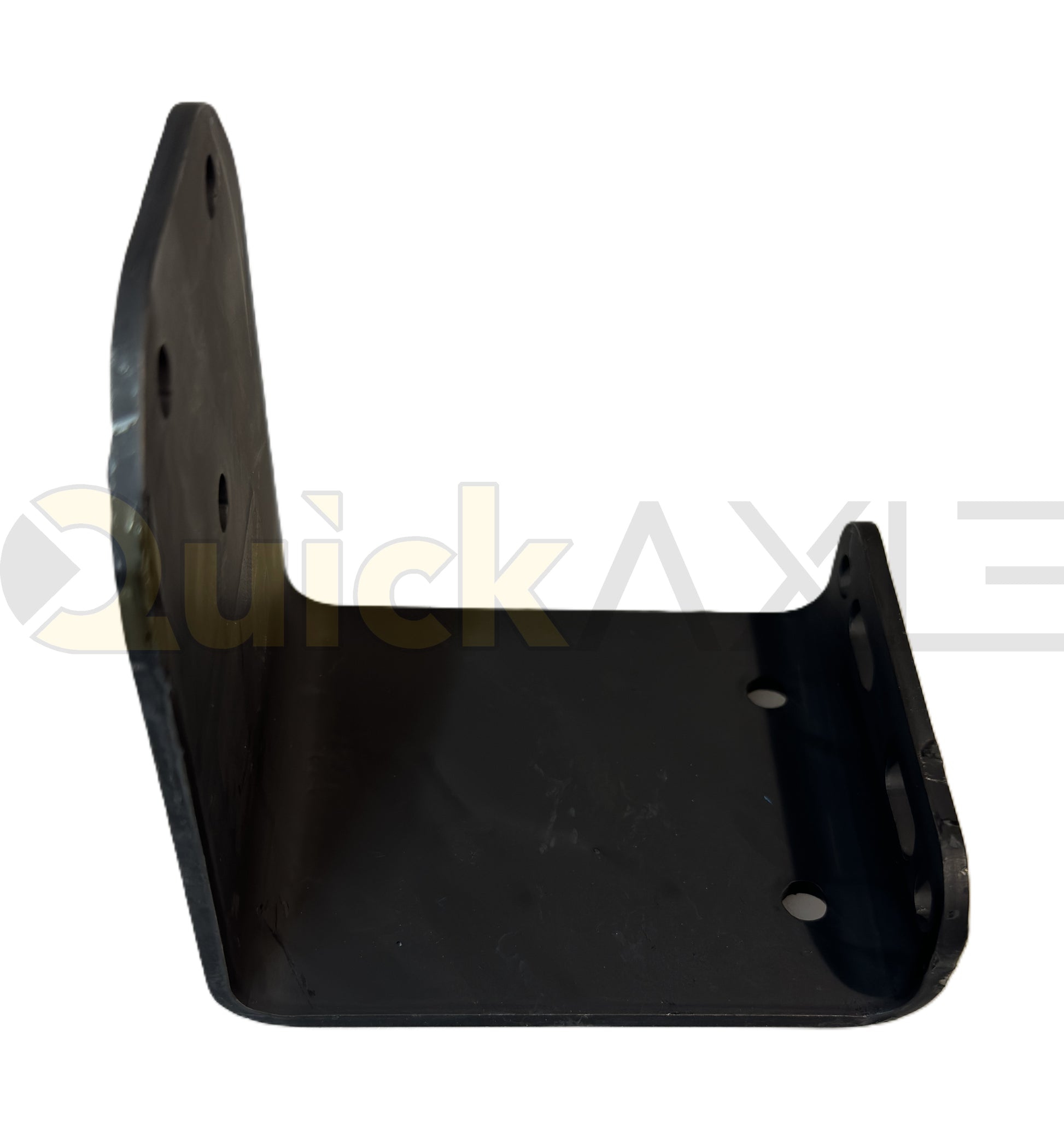

• Upper Mounting Bracket: Option 2
• Fittings Pack: Option 1
• Installation Notes: Lever-to-HCV angle 20°–45°; typical torques — lever screw 50–55 in-lb, T-bolts 60–80 in-lb, lower pin 90–120 in-lb, self-tapping screw 50–55 in-lb
• Application Family: RAR-240 Overslung (25K/30K) — HCK family 63XXCGAE2X (this part resolves HCV=0, PPV=1, Lever=C, Link=G, Reserved=A, Pin=E, Bracket=2, Fittings=1)
