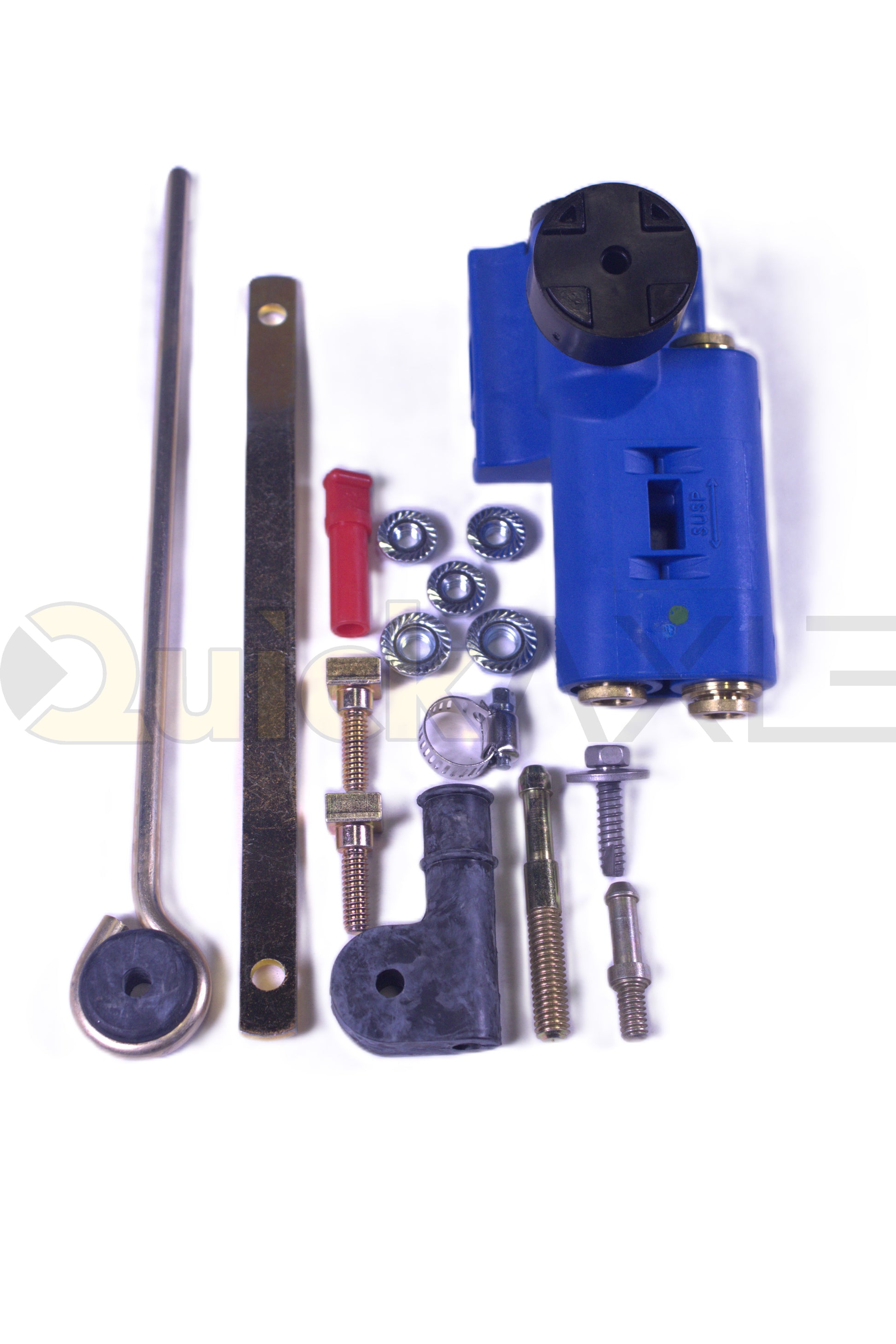

Height Control Kit, Standard HCV (Non-Dump), (1) 3/8" push-to-connect supply, (2) 3/8" push-to-connect suspension, No PPV, No delay, Offset lever

• QA Part Number: HCK-00006
• Vendor Part Number: 6300CCAB03

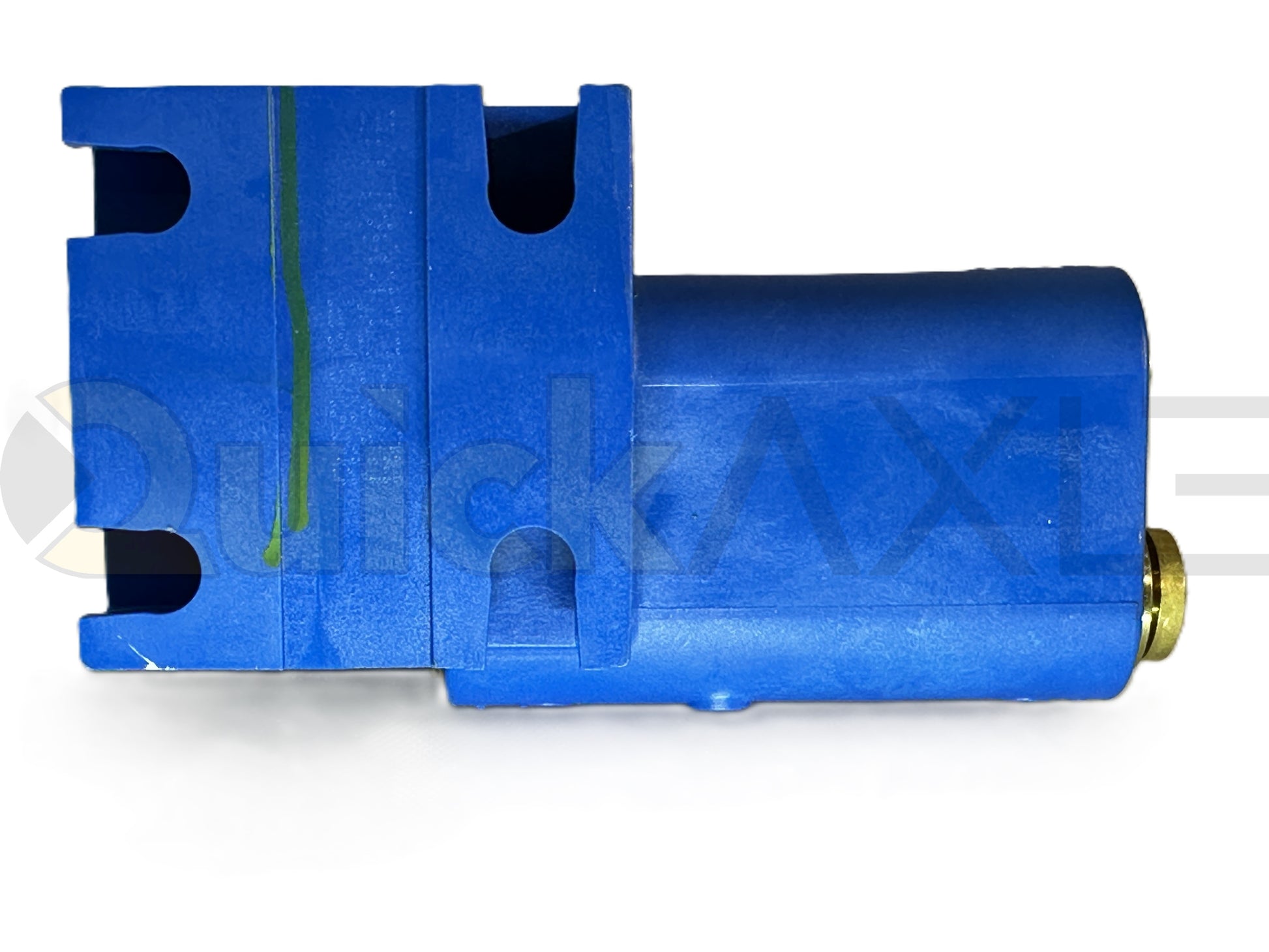

• Valve Type: Standard Height Control Valve (Non-Dump)
• Supply Port: (1) 3/8" Push to Connect
• Suspension Ports: (2) 3/8" Push to Connect
• Dump Pilot Port: Not present (applies only to dump-style valves)
• Exhaust: Rubber-boot exhaust; mount at or below horizontal
• PPV (Pressure Protection Valve): Not included
• Lever: Option C

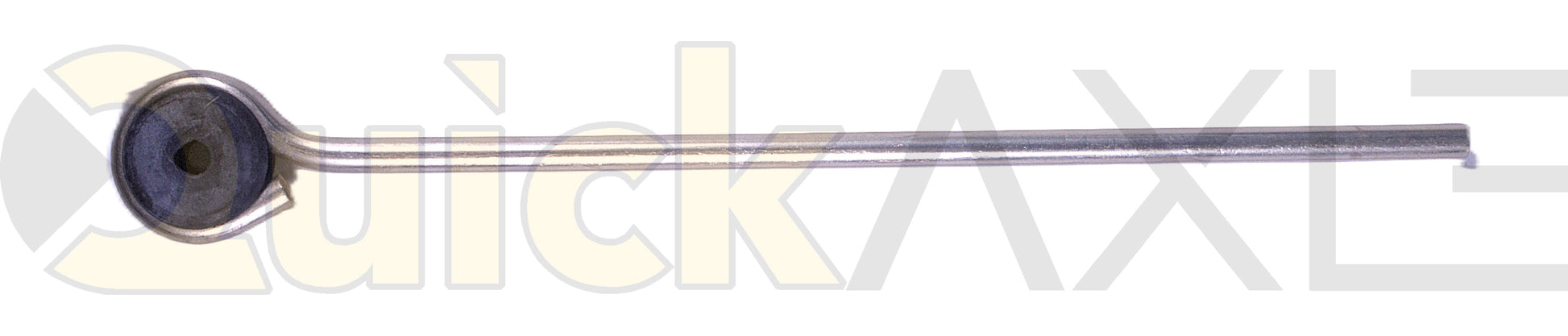

• Vertical Link: Option C
• Lower Pin Assembly: Option B
• Upper Mounting Bracket: Option 0
• Fittings Pack: Option 3
• Band Clamp (Axle Dia.): Not included

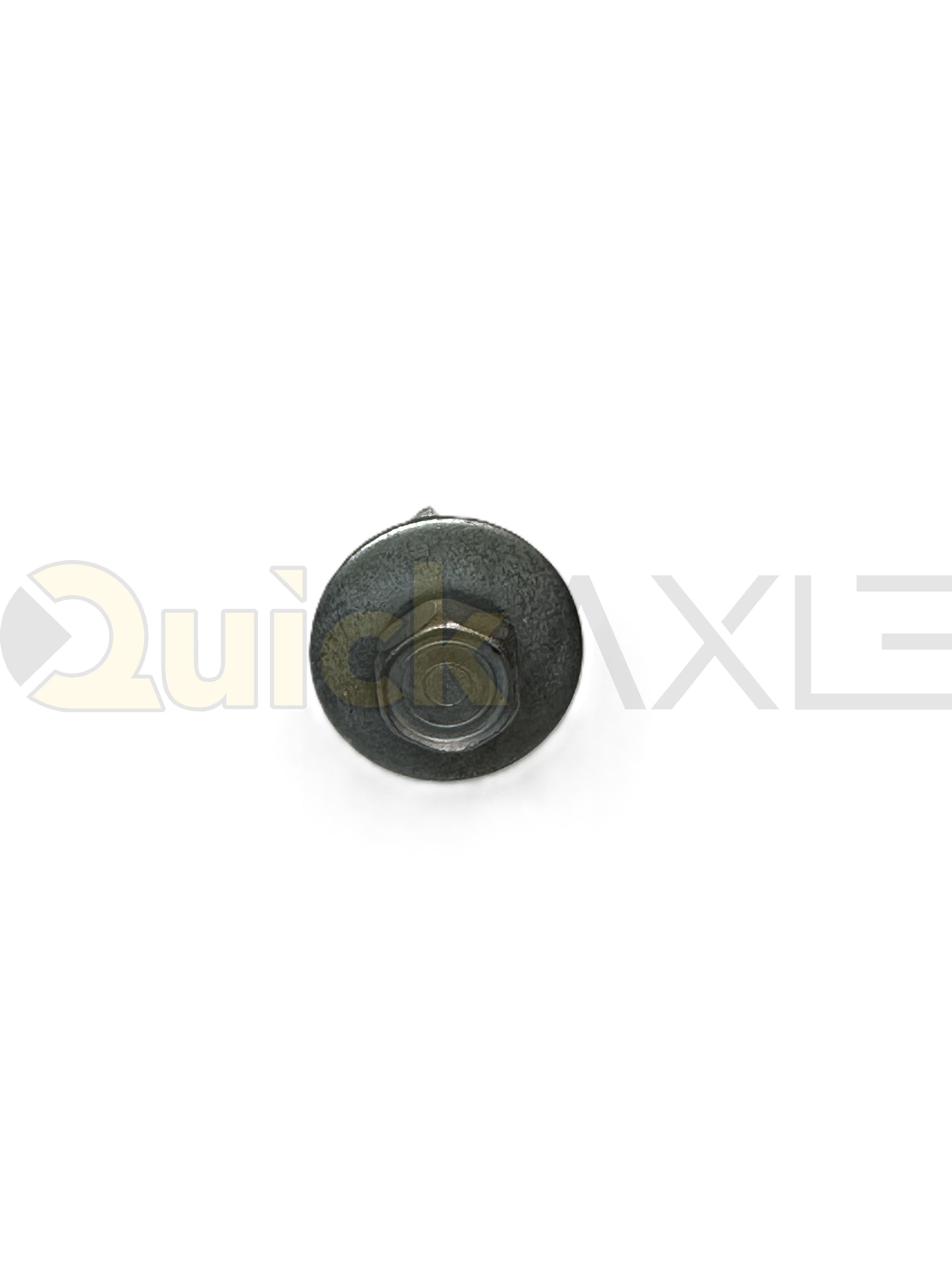

• Installation Notes: Lever-to-HCV angle 20°–45°; typical torques — lever screw 50–55 in-lb, T-bolts 60–80 in-lb, lower pin 90–120 in-lb, self-tapping screw 50–55 in-lb
• Application Family: HCK family 63XXCCAB0X (this part resolves HCV=0, PPV=0, Lever=C, Link=C, Reserved=A, Pin=B, Bracket=0, Fittings=3)
