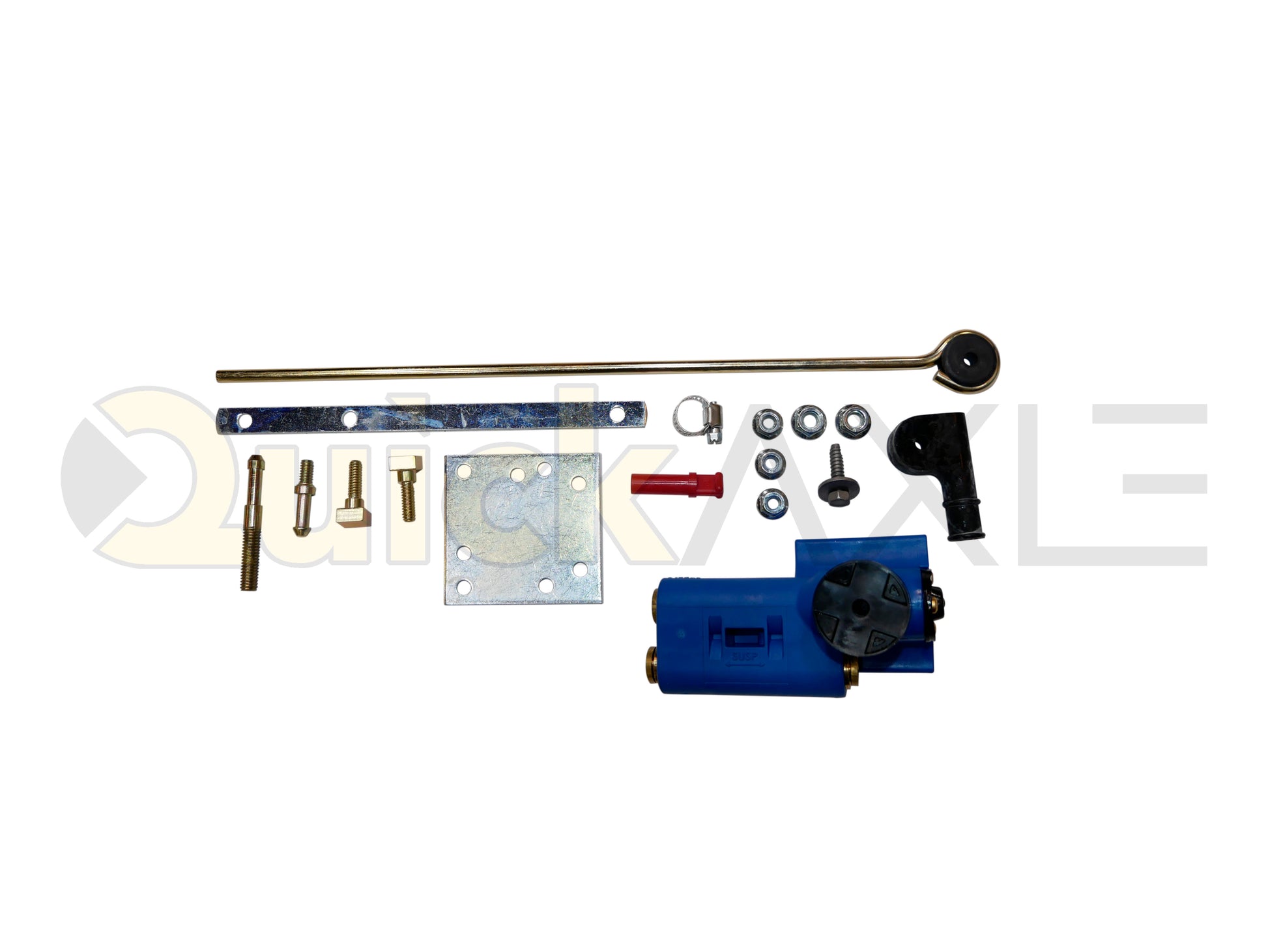

Height Control Kit, "Universal", (1) 3/8" Push to Connect Supply Port, (2) 3/8" Push to Connect Suspension Port, No Delay, 5" or 7" Lever Arm

• QA Part Number: HCK-00001
• Vendor Part Number: 6300BFAB13
• Supply Port: (1) 3/8" Push to Connect
• Suspension Port: (2) 3/8" Push to Connect
• Delay: No
• Lever Arm: 5" or 7"
• Valve: Standard non-dump HCV, 3/8" PTC ports
• Lever: Round lever “B” (cut to length on installation)
• Linkage: Vertical link “F” (adjustable rod with grommet + P-connector)
• Pins/Brackets: Lower pin assembly “B”; upper mounting bracket “1”
• Fittings: Pack “3” (3/8" PTC)
• No PPV: Customer must source separately if needed

This configuration is Ridewell’s Universal Height Control Kit option, called out in the installation guide as 63XXBFAB13 Universal HCK for most 240, 243, 260, 266, and 200-series air-ride suspensions.
