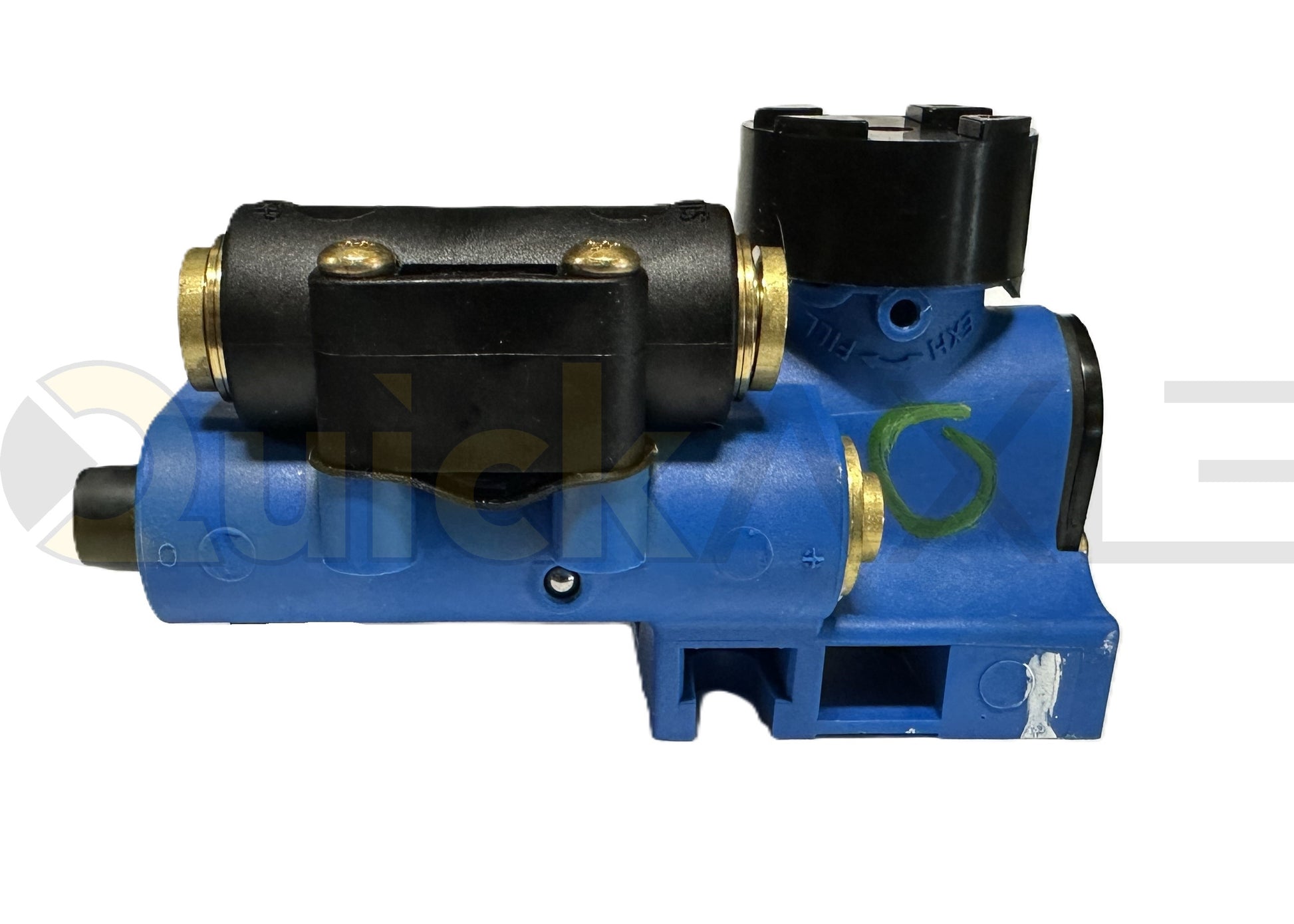

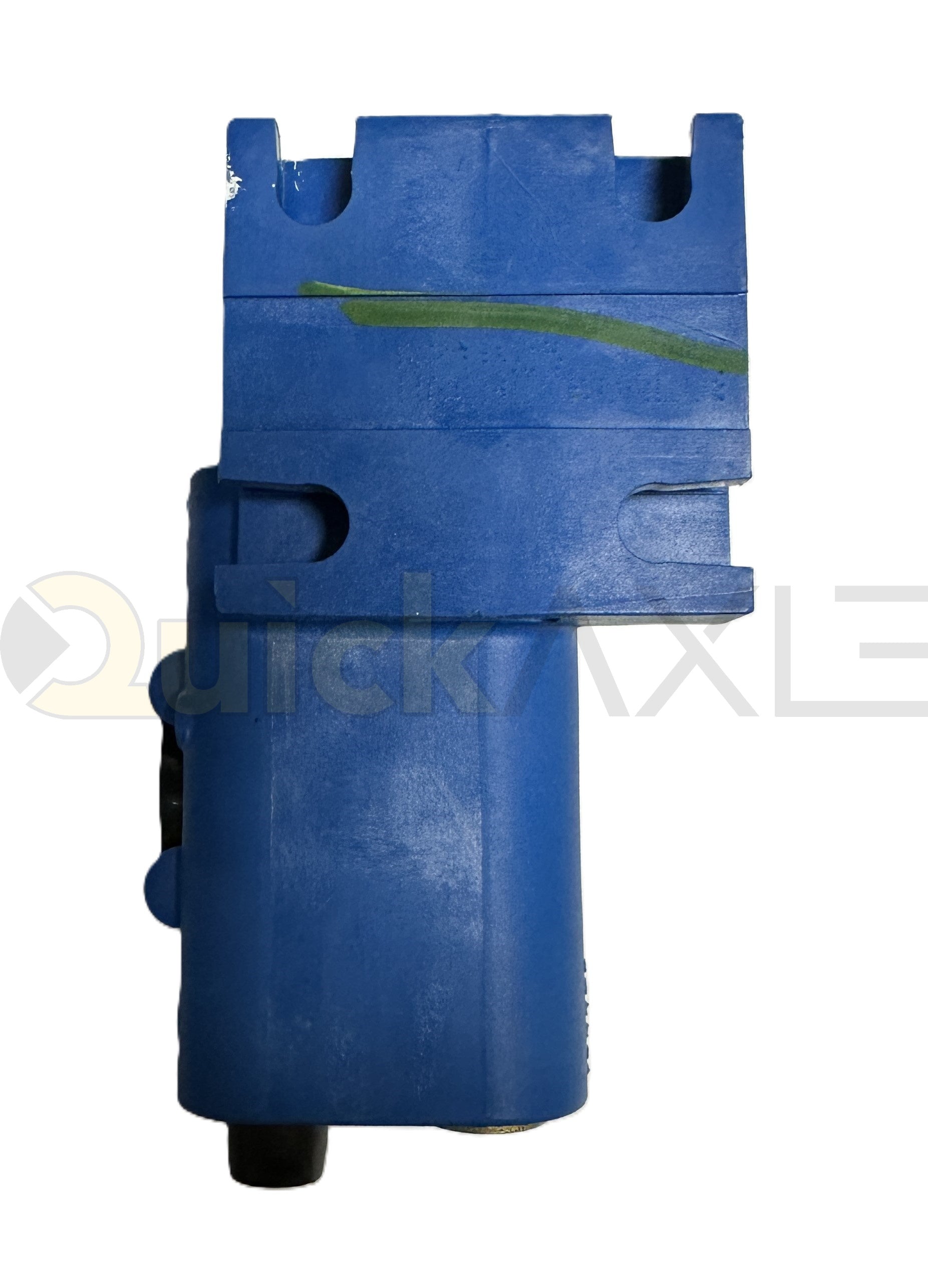

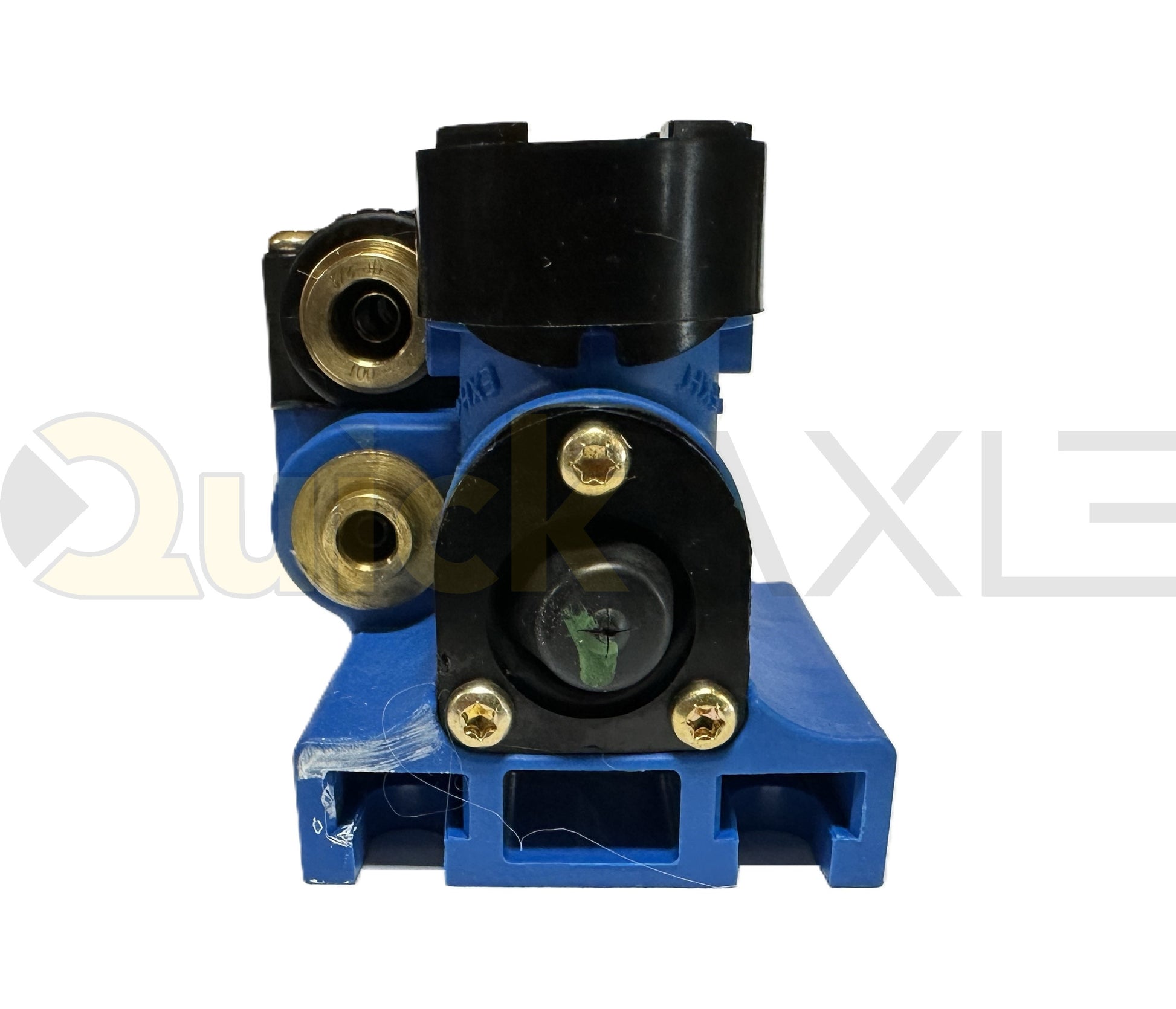

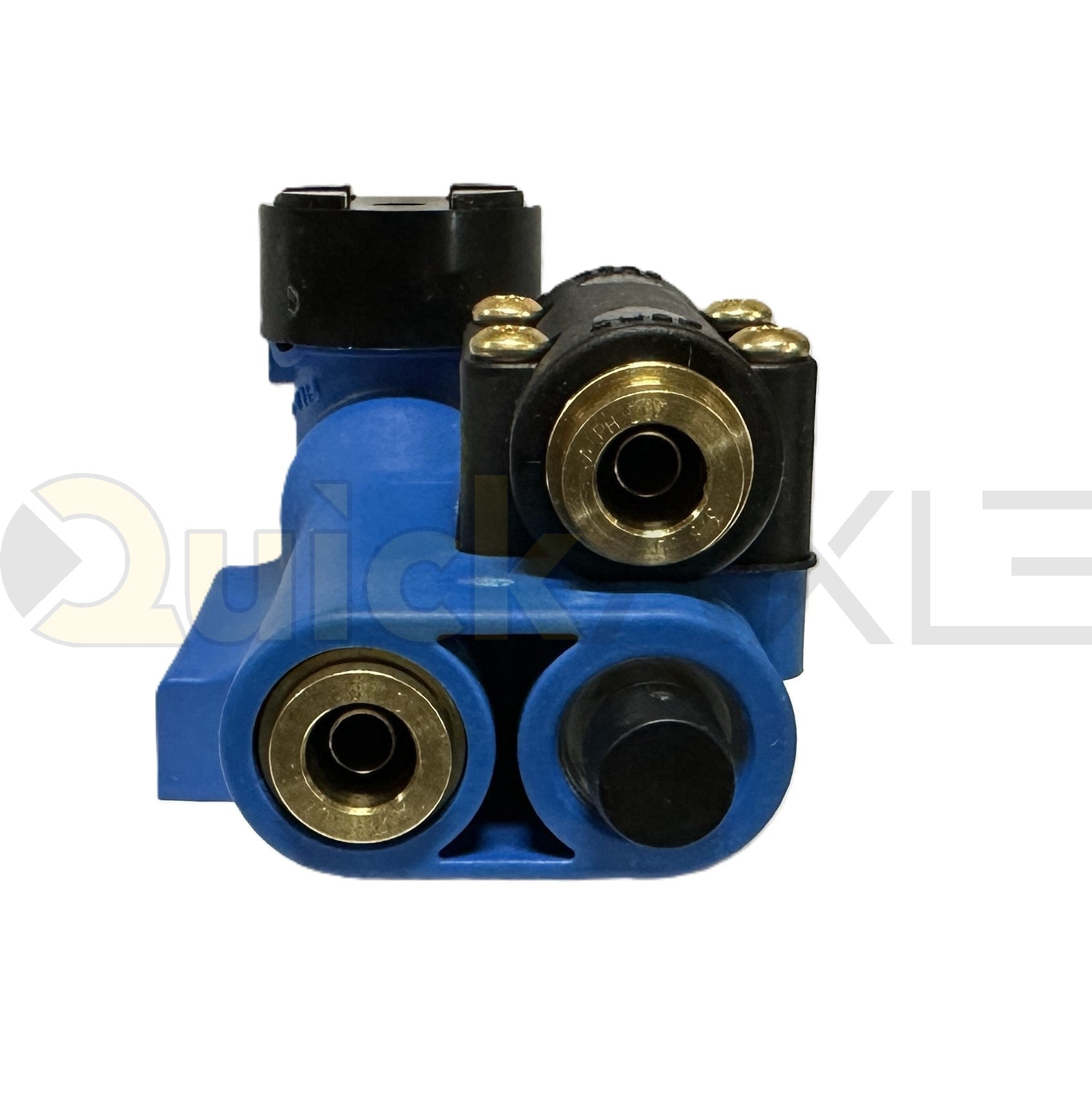

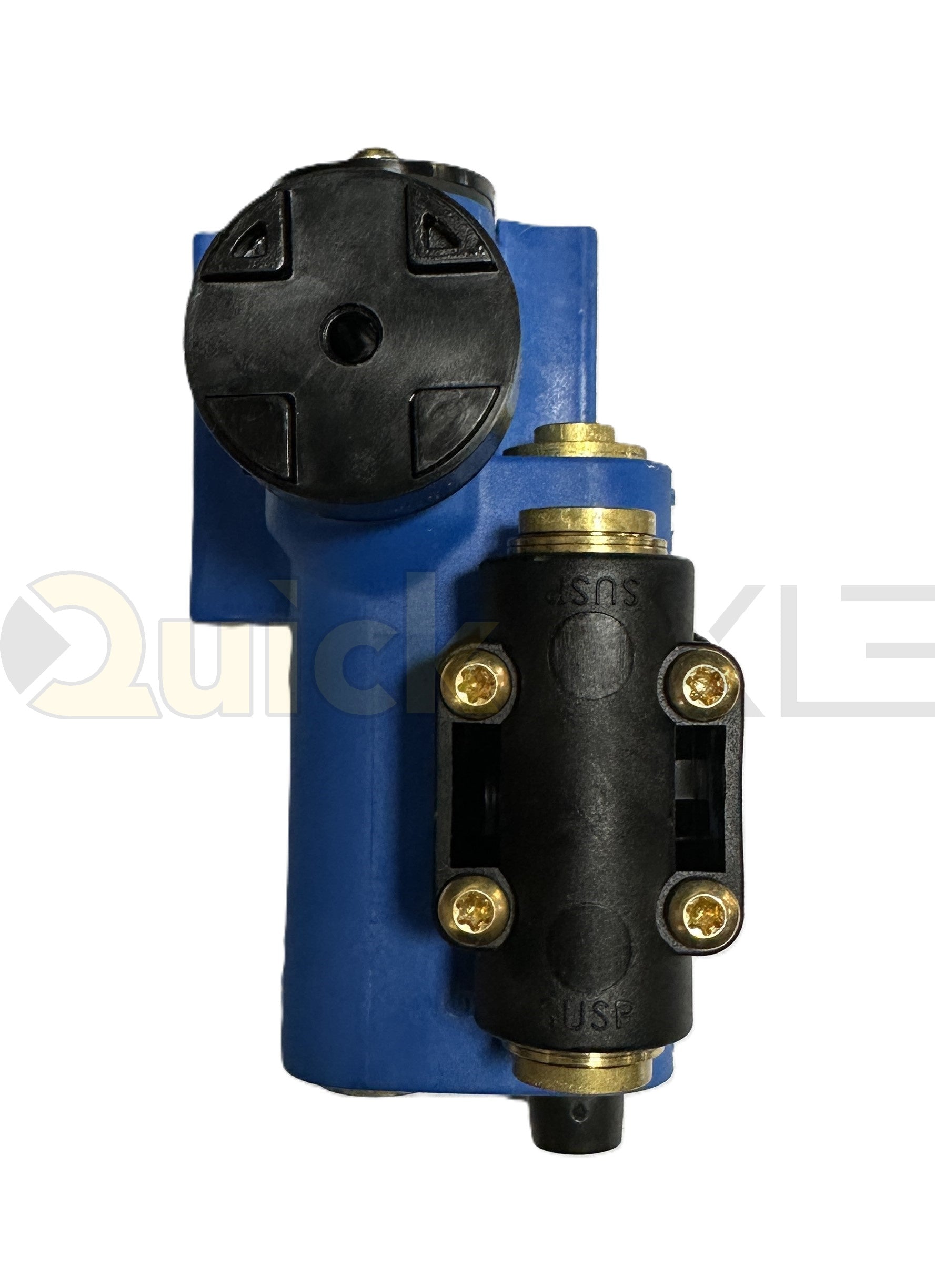

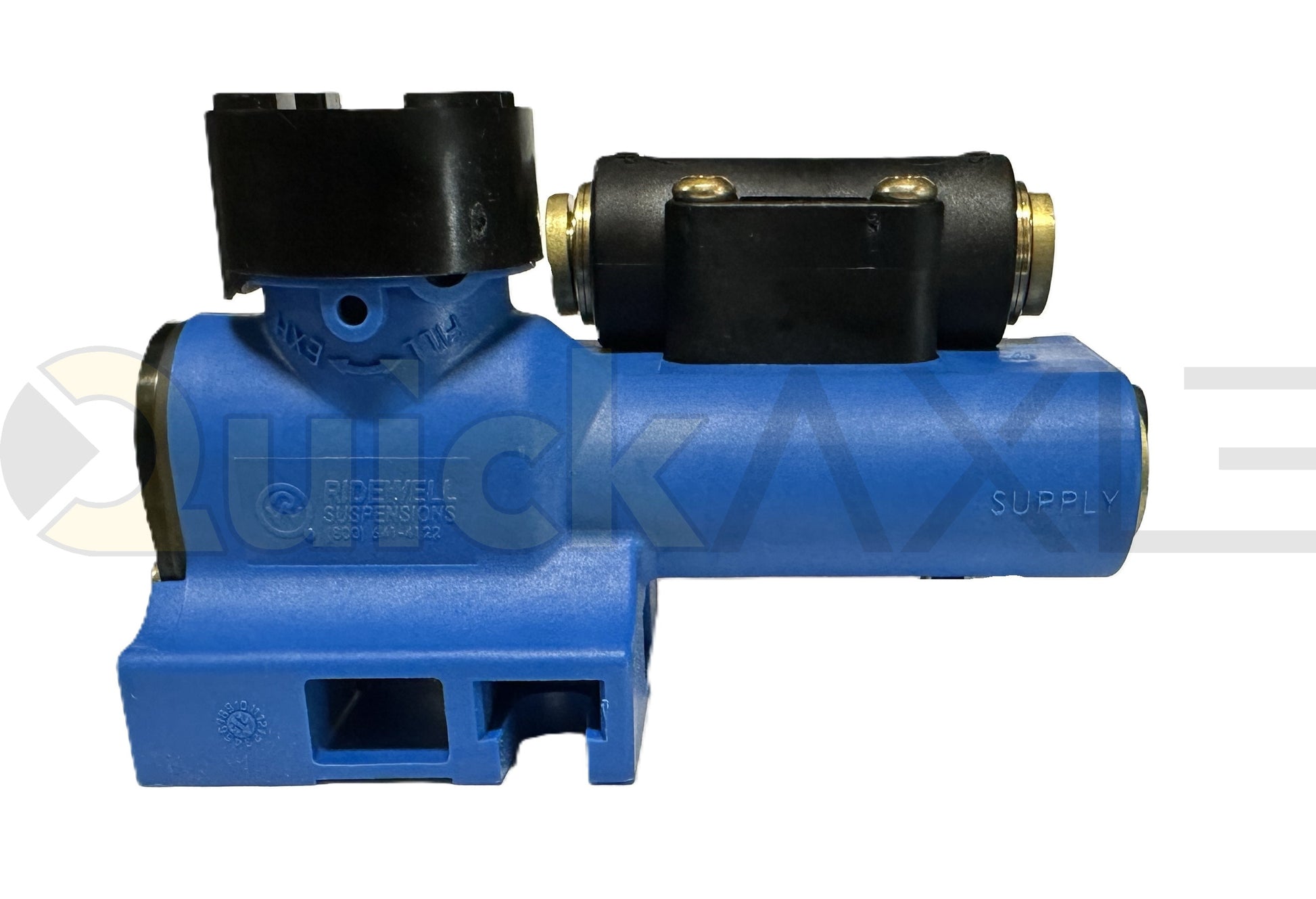

Height Control Valve, Pressure-Dump (NO), 3/8" supply, (2) 3/8" suspension, 1/4" pilot, No Delay - 6205008

• QA Part Number: HCV-00005
• Vendor Part Number: 6205008
• Cross Part Number: H01501RC
• Supply Port: (1) 3/8" Push to Connect
• Suspension Ports: (2) 3/8" Push to Connect
• Exhaust: Rubber boot (mount at or below horizontal)
• Delay: No
• Valve Type: Pressure-Dump HCV (normally open)
• Dump Pilot Port: Present — 1/4" pilot (per part description); must be plumbed (cannot be plugged); if unused, vent with at least 6" of tubing
• Lever Arm: Not included (valve only)
• Linkage: Not included (valve only)
• Pins/Brackets: Not included (valve only)
• Fittings: Not included (order separately)
• PPV: Not included

Click here for: Height Control Valve Installation Guide
