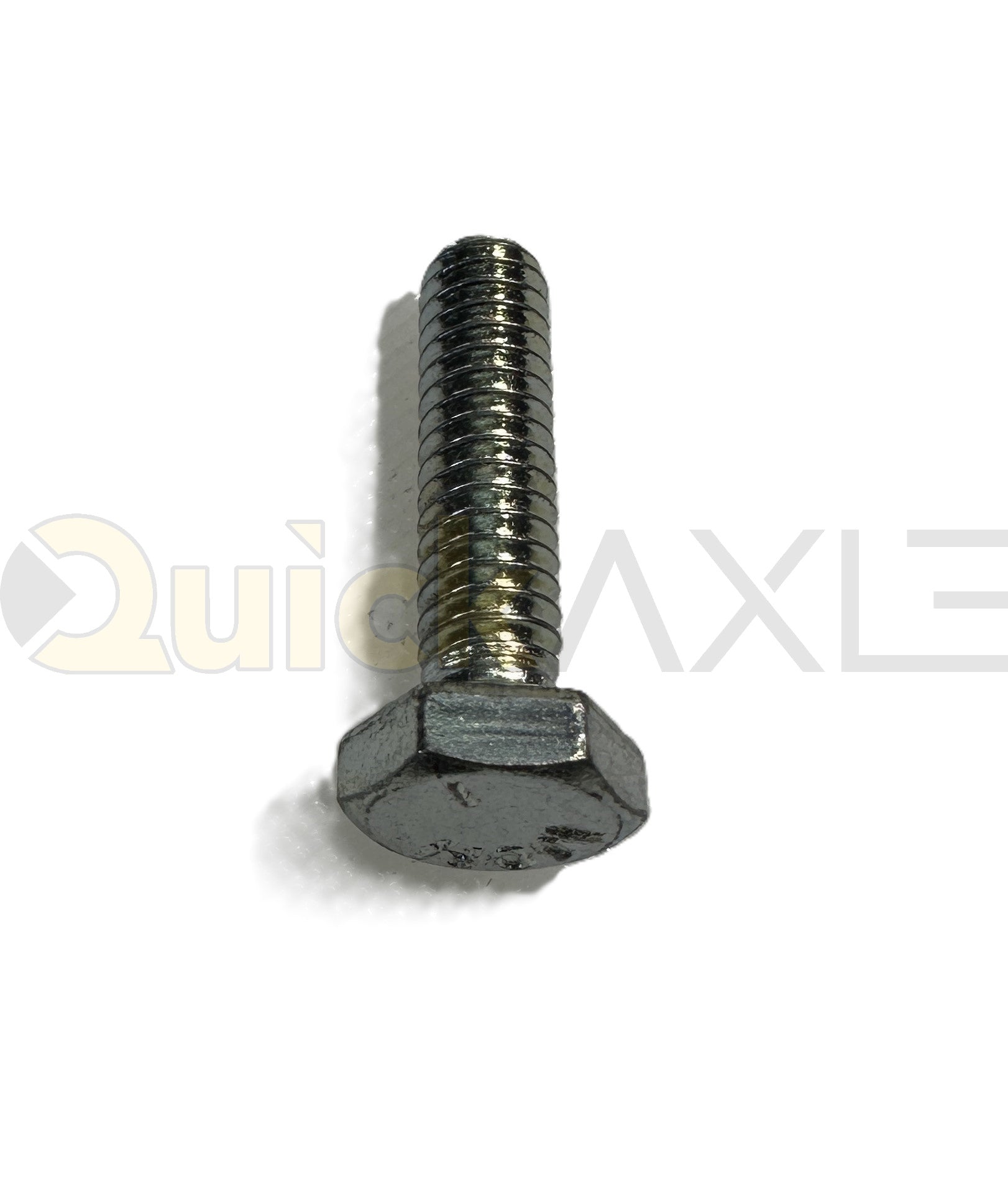

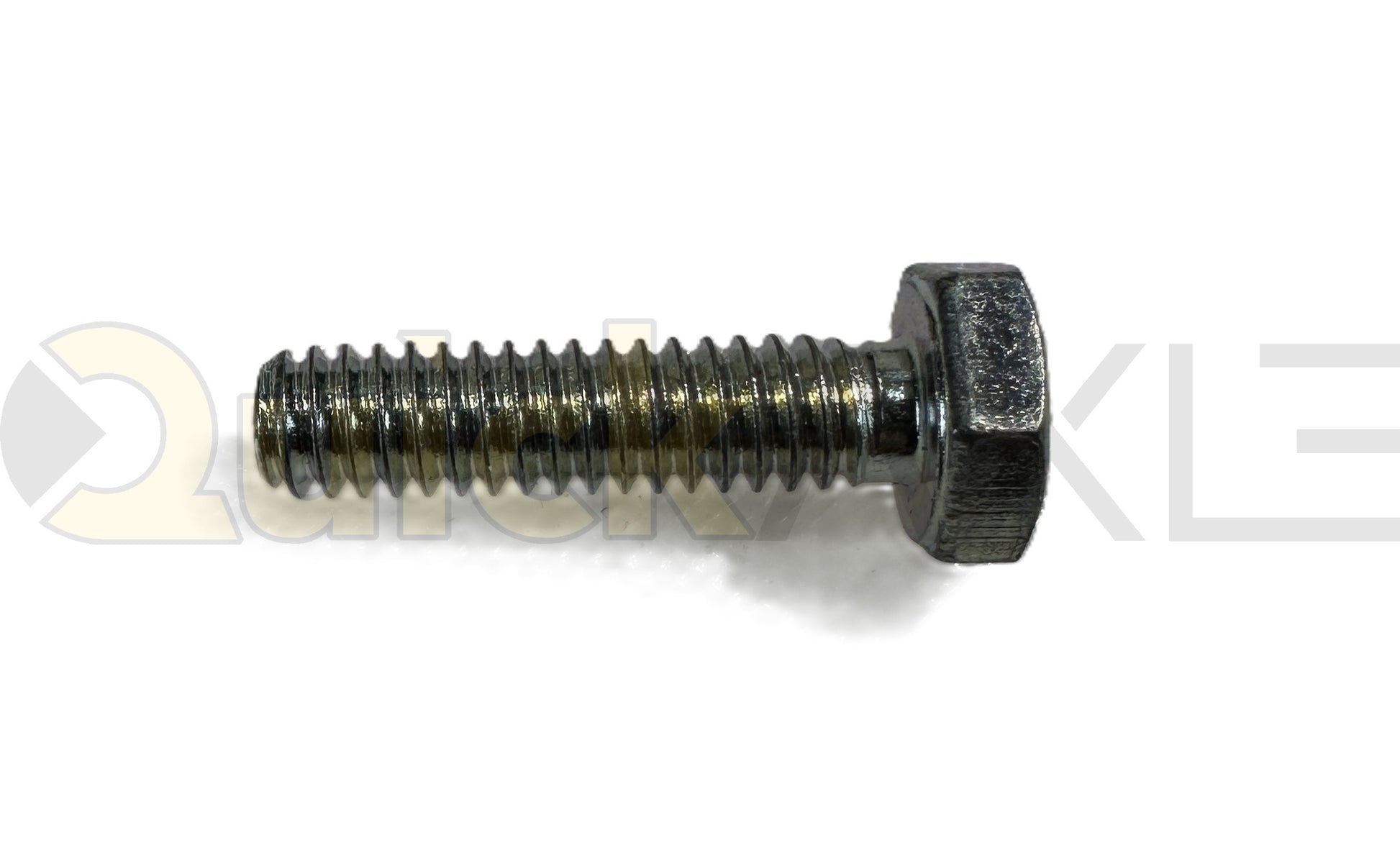

Hex Head Cap Screw, 1/4–20 × 1.00″, Grade 5, zinc-plated - 1147591B105
Hex Head Cap Screw, 1/4–20 × 1.00″, Grade 5, zinc-plated - 1147591B105
3136 in stock
Regular price
$0.00 USD
Regular price
$0.00 USD
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- QA Part Number: HCV-00016
- Part Number: 1147591B105
- Component: Hex head cap screw (HHCS), 1/4–20 × 1.00″
- Material / Grade: Steel, SAE J429 Grade 5
- Finish: Zinc plate, Fe/Zn 3AN per ASTM F1941/F1941M
- Standards: ASME B18.2.1 (hex cap screw dims); ASME B1.1 UNC, Class 2A (threads)
- Thread: 1/4–20 UNC, fully threaded; length 1.00″ (0.97″ min.)
- Head Across Flats: 0.428″–0.438″ (7/16″ nominal)
- Head Height: 0.150″–0.163″
- Head Marking: Manufacturer ID + three radial lines (Grade 5)
- Included Items (this SKU): Screw only
- Application: HCV/HCK hardware (lever/bracket mounting)
