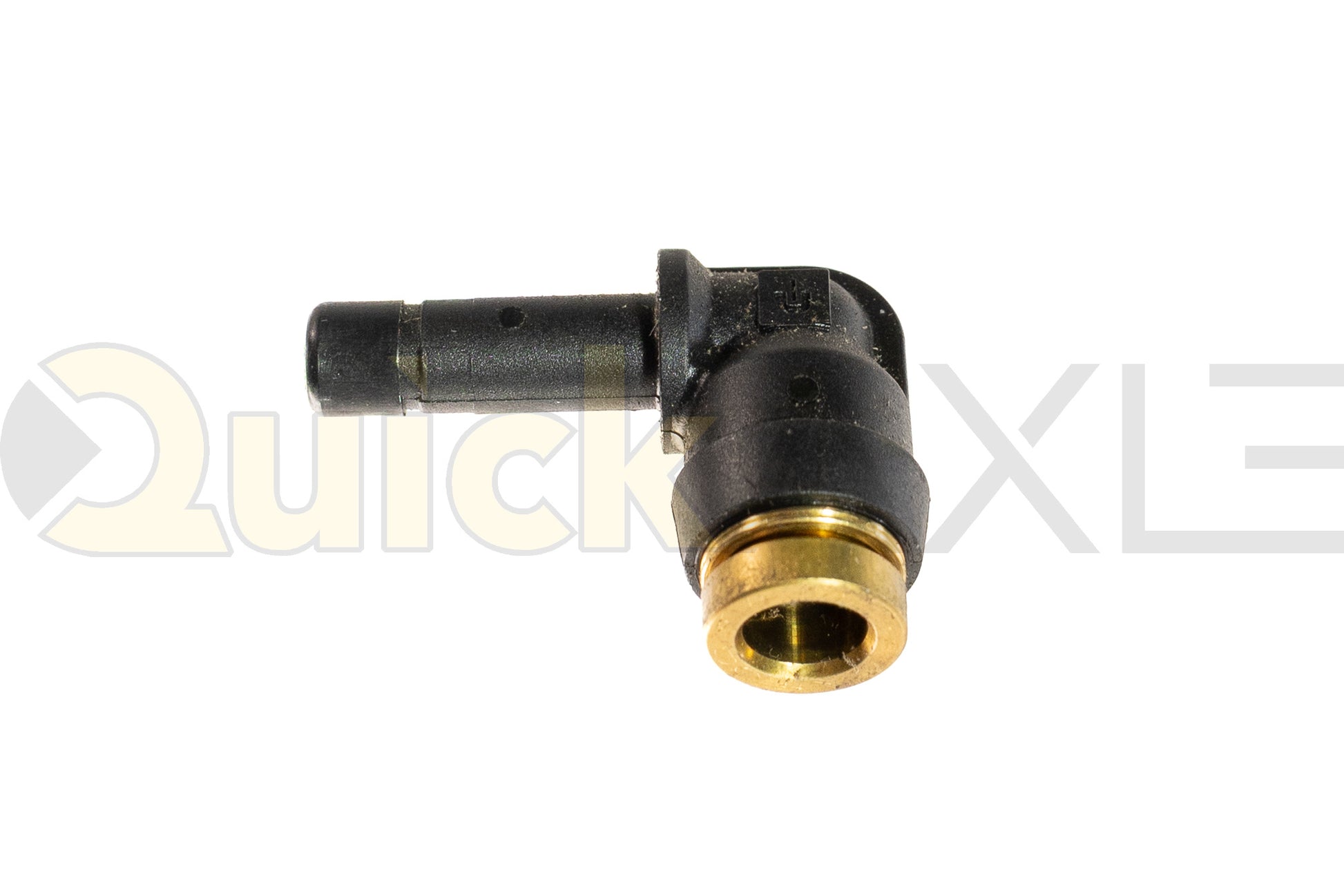

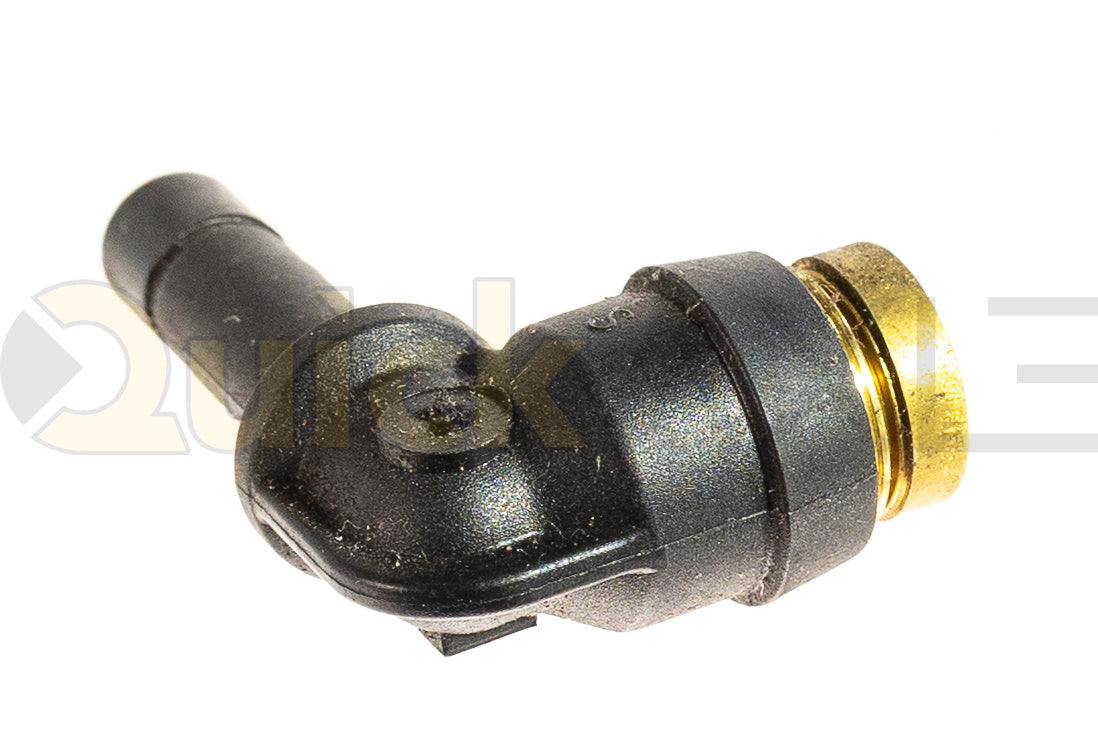

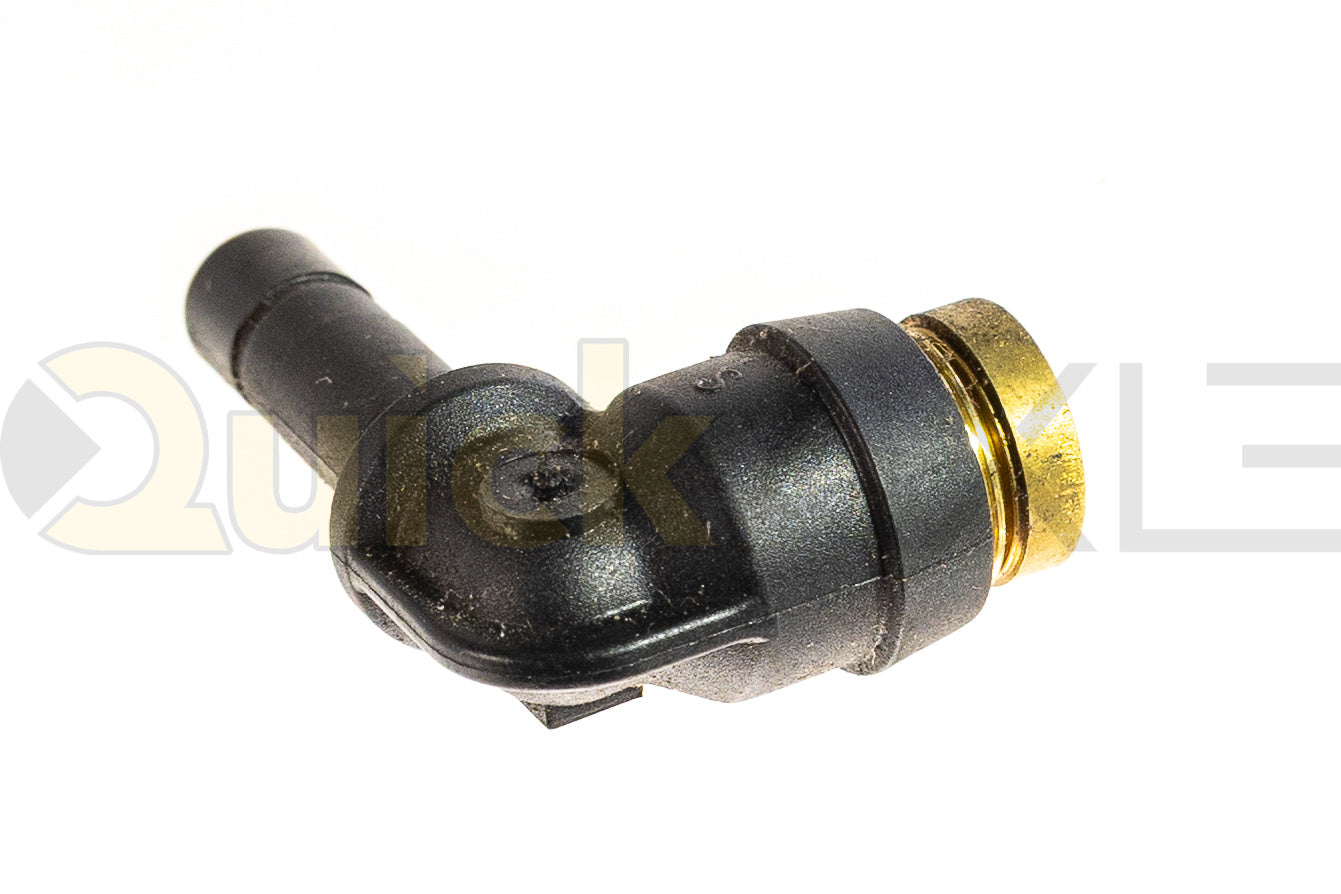

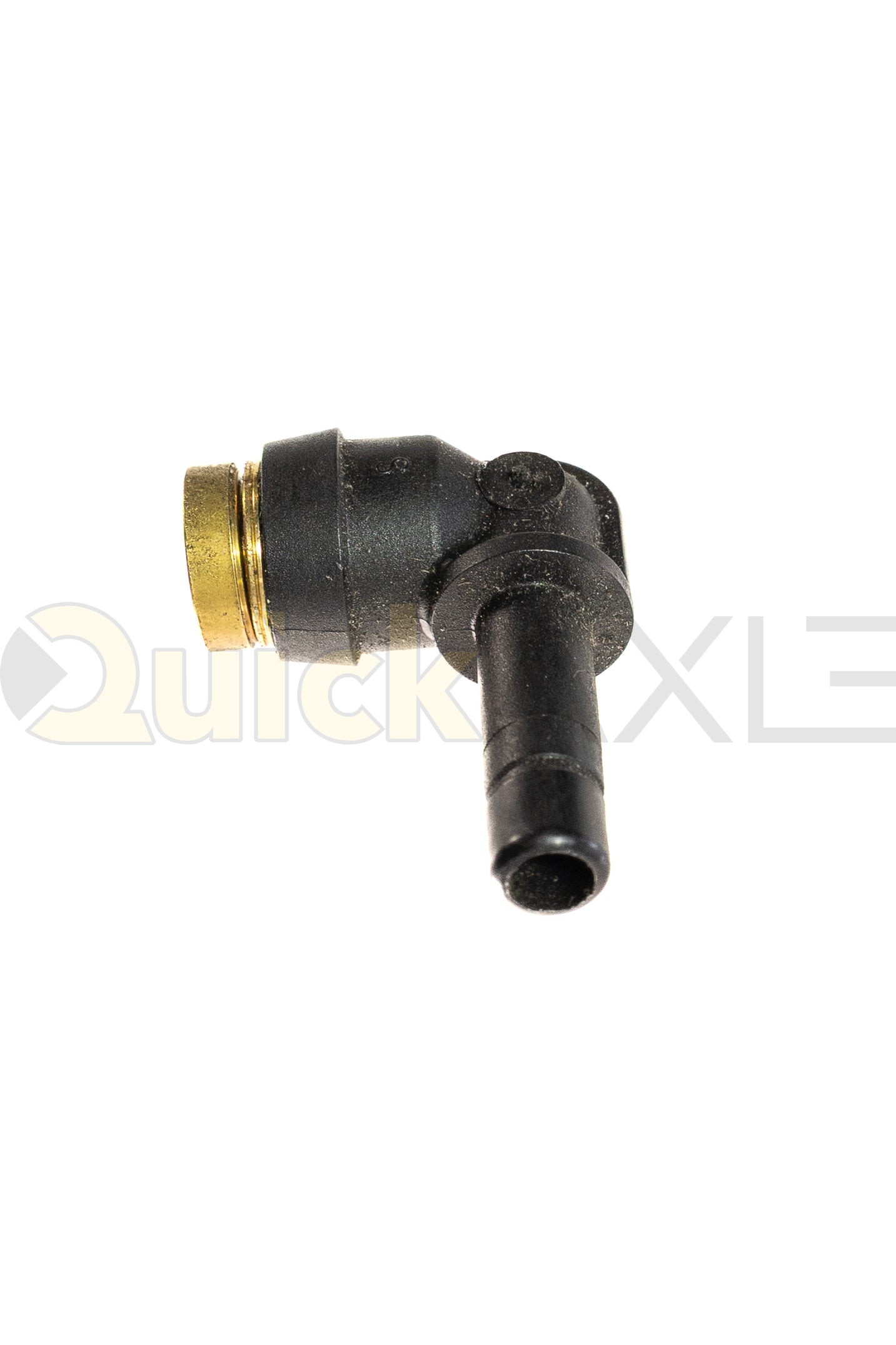

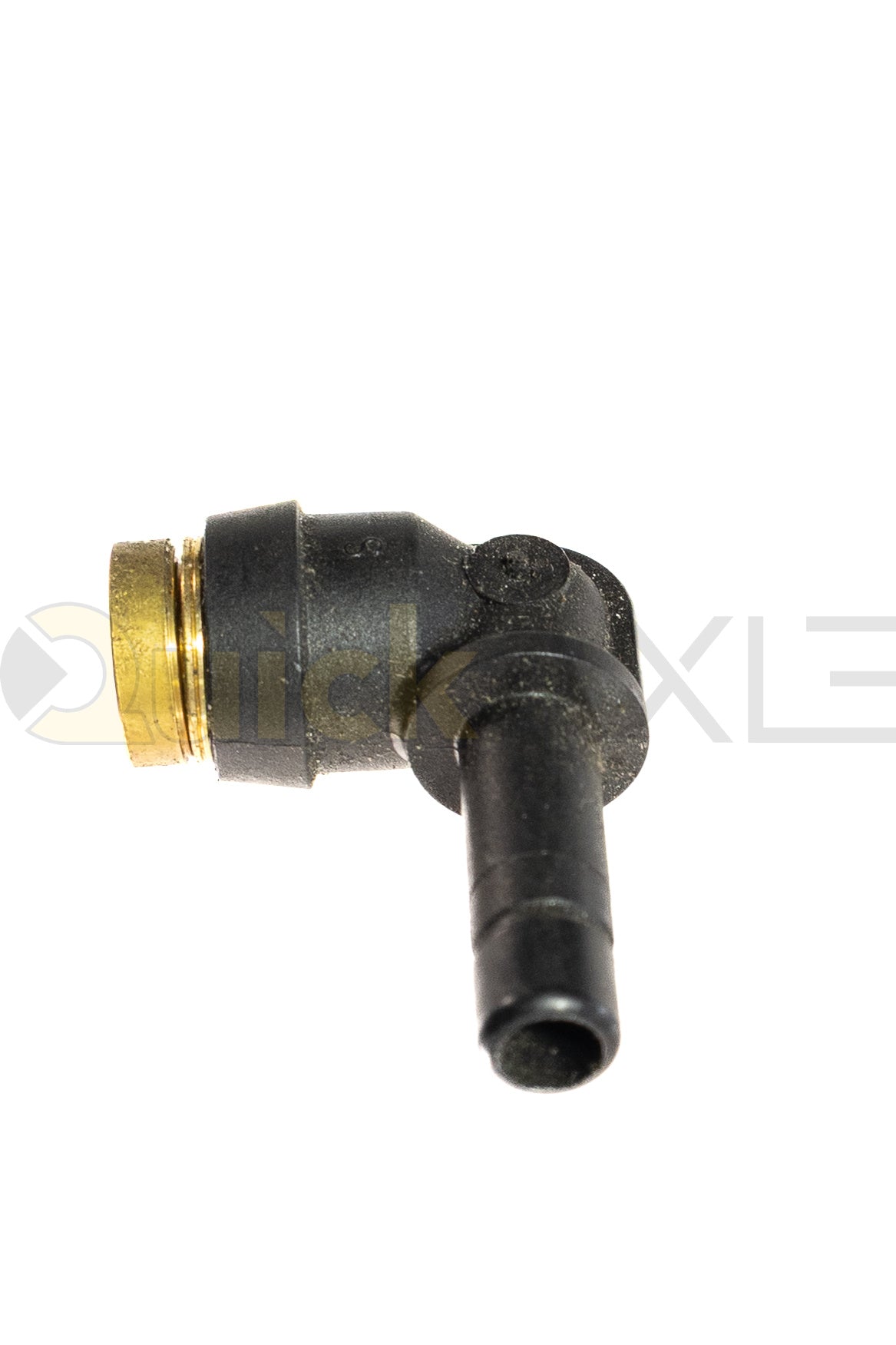

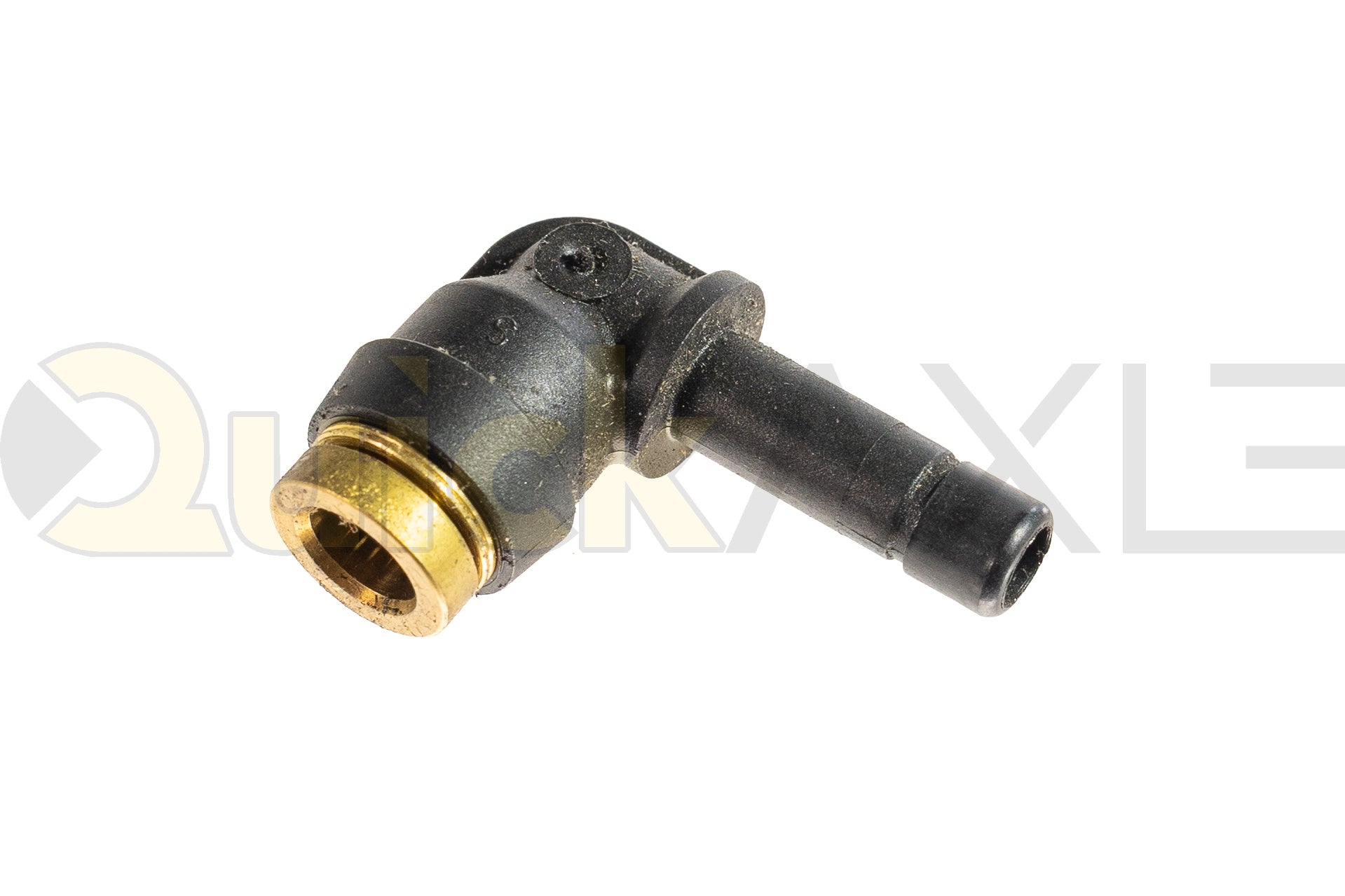

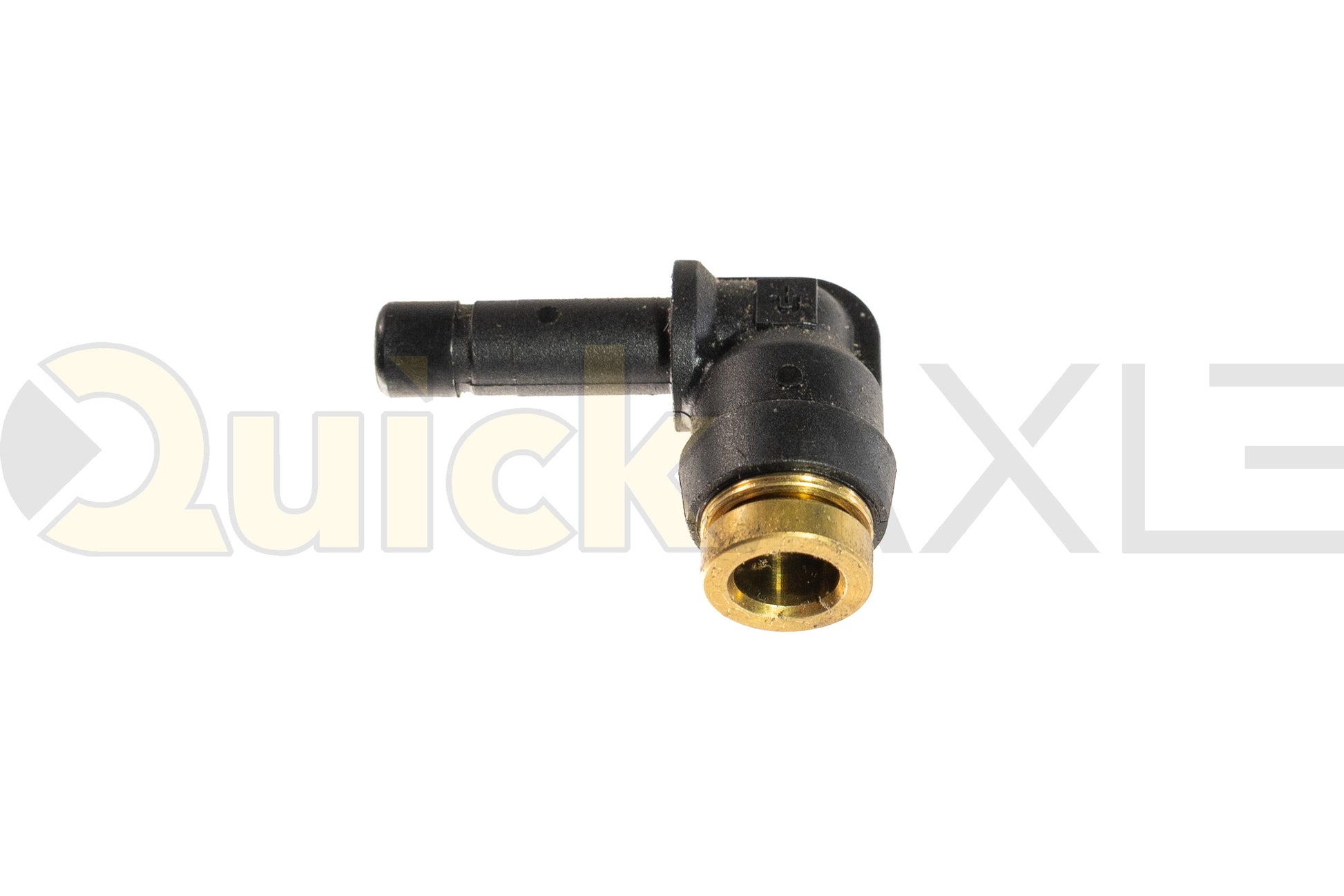

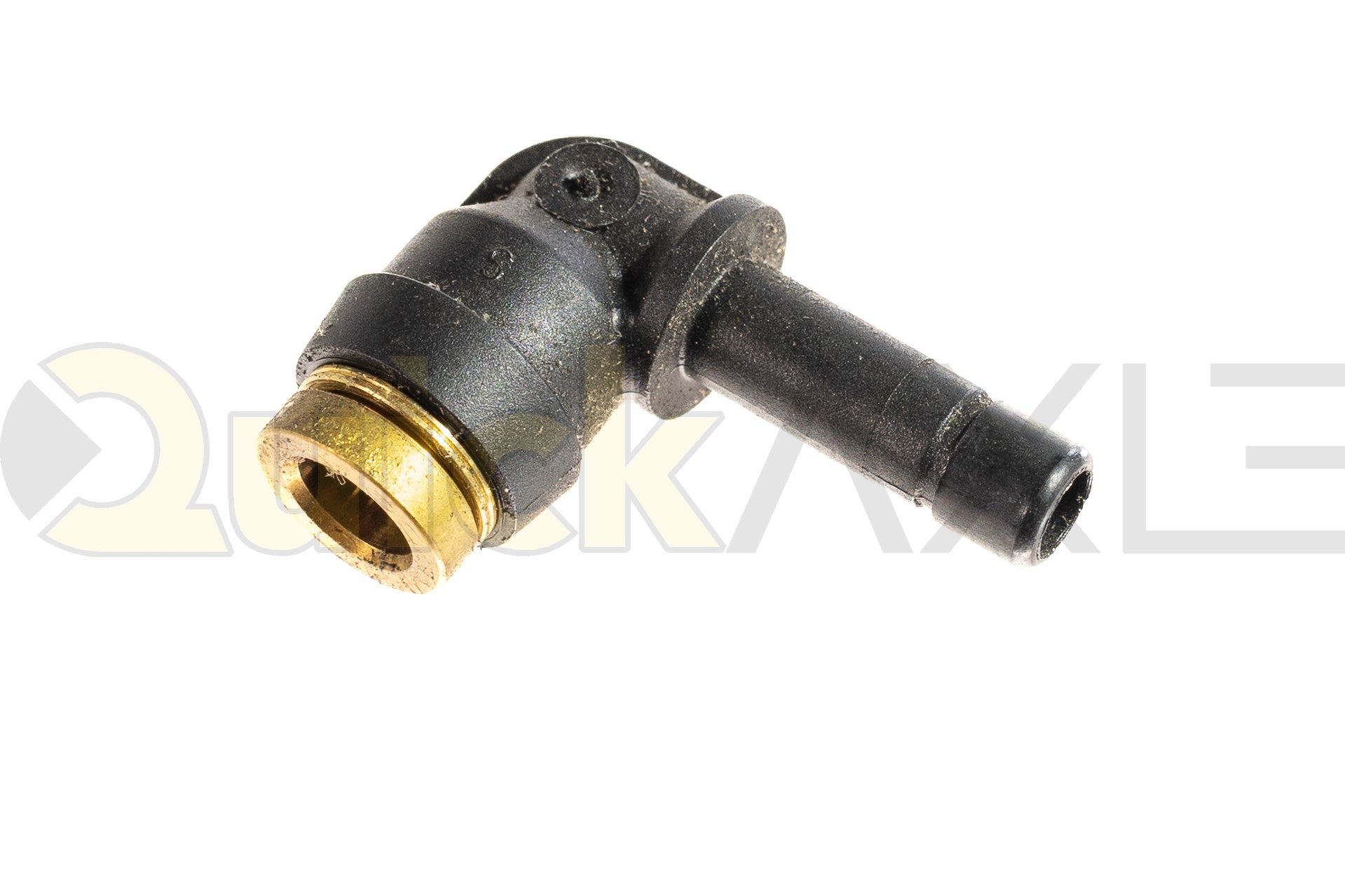

The SMC KV2L07-99 is a plug-in 90-degree stem elbow fitting. The SMC Series KV2 reference page identifies KV2L07-99 with 1/4 in applicable tube and 1/4 in applicable fitting size. It is used where a compact plug-in elbow is needed to redirect a pneumatic tube connection.
Product Details
Brand: SMC
Part Number: KV2L07-99
Product Type: Plug-In 90-Degree Stem Elbow
Applicable Tube: 1/4 in
Applicable Fitting: 1/4 in
D1: 13.2 mm
D2: 13.3 mm
D3: 6.40 mm
L1: 20.6 mm
L2: 30.0 mm
Minimum Flow Diameter: 3.0 mm
Common Uses
Compact pneumatic line routing
Height control valve fitting service
Air control system maintenance
Verify tube size, fitting size, and original part number before ordering.
