Ridewell Split Polyurethane Bushing - 11200004

Ridewell Split Polyurethane Bushing

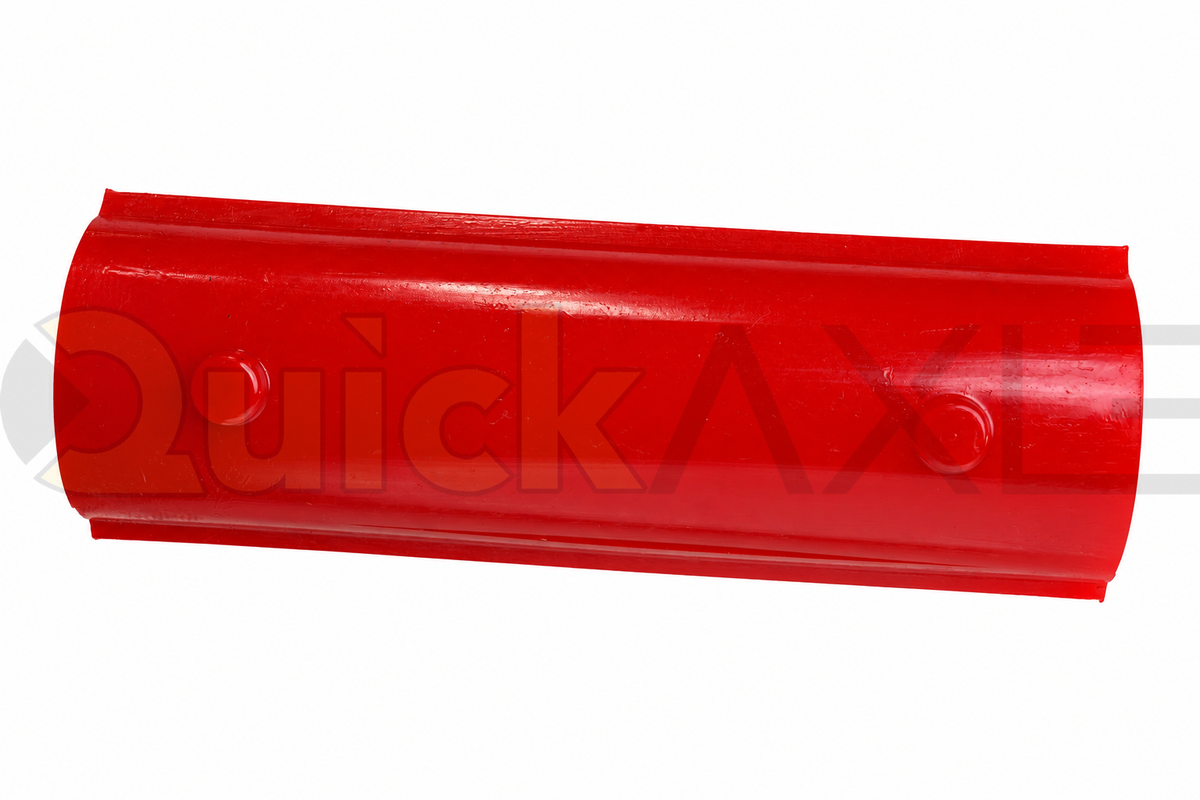

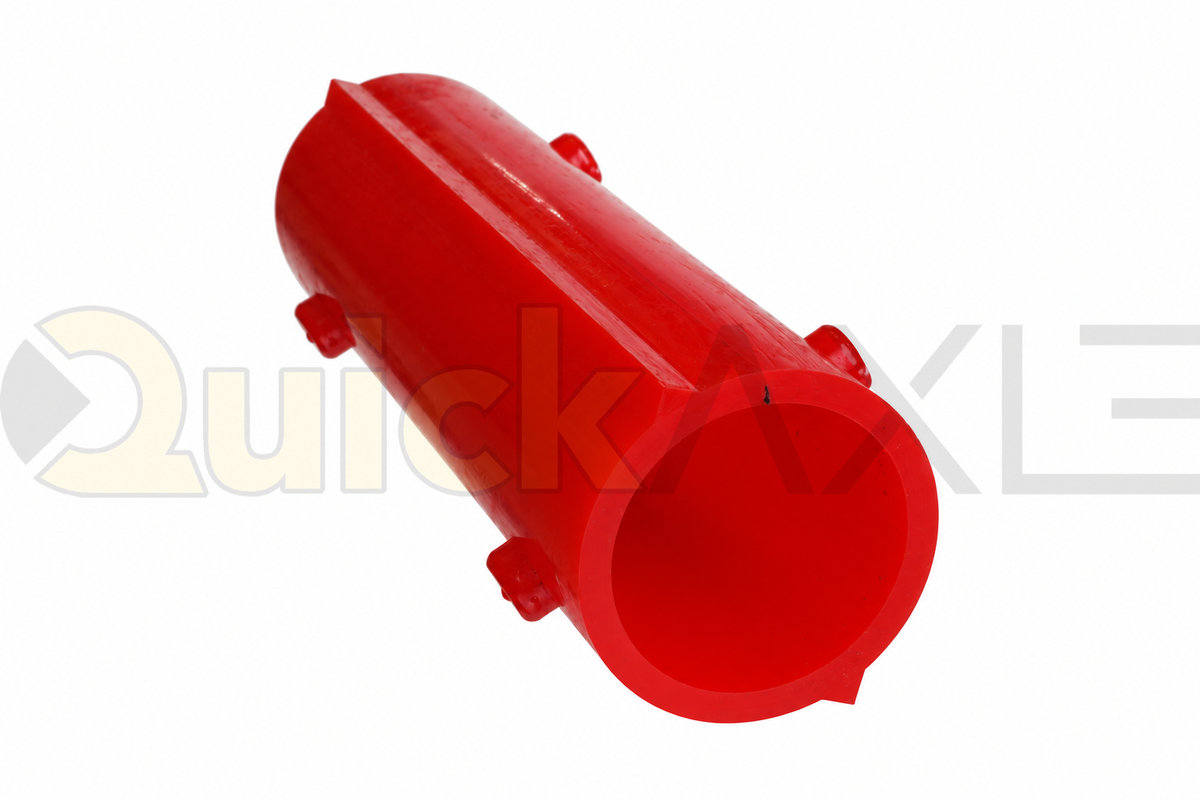

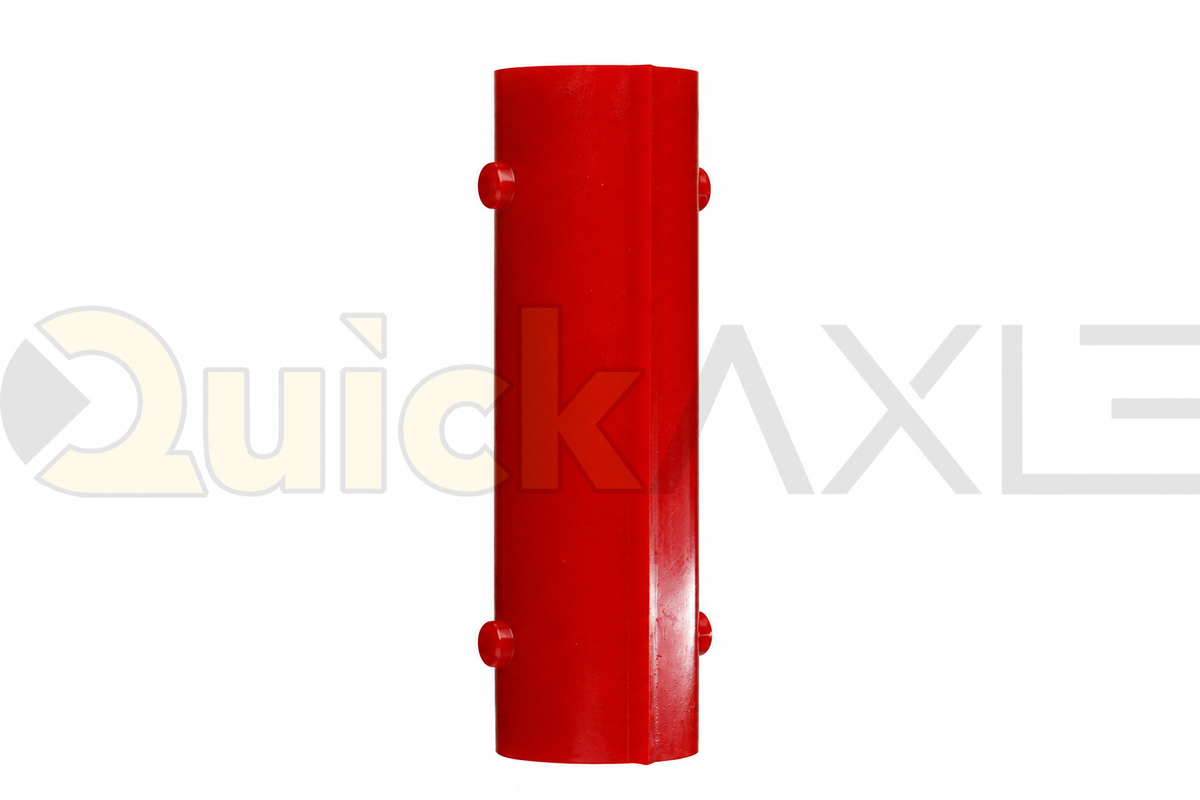

Ridewell 11200004 is a split polyurethane suspension bushing. Its split profile opens to fit over a 2.25 in shaft.

Specifications

• Body outside diameter: 2.75 in (reference)
• Bore diameter: 2.25 in
• Overall length limits: 8-15/16 to 9-1/16 in
• Profile width and height: 3.25 in (reference)
• Wall thickness at any one location: 0.250 +/- 0.020 in
• Average wall thickness across six locations: 0.245 +/- 0.005 in
• Split gap: 1/16 in maximum
• Holes: 5/8 in diameter at four locations; longitudinal hole-center spacing: 6 in

Model references

These exact model numbers identify assembly usage. Confirm the exact configuration and service requirements; the list does not establish universal family fitment or current model availability. Quantities are per listed model assembly, separate from the quantity sold with this product.
