Ridewell Grade 8 U-Bolt, 3/4-16 NF - 1180016

Ridewell Grade 8 U-Bolt, 3/4-16 NF

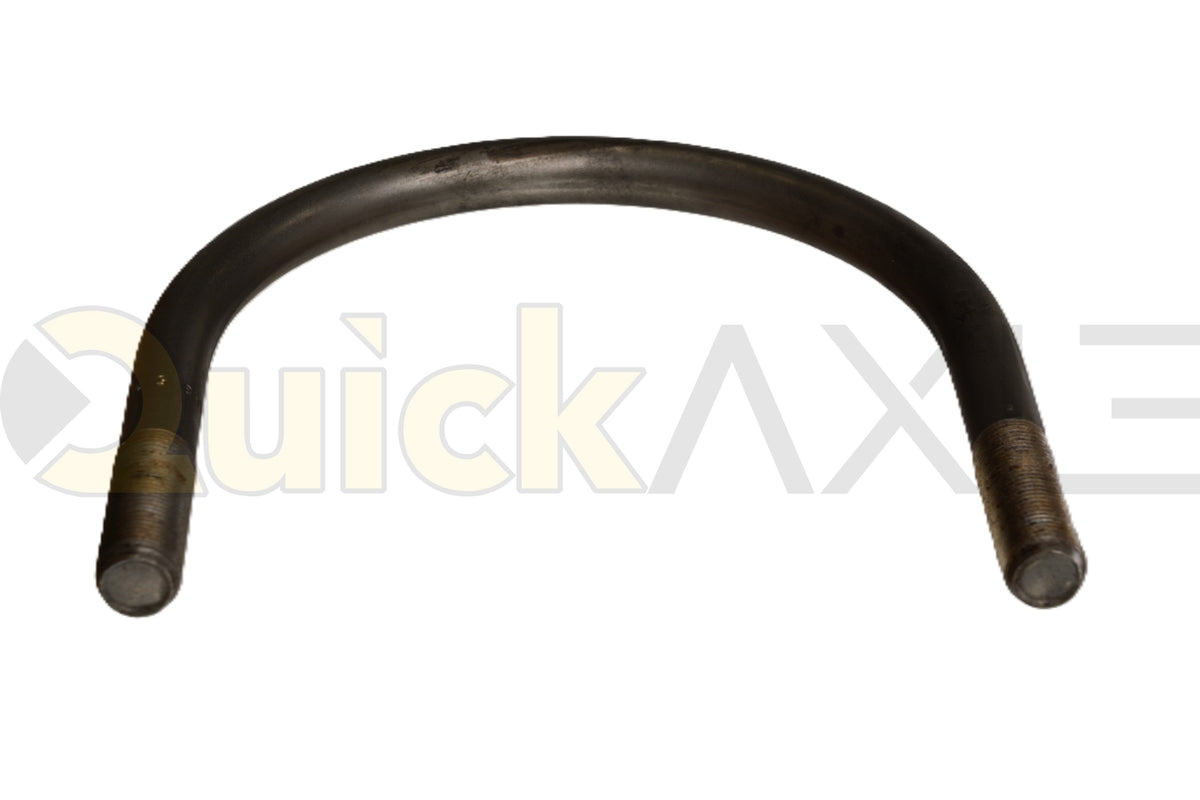

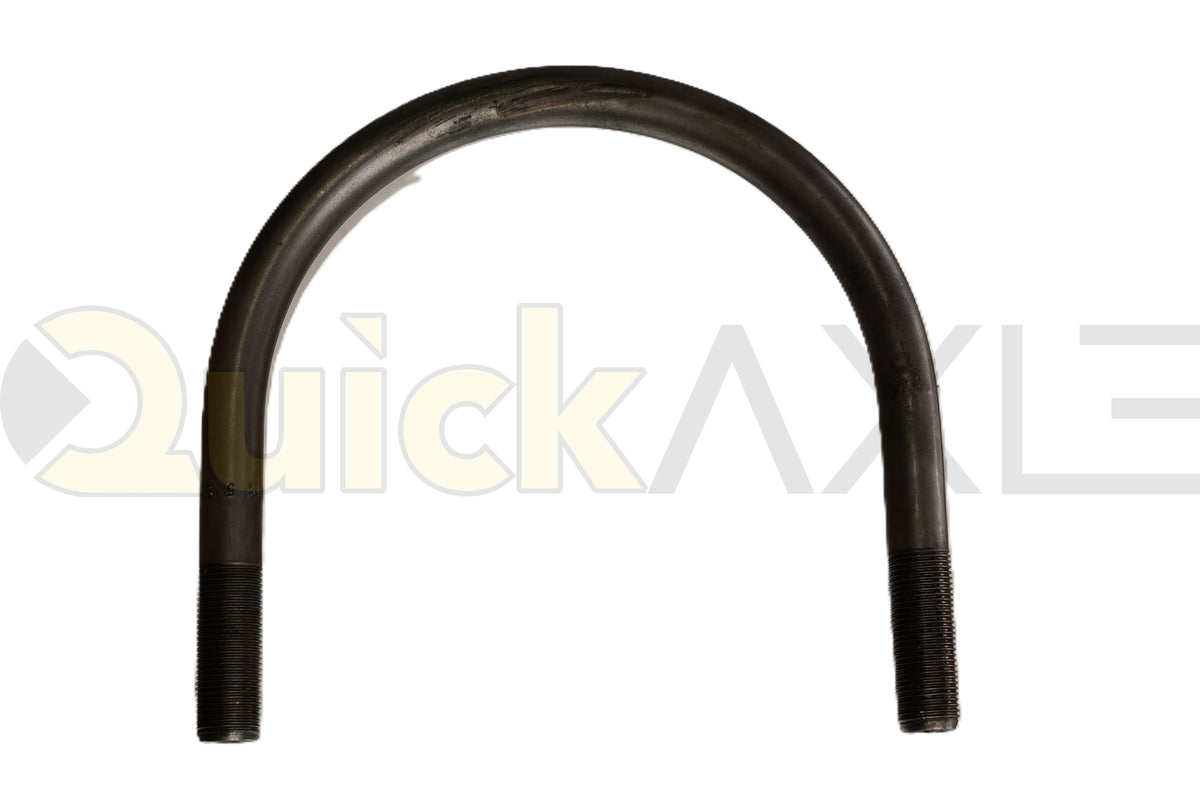

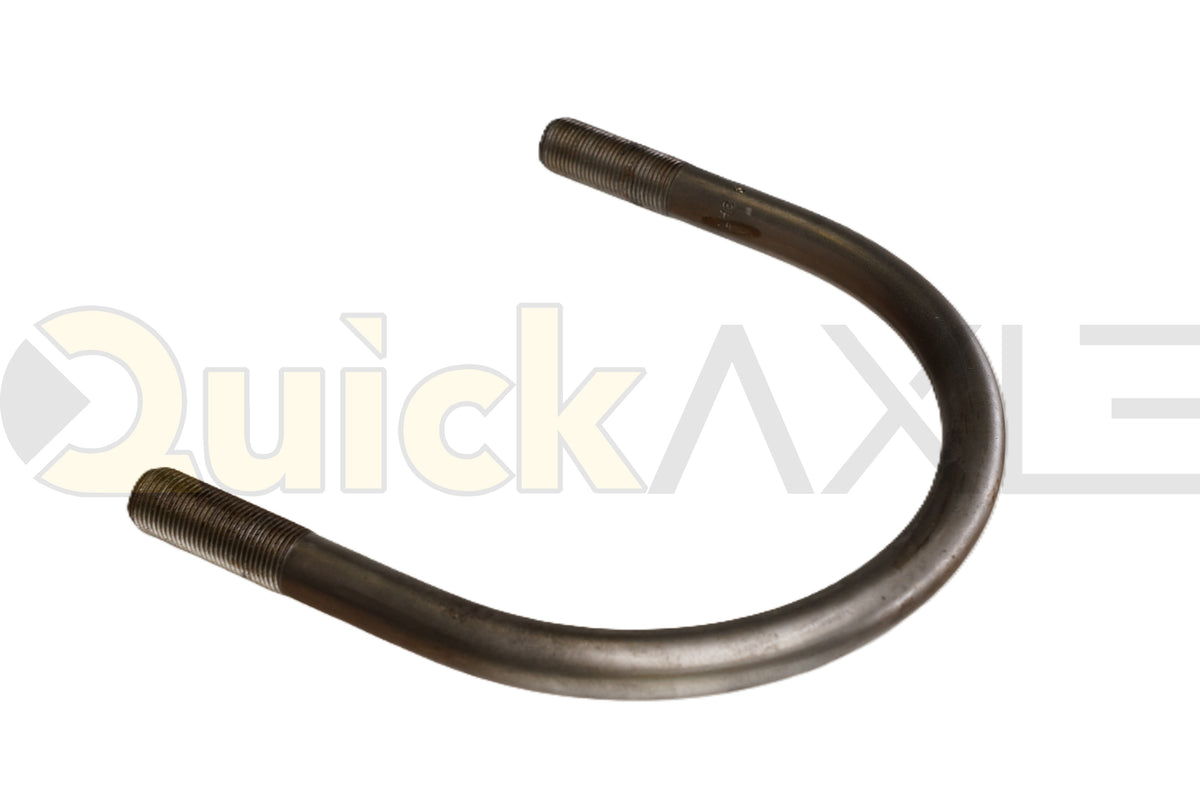

Ridewell 1180016 is a Grade 8 U-bolt with fine threads on both legs. Match the inside dimensions and thread specification to the service application.

Specifications

• Nominal thread diameter: 3/4 in
• Thread pitch: 16 threads per inch (NF)
• Inside crown-to-leg-end length: 7.00 in
• Inside width between legs: 7.000 in
• Rod diameter: 0.750 in (reference)
• Inside bend radius: 3.500 in
• Threaded length on each leg: 2.00 in minimum
• Minimum tensile strength: 150,000 psi
• Minimum yield strength: 120,000 psi

Related kit references

These kits list this component. Kit requirements do not establish this product's sold pack or include the complete kit.
