Ridewell 3-Way Air-Pilot Valve - 1230055

Ridewell 3-Way Air-Pilot Valve

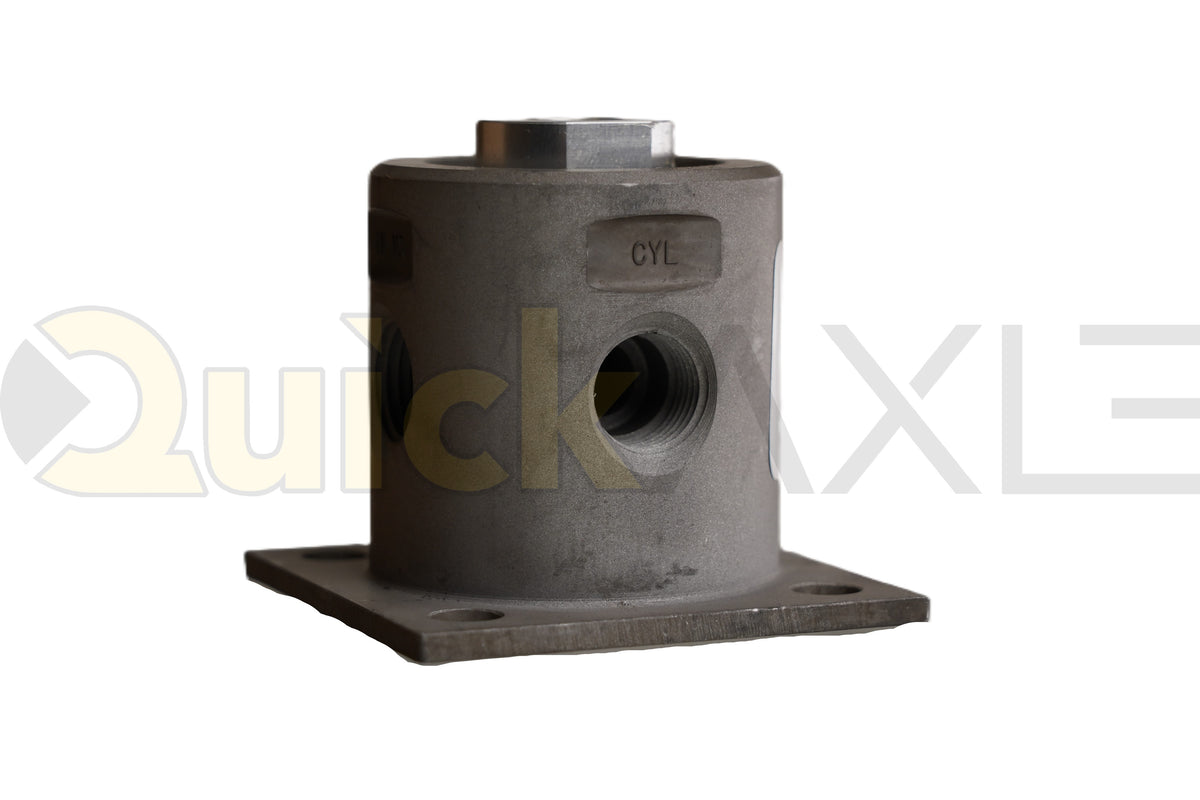

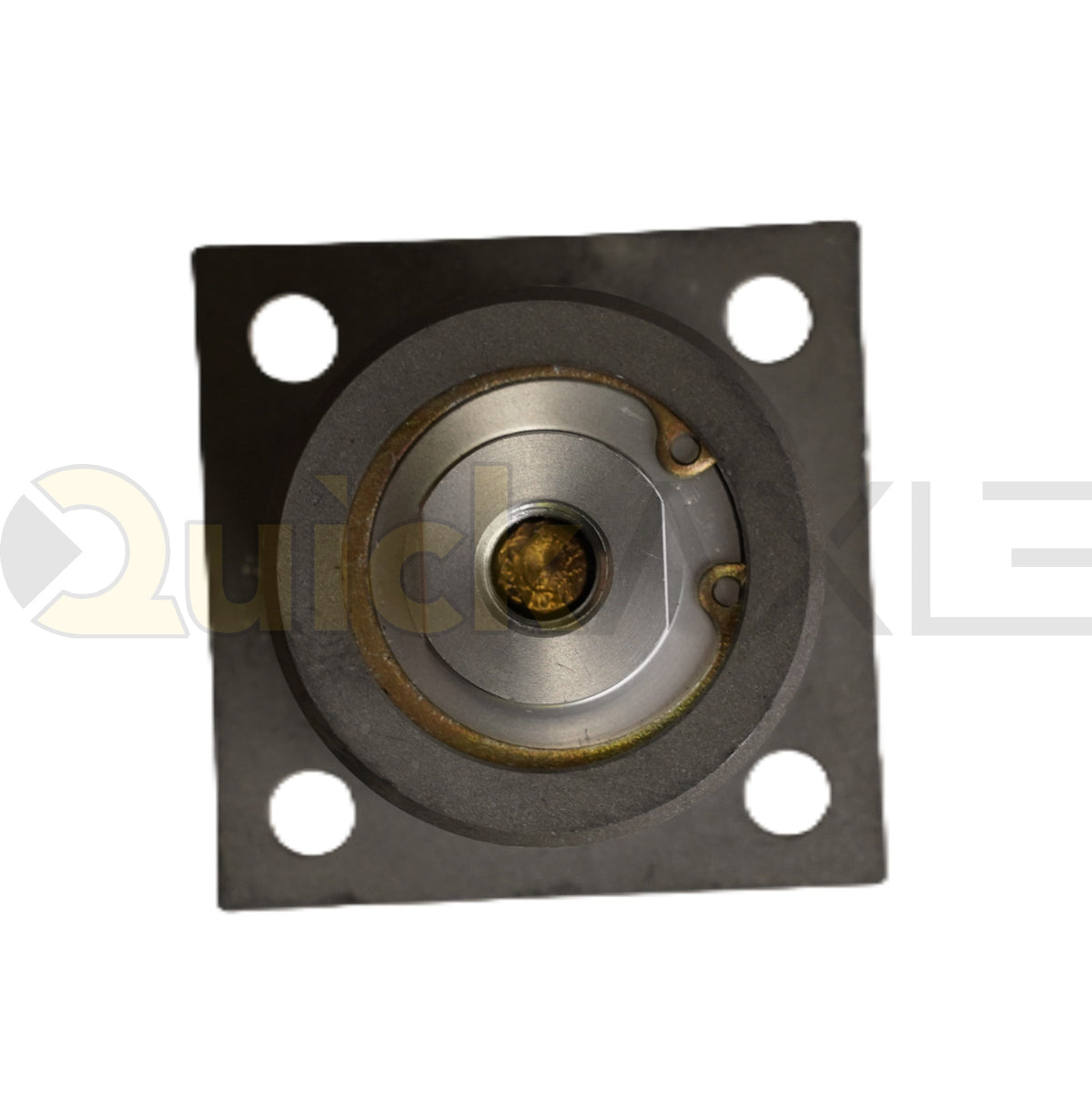

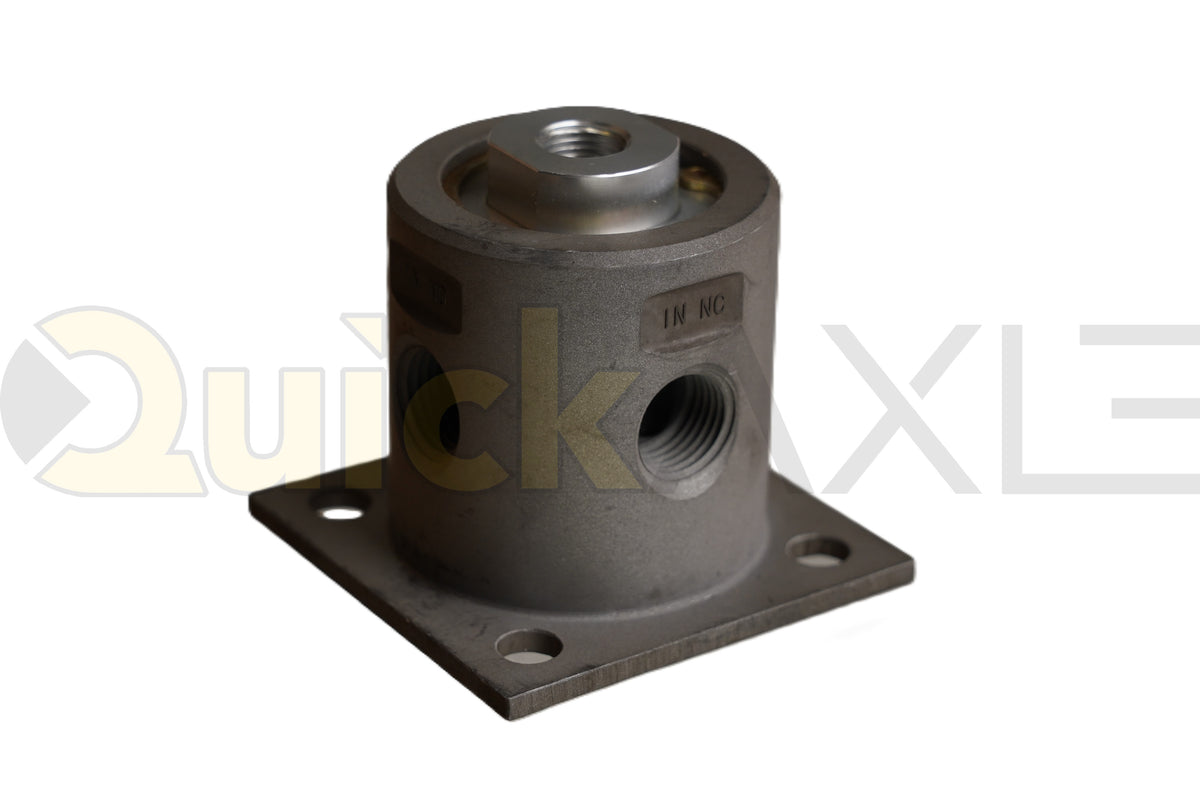

Ridewell 1230055 is a three-way air-pilot valve for normally open or normally closed configurations.

Specifications

• Pilot port: 1/8 in NPT
• All other ports: 1/4 in NPT
• Mounting holes: 0.28 in diameter, four places
• Typical mounting-hole center spacing: 1.59 in
• Mounting plate width and height: 2.27 in
• Valve projection from mounting plate: 2.07 in

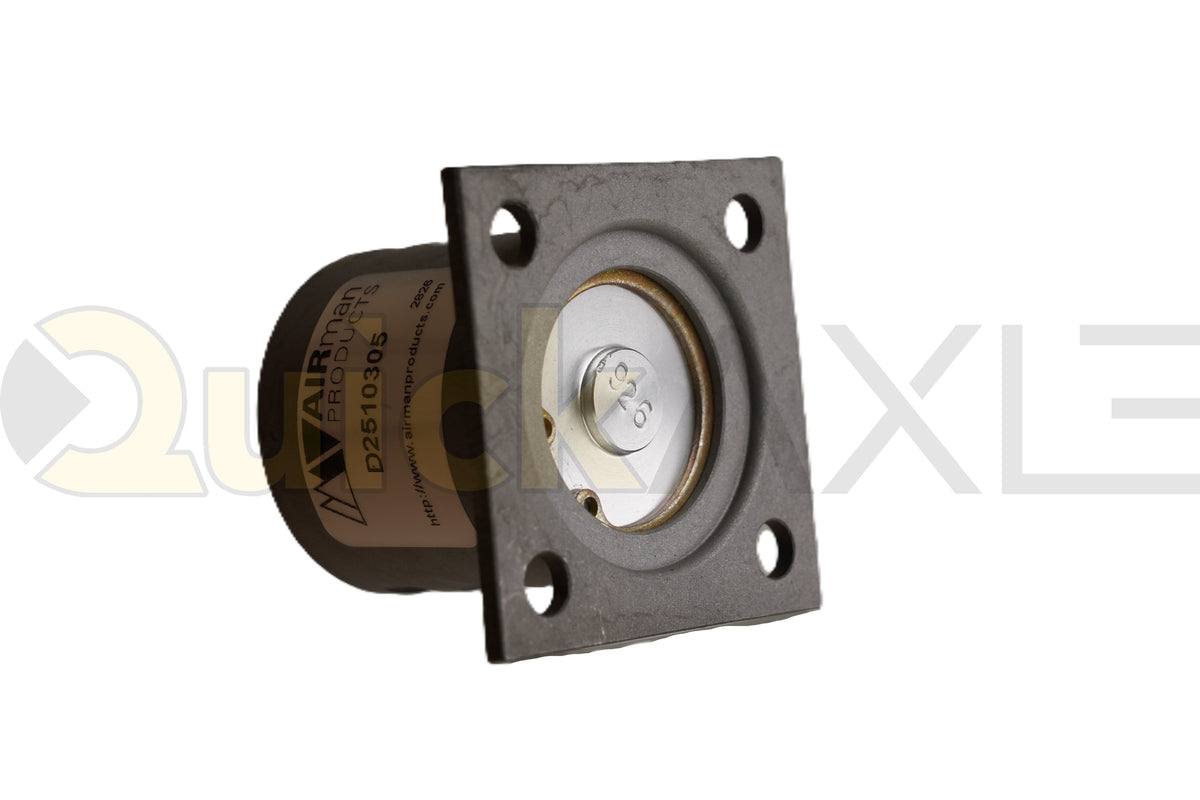

• Manufacturer references: Humphrey R014C and Airman D2510305

Related kit references

These kits list this component. Kit requirements do not establish this product's sold pack or include the complete kit.
