Ridewell Eccentric Bolt Assembly - 5001458B000

Ridewell Eccentric Bolt Assembly

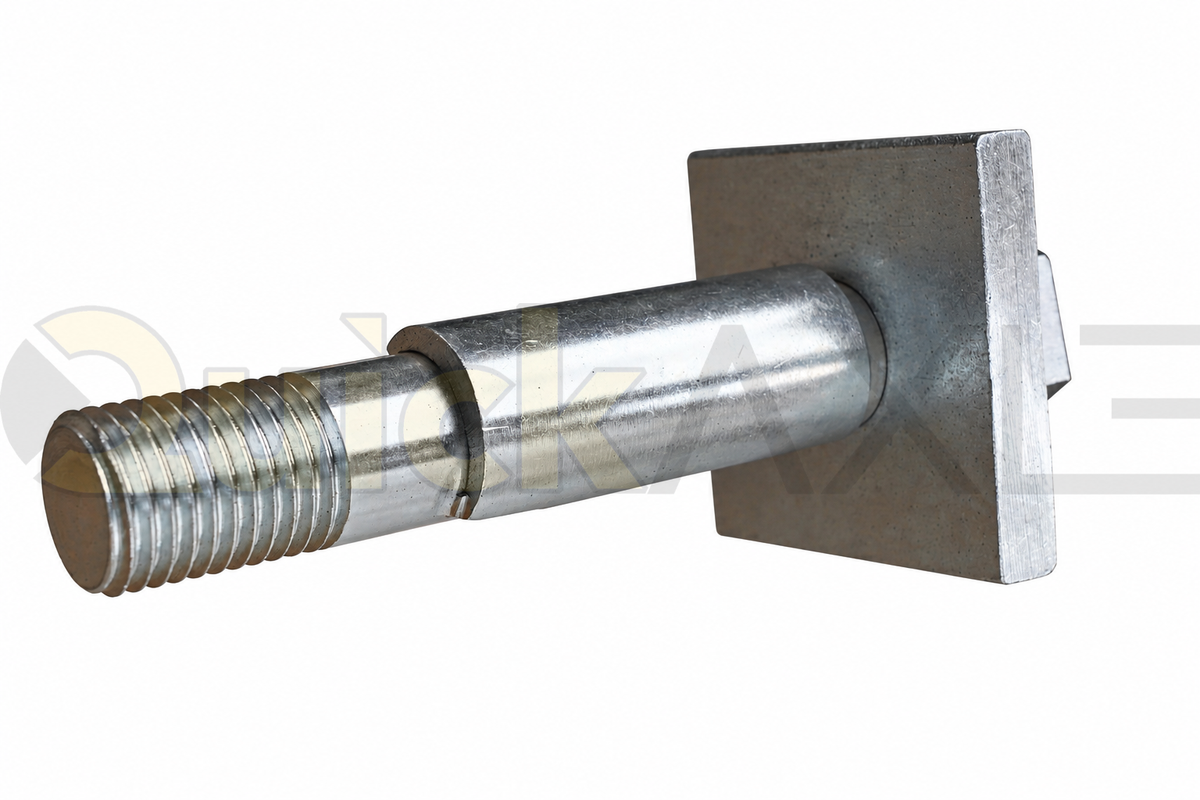

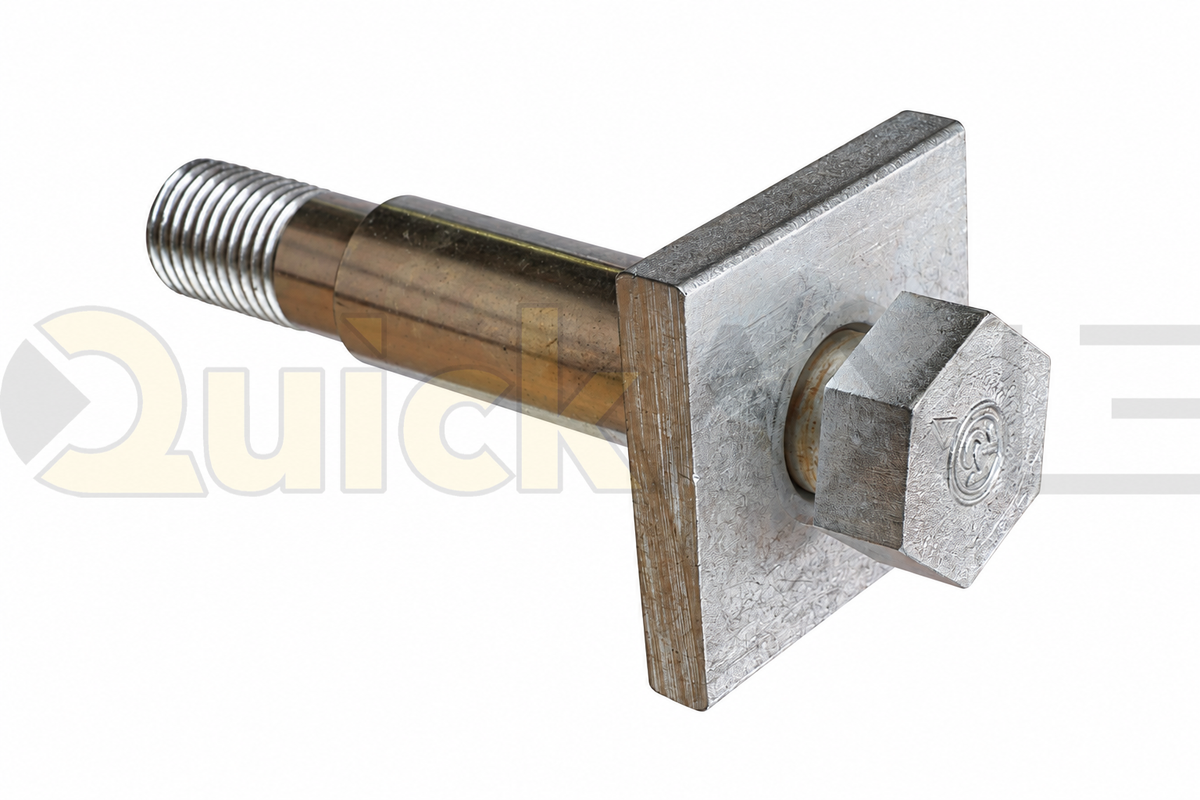

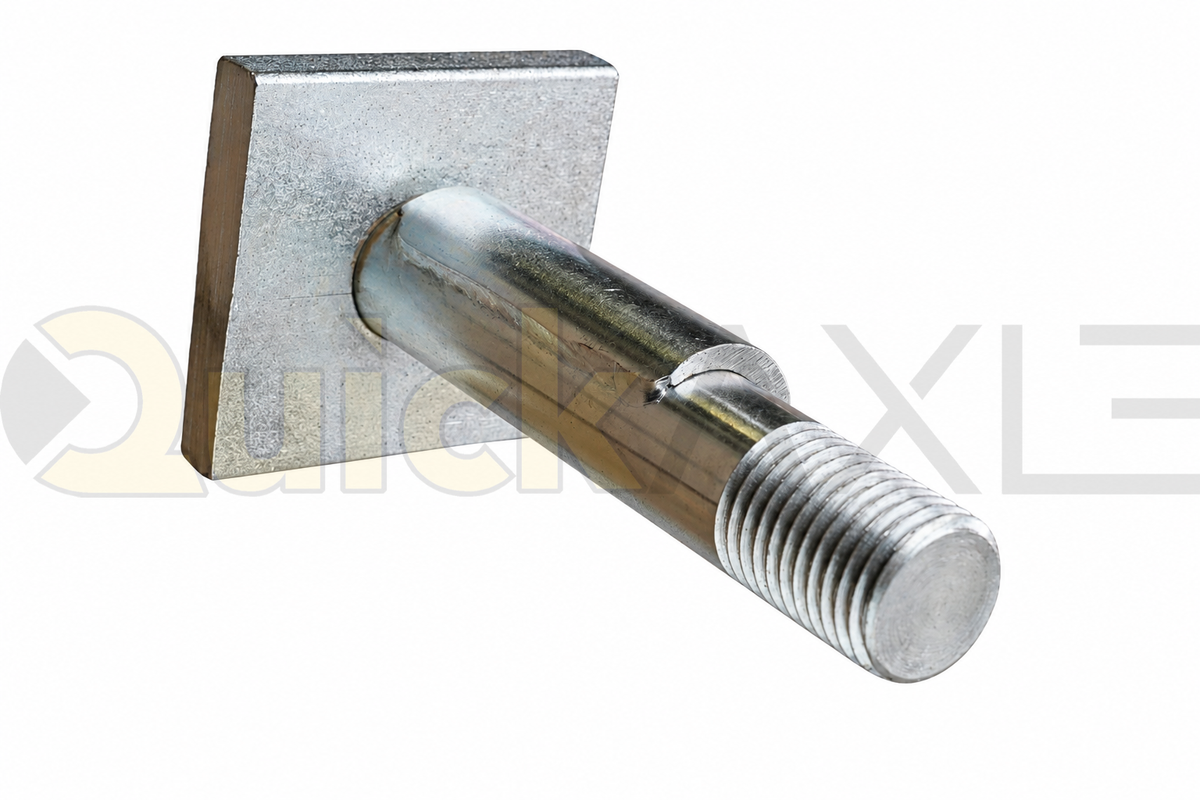

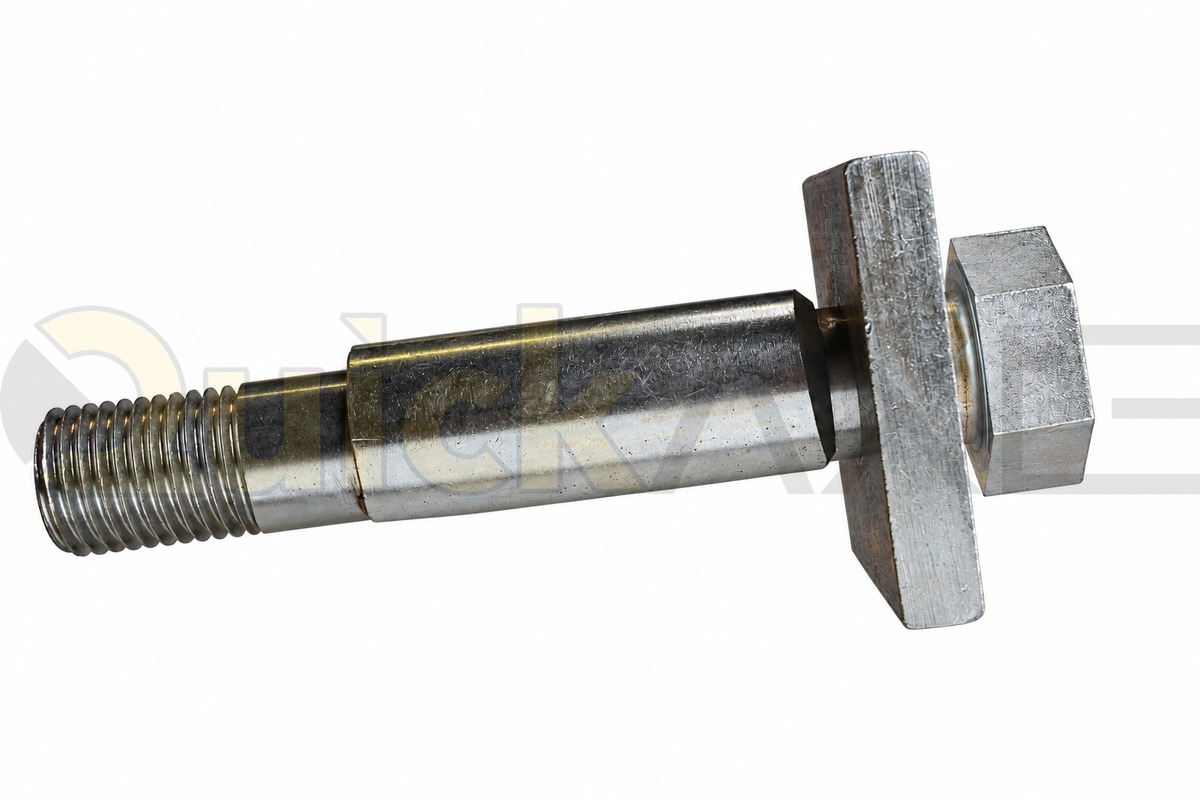

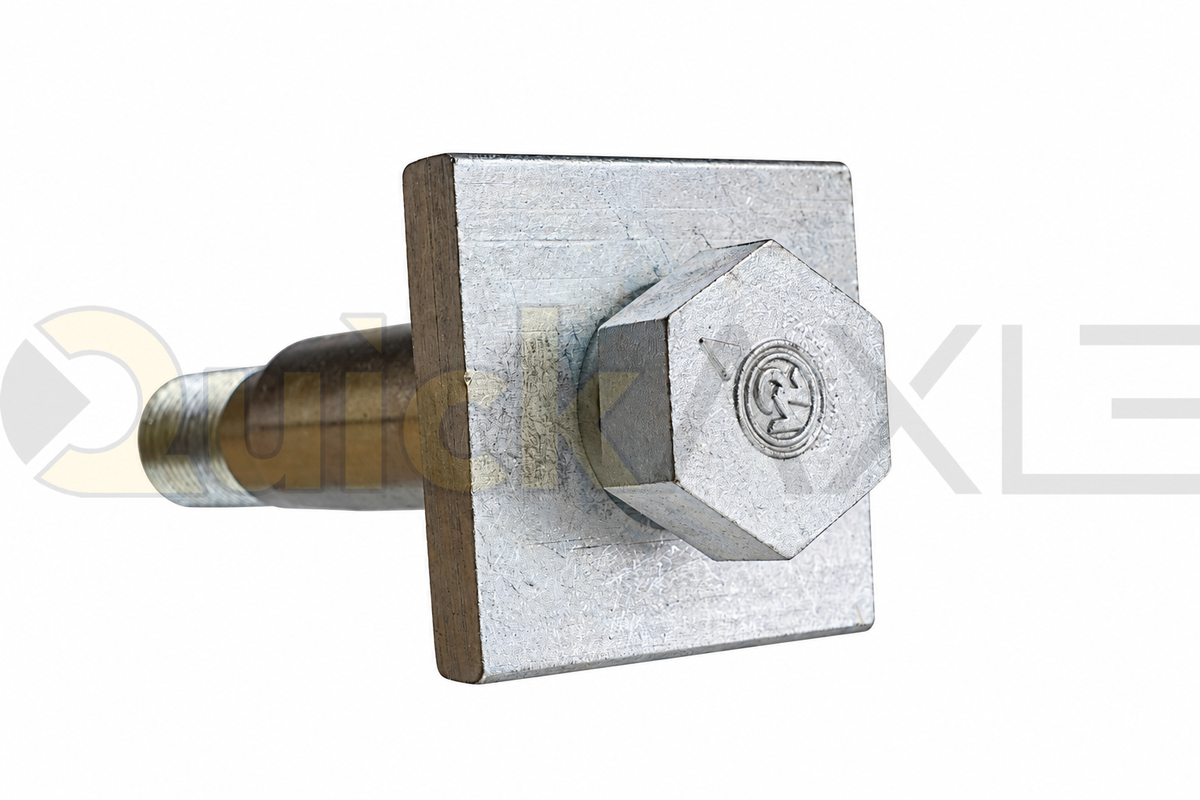

Ridewell 5001458B000 is an eccentric bolt assembly. It is zinc plated and has a clamping plate that rotates freely.

Configuration

• Ridewell part number: 5001458B000
• Assembly type: eccentric bolt assembly
• Finish: zinc plating
• Clamping plate: free to rotate
• Head marking: arrow at the high side of the eccentric

Component dimensions

• Nominal thread diameter: 1-1/4 in
• Thread pitch: 7 threads per inch (NC)
• Bolt length, measured under the head to the end: 7.500 in
• Eccentric sleeve outside diameter: 1.496-1.498 in
• Eccentric sleeve length: 3.750 in (reference)
• Clamping plate size: 3.500 x 3.500 in (reference)
• Clamping plate thickness: 0.625 in (reference)
• Eccentric offset: 0.125 in

Suspension fitment

This part fits the exact suspension models listed below. Confirm your model and service requirements before ordering; applicability does not extend to every configuration in these families. Suspension requirements are separate from the quantity supplied with this product.

Historical identification references also include RADT-246 models 2467667E000 and 2467749E000. These references do not establish a current service quantity or availability.

Related kit references

The following kits list this part as a component. Kit quantities identify kit contents and do not establish this product's sold pack or include the complete kit.

Related kit 5021458B002 uses one 5001458B000. This identifies the component requirement, not the quantity sold with this product.
