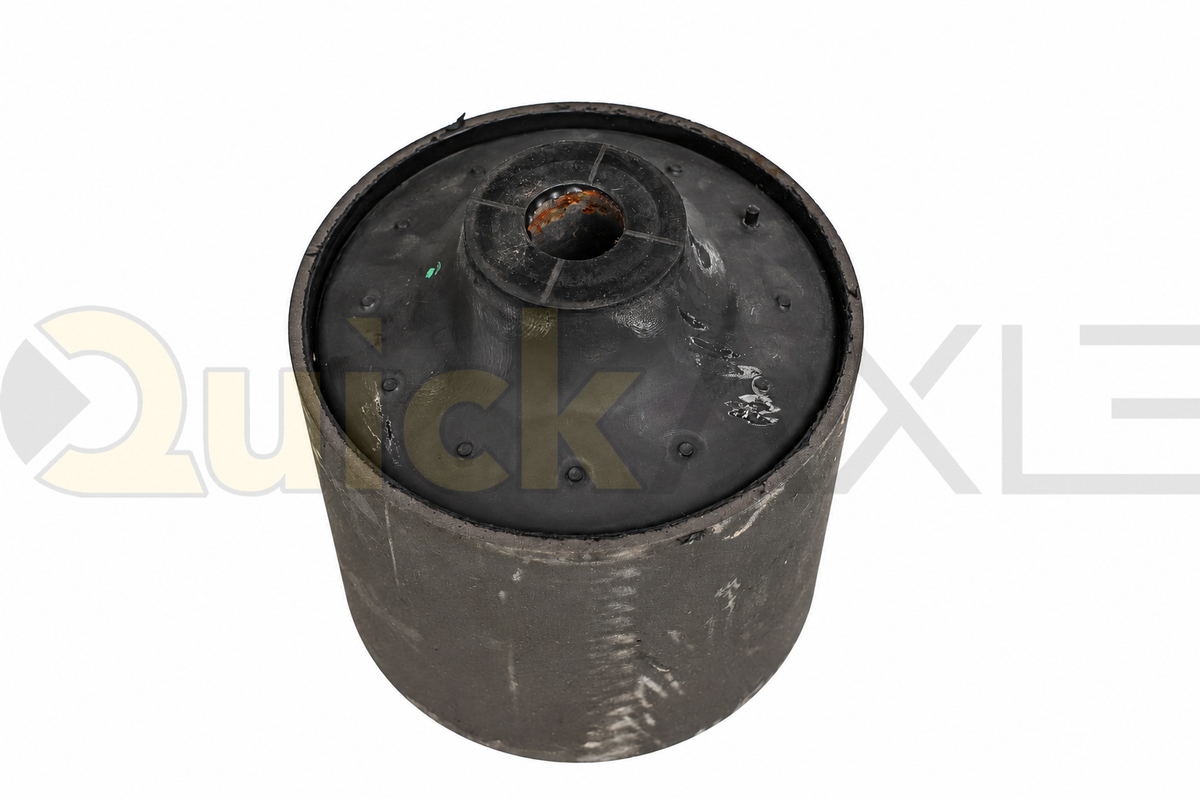

  • Tapered suspension bushing viewed from one end, showing the central sleeve.
  • Tapered suspension bushings with blue identification marks and central sleeves.
  • Tapered suspension bushings with blue identification marks and central sleeves.
  • Long suspension pivot bolt showing its threaded end and head.
  • Long suspension pivot bolt showing its threaded end and head.

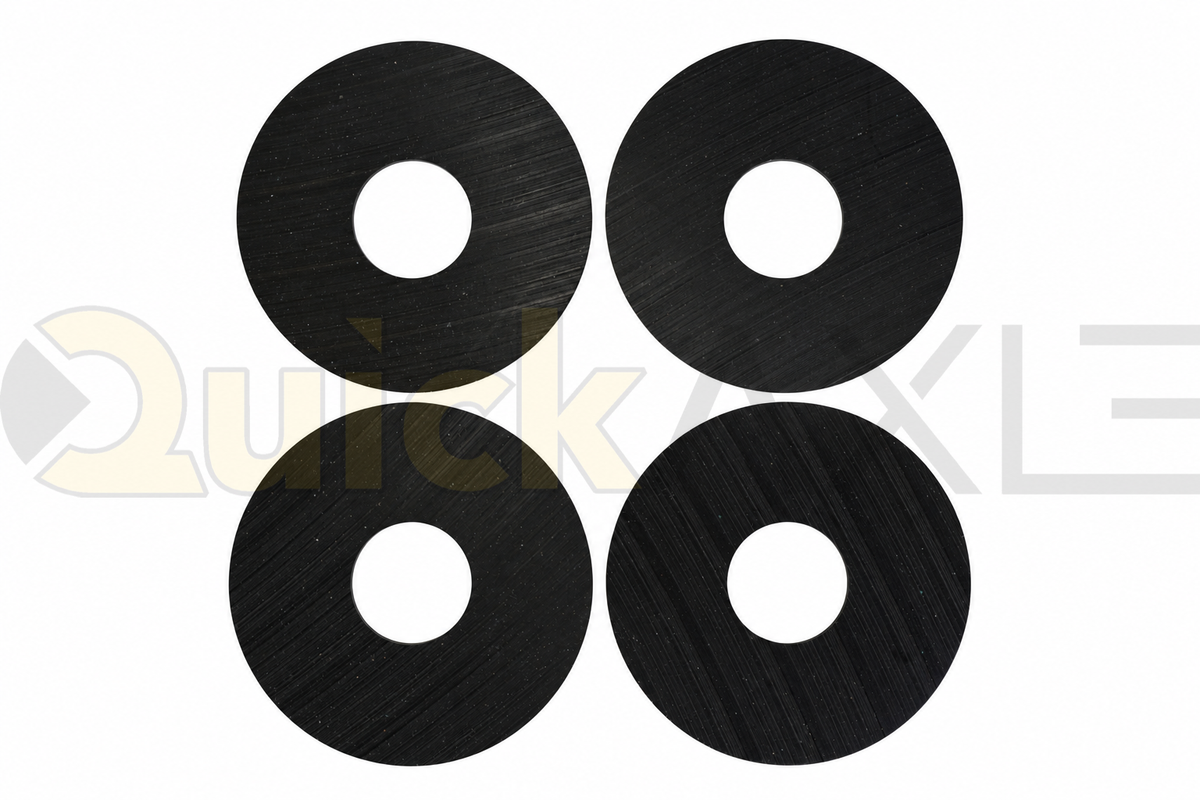

  • Flat black circular wear washers showing their central openings.
  • Flat black circular wear washers showing their central openings.
  • Flat black circular wear washers showing their central openings.

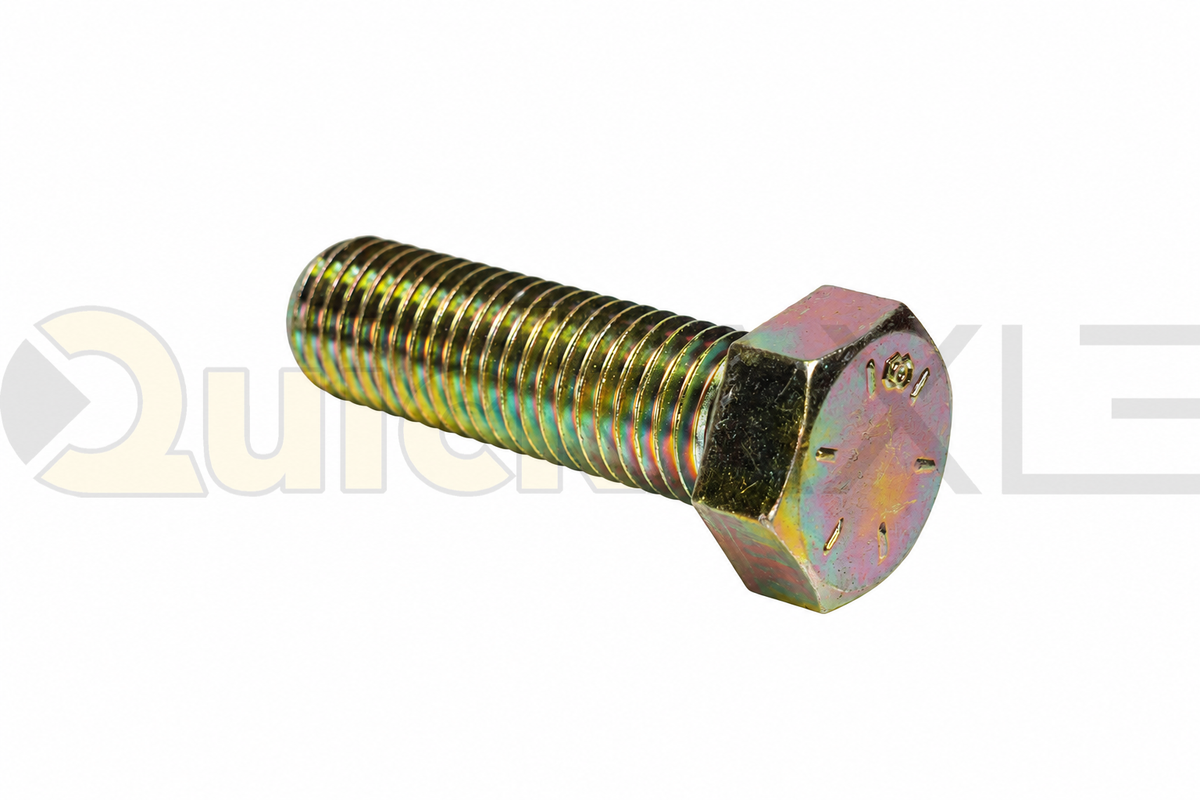

  • Hex-head bolts with threaded ends arranged on a white background.
  • Hex-head bolts with threaded ends arranged on a white background.

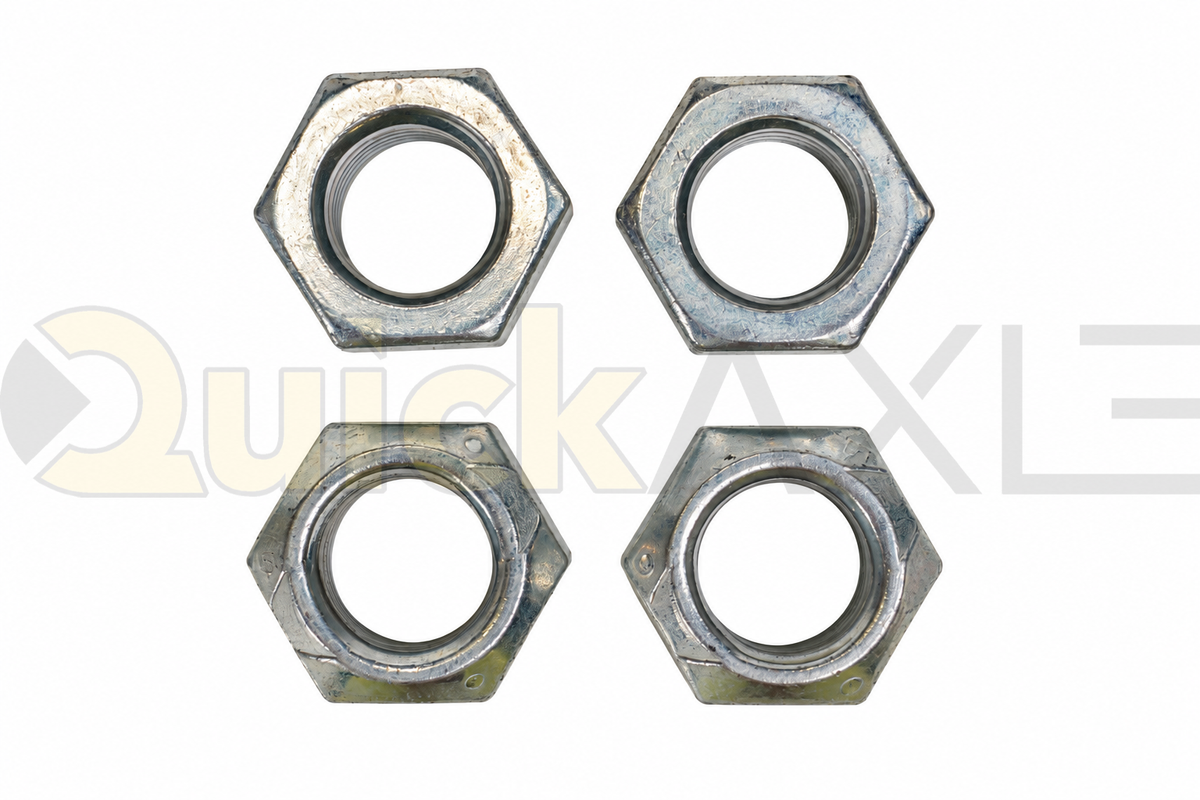

  • Hex nuts arranged to show their threaded openings.
  • Hex nuts arranged to show their threaded openings.
  • Flat washers arranged to show their central openings and stamped markings.
  • Flat washers arranged to show their central openings and stamped markings.
  • Hex nuts arranged to show their threaded openings.
  • Hex nuts arranged to show their threaded openings.
  • Flat square pads on a white background.
  • Flat square pads on a white background.
1 20

Ridewell RAR-200 Tapered Bushing Kit - 6040072

Ridewell RAR-200 Tapered Bushing Kit - 6040072

2 in stock

$348.70 USD
$0.00 USD $348.70 USD
Sale
Shipping calculated at checkout.

Ridewell RAR-200 Tapered Bushing Kit

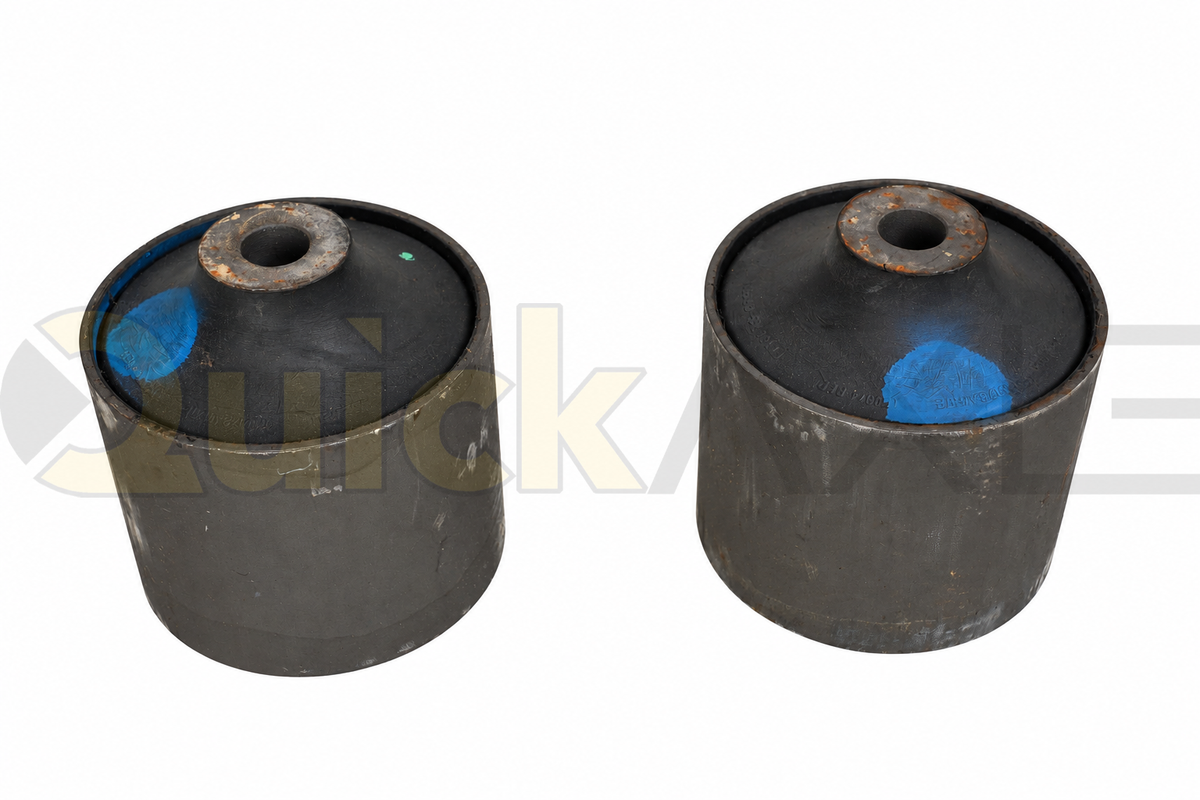

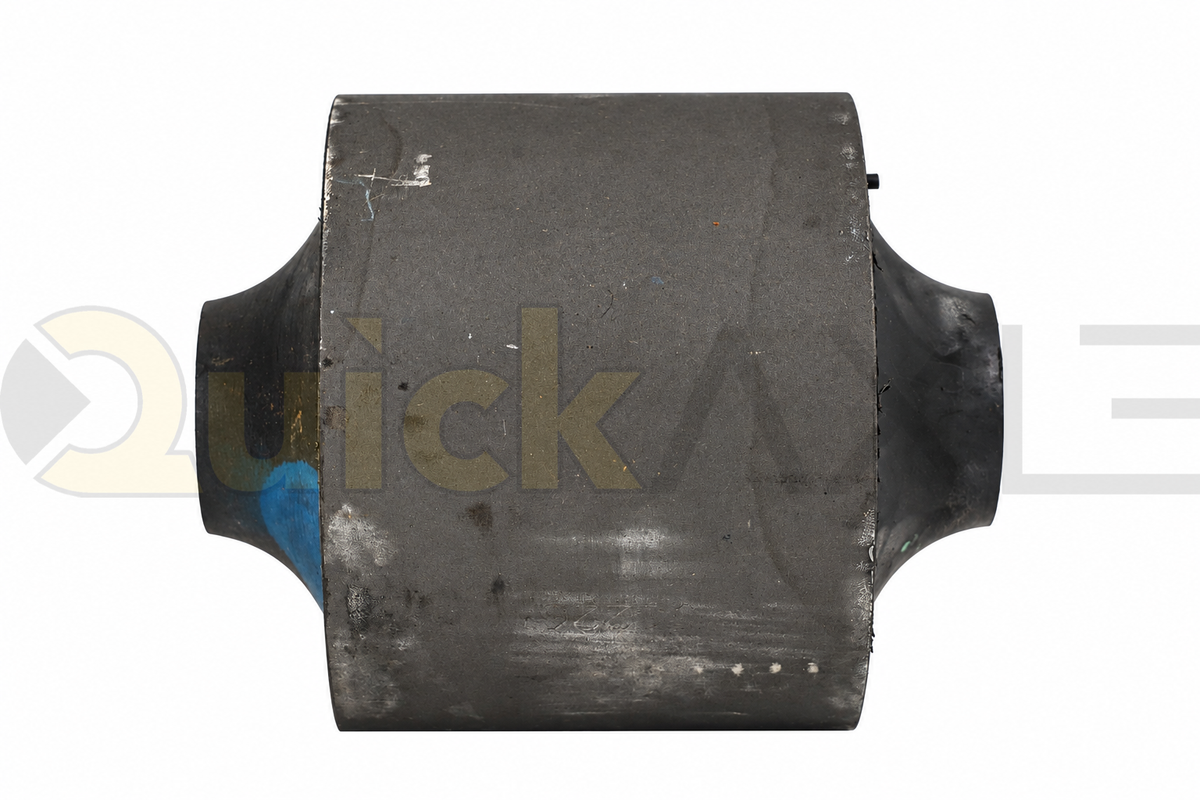

Ridewell 6040072 is a bushing replacement kit for the RAR-200 tapered two-washer configuration. Its main service components are two blue-mark 1110071 mono-pivot bushings.

Specifications

  • Included 1110071 bushing outside diameter: 5.508 +/- 0.003 in
  • Included 1110071 bushing bore diameter: 0.906 +/- 0.005 in
  • Included 1110071 bushing overall length: 6.750 +/- 0.010 in
  • Included 1110071 bushing outer sleeve length: 4.400 +/- 0.035 in
  • Included bushing hardness: 70 +/- 5 Shore A (reference)
  • Included bushings: molded natural rubber bonded to inner and outer sleeves

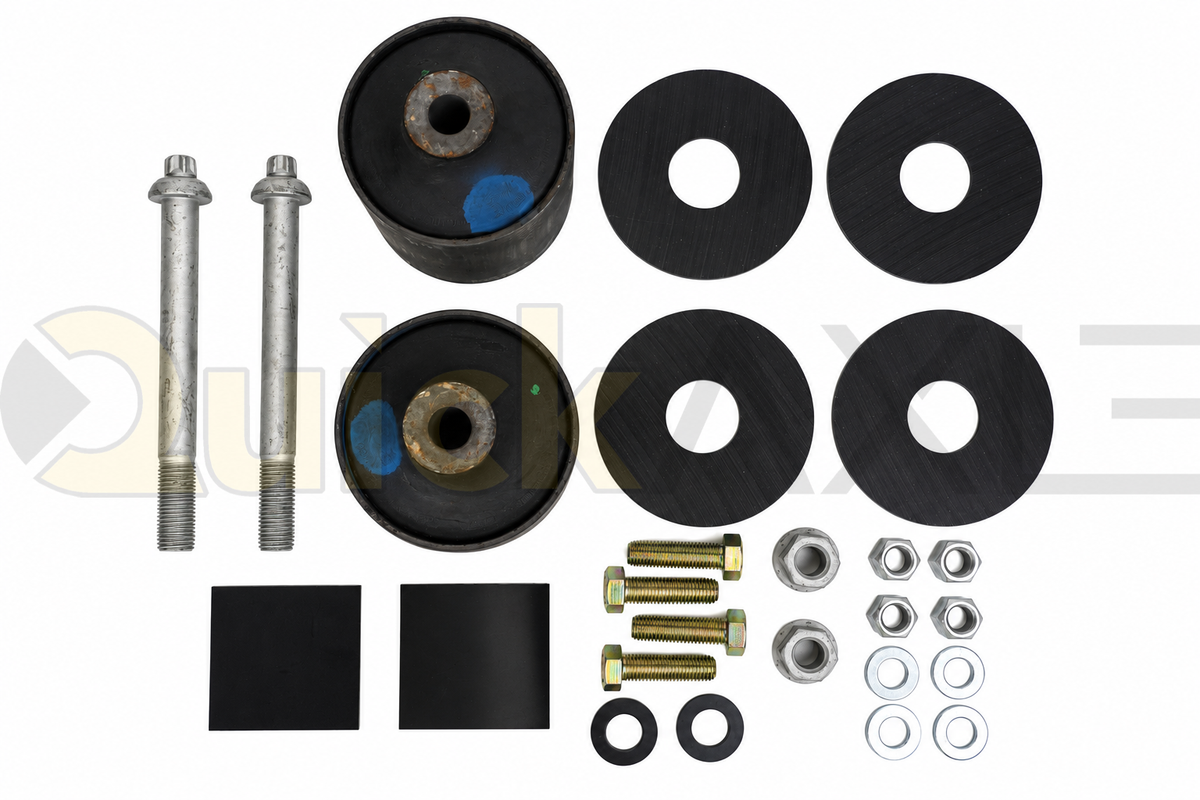

Kit contents

Components and quantities per kit
Part number Component Quantity

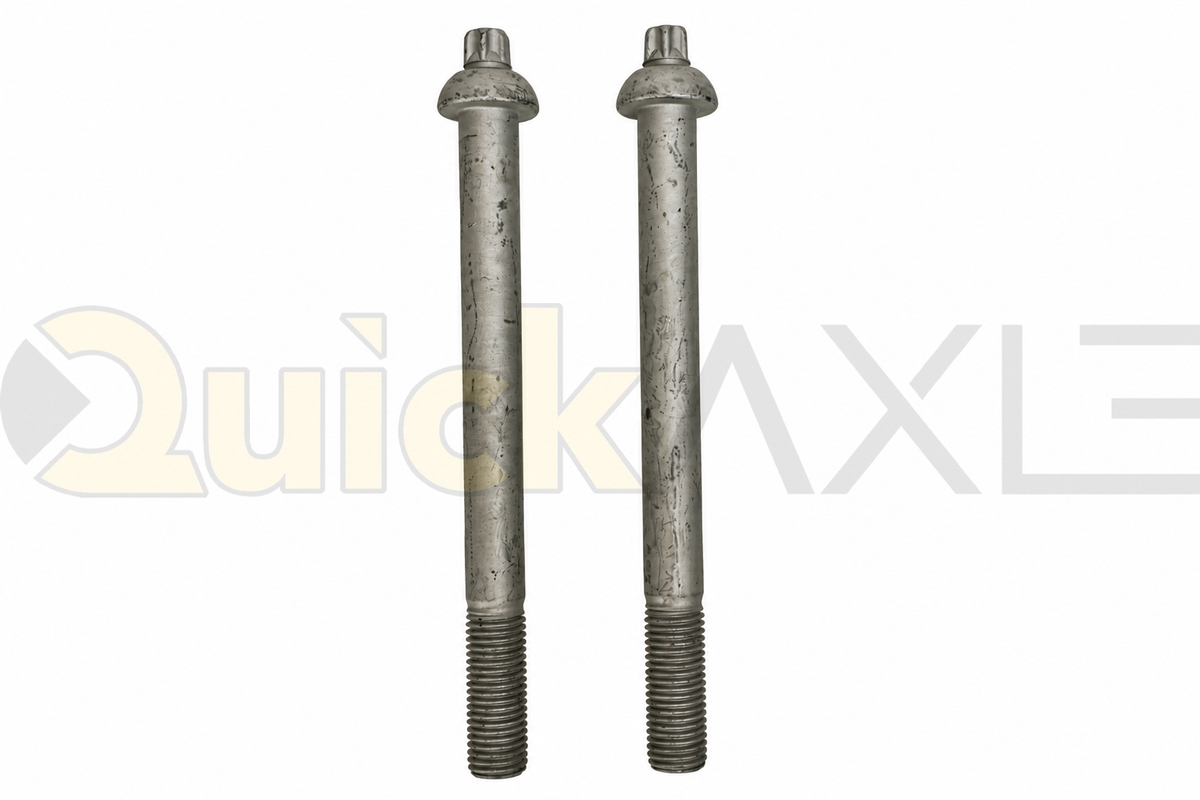

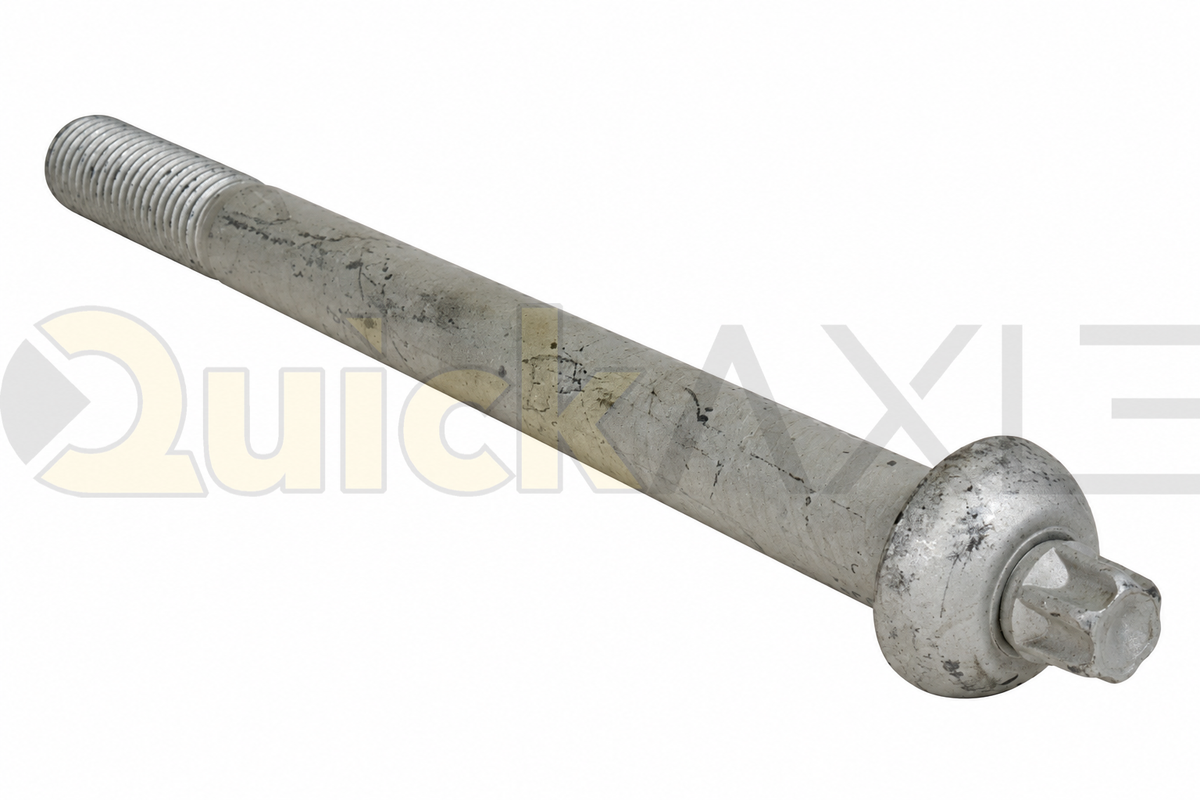

1130031 Round-head shear-type pivot bolt 2

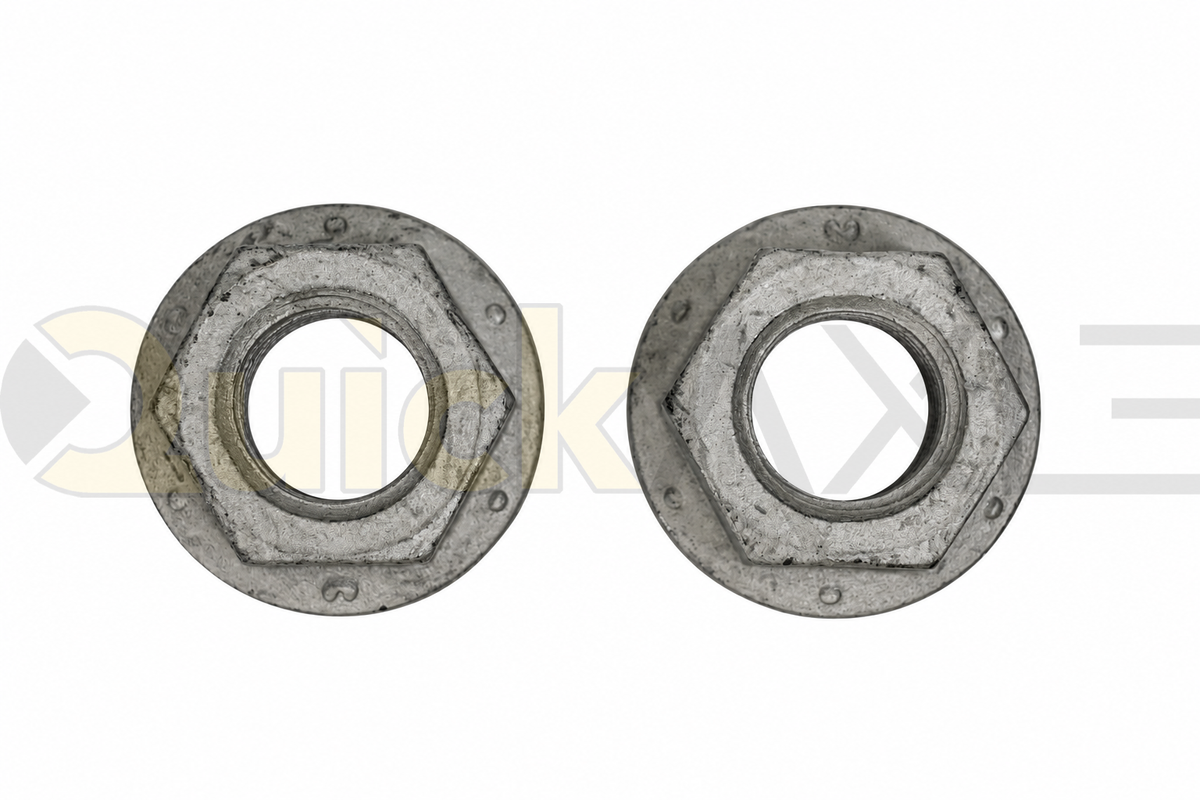

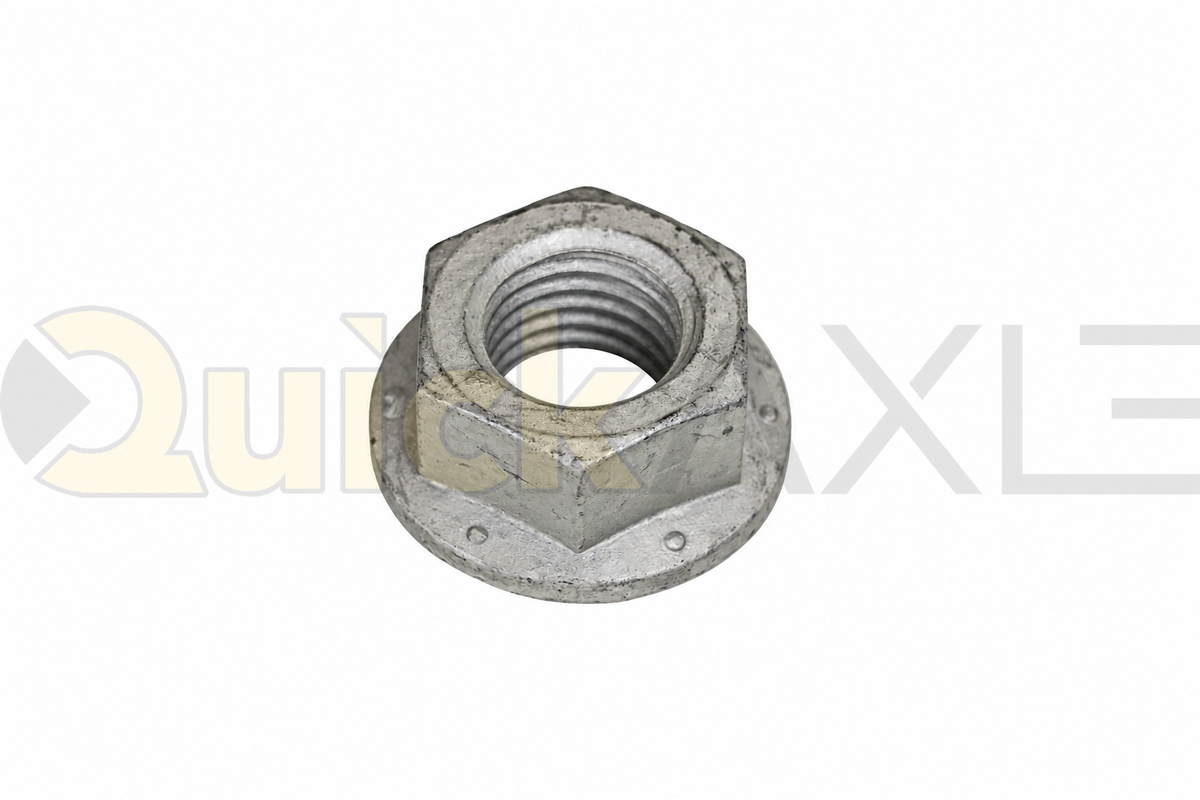

1150067 7/8-9 UNC flanged locknut 2

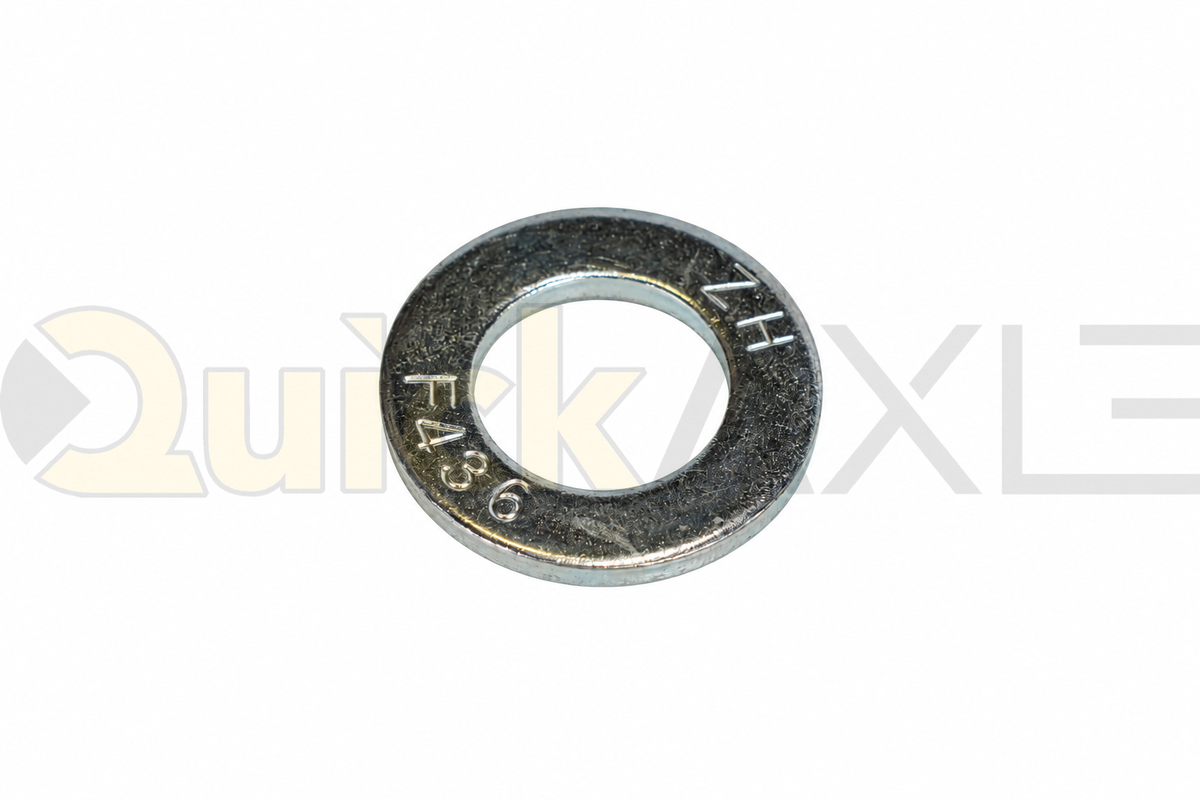

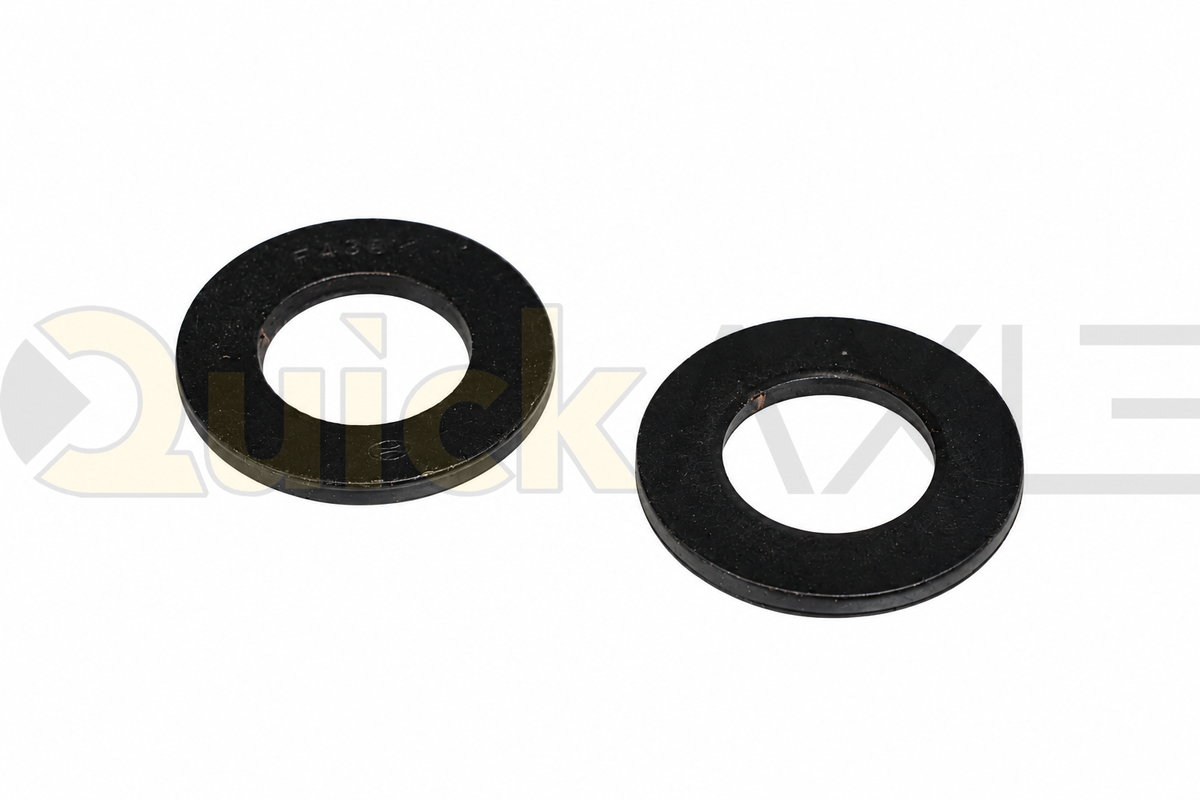

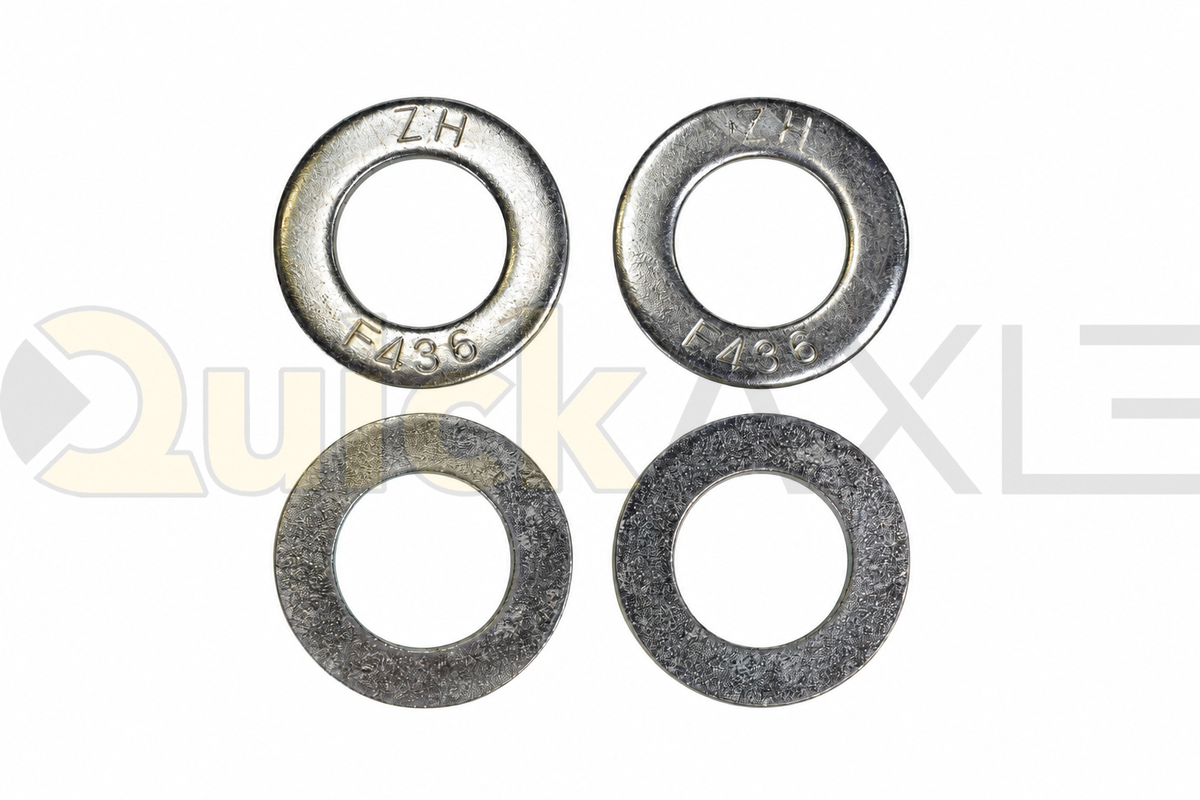

1160036 7/8 in ASTM F436 washer 2

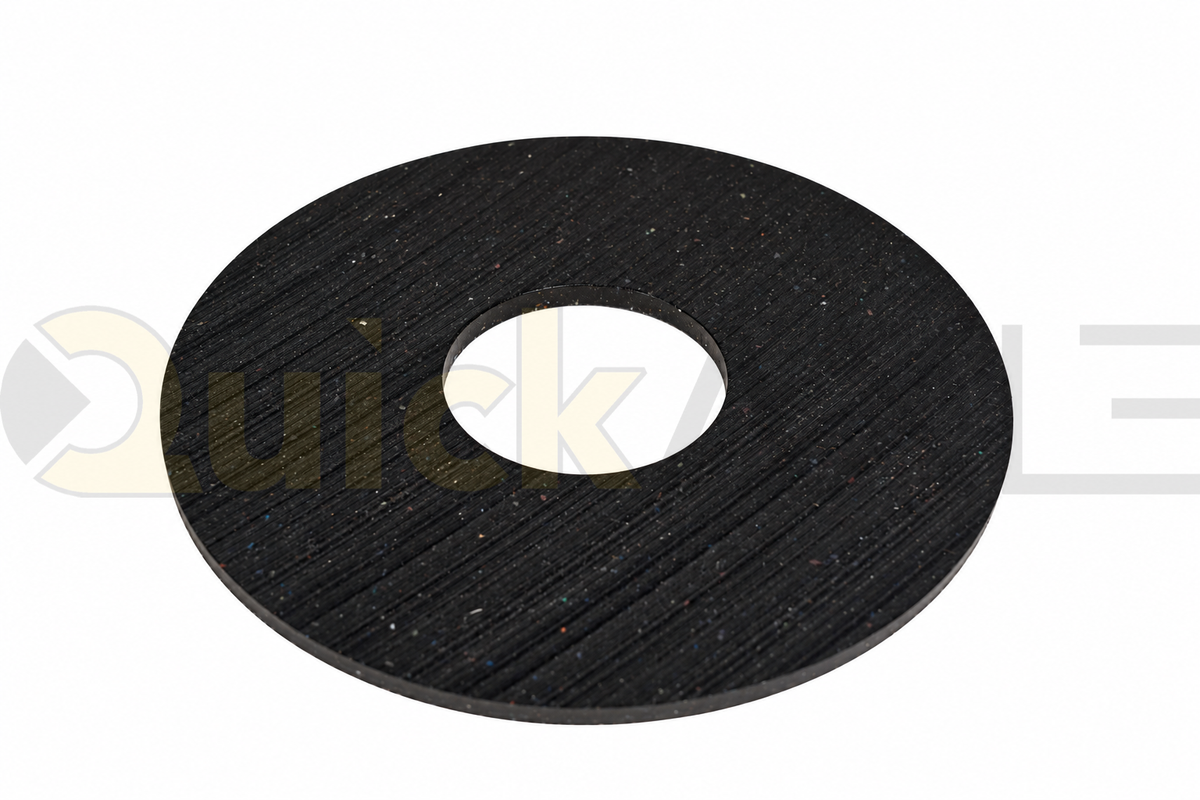

1167680B000 Black UHMW-PE wear washer 4

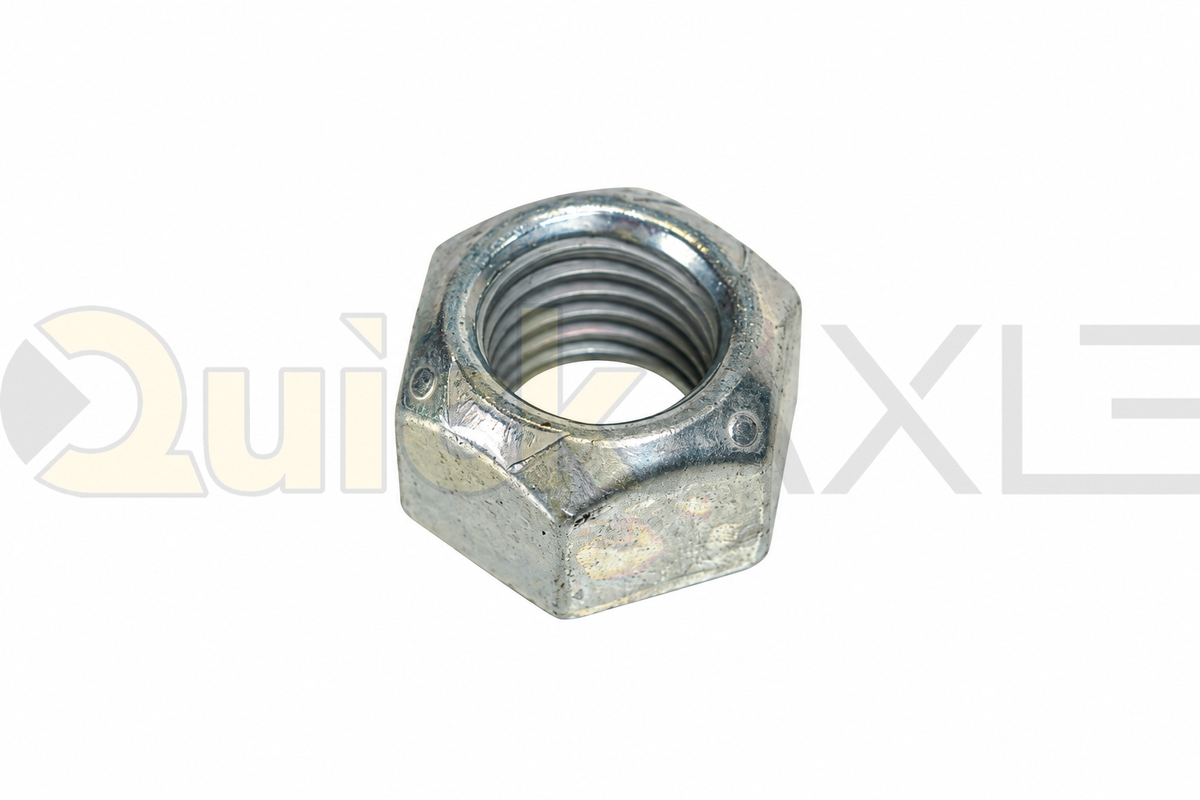

1150709B105 3/4-10 NC locknut 4
1167140B100 3/4 in ASTM F436 zinc-plated flat washer 4

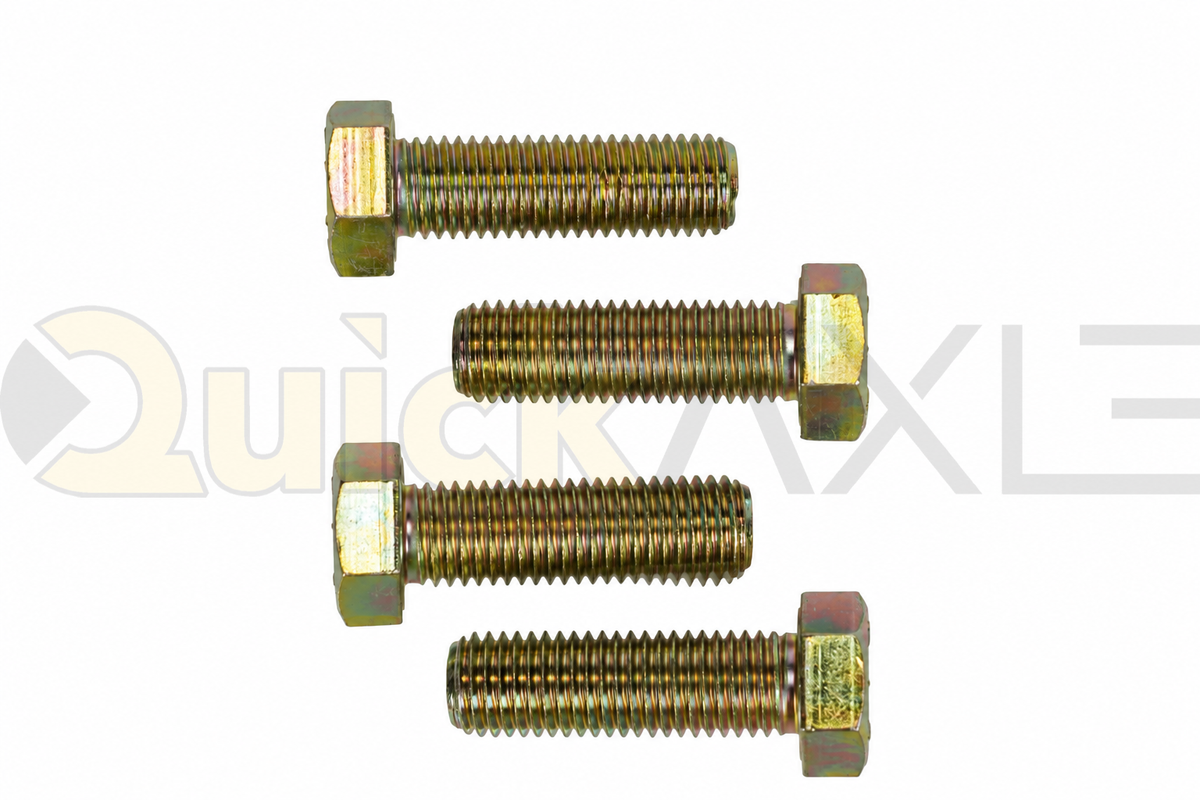

1140604B108 3/4-10 NC x 2-1/2 in Grade 8 hex-head cap screw 4

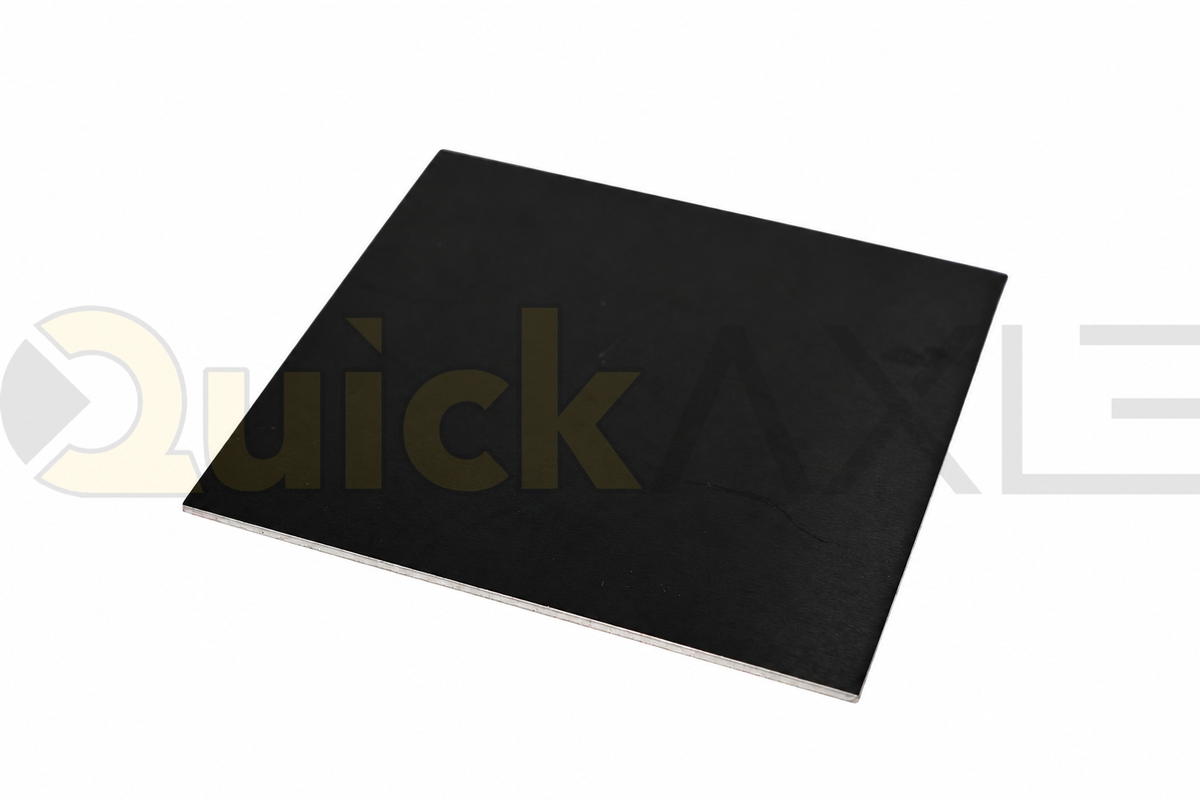

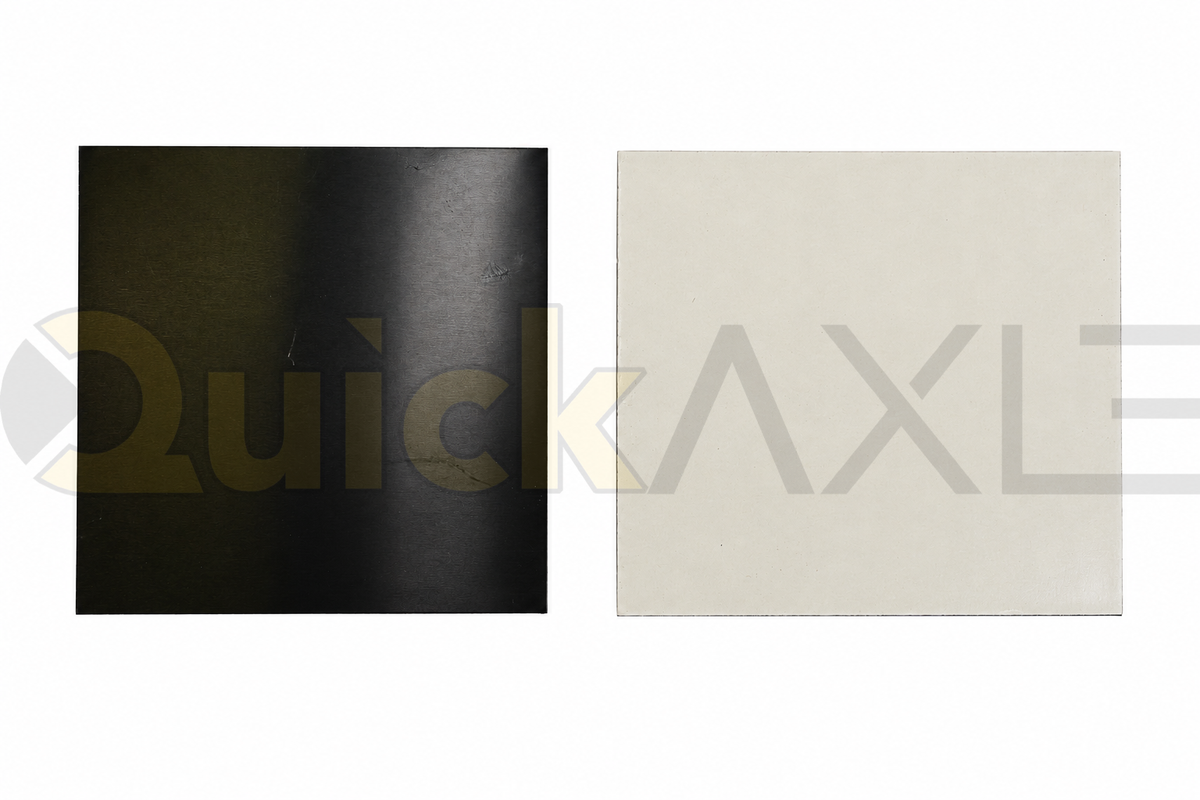

1370014 3.88 in square adhesive-backed cover 2

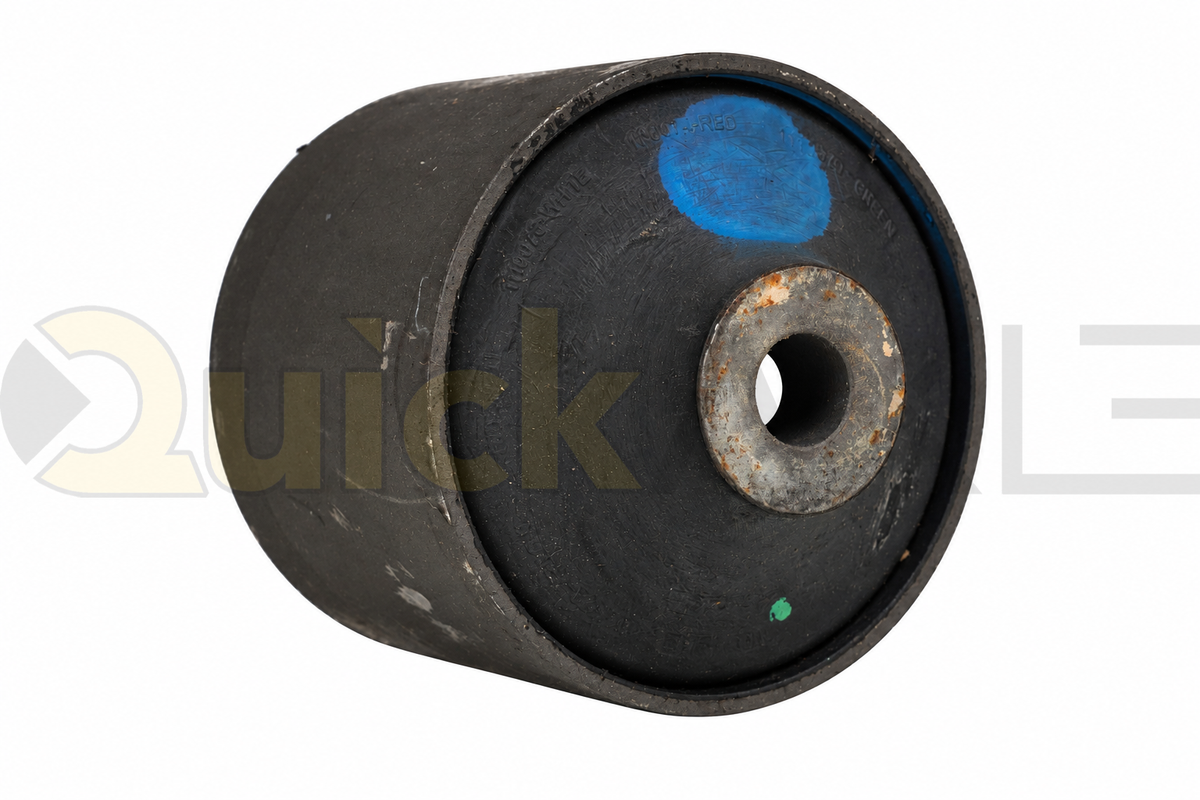

1110071 Blue-mark mono-pivot bushing 2

Match the exact suspension configuration and service requirements before ordering. The kit does not include the complete suspension assembly.
