  • Camshaft service components arranged together, including a cylindrical housing, bearing, washers, seal, and mounting flange.
  • Cylindrical needle bearing viewed at an angle, showing the internal rollers.

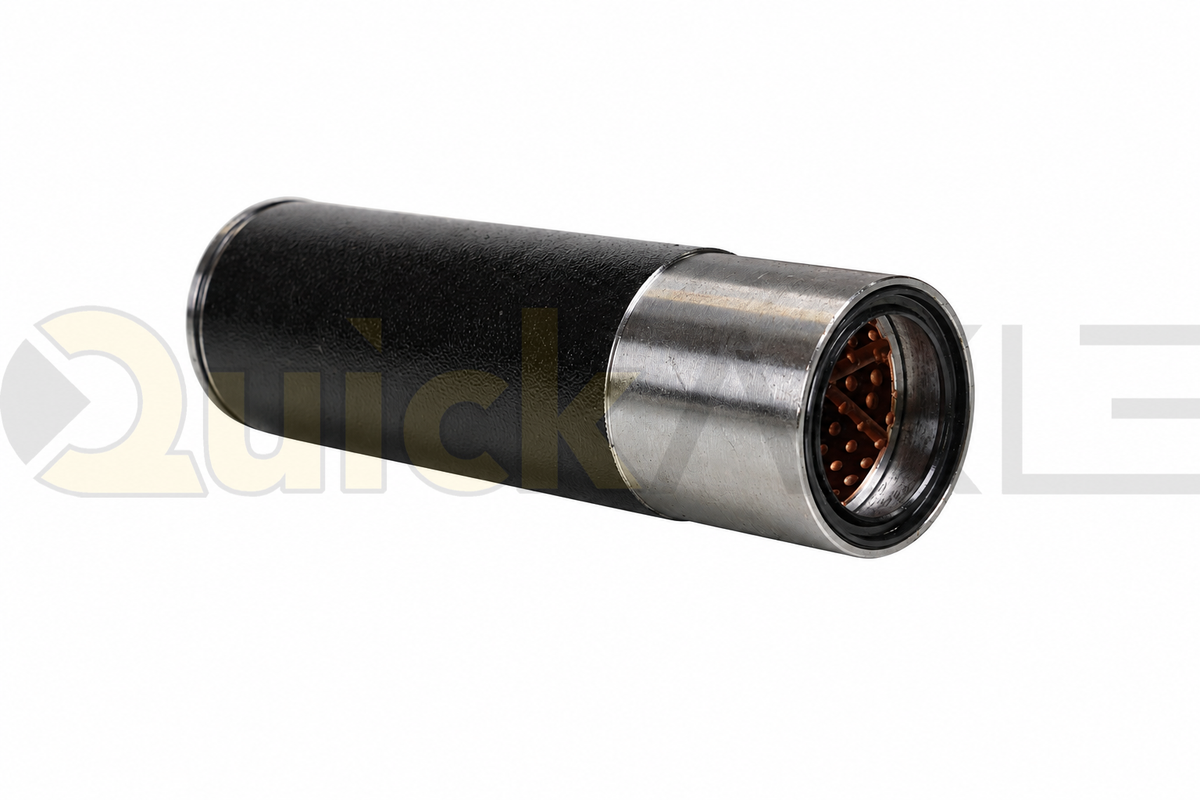

  • Cylindrical camshaft component viewed from the end, showing its internal needle bearing.

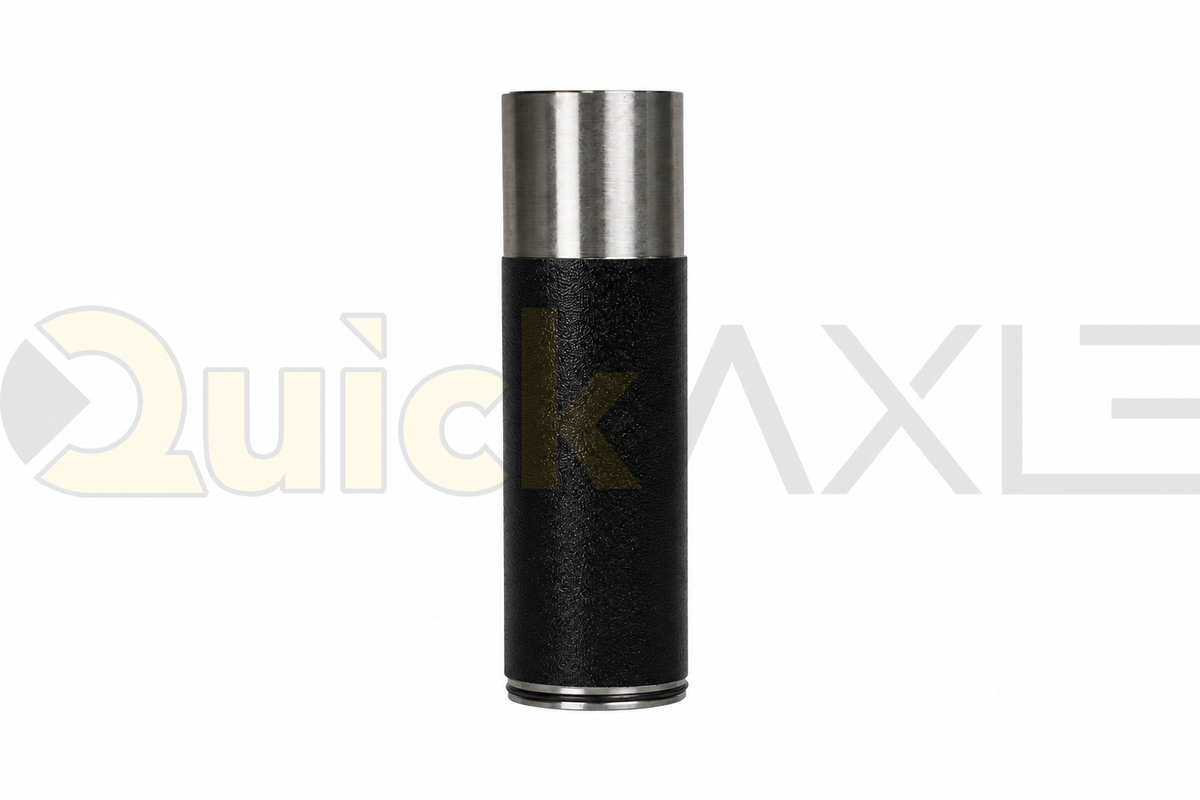

  • Cylindrical camshaft component viewed from the closed end.

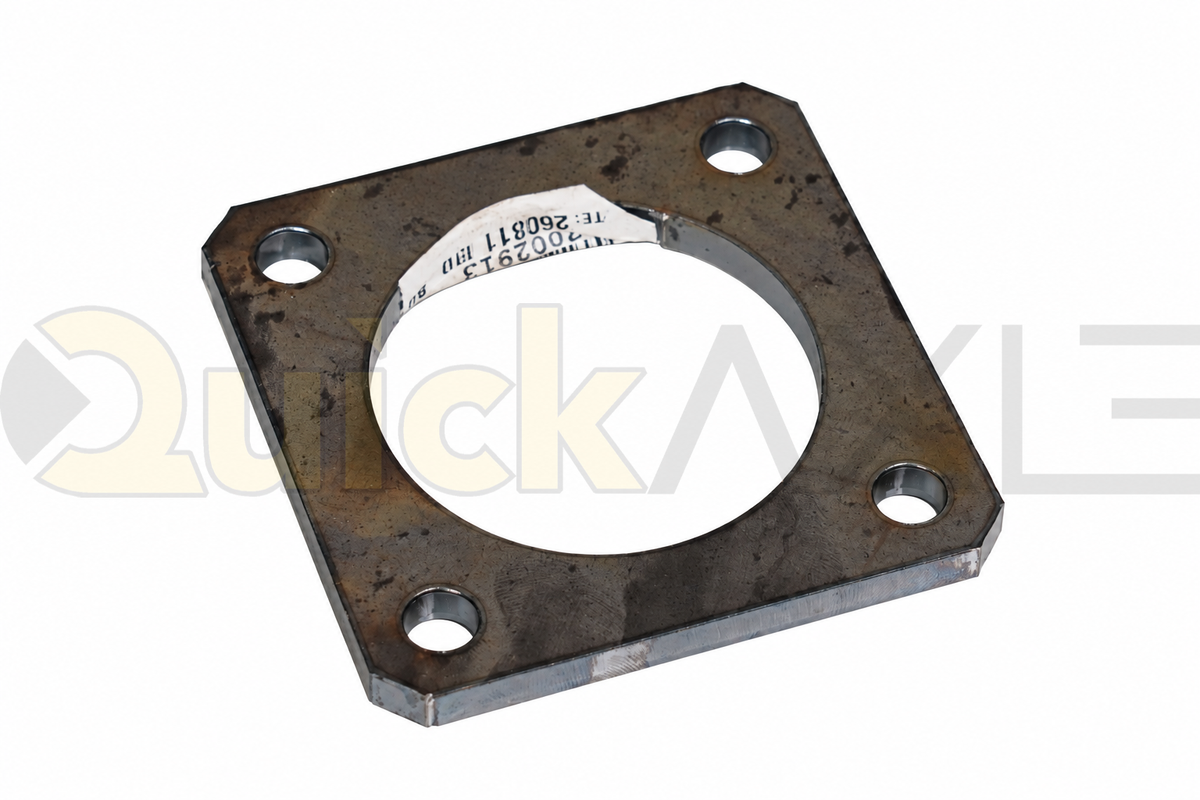

  • Square mounting flange with a large central opening and corner bolt holes.

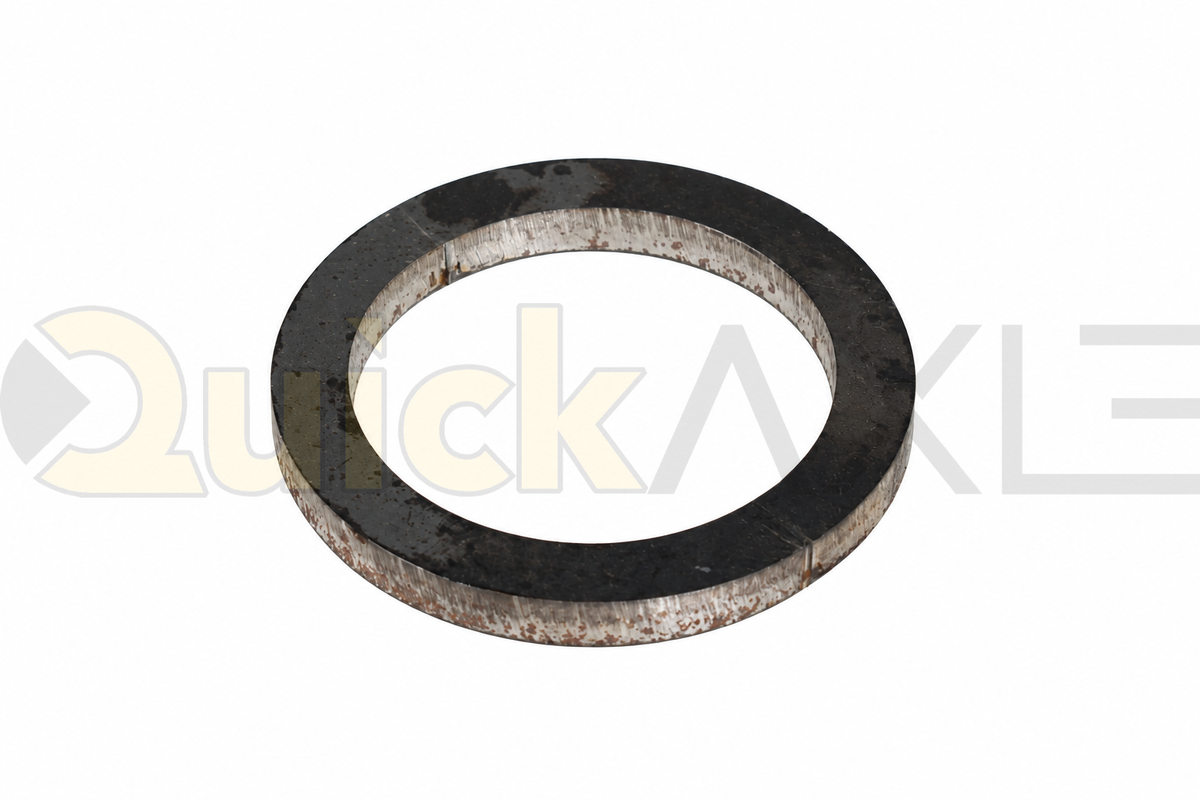

  • Thick circular washer with a central opening, angled view.

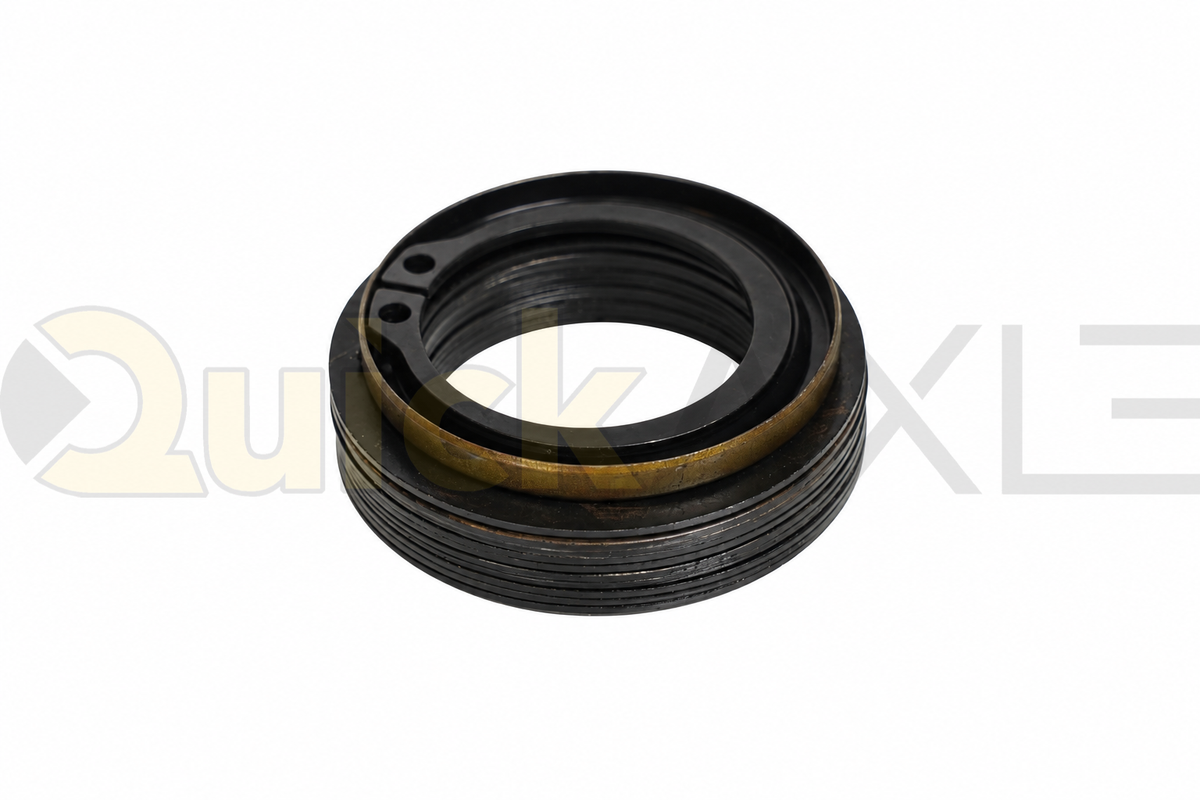

  • Circular seal viewed at an angle, showing the inner lip.
1 7

Ridewell Cam and Cover Installation Kit - 6040225

Ridewell Cam and Cover Installation Kit - 6040225

1 in stock

$57.15 USD
$0.00 USD $57.15 USD
Sale
Shipping calculated at checkout.

Ridewell Cam and Cover Installation Kit

Ridewell 6040225 is a cam-cover installation kit for the RAR-266 underslung, low-mount suspension configuration with a CL283 short cam. It uses distinct bolt and weld flanges for the underslung cam-cover mounting arrangement.

Application and configuration

  • Suspension configuration: RAR-266 underslung (low-mount)
  • Cam configuration: CL283, nominal 283 mm short cam
  • Short cam-cover assembly reference length: 169.5 mm

Kit components

Component quantities for the 6040225 kit configuration
Part number Component Quantity
1667591B038 Spider-end camshaft seal 1
1667591B039 Spider-end camshaft bushing 1
1667591B049 Short cam-cover assembly with internal bushing and seals 1
7002913 Bolt flange for 266 underslung cam cover 1
7002914 Weld flange for 266 underslung cam cover 1
1667591B044 Camshaft spacer washer 10
1667591B009 Camshaft retaining ring 1

The cam-cover assembly contains its internal bushing and seals; these are not added again as separate assemblies in the quantities above. Match the exact underslung mounting arrangement and cam configuration before ordering.
