Ridewell Ranger BSC-20 Brake Chamber - 10 in Pushrod, 45 Degree Clamp, 90 Degree Ports - 1660775
Ridewell Ranger BSC-20 Brake Chamber - 10 in Pushrod, 45 Degree Clamp, 90 Degree Ports - 1660775
58 in stock
Regular price
$51.13 USD
Regular price
$0.00 USD
Sale price
$51.13 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Overview
The Ridewell 1660775 brake chamber is a Ranger Brake BSC-20 chamber with a 10.00 in pushrod length, 45 degree clamp orientation, and 90 degree port orientation. The chamber includes 3/8-18 NPT ports, a 5/8-18 pushrod and jam nut, mounting nuts and washers, a plastic plug side port, steel plug center, and UPC label.
Key Details
- Ridewell Part Number: 1660775
- Brand / Manufacturer: Ranger Brake
- Model: BSC-20
- Product Type: Brake chamber

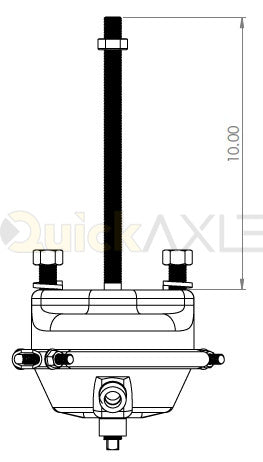

- Pushrod Length: 10.00 in

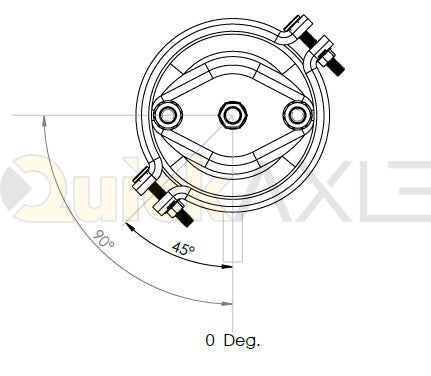

- Clamp Orientation: 45 degrees
- Port Orientation: 90 degrees
- Ports: 3/8-18 NPT
Specifications
| Specification | Value |
|---|---|
| Model | BSC-20 |
| Pushrod Length | 10.00 in |
| Pushrod Thread | 5/8-18 |
| Jam Nut Thread | 5/8-18 |
| Mounting Nut Thread | 5/8-11 |
| Port Size | 3/8-18 NPT |
| Clamp Orientation | 45 degrees |
| Port Orientation | 90 degrees |
| Center Reference | 0 degrees |
| Side Port Plug | Plastic plug |
| Center Plug | Steel plug |
Included Items
- Ranger Brake BSC-20 brake chamber
- 5/8-18 pushrod
- 5/8-18 jam nut
- Mounting nuts and washers
- Plastic plug side port
- Steel plug center
- UPC label

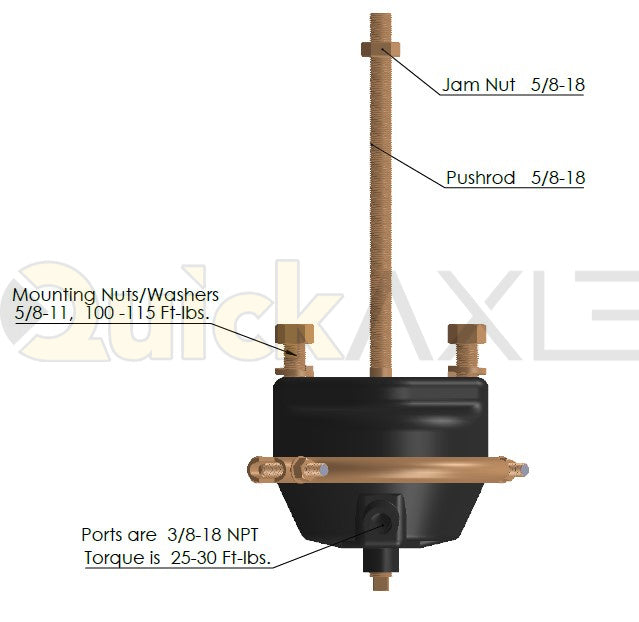

Installation Notes
- Mounting nuts and washers use 5/8-11 thread and 100-115 ft-lb torque.
- Port torque is 25-30 ft-lb.
- Ports are 3/8-18 NPT.
