AXLE NOT INCLUDED

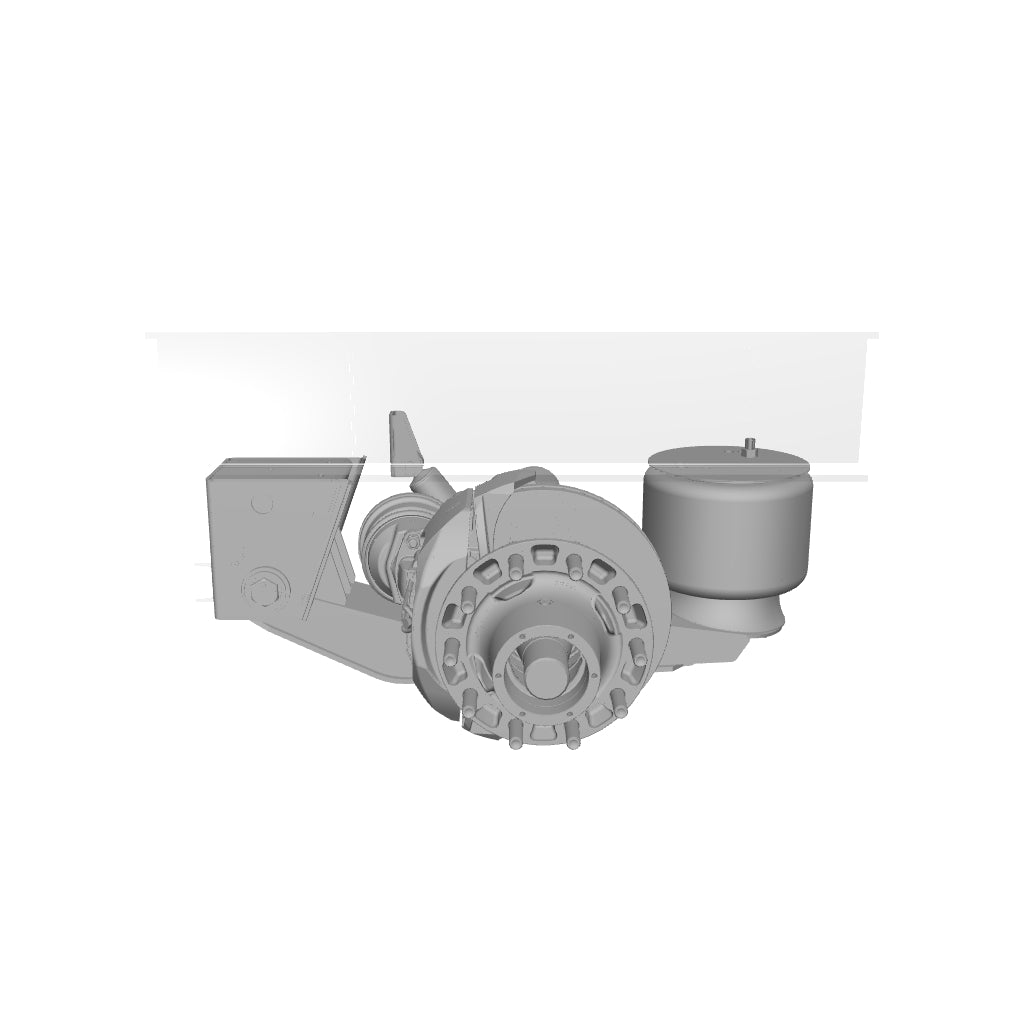

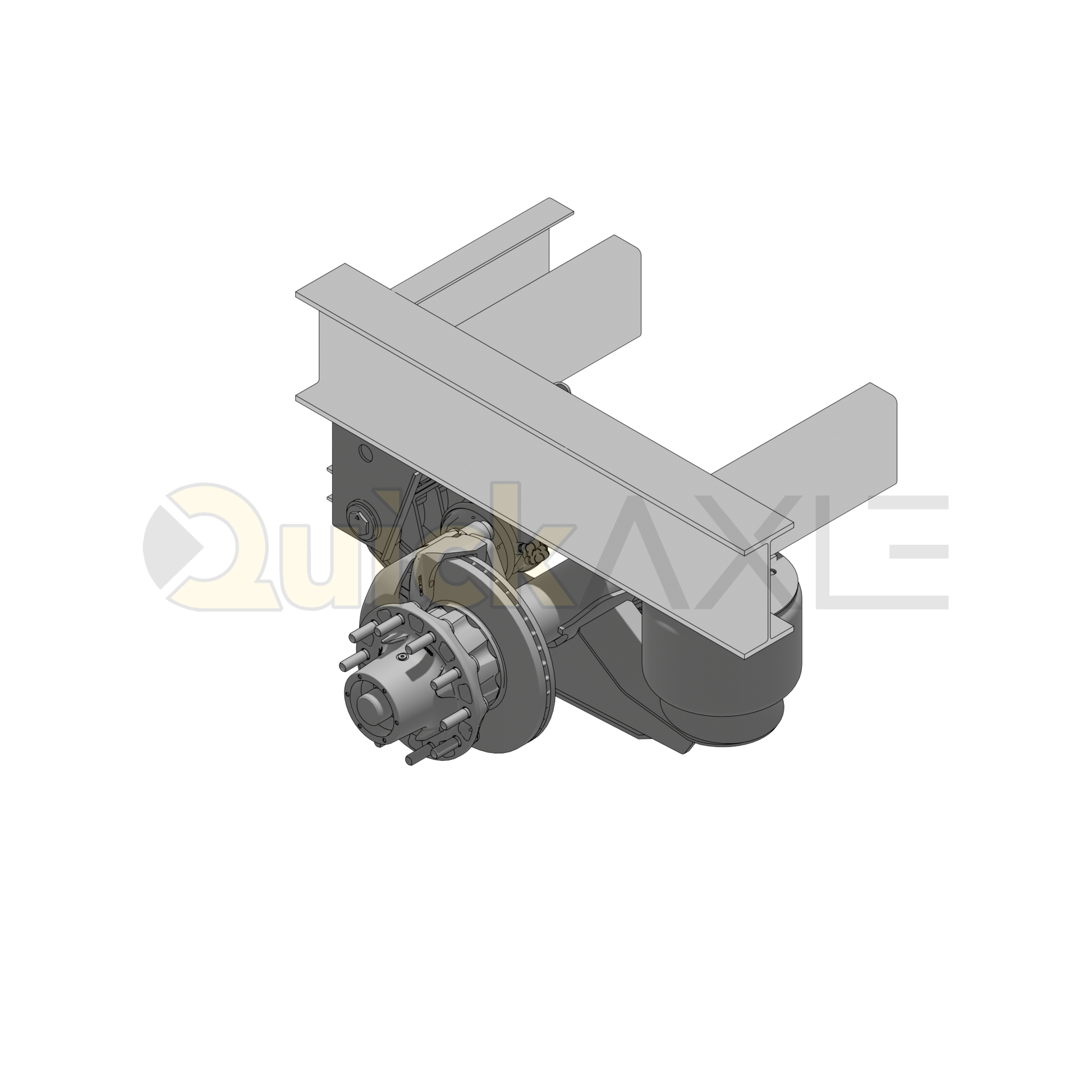

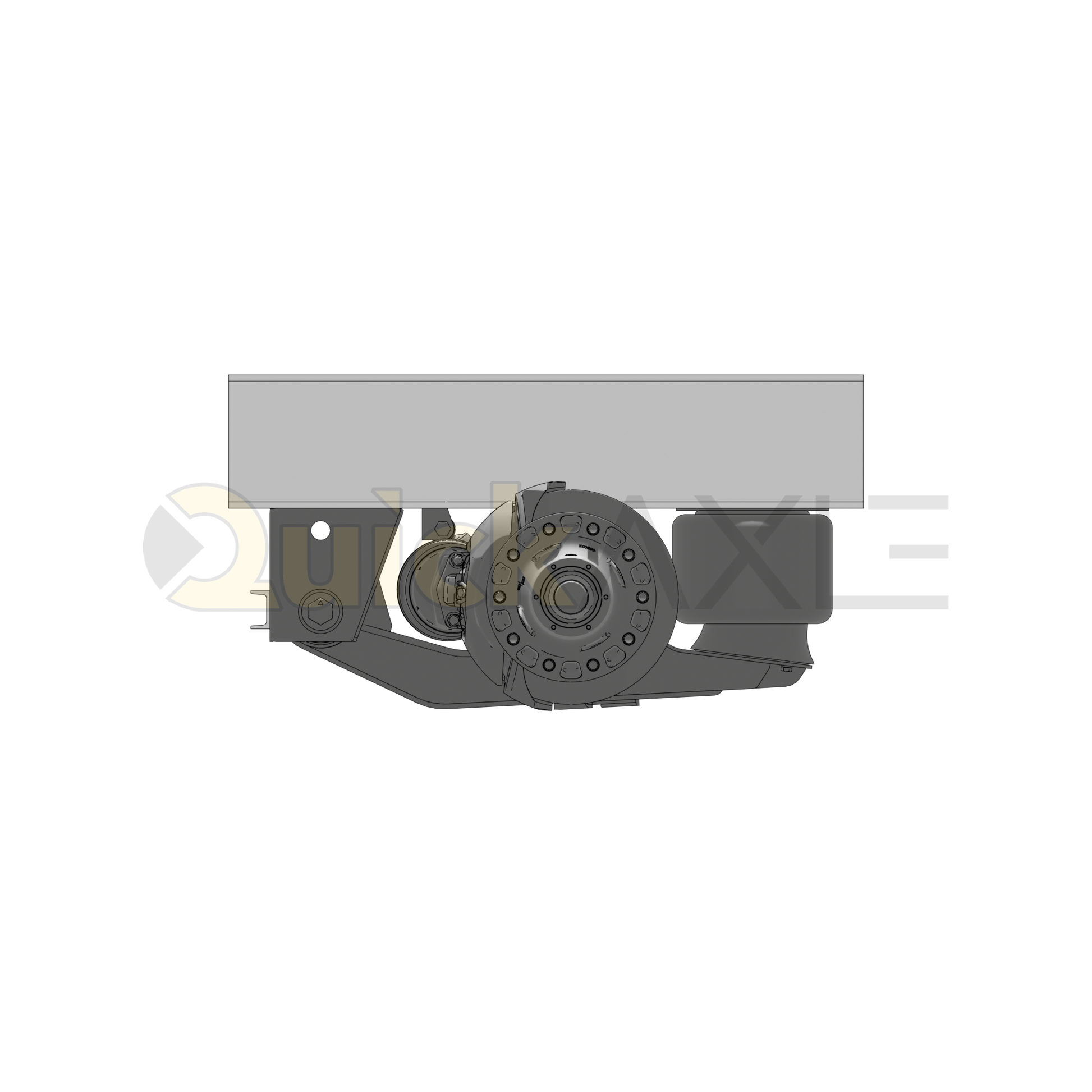

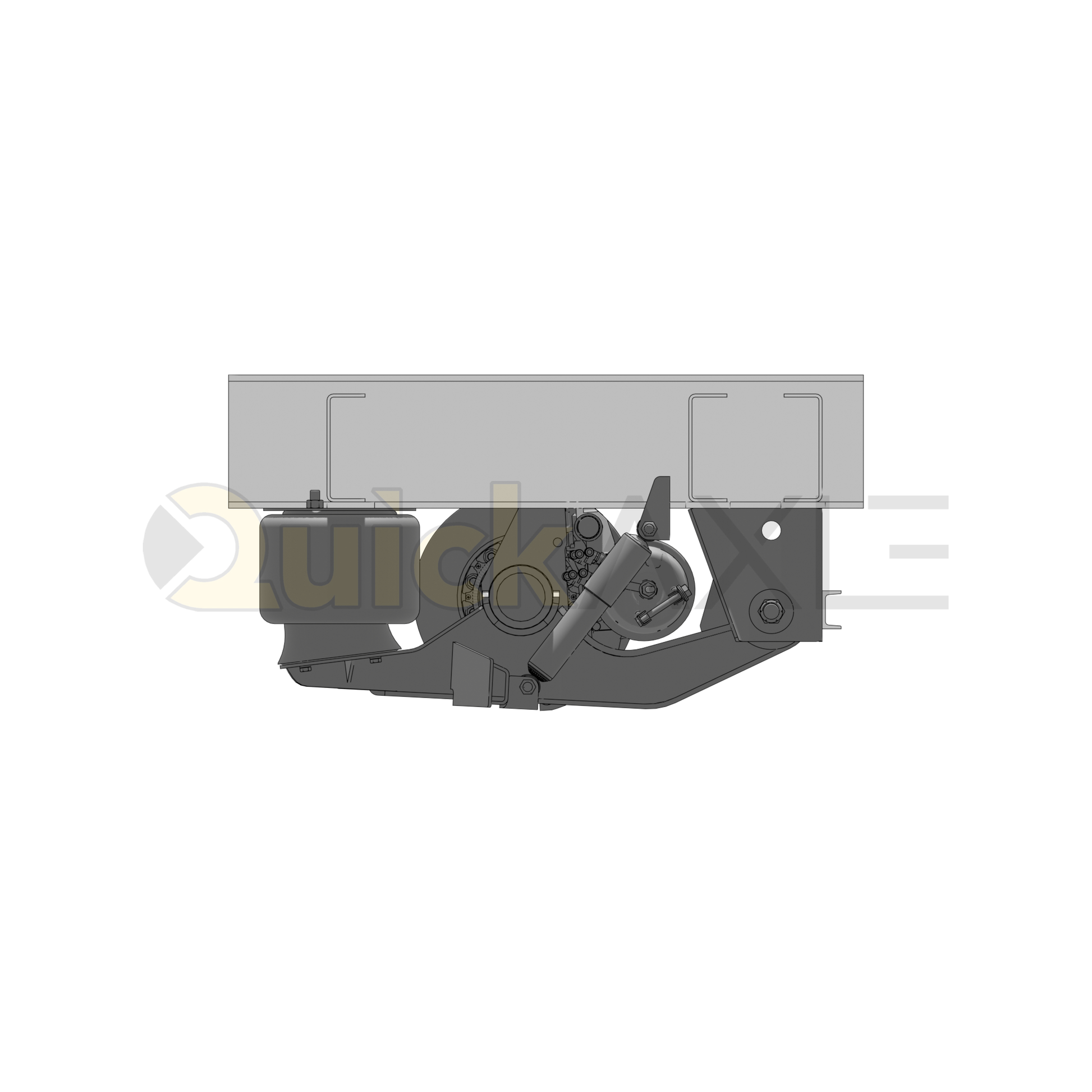

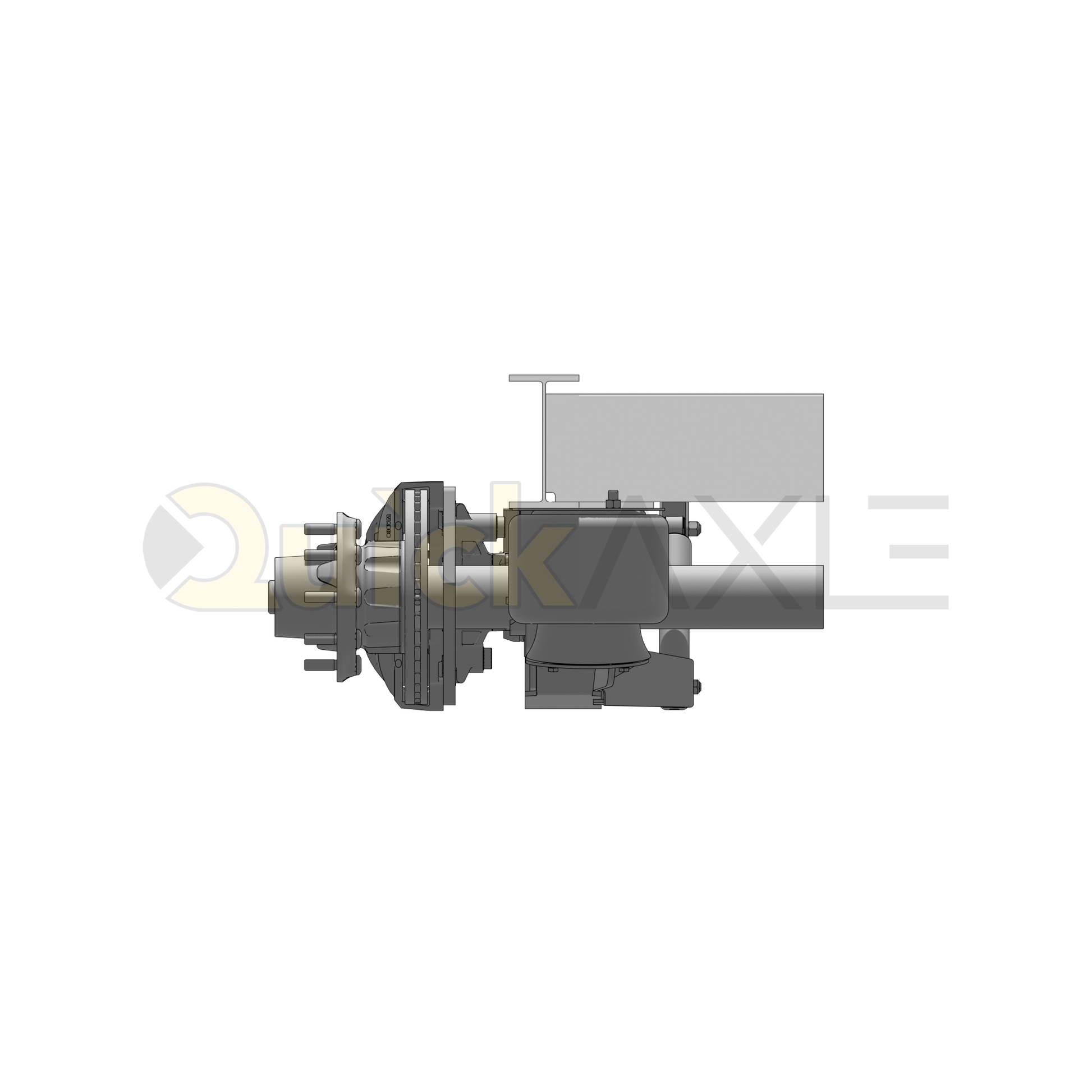

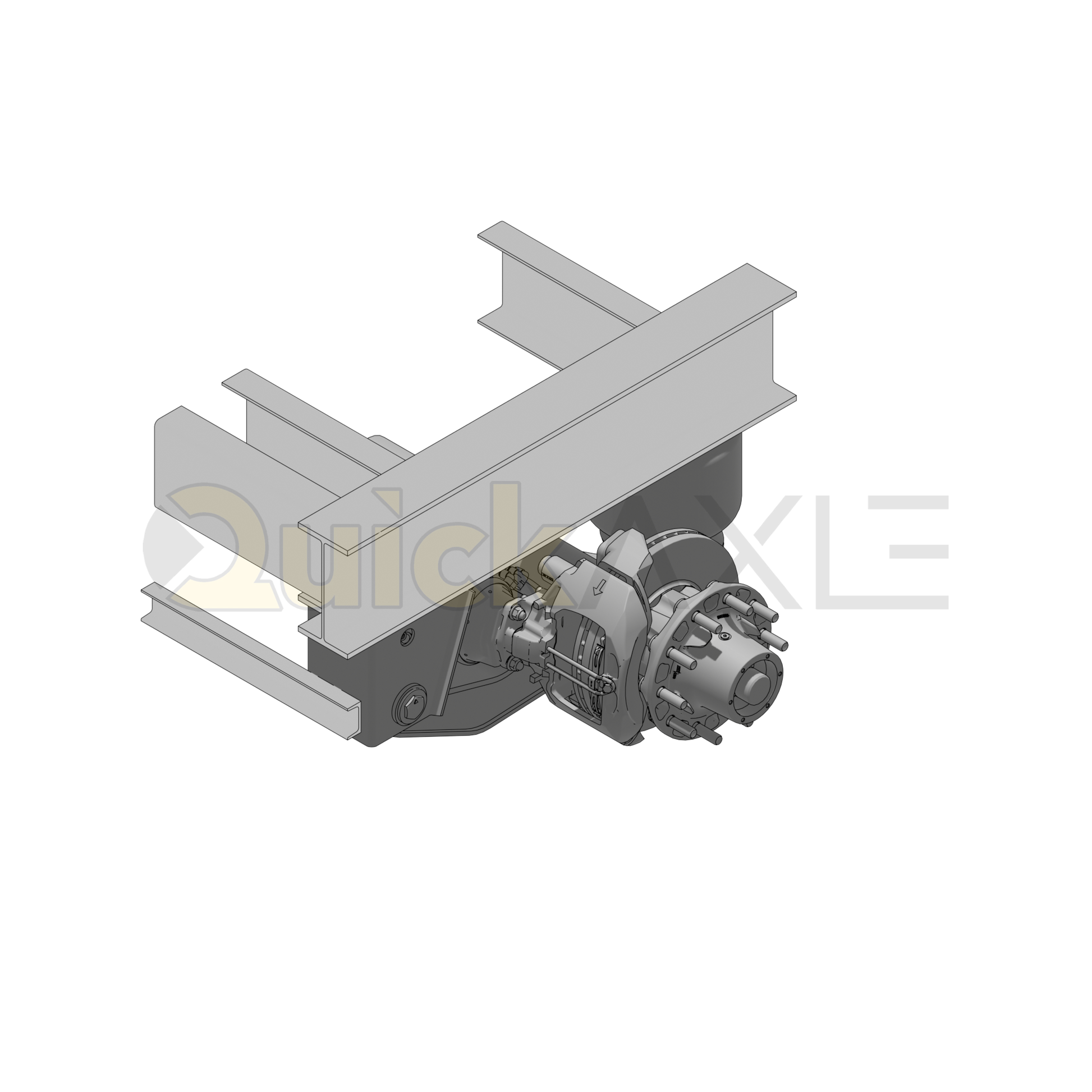

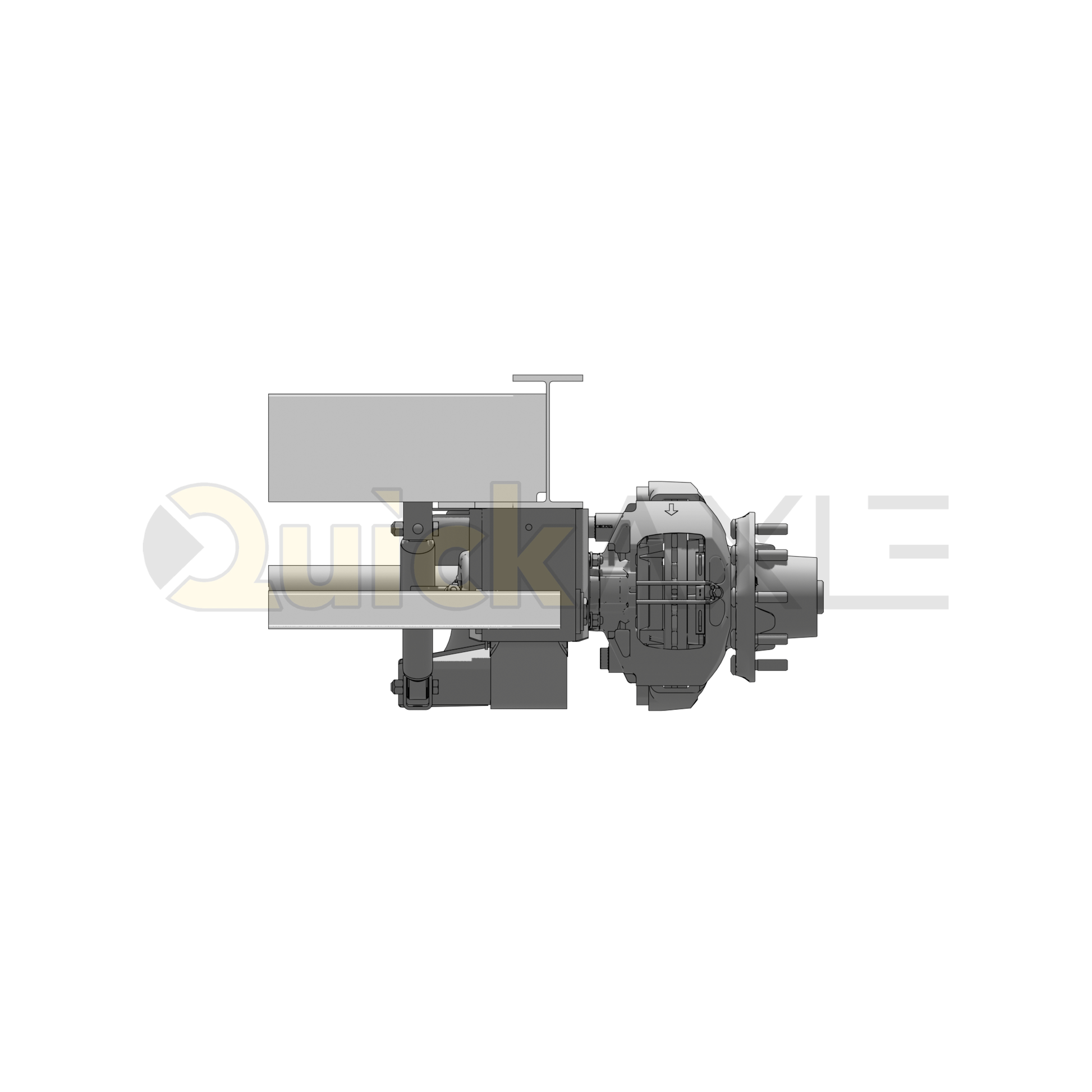

The Ridewell RAR-240-1-7-25-USW is a non-steerable underslung air ride suspension engineered for trailer applications requiring consistent ride height, controlled axle movement, and long-term durability. This system is designed to support heavy on-highway loads while maintaining proper alignment and ride quality.
Key Features
- Underslung trailer air ride suspension
- Non-steerable configuration
- 25,000 lb suspension capacity rating
- Eccentric pivot bolt axle alignment system
- Solid pivot bushing with metal sleeve
- Shock absorber equipped
- Compatible with disc and drum brake axles
Technical Specifications
| Model | RAR-240-1-7-25-USW |
| Application | Trailer |
| Suspension Type | Air Ride, Underslung |
| Steerability | Non-steerable |
| Capacity | 25,000 lbs |
| Ride Height Range | 6.0" to 7.5" |
Torque Specifications
| Fastener | Torque Value |
|---|---|
| Pivot Bolt / Nut (Eccentric) | 1000 ft-lb |
| Shock Bolt / Nut, 3/4"-10 | 200 ft-lb |
| Air Spring Nut, 3/4"-16 | 50 ft-lb |
| Air Spring Bolt, 1/2"-13 | 25 ft-lb |
Ride Height / Travel
| Mounting Height | Up Travel | Down Travel | Pivot to Axle |
|---|---|---|---|
| 6.0" | 2.5" | 4.5" | 19.65" |
| 6.5" | 3.0" | 4.0" | 19.69" |
| 7.0" | 3.5" | 3.5" | 19.72" |
| 7.5" | 4.0" | 3.0" | 19.74" |
Included Components (Bill of Materials)
| Item | Qty | Part Number | Description |
|---|---|---|---|
| 1 | 2 | 1001R12692G | Air Spring 1R12-692 |
| 2 | 2 | 1117680B075 | Pivot Bushing Assembly, Solid w/ Metal Sleeve |
| 3 | 2 | 1137694B000 | Eccentric Pivot Bolt, Forged |
| 4 | 2 | 1130090 | Huck Bolt, 3/4" |
| 5 | 6 | 1145383B105 | HHCS 1/2"-13 x 1-1/4", Grade 5 |
| 6 | 4 | 1147698B105 | HHCS 3/4"-10 x 3-1/4" |
| 7 | 2 | 1150033 | Locknut 1-1/4"-7 UNC |
| 8 | 2 | 1150558B102 | Nut 3/4"-16 NF |
| 9 | 4 | 1150709B105 | Locknut 3/4"-10 NC |
| 10 | 2 | 1150059 | Huck Collar 3/4" |
| 11 | 6 | 1160556B100 | Lock Washer 1/2" |
| 12 | 2 | 1167680B000 | Wear Washer, UHMW |
| 13 | 2 | 1270563B003 | Shock Absorber Assembly, 6" |
| 14 | 1 | 3267738C100 | Hanger Assembly, LH |
| 14 | 1 | 3267738C200 | Hanger Assembly, RH |
| 15 | 1 | 4280258 | Beam Assembly, LH |
| 15 | 1 | 4280259 | Beam Assembly, RH |
| 16 | 2 | 7000407 | Air Spring Mounting Plate |
| 17 | 2 | 9003092B000 | Anti-Turn Washer |
| 18 | 2 | 8147716B000 | Shock Bracket |
Installation Notes
- Axle alignment must be performed in accordance with SAE or TMC recommended standards.
- Suspension must be set to the specified mounting height before torquing the pivot bolt.
- Anti-turn washers must be welded after axle alignment is completed.
- Suspension fasteners must be re-torqued at 6,000 miles and every 50,000 miles thereafter.
- Axle-to-suspension welding must follow Ridewell Weld Process No. 1.
Maintenance Notes
- Inspect suspension structure, air springs, shocks, and fasteners during routine service.
- Inspect pivot bushings and wear washers annually or at 100,000 miles.
- Do not re-torque shear-type pivot fasteners.
Warranty Notes
- Ridewell suspensions are warranted to be free from defects in material and workmanship when properly installed and maintained.
- Warranty coverage applies to the suspension only and is non-transferable.
Add-On Products (Sold Separately)
- Bushing Replacement Kit -- 6040029
- Height Control Valve Kits (Non-Dump, Pressure-Dump, or Zero-Pressure Dump)
