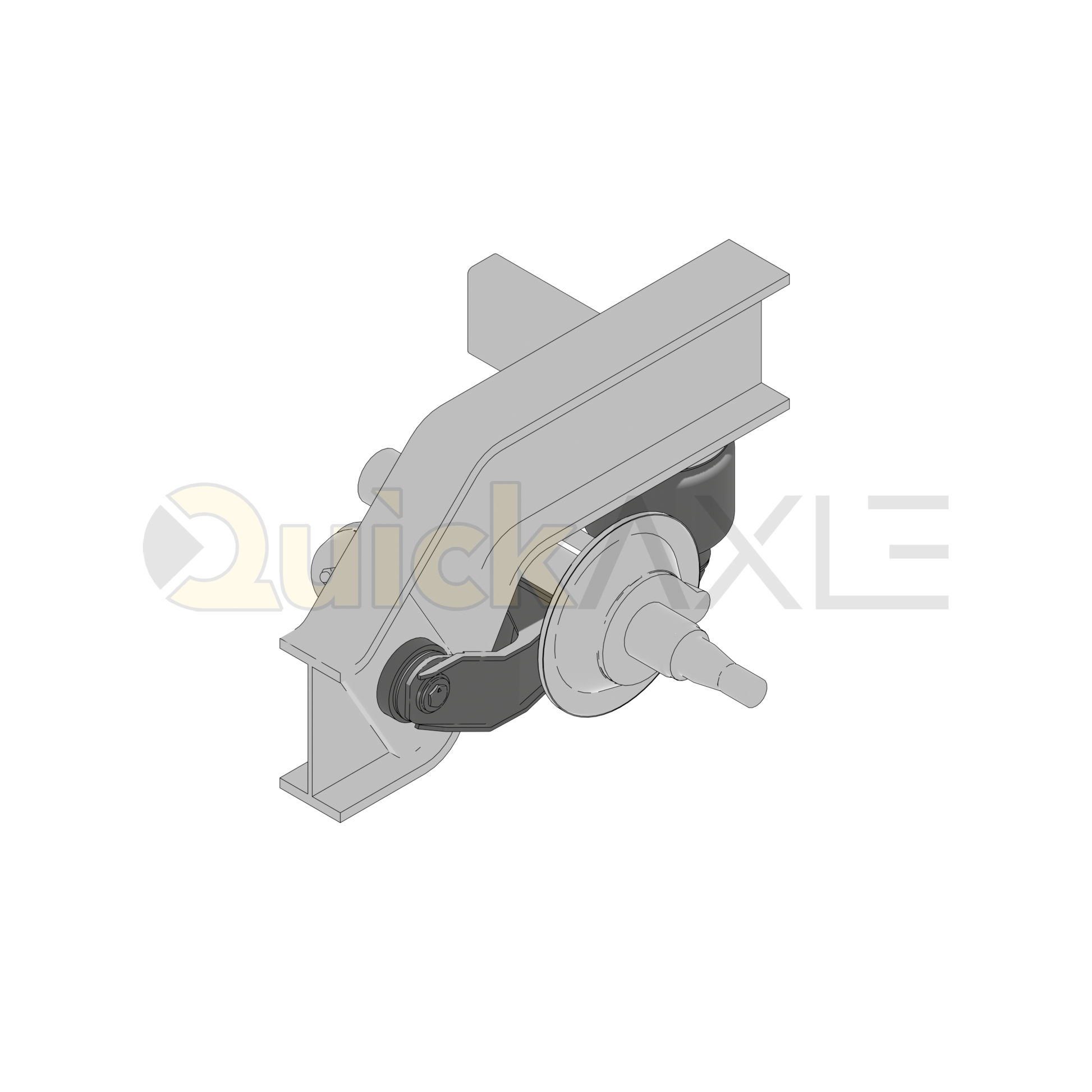

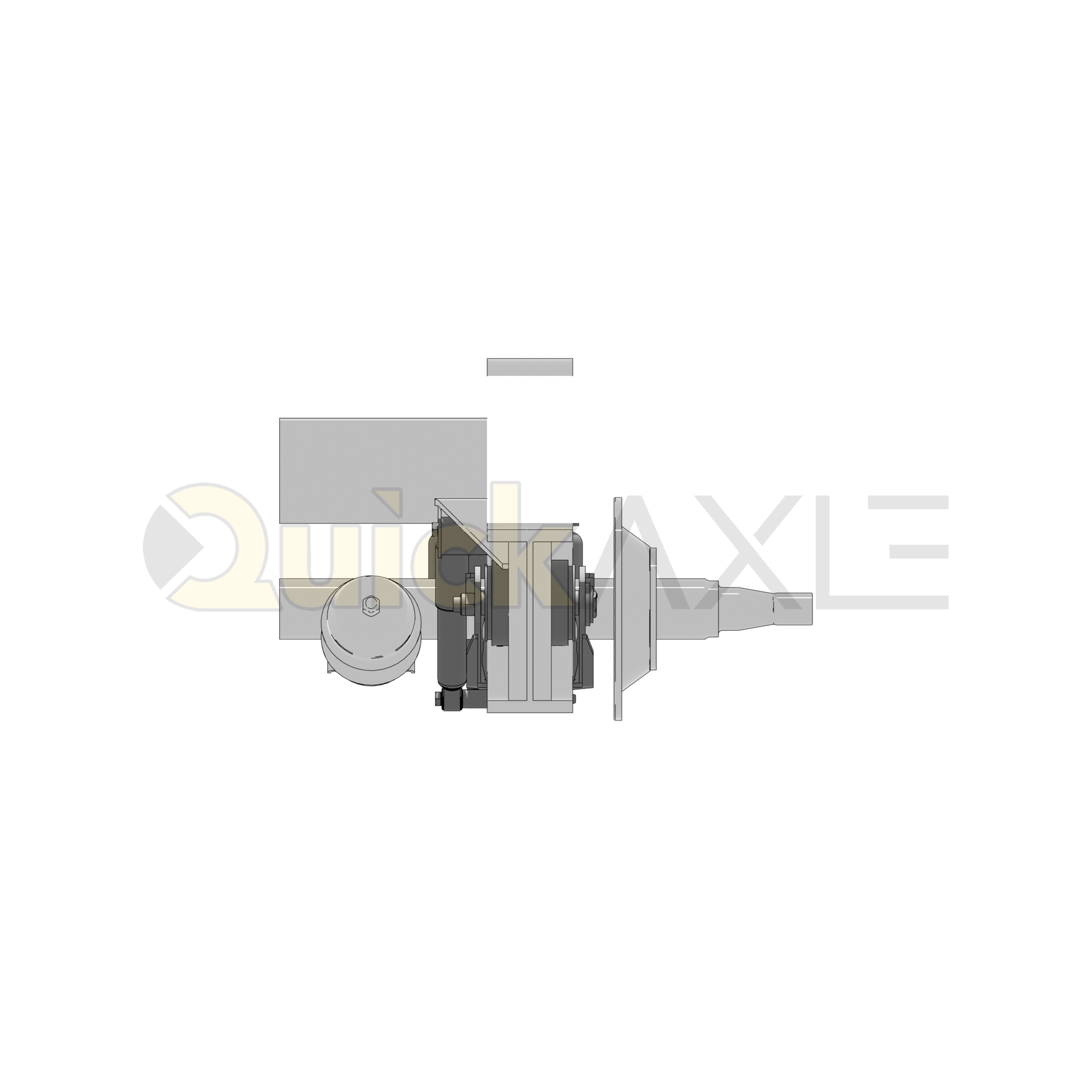

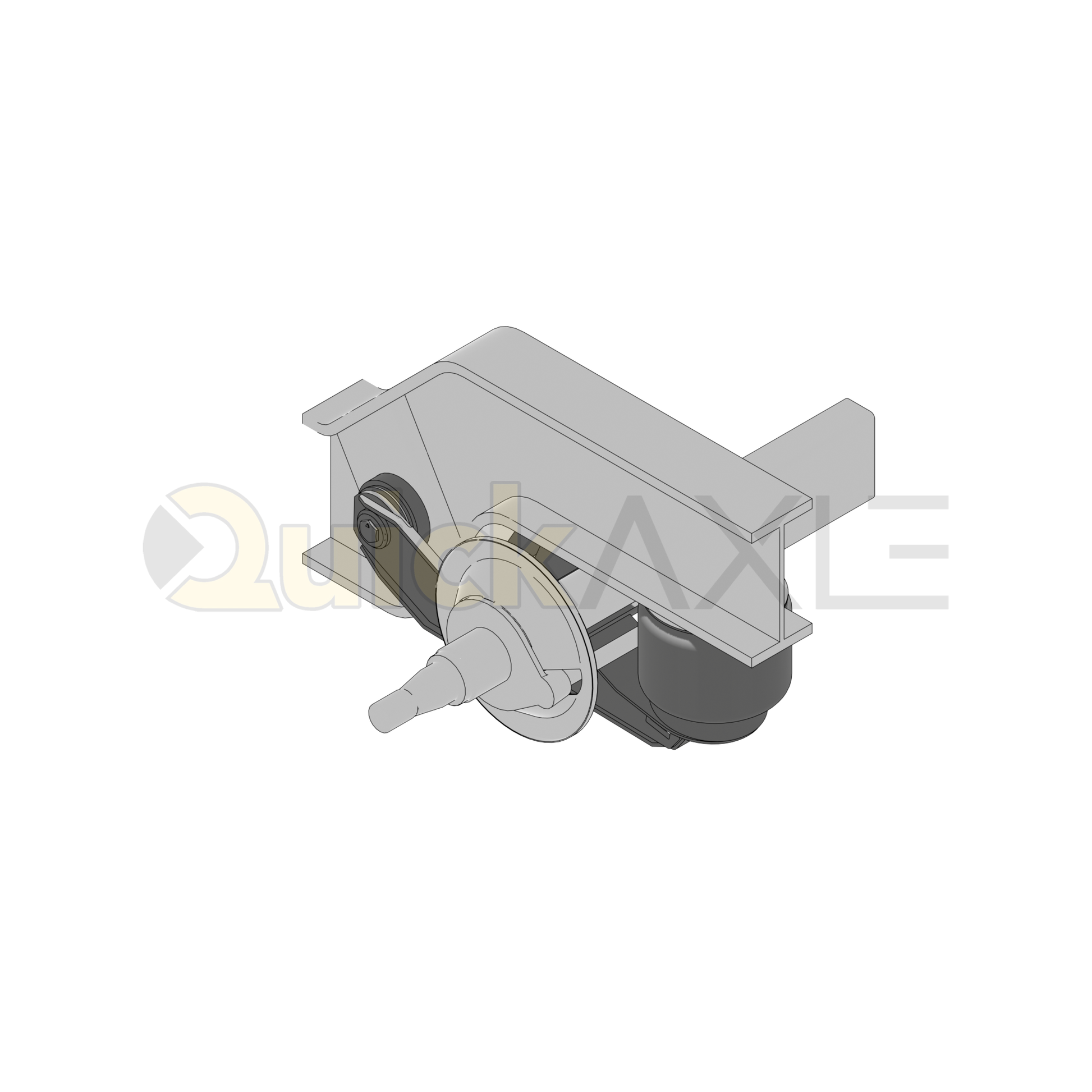

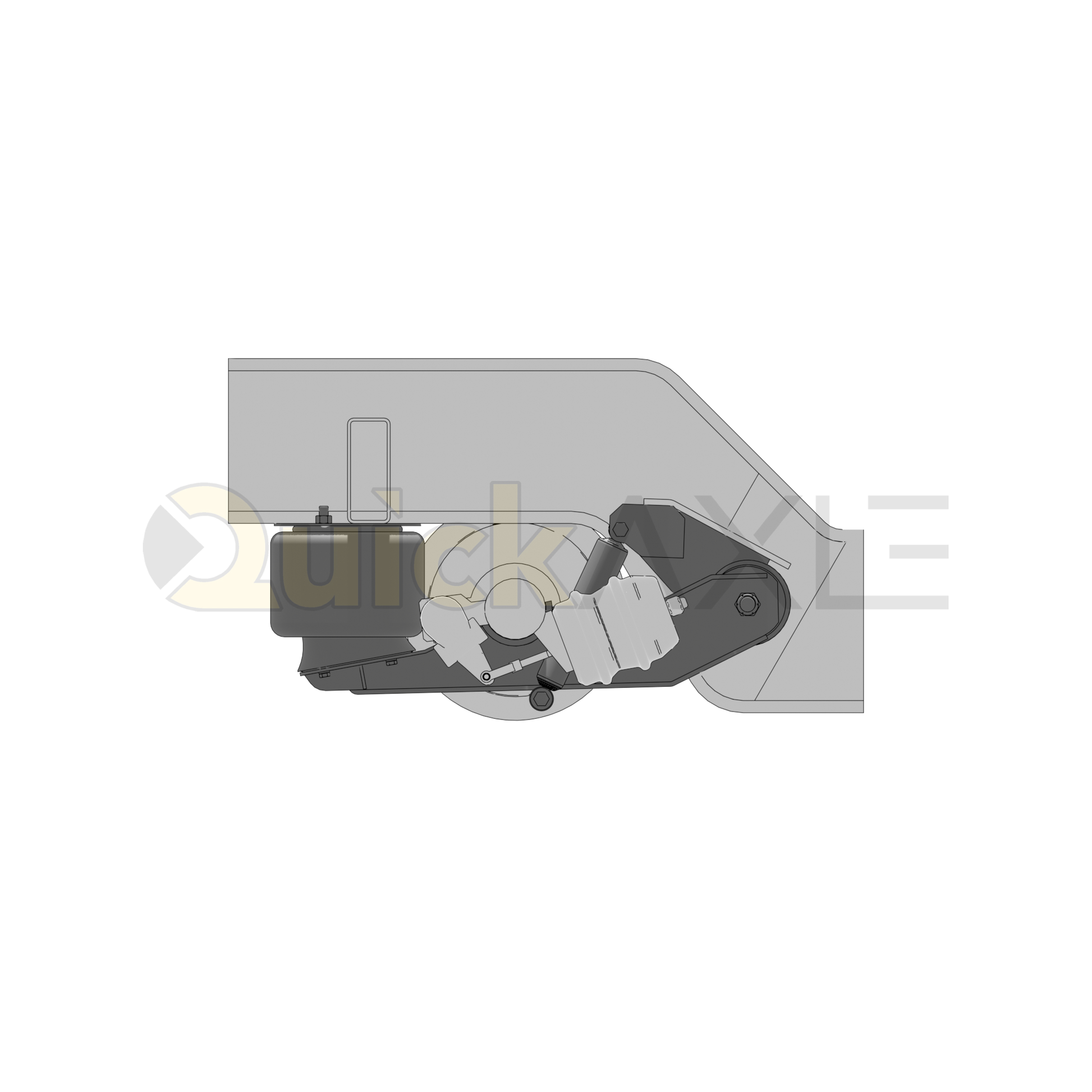

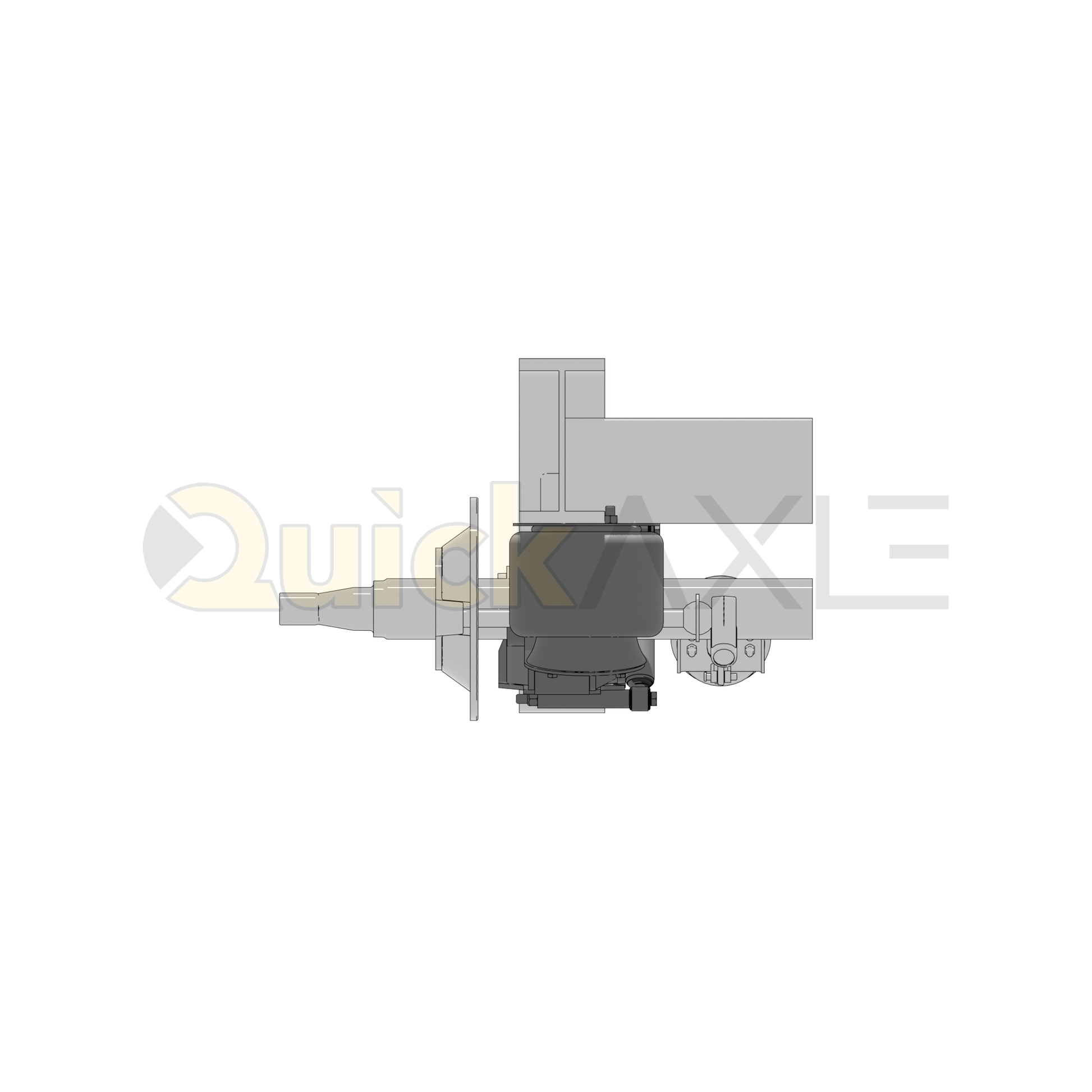

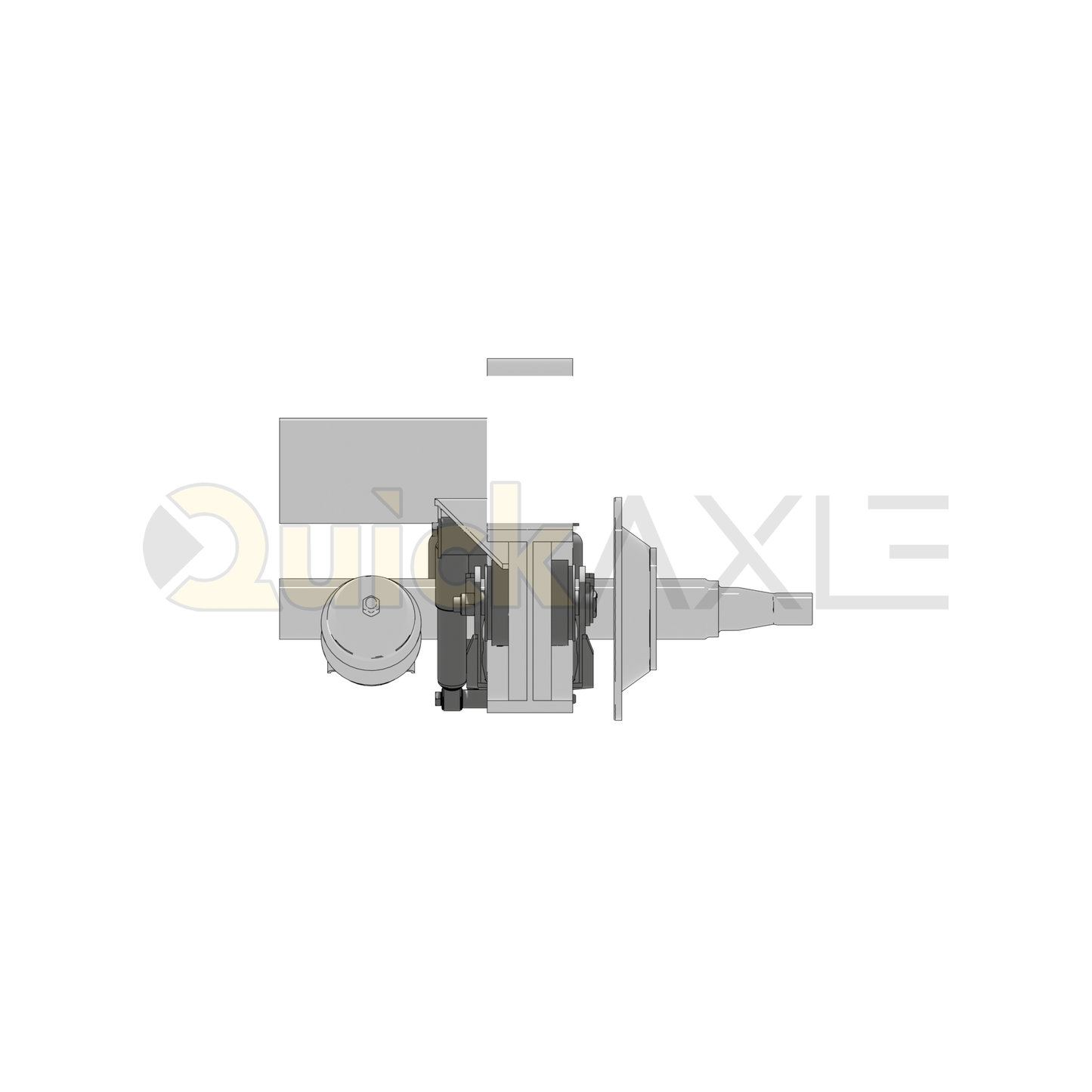

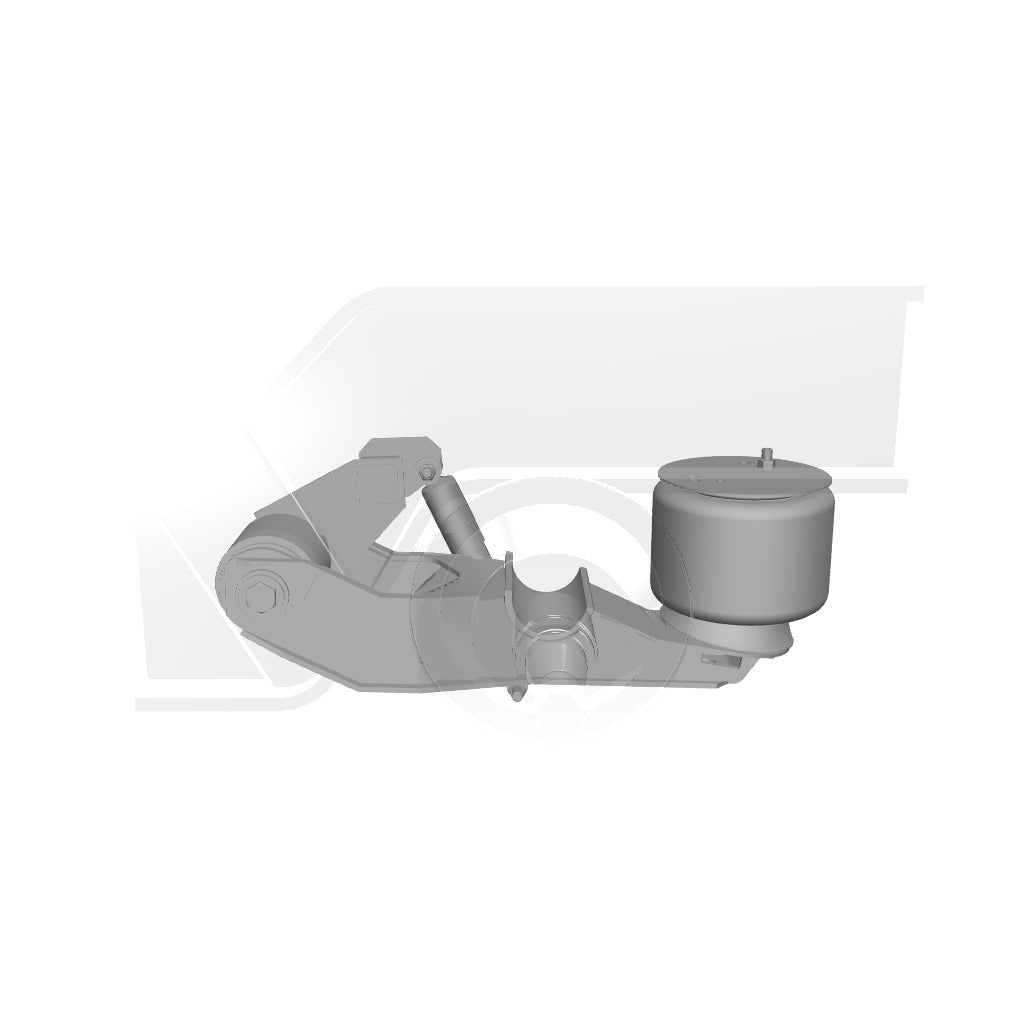

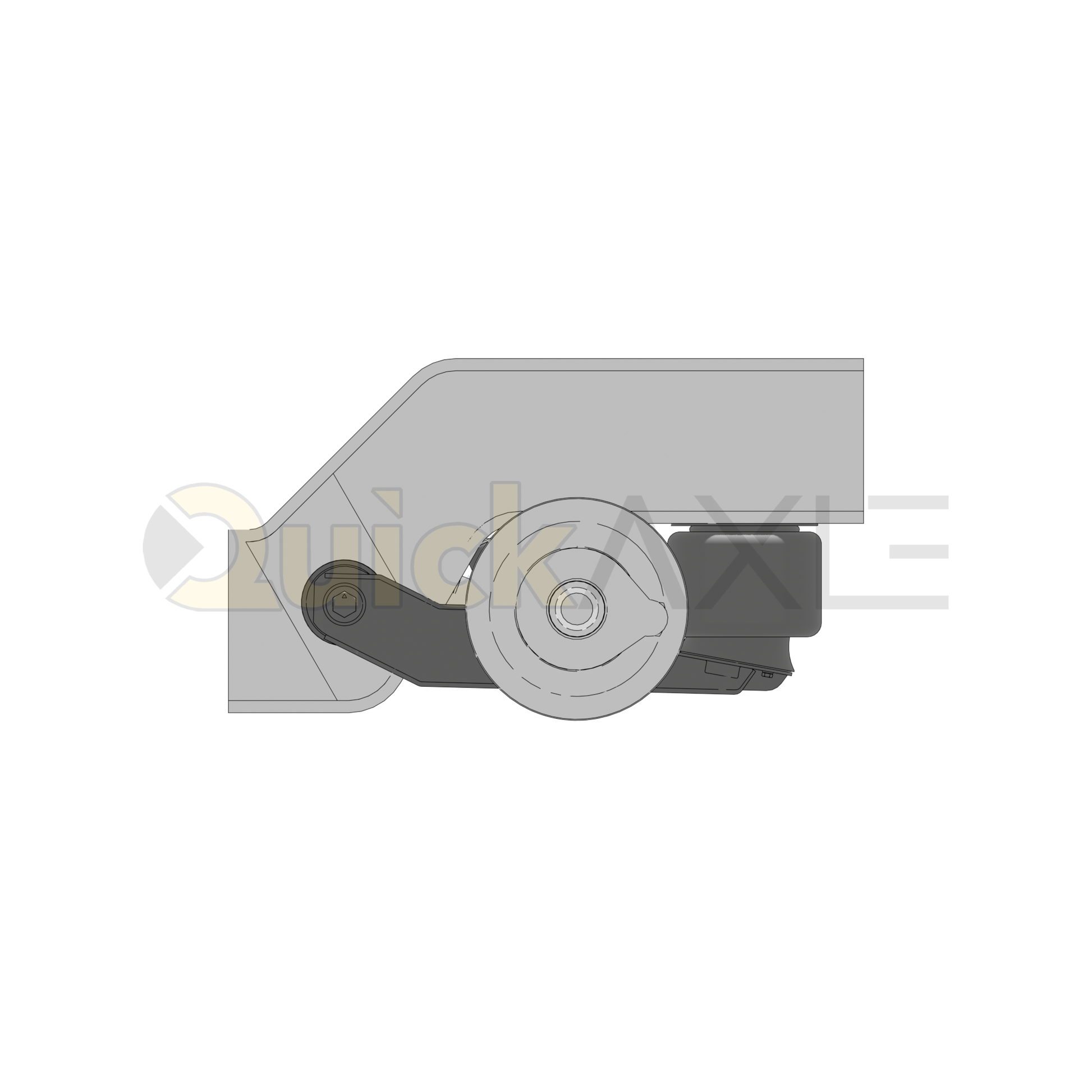

Ridewell RAR-240W Trailer Air Ride Suspension - Yoke Mount - Non-Steerable - 25,000 lb Capacity - 2400028

Name: Ridewell RAR-240W Trailer Air Ride Suspension - Yoke Mount - Non-Steerable - 25,000 lb Cap
Brand: Ridewell
SKU: 2400028
Availability: InStock

$0.00 USD

~~$0.00 USD~~ $0.00 USD

Sale

Shipping calculated at checkout.

Product variants

Quantity

Ridewell RAR-240W is a non-steerable yoke-mount air-ride suspension engineered for trailer applications requiring durability and controlled axle articulation. The system uses bonded yoke bushings and air springs to provide consistent load support and reliable ride performance.

Key Features

Yoke-mount trailer air-ride suspension
Non-steerable configuration
25,000 lb suspension capacity rating
Overslung suspension design
Bonded yoke bushing for long service life
Eccentric pivot bolt for axle alignment adjustment
Compatible with drum and disc brake axles
Weld-on or bolt-on mounting capability

Technical Specifications

Model	RAR-240W-1-7-25-USW
Application	Trailer
Suspension Type	Air Ride, Yoke Mount, Overslung
Steerability	Non-steerable
Capacity	25,000 lbs
Ride Height Range	6.0" to 7.5"

Torque Specifications

Fastener	Torque Value
Pivot Bolt / Locknut, 1-1/4"-7	1000 ft-lb (1356 N-m)
Shock Bolt / Locknut, 3/4"-10	200 ft-lb (271 N-m)
Air Spring Upper Fastener, 3/4"-16	50 ft-lb (68 N-m)
Air Spring Lower Fastener, 1/2"-13	25 ft-lb (34 N-m)

Ride Height / Travel

Mounting Height	Up Travel	Down Travel	Pivot to Axle
6.0"	2.4"	4.9"	19.03"
6.5"	2.9"	4.4"	19.03"
7.0"	3.4"	3.9"	19.03"
7.5"	3.9"	3.4"	19.01"

Included Components (Bill of Materials)

Item	Qty	Part Number	Description
1	2	1001R12692G	Air Spring 1R12-692
2	2	1137694B001	Eccentric Bolt, Forged, 10.75"
3	6	1145383B105	HHCS 1/2"-13NC x 1-1/4", Grade 5, Zinc Plated
4	2	1147698B105	HHCS 3/4"-10NC x 3-1/4", Grade 5, Zinc Plated
5	2	1150033	Locknut 1-1/4"-7UNC, Heavy
6	2	1150558B102	Nut 3/4"-16NF, Grade 2
7	4	1150709B105	Locknut 3/4"-10NC Oval, Waxed
8	6	1160556B100	Lock Washer 1/2", Split, Zinc Plated
9	4	1167680B000	Wear Washer, UHMW-PE, Black
10	2	1270563B003	Shock Absorber Assembly, 6"
11	1	4000010	Shock Arm / Tube Assembly, LH
11	1	4000011	Shock Arm / Tube Assembly, RH
12	1	4280158	Beam Assembly, LH
12	1	4280159	Beam Assembly, RH
13	2	5450022	Bonded Yoke Bushing Assembly
14	2	7000407	Air Spring Mounting Plate
15	2	9097716B003	Outer Bushing Sleeve
16	2	9003092B000	Anti-Turn Washer
17	2	1140022	HHCS 3/4"-10NC x 11", Grade 8, Zinc Plated

Installation Notes

Axle alignment must be performed in accordance with SAE or TMC recommended standards.
Installer must set suspension to specified mounting height before torquing pivot bolt to prevent bushing preload.
Anti-turn washer must be welded after final axle alignment is achieved.
Suspension fasteners must be re-torqued at 6,000 miles and 50,000 miles.
Axle-to-suspension welding must follow Ridewell Weld Process No. 1.

Maintenance Notes

Daily: inspect tires, wheel ends, axle assemblies, suspension structure, and air system; drain air reservoirs.
First 6,000 miles: torque suspension components and verify mounting height.
Every 12,000 miles: inspect air springs, air lines, and fasteners.
Annually or 100,000 miles: inspect pivot bushings and wear washers and replace as necessary.

Warranty Notes

Warranty applies only within the United States and Canada.
Suspension systems are warranted to be free from defects in material and workmanship when properly installed and maintained.
Warranty coverage is limited to repair or replacement of suspension components.
Warranty is non-transferable and excludes incidental or consequential damages.
