Production Lead Time Required for This Product

These items require 1- to 2-weeks production lead time.

1 6

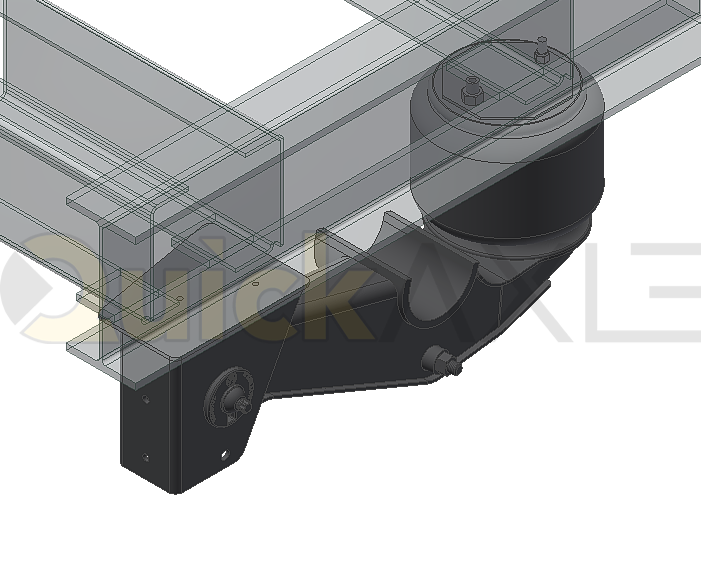

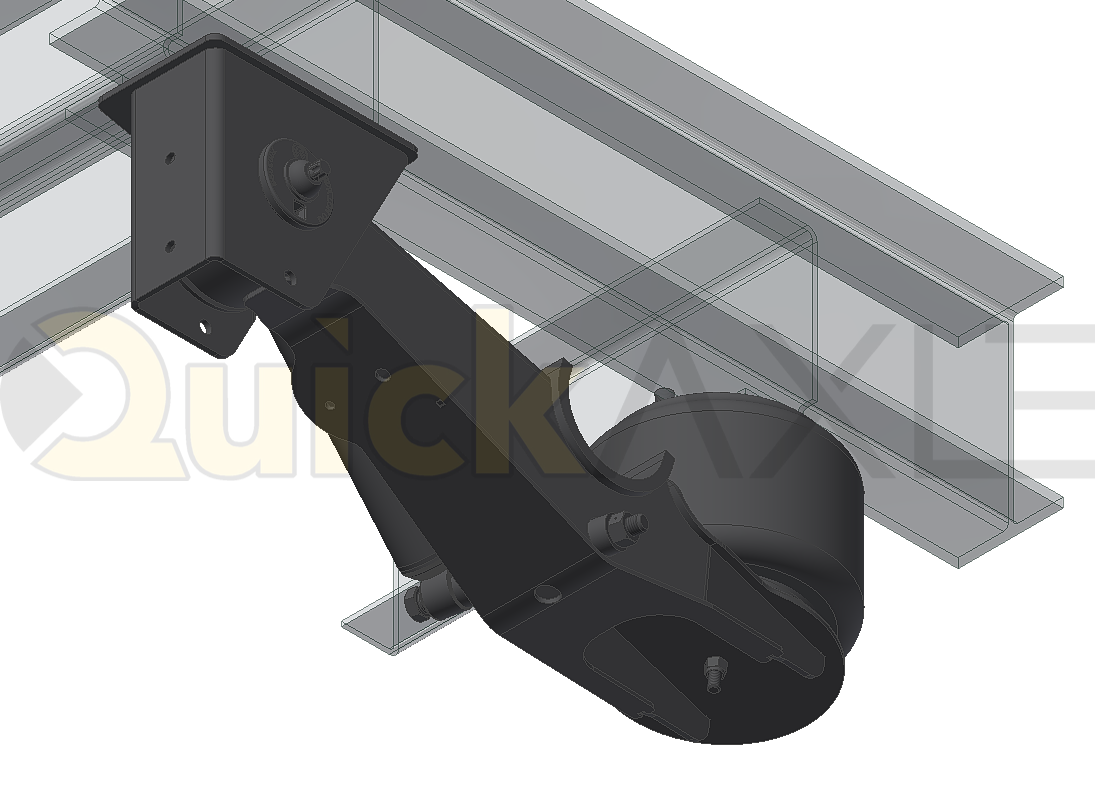

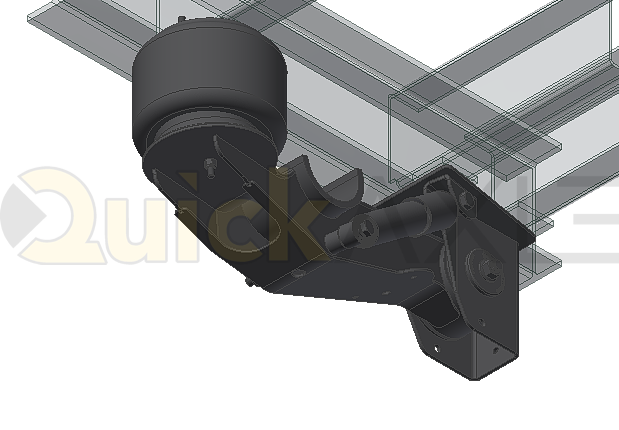

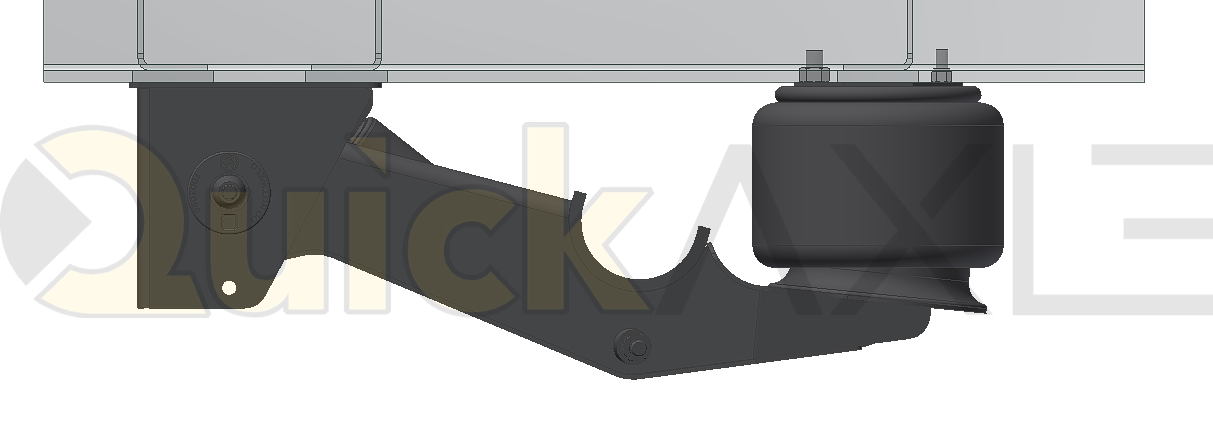

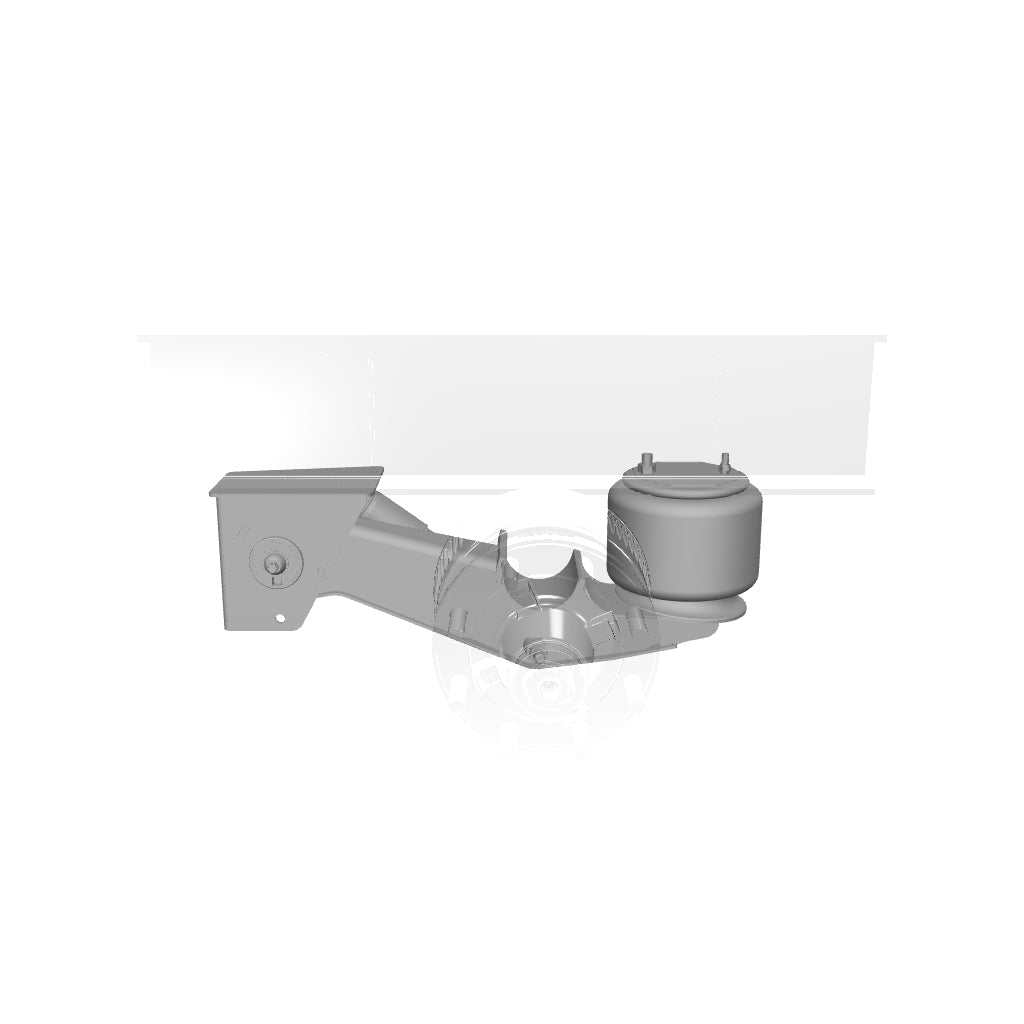

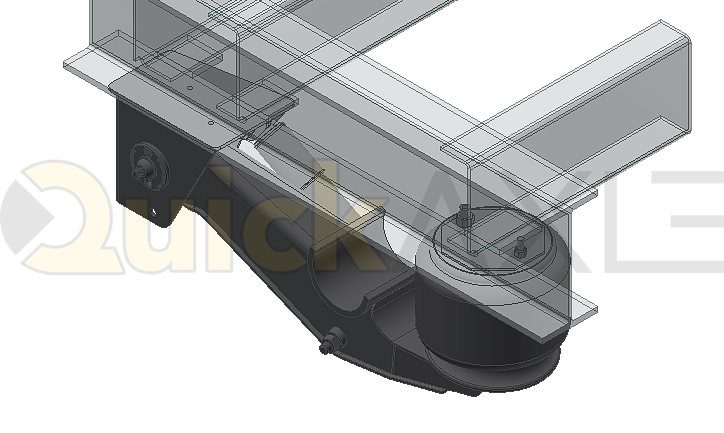

Ridewell RAR-244 Trailer Underslung Air Ride Suspension - Non-Steerable - 16,000 lb Capacity - 2441001

Name: Ridewell RAR-244 Trailer Underslung Air Ride Suspension - Non-Steerable - 16,000 lb Capaci
Brand: Ridewell
SKU: 2441001
Price: 1263.1 USD
Availability: InStock

$1,263.10 USD

~~$0.00 USD~~ $1,263.10 USD

Sale

Shipping calculated at checkout.

Product variants

Quantity

Ridewell RAR-244-5-6RH-16K-USW is a non-steerable underslung air ride suspension engineered for trailer drop axle applications requiring higher capacity and precise axle alignment. The suspension provides controlled vertical travel, compact packaging, and long service life for on-highway trailer use.

Key Features

Underslung trailer air ride suspension
Non-steerable configuration
16,000 lb suspension capacity rating
Shear-type pivot bolt axle alignment system
Adjuster plate and alignment washer per hanger
Shock absorber equipped
Designed for electric or hydraulic brake systems

Technical Specifications

Model	RAR-244-5-6RH-16K-USW
Application	Trailer
Suspension Type	Air Ride, Underslung
Steerability	Non-steerable
Capacity	16,000 lbs
Ride Height Range	5.5" to 6.0"
Axle Seat Type or Diameter	5.0" axle seat

Torque Specifications

Fastener	Torque Value
Pivot Bolt / Nut (Shear-Type)	Torque until Torx head shears off
Shock Bolt / Nut, 3/4"-10	200-230 ft-lb
Air Spring Fasteners, 3/4"-16	45-50 ft-lb
Air Spring Fasteners, 1/2"-13	20-25 ft-lb

Ride Height / Travel

Mounting Height	Up Travel	Down Travel	Pivot to Axle
6.0"	2.5"	5.5"	17.71"-17.73"

Included Components (Bill of Materials)

Item	Qty	Part Number	Description
1	2	1000038	Air Spring SP 559387-KP-118
2	1	1130048	Pivot Bolt, Round Head, Shear-Type
3	2	1140071	HHCS 3/4"-10NC x 10" LG, Grade 8, Zinc Plated
4	2	1147698B105	HHCS 3/4"-10NC x 3-1/4" LG
5	4	1150023	Locknut 3/4"-10NC Controlk
6	2	1150067	Locknut 7/8"-9UNC Flanged
7	4	1150555B112	Locknut 1/2"-13NC Nylon Insert
8	2	1150558B102	Nut 3/4"-16NF Grade 2
9	2	1160036	Washer 7/8" F436 Zinc Coated
10	2	1167680B000	Wear Washer, UHMW-PE
11	2	1270009	Shock Assembly, 4.8"
12	1	3260508	Hanger Assembly, LH
13	1	3260509	Hanger Assembly, RH
14	1	4280922	Beam Assembly, LH
15	1	4280923	Beam Assembly, RH
16	2	7001723B000	Air Spring Plate, 7-1/4" Octagon
17	2	7003095	Alignment Washer, 3.63" OD
18	2	7003096	Adjuster Plate, 3.63" OD
19	2	1110086	Bushing, Narrow

Installation Notes

Axle alignment must be performed in accordance with SAE or TMC recommended standards.
Installer must set the suspension to the specified mounting height before torquing the pivot bolt to prevent bushing pre-load.
Pivot bolt must be torqued using an E-20 Torx socket until the Torx head shears off.
Welding of adjuster plates or alignment washers to the hanger is not required or recommended.
Suspension fasteners must be re-torqued at 6,000 miles and every 50,000 miles thereafter. Do not re-torque pivot fasteners.
Axle-to-suspension welding must follow Ridewell Weld Process No. 1.
Customer-furnished crossmembers and filler plates are required.

Maintenance Notes

Inspect air springs, shocks, bushings, and fasteners during routine service intervals.
Do not re-torque shear-type pivot fasteners.
Replace bushings using Ridewell-approved replacement kits as required.

Warranty Notes

Suspension systems are warranted to be free from defects in material and workmanship when properly installed and maintained.
Stated capacity rating applies to suspension only. Axle, brake, and wheel end ratings are per their manufacturers.
