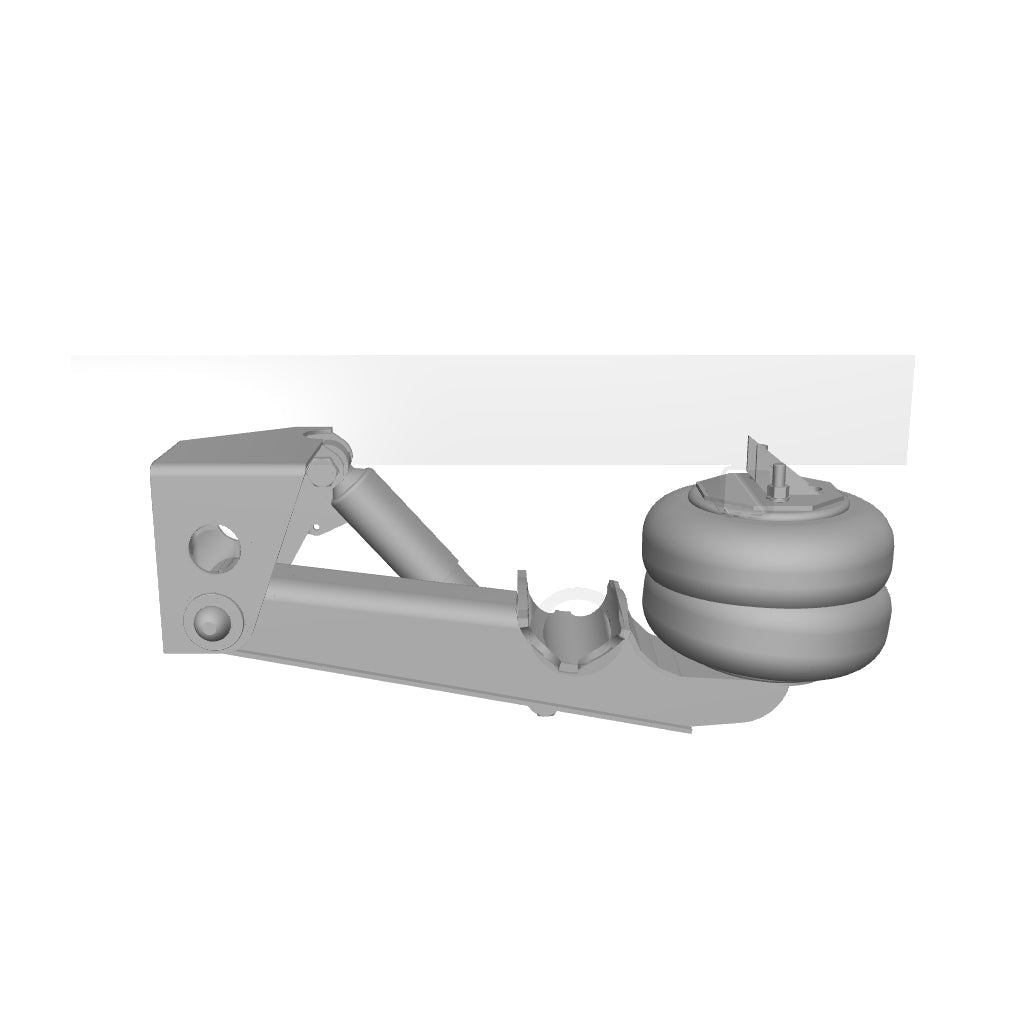

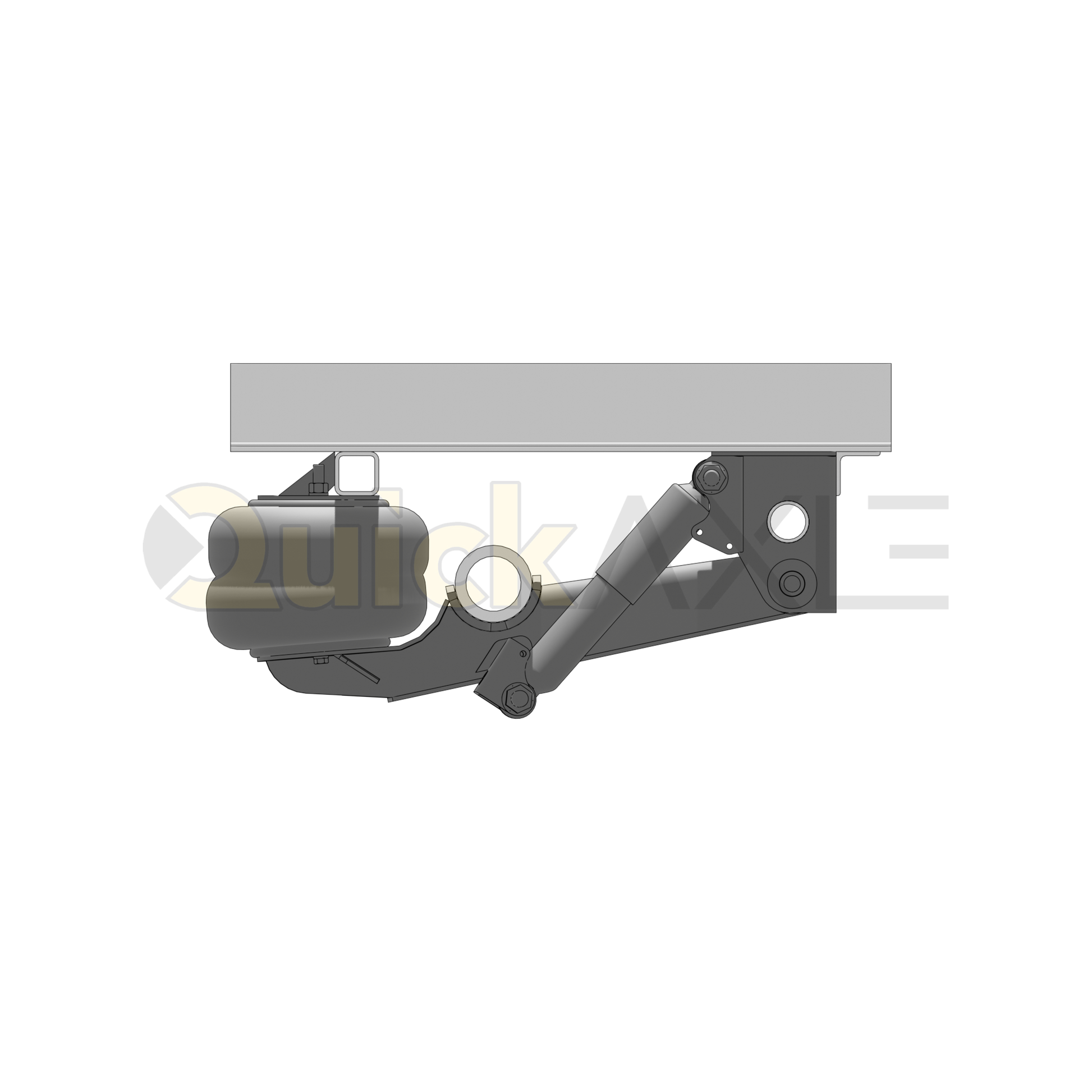

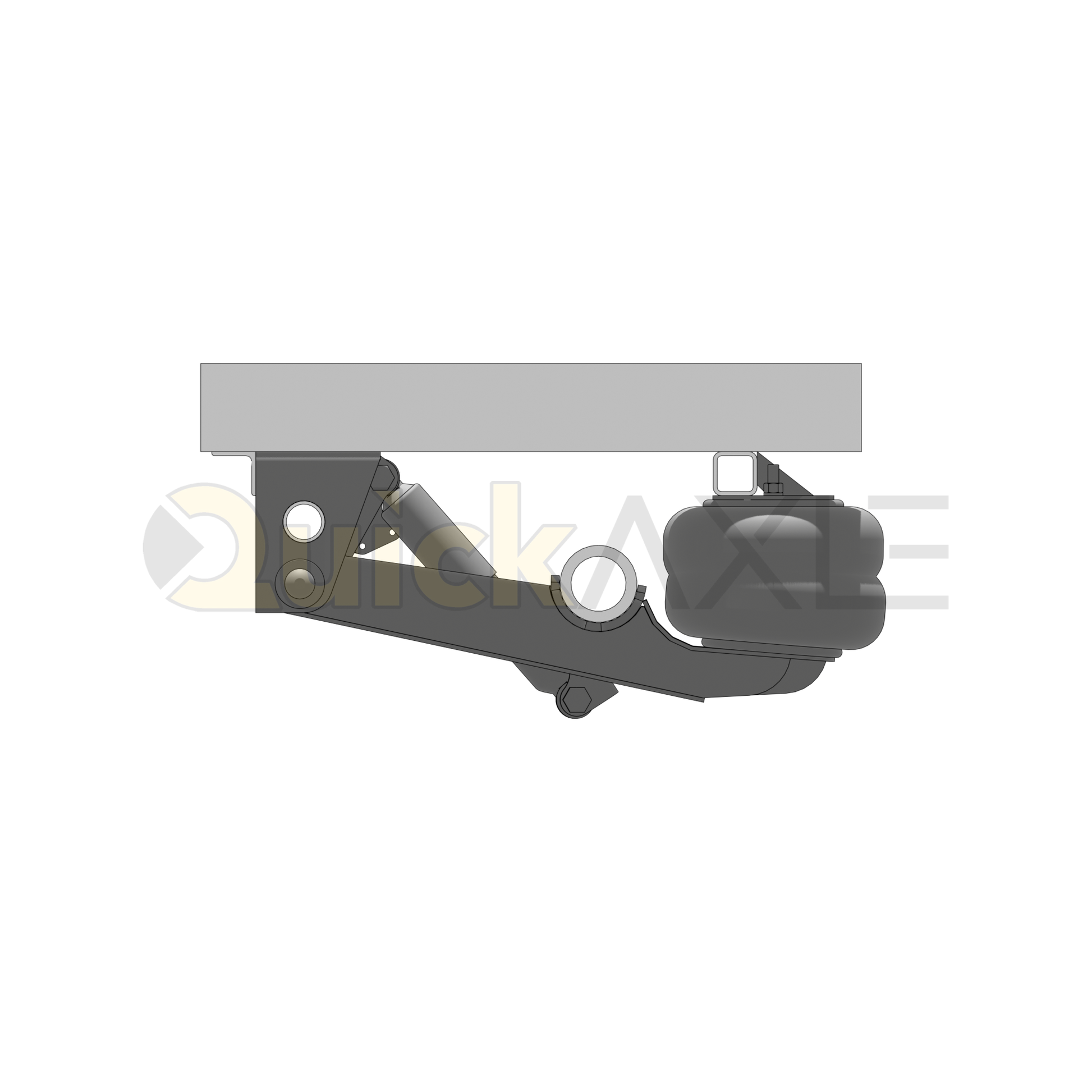

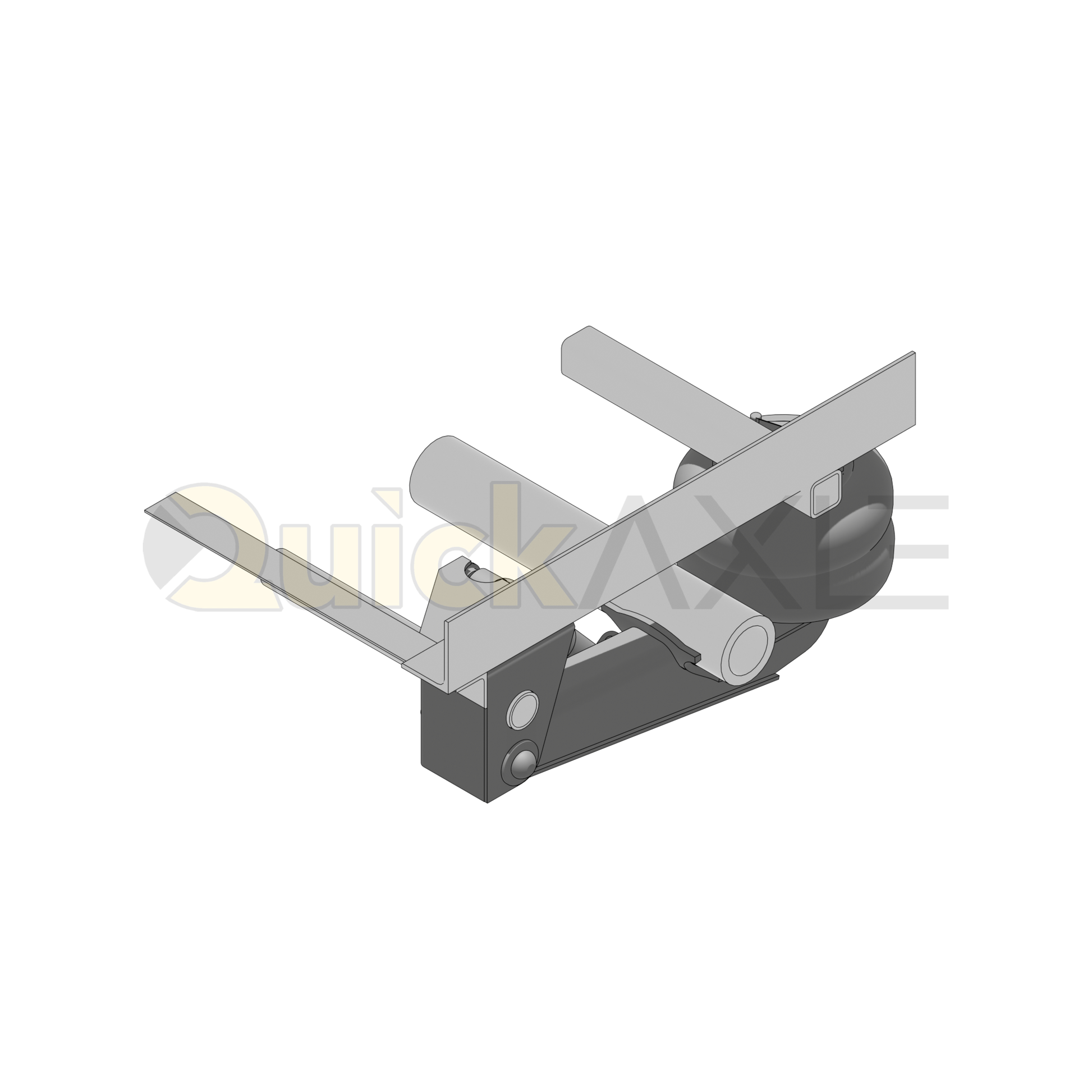

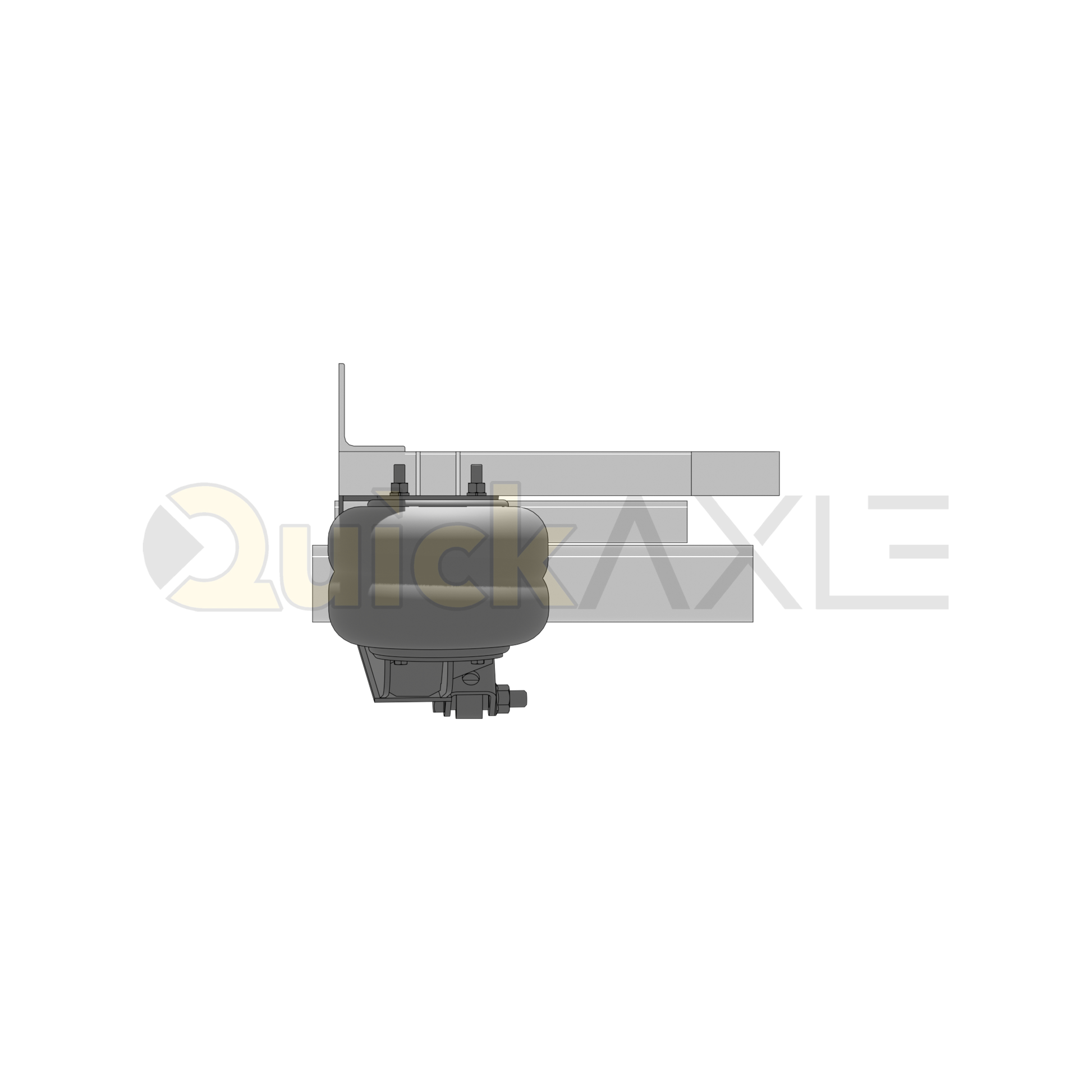

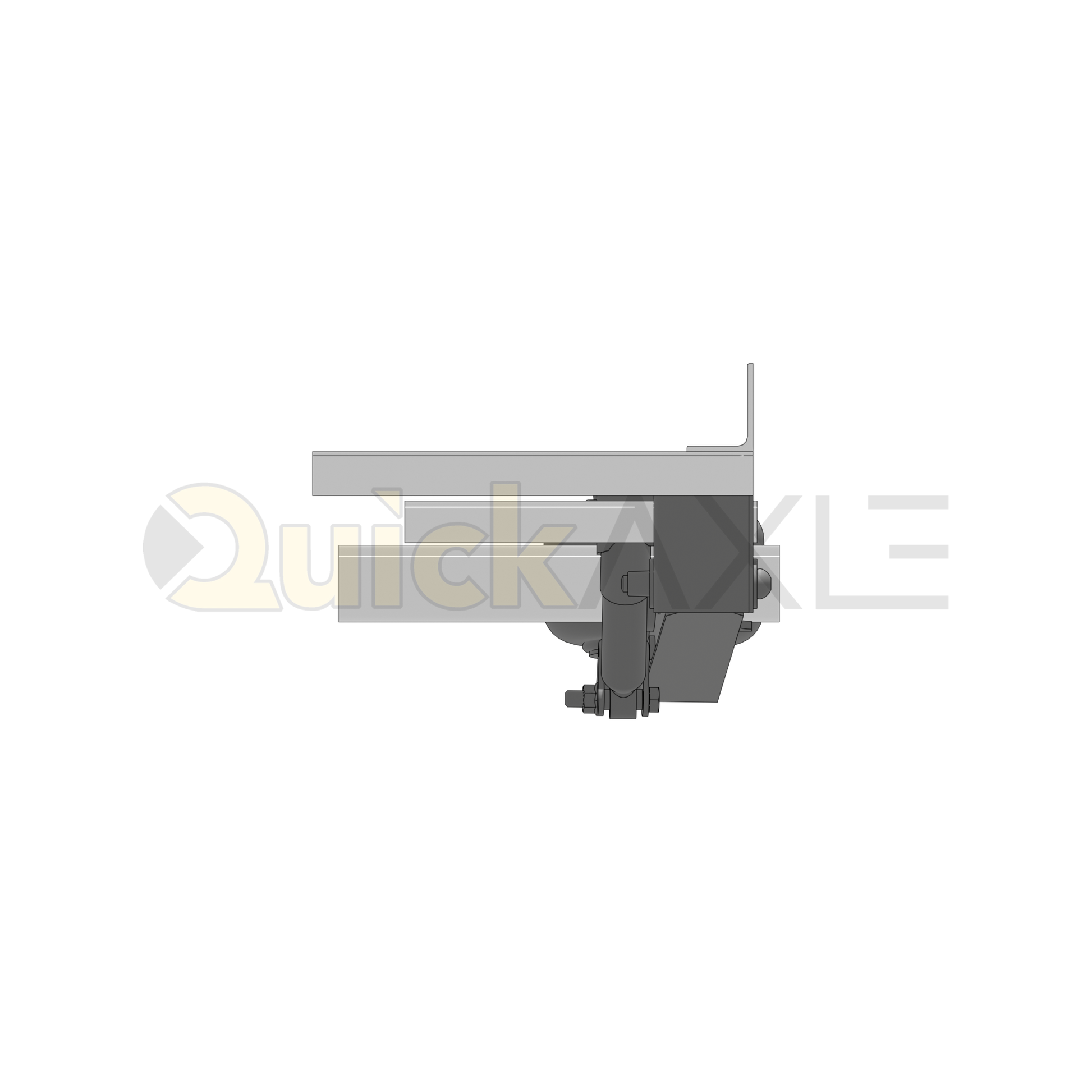

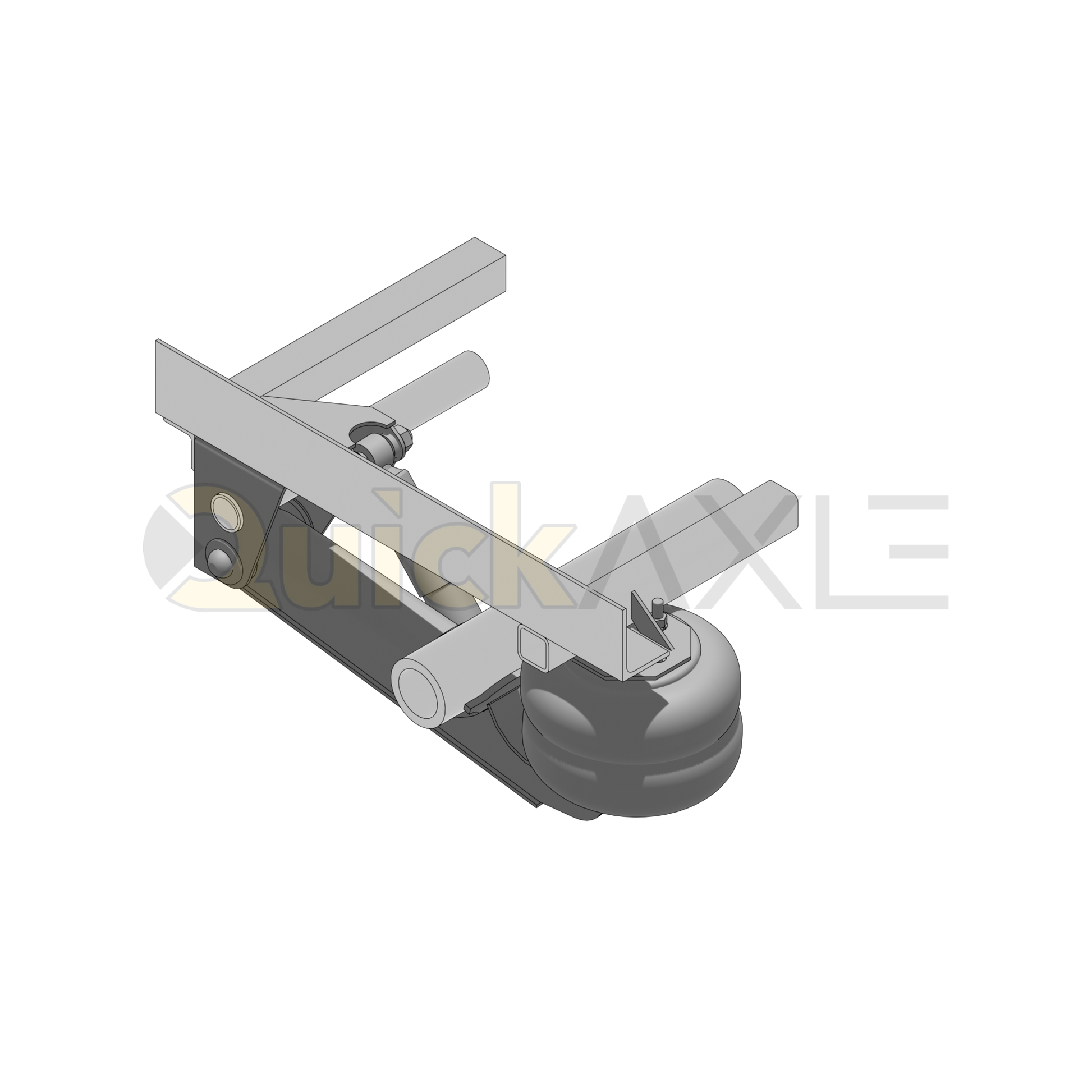

Ridewell RAR-244-3.5-6RH-8K is a compact, non-steerable underslung air ride suspension engineered for light-duty trailer drop axle applications. The suspension delivers controlled axle movement, consistent ride height, and long service life in low-deck and specialty trailer configurations.
Key Features
Underslung trailer air ride suspension
Non-steerable configuration
8,000 lb suspension capacity rating
Designed specifically for drop axle applications
Compact suspension geometry for low deck height trailers
Monopivot beam and bushing design
Shock absorber equipped for controlled damping
Technical Specifications
Model
RAR-244-3.5-6RH-8K
Application
Trailer
Suspension Type
Air Ride, Underslung
Steerability
Non-steerable
Capacity
8,000 lbs
Ride Height Range
6.00"
Axle Seat Type or Diameter
3.5" Round Axle, 0.50" Wall
Torque Specifications
Fastener
Torque Value
Air Spring Bolt, 3/8"-16 NC
34 ft-lb
Air Spring Nut, 1/2"-13 NC
34 ft-lb
Shock Bolt / Nut, 3/4"-10
217 ft-lb
Pivot Nut, 3/4"-16 NF
310 ft-lb
Ride Height / Travel
Ride Height
Up Travel
Down Travel
6.00"
1.9"
2.5"
Included Components (Bill of Materials)
Item
Qty
Part Number
Description
1
2
1003586905C
Air Spring 2B9-206
2
2
1130011
Huck Bolt 3/4" x 4.75-5" Grip
3
4
1140021
HHCS 3/4"-10 NC x 3.75", Grade 5
4
4
1140674B105
HHCS 3/8"-16 NC x 1", Grade 5, Zinc Plated
5
2
1150005
Huck Collar 3/4", Standard
6
4
1150650B102
Nut 1/2"-13 NC, Grade 2, Zinc Plated
7
4
1157711B105
Locknut 3/4"-10 NC, Top Lock, Flanged
8
2
1160005
Washer, UHMW, 2.75" OD x 1.4" ID
9
4
1160556B100
Lock Washer 1/2", Split, Zinc Plated
10
4
1160675B100
Lock Washer 3/8", Split, Zinc Plated
11
2
1270007
Shock Absorber, Monroe 66627
12
1
3260052
Hanger Assembly, LH
12
1
3260053
Hanger Assembly, RH
13
1
5970548
Bushing / Beam Assembly, LH
13
1
5970549
Bushing / Beam Assembly, RH
14
2
7000347
Air Spring Mounting Plate
15
4
7000606
Air Spring Mounting Gusset
16
4
9000007
Shouldered Washer
Installation Notes
Hangers must be welded to the trailer frame prior to axle alignment.
Axle alignment must be completed before final stop welds are applied.
Customer-supplied crossmembers and frame bracing are required.
Axle-to-suspension welding must follow Ridewell-approved welding procedures.
Maintenance Notes
Inspect air springs, shocks, and pivot hardware during routine service intervals.
Check fastener torque periodically and re-torque as required.
Replace worn bushings and wear components as needed to maintain alignment.
Warranty Notes
Suspension systems are warranted to be free from defects in material and workmanship when properly installed and maintained.
Warranty coverage applies to suspension components only.
Add-On Products (Sold Separately)
Pivot Hardware Replacement Kit -- 6040063
Bushing Replacement Kit -- 6040087
ACK Air Control Kit (ride height control and air management components)
