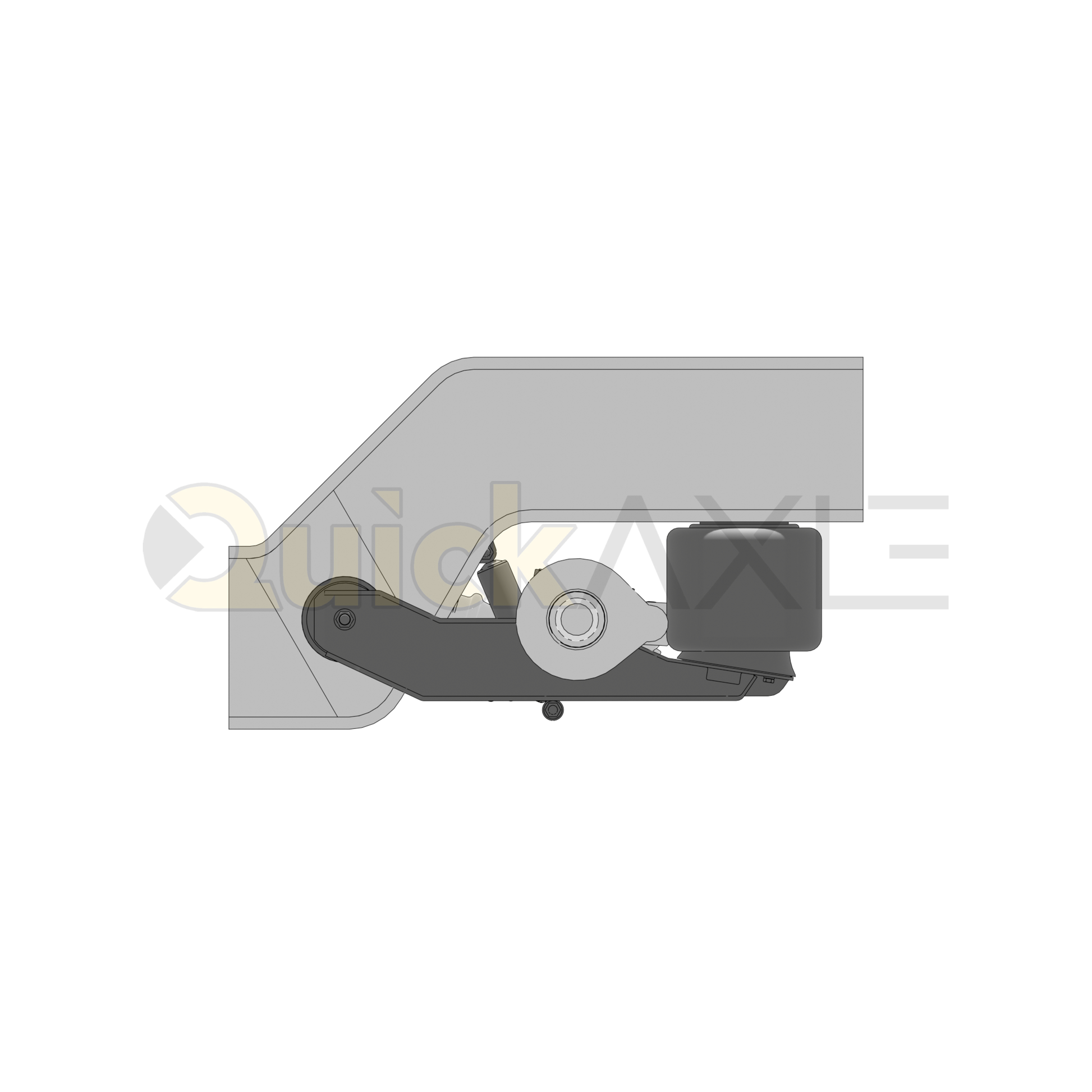

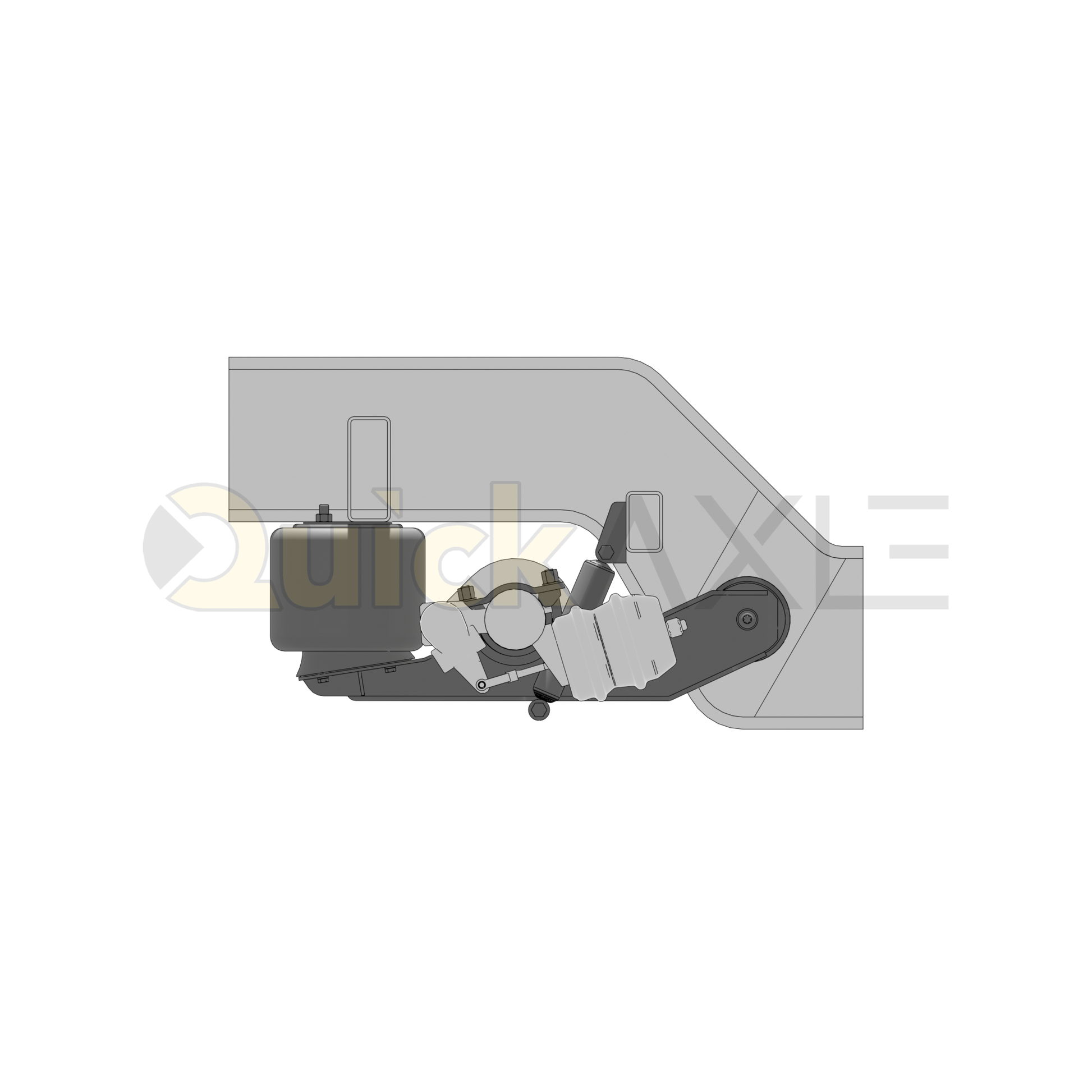

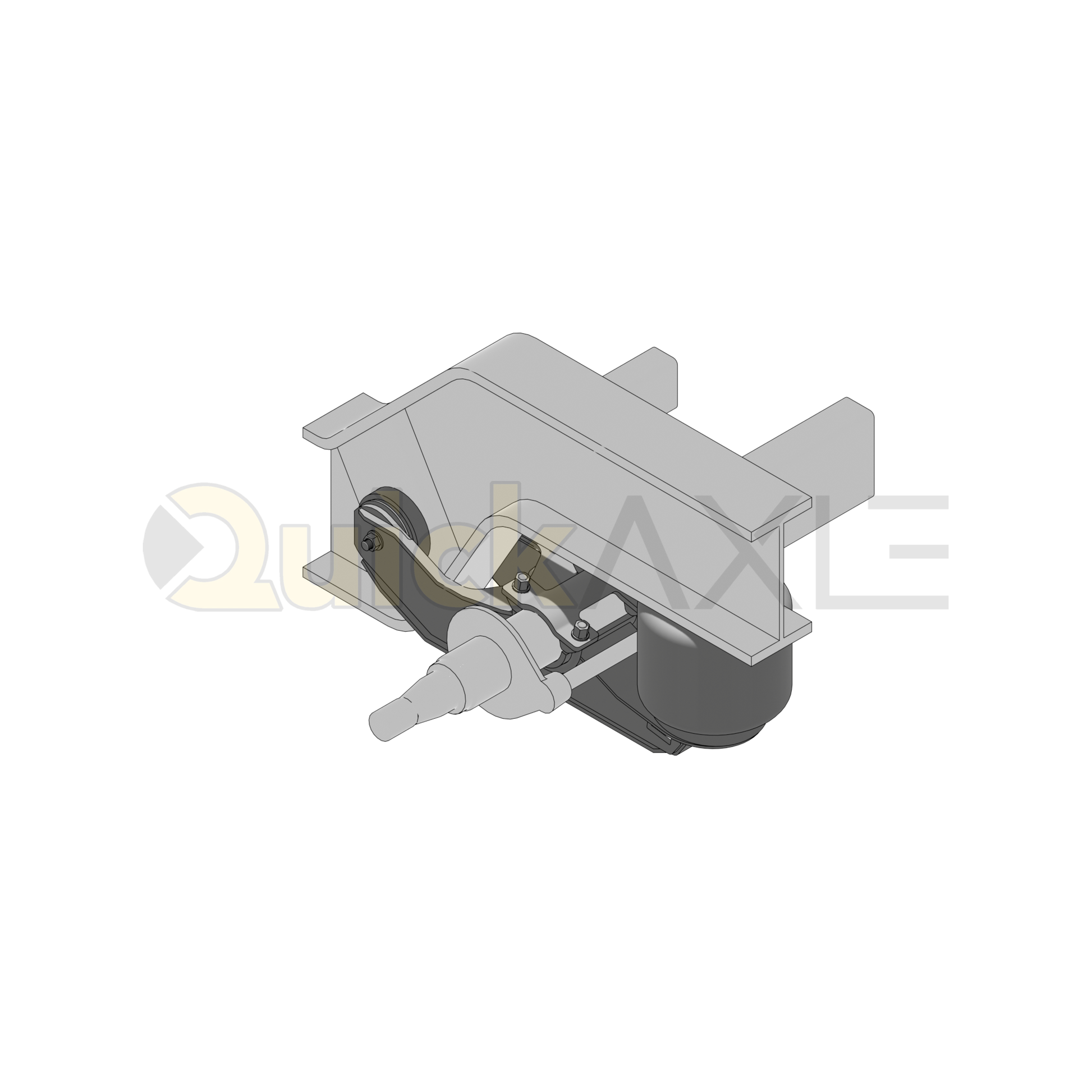

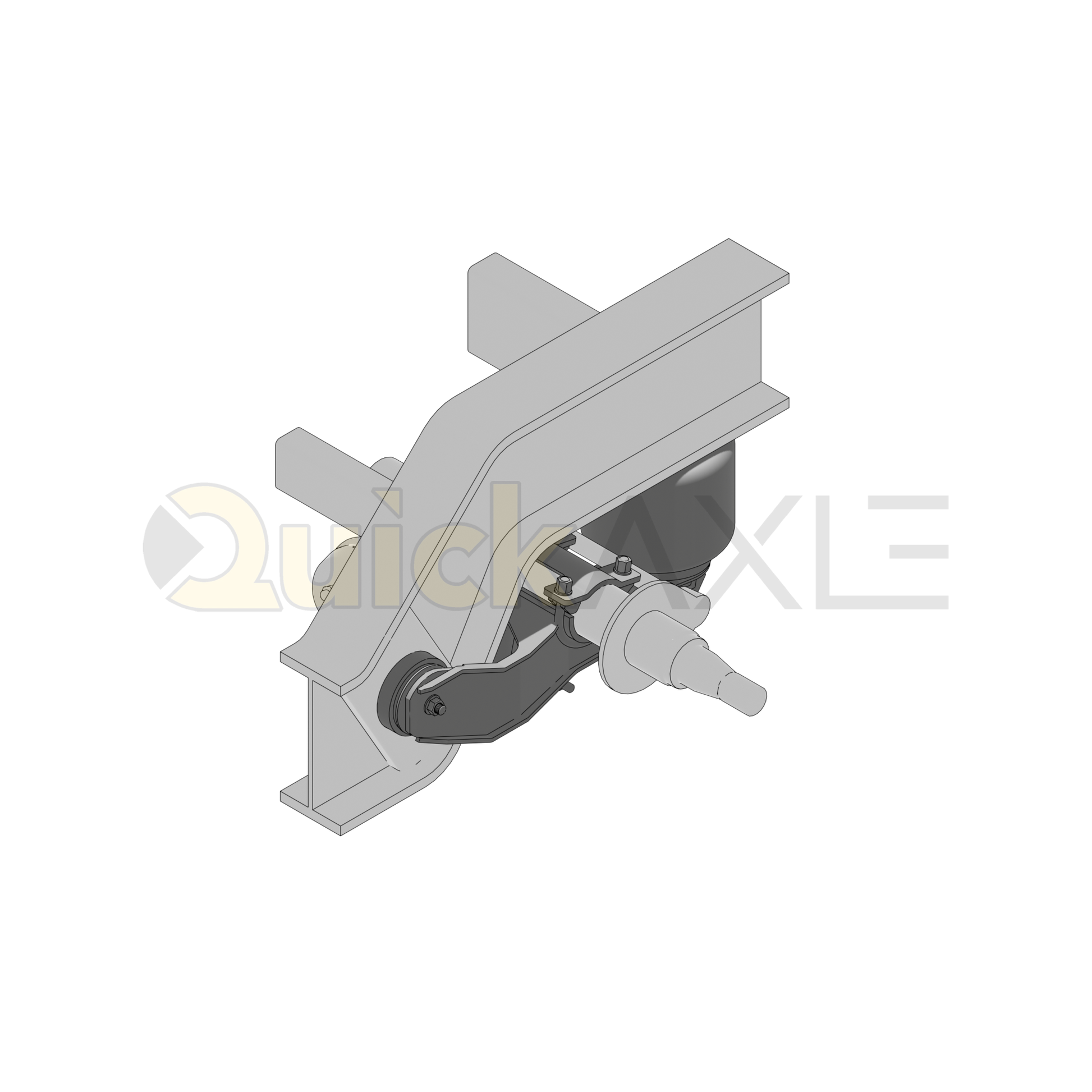

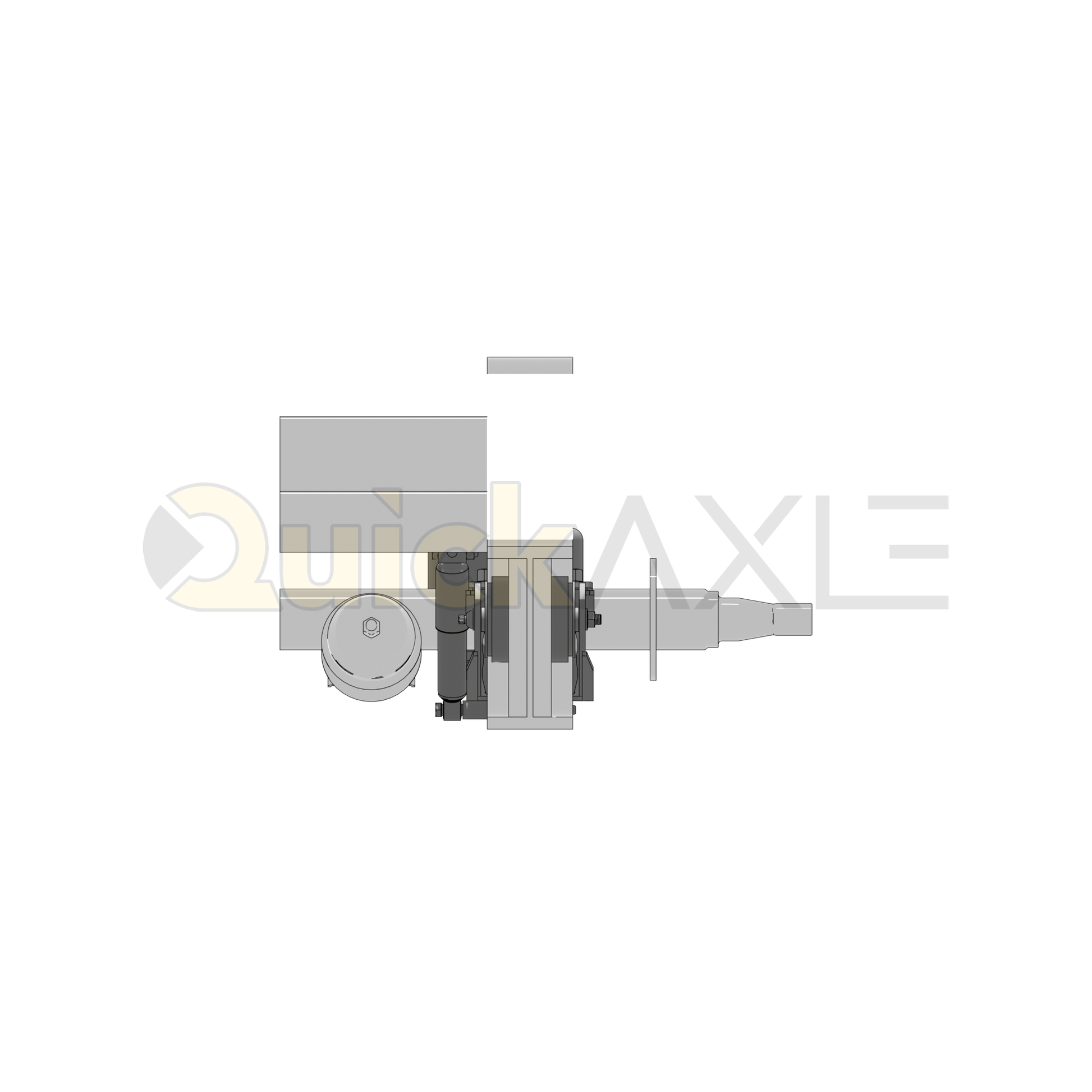

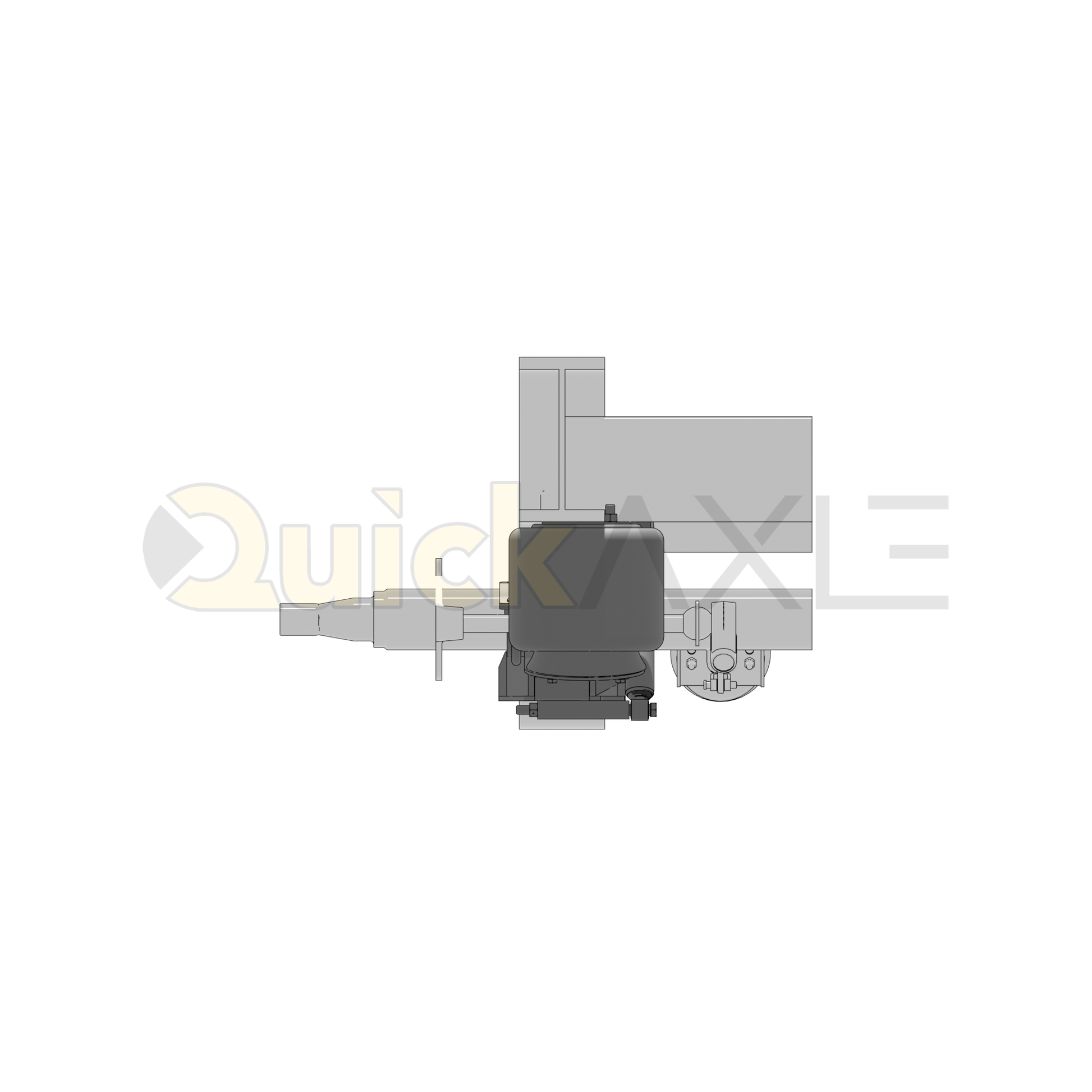

Ridewell RAR-260W Trailer Air Ride Suspension - Yoke Mount - Underslung - Non-Steerable - 25,000 lb Capacity - 2601208
Ridewell RAR-260W Trailer Air Ride Suspension - Yoke Mount - Underslung - Non-Steerable - 25,000 lb Capacity - 2601208
Regular price
$1,899.99 USD
Regular price
$0.00 USD
Sale price
$1,899.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Ridewell RAR-260W is a non-steerable, yoke underslung air ride suspension engineered for trailer applications requiring durability, alignment precision, and consistent ride performance. The system is designed to support demanding on-highway use while accommodating a broad range of ride heights.
Key Features
- Yoke underslung trailer air ride suspension
- Non-steerable configuration
- 25,000 lb suspension capacity rating
- Maintenance-free shear-type pivot bolt
- SpeedSet alignment feature for precise axle alignment
- Compatible with disc and drum brake systems
- Weld-on or bolt-on mounting capability
Technical Specifications
| Model | RAR-260W-1-9-25-USW |
| Application | Trailer |
| Suspension Type | Air Ride, Yoke Underslung |
| Steerability | Non-steerable |
| Capacity | 25,000 lbs |
| Ride Height Range | 8.0" to 9.5" |
Torque Specifications
| Fastener | Torque Value |
|---|---|
| Pivot Bolt / Nut (Shear-Type) | Torque until Torx head shears off |
| Shock Absorber Bolt / Nut, 3/4"-10 | 200–230 ft-lb |
| Air Spring Fasteners, 3/4"-16 | 45–50 ft-lb |
| Air Spring Fasteners, 1/2"-13 | 20–25 ft-lb |
Ride Height / Travel
| Mounting Height | Up Travel | Down Travel | Pivot to Axle |
|---|---|---|---|
| 8.0" | 2.6" | 5.5" | 19.03" |
| 8.5" | 3.1" | 5.0" | 19.03" |
| 9.0" | 3.6" | 4.5" | 19.01" |
| 9.5" | 4.1" | 4.0" | 18.97" |
Included Components (Bill of Materials)
| Item | Qty | Part Number | Description |
|---|---|---|---|
| 1 | 2 | 1001R12607G | Air Spring 1R12-607 |
| 2 | 2 | 1130098 | Pivot Bolt, Round Head, Shear-Type |
| 3 | 2 | 1140022 | HHCS 3/4"-10NC x 11" LG, Grade 8, Zinc Plated |
| 4 | 6 | 1145383B105 | HHCS 1/2"-13NC x 1-1/4" LG, Grade 5, Zinc Plated |
| 5 | 2 | 1147698B105 | HHCS 3/4"-10NC x 3-1/4" LG, Grade 5, Zinc Plated |
| 6 | 4 | 1150023 | Locknut 3/4"-10NC, Controlk |
| 7 | 2 | 1150067 | Locknut 7/8"-9UNC, Flanged |
| 8 | 2 | 1150558B102 | Nut 3/4"-16NF, Grade 2 |
| 9 | 6 | 1160556B100 | Lock Washer 1/2", Split, Zinc Plated |
| 10 | 2 | 1160036 | Washer 7/8", F436, Zinc Coated |
| 11 | 4 | 1167680B000 | Wear Washer, UHMW |
| 12 | 2 | 1270563B000 | Shock Absorber Assembly, 6" |
| 13 | 1 | 4280160 | Beam Assembly, LH |
| 13 | 1 | 4280161 | Beam Assembly, RH |
| 14 | 2 | 5450021 | Bonded Yoke Bushing Assembly, 260 |
| 15 | 2 | 7001723B000 | Air Spring Plate, 7-1/4" Octagon |
| 16 | 2 | 8147716B000 | Shock Bracket, Formed |
| 17 | 2 | 9097716B003 | Outer Bushing Sleeve |
Installation Notes
- Axle alignment must be performed in accordance with SAE or TMC recommended standards.
- Installer must set suspension to the specified mounting height before torquing the pivot bolt.
- Pivot bolt is a shear-type fastener and must not be re-torqued after installation.
- Suspension fasteners must be re-torqued at 6,000 miles and every 50,000 miles thereafter.
- Axle-to-suspension welding must follow Ridewell Weld Process No. 1.
Maintenance Notes
- Inspect suspension structure, air springs, shocks, and fasteners during regular service intervals.
- Do not re-torque shear-type pivot fasteners.
- Inspect pivot bushings and wear washers annually and replace if excessive wear is present.
Warranty Notes
- Suspension systems are warranted to be free from defects in material and workmanship when properly installed and maintained.
- Warranty coverage is limited to repair or replacement of suspension components.
- Warranty is non-transferable.
Add-On Products (Sold Separately)
- Bushing Replacement Kit -- 6040099 (manufactured before September 30, 2024)
- Bushing Replacement Kit -- 6040239 (manufactured after October 1, 2024)
