Ridewell RSS-233MMT 13.2K Self-Steering Truck Lift Axle Suspension - Weld-On - Disc Brake - 2339156
Ridewell RSS-233MMT 13.2K Self-Steering Truck Lift Axle Suspension - Weld-On - Disc Brake - 2339156
Regular price
$8,393.48 USD
Regular price
$0.00 USD
Sale price
$8,393.48 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

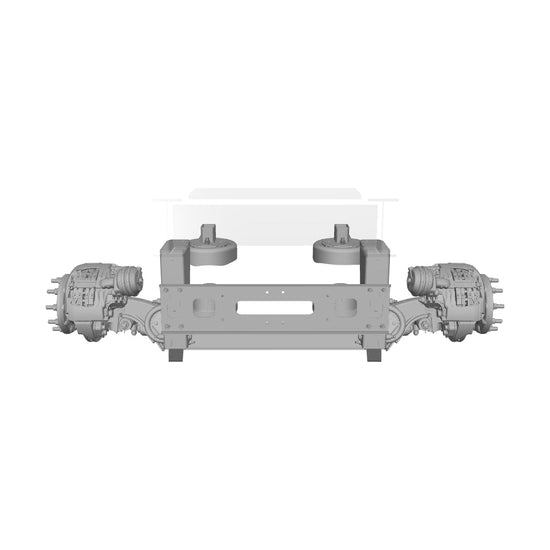

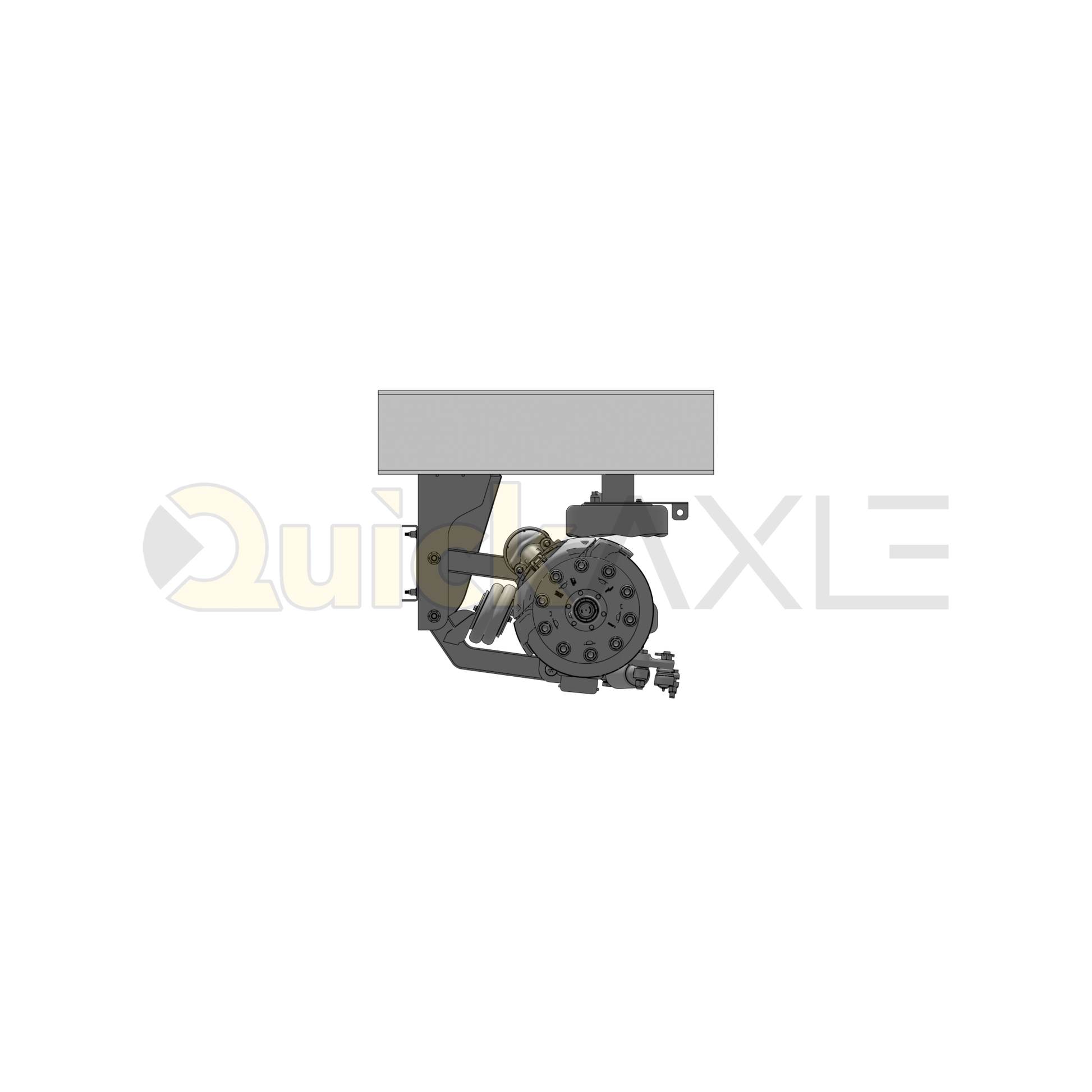

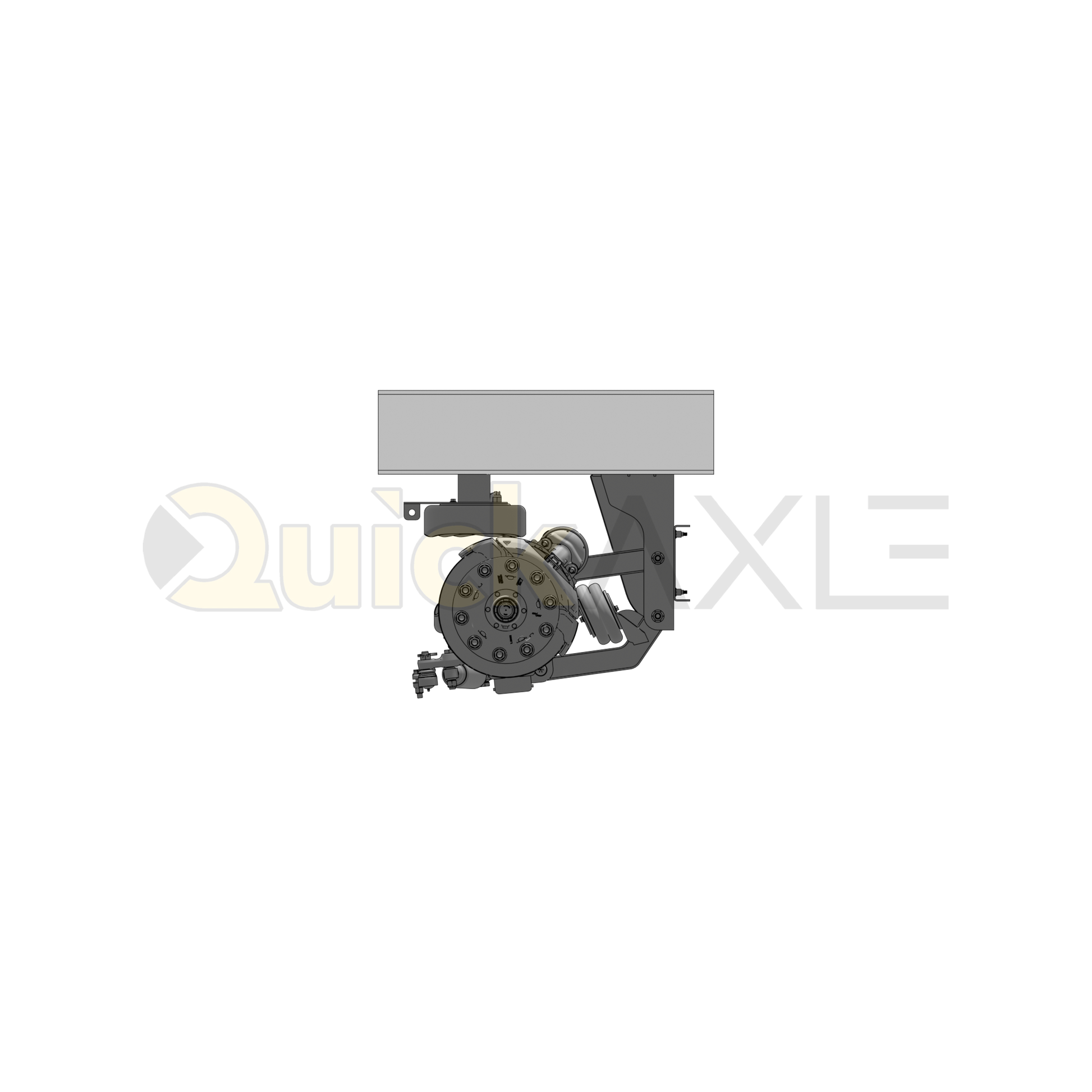

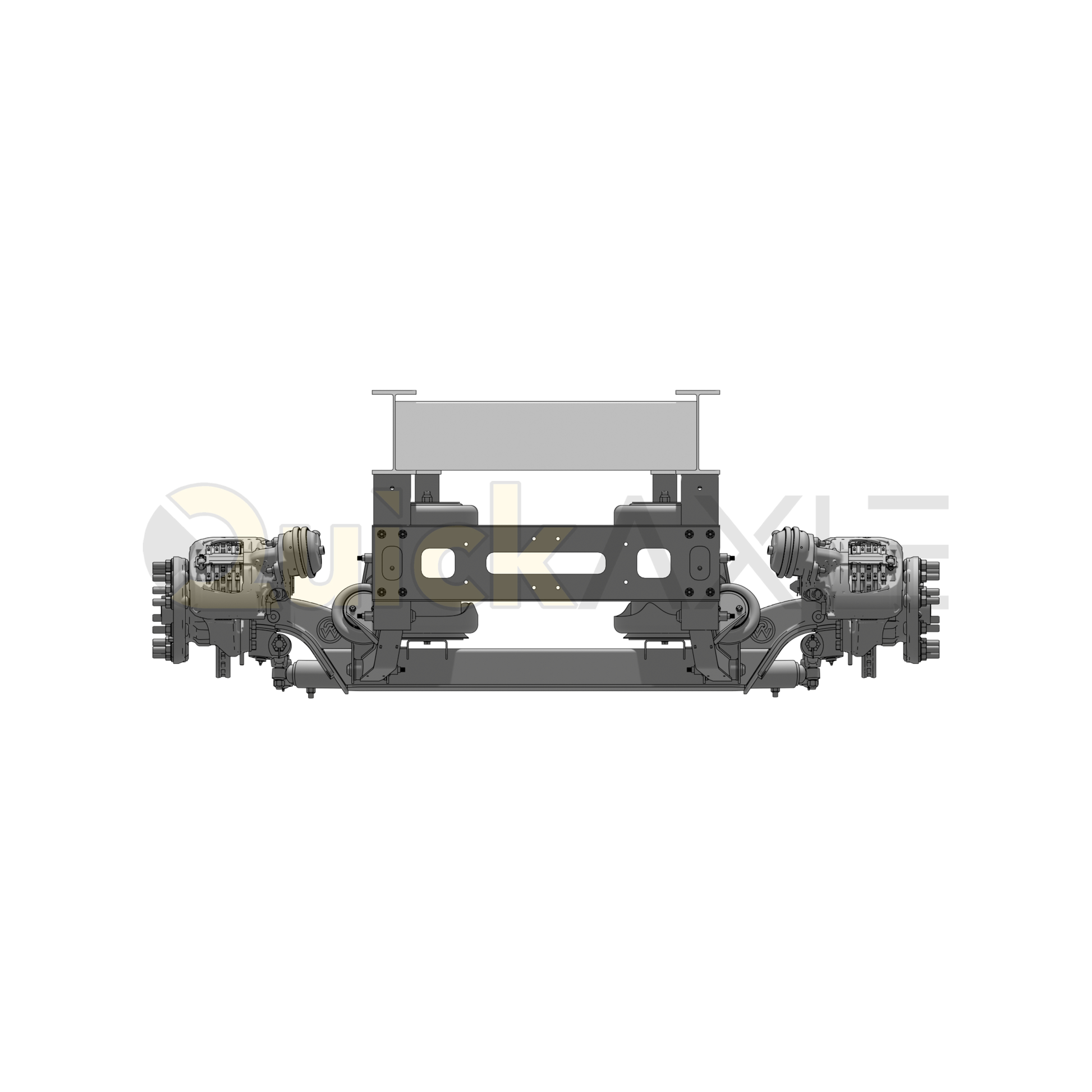

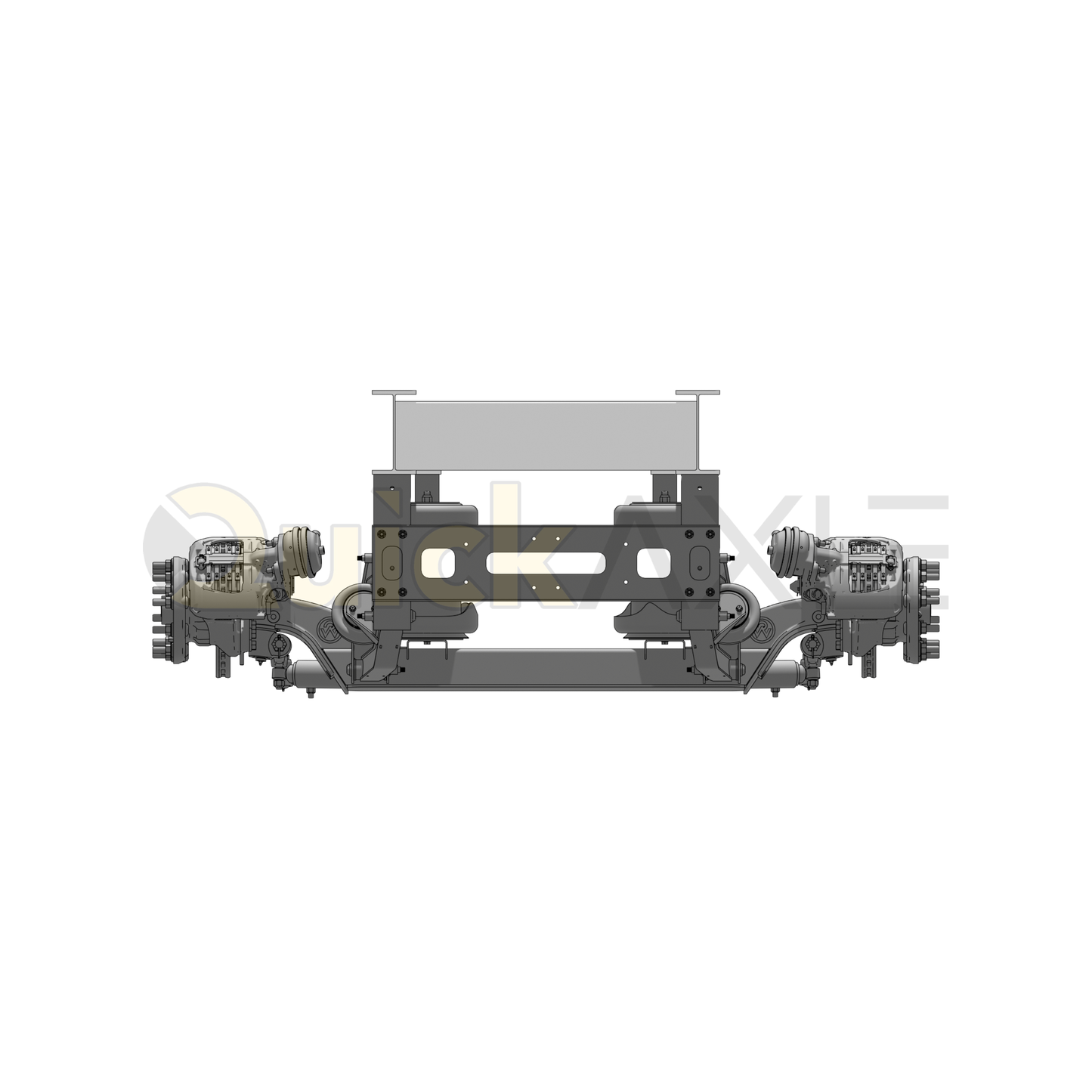

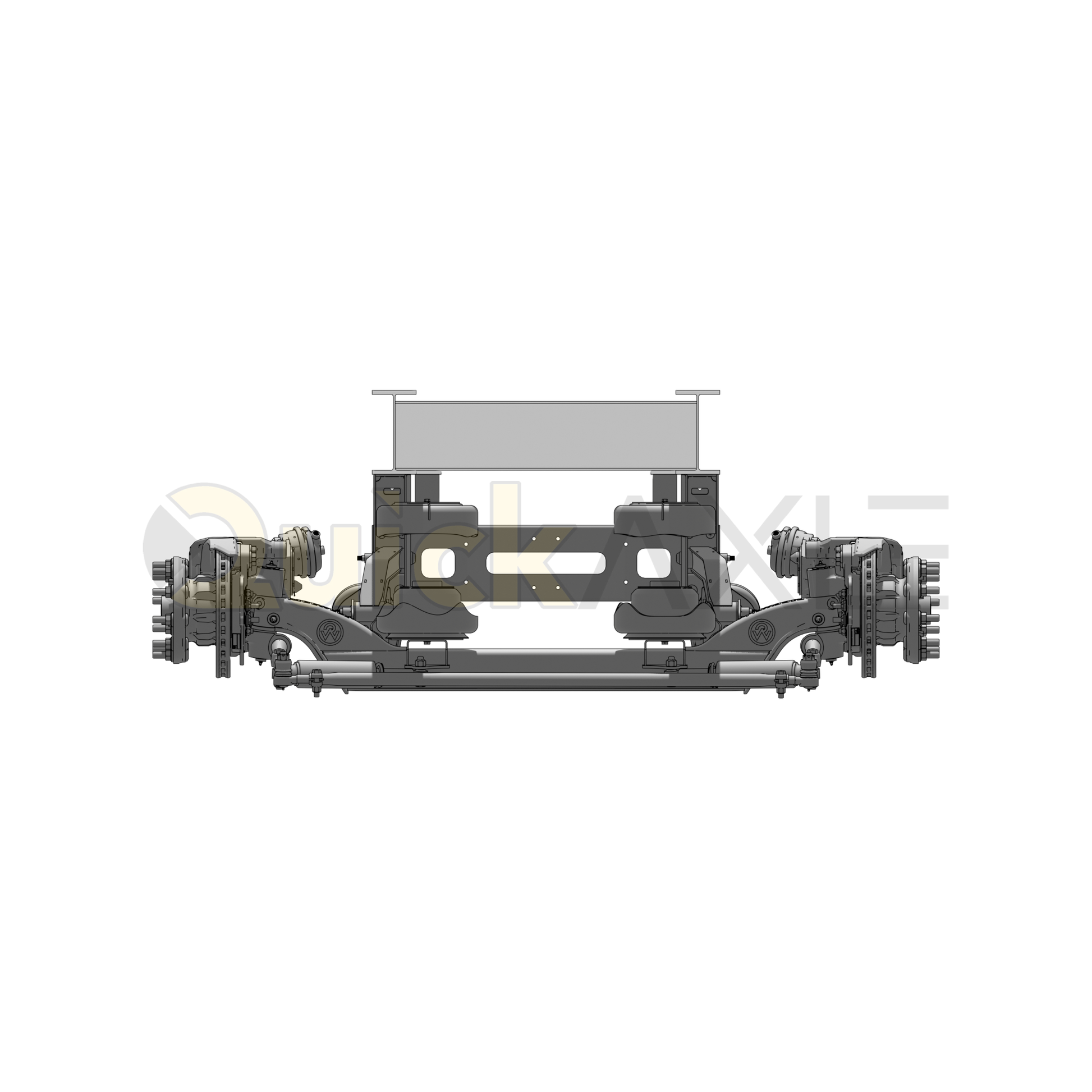

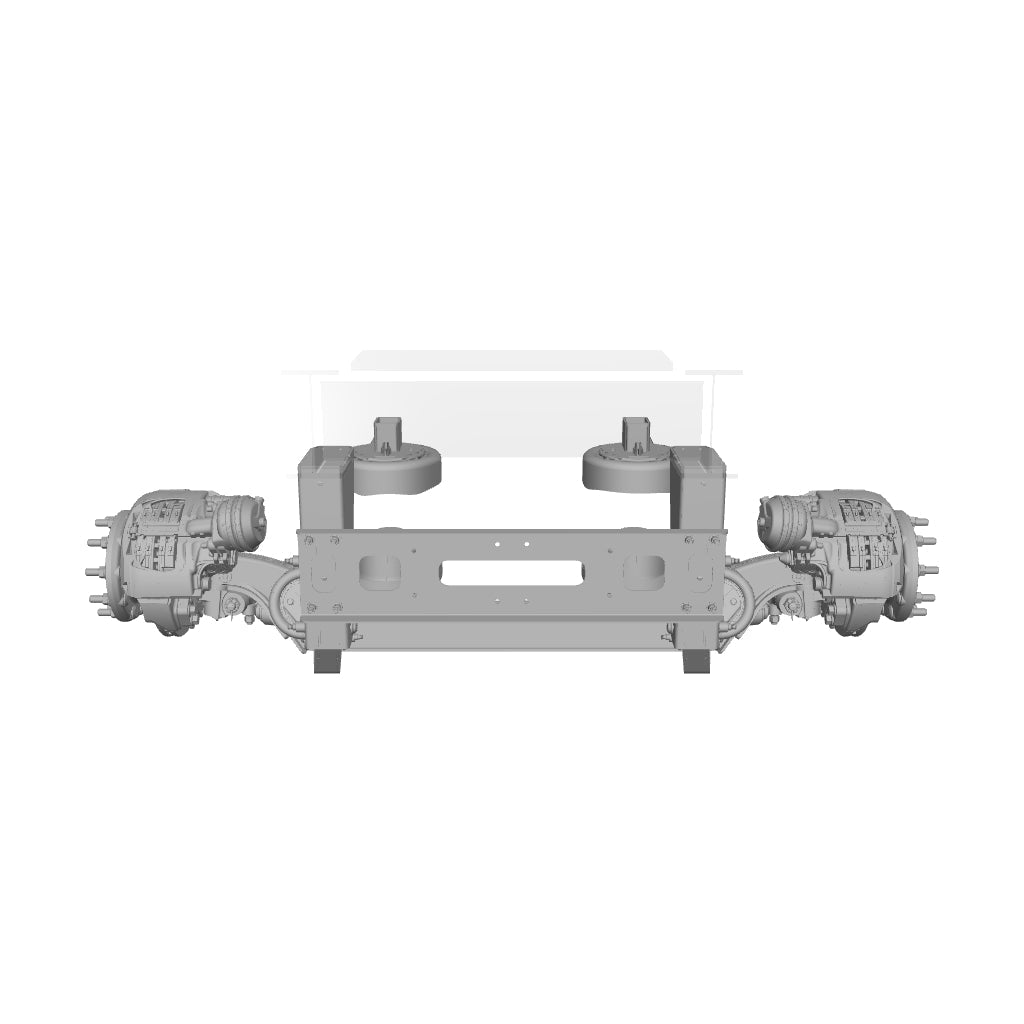

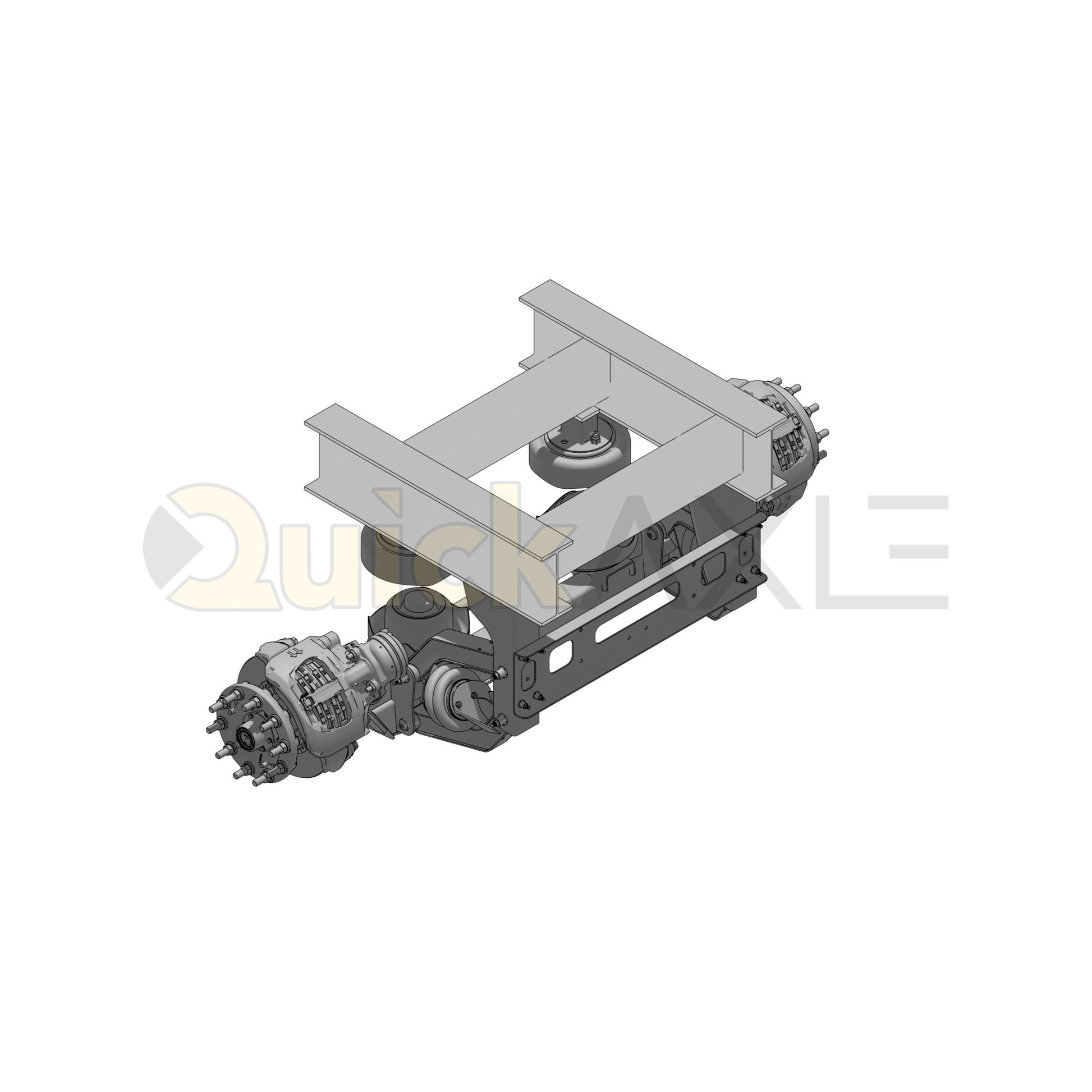

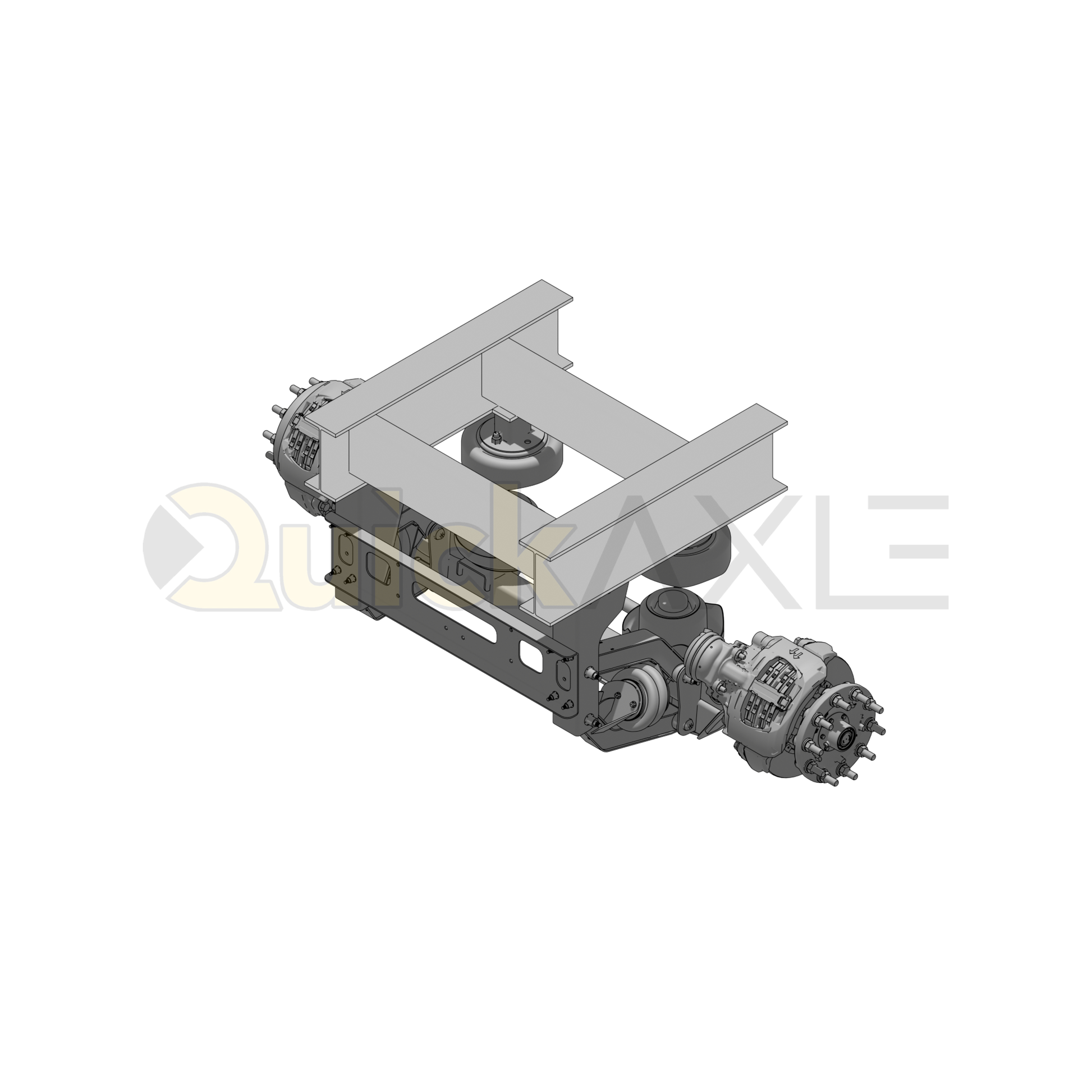

The Ridewell RSS-233MMT is a self-steering, liftable auxiliary air suspension engineered for trailer applications requiring improved maneuverability and controlled axle loading. This complete suspension assembly features weld-on hangers, disc brake compatibility, and a configurable ride height range.
Key Features
- Self-steering auxiliary axle suspension for forward travel
- Liftable axle design using air spring load control
- Weld-on hanger attachment style
- Carbon steel hanger construction
- Disc brake axle configuration
- Huck fasteners for maintenance-free pivot joints
- Single wheel configuration
- Suspension must be raised or locked during reverse travel
- Compatible with lift-in-reverse and steer lock air control systems (optional)
Technical Specifications
| Model | RSS-233MMT |
| Application | Lift and Steer Axle – Trailer |
| Suspension Type | Auxiliary Air Suspension |
| Steerability | Self-Steering |
| Capacity | 13,200 lbs. |
| Ride Height Range | 13.5 in. to 17.0 in. |
| Hub Face to Hub Face | 93.25 in. |
| Brake Type | Disc |
| Brake System | ADB22X |
| Wrap | No |
| Hanger Attachment Style | Weld-On |
| Hanger Material | Carbon Steel |
Torque Specifications
| Fastener Size | Torque (ft-lb) | Torque (N·m) |
|---|---|---|
| .375-16NC | 25 | 34 |
| .50-13NC | 50 | 68 |
| .75-10NC | 160 | 217 |
| .75-16NF | 50 | 68 |
Ride Height / Travel
| Ride Height | Up Travel | Down Travel |
|---|---|---|
| 13.5 | 6.0 | 7.0 |
| 14.0 | 6.5 | 6.5 |
| 14.5 | 7.0 | 6.0 |
| 15.0 | 7.5 | 5.5 |
| 15.5 | 8.0 | 5.0 |
| 16.0 | 8.5 | 4.5 |
| 16.5 | 9.0 | 4.0 |
| 17.0 | 9.5 | 3.5 |
Included Components (Bill of Materials)
| Part Number | Description | Qty |
|---|---|---|
| 1000043 | A/SPG SP 552584-KP10-118 | 2 |
| 1002B07548G | A/SPG DOUBLE CONVOLUTE | 2 |
| 1130051 | WHIZ-LOCK FL SCR 3/8-16 .75LG | 10 |
| 1130052 | HUCK BLT 1/2" x .25/.62 GL GR8 | 8 |
| 1130053 | HUCK BLT 3/4" 4.5 x 4.87 GL GR8 | 8 |
| 1140554B105 | HHCS 1/2" 13NC 1" LG GR5 ZN | 4 |
| 1150011 | L'NUT 3/4" 16NF GR2 NYL ZN | 2 |
| 1150058 | HUCK COLLAR 1/2" BOBTAIL | 8 |
| 1150059 | HUCK COLLAR 3/4" BOBTAIL | 8 |
| 1160033 | WASH .188 x 2.625 x 1.35 233 13K | 16 |
| 1167482B000 | L'WASH 1/2 INT TOOTH | 4 |
| 1640503 | AX 233T 13K DB 5.0 x 70 34.0 FW ADB SHD | 1 |
| 3170164 | HGR ASY LH 233-MMT HD | 1 |
| 3170165 | HGR ASY RH 233-MMT HD | 1 |
| 3450216 | A/SPG MTG BRKT LH 233 MMT | 1 |
| 3450217 | A/SPG MTG BRKT RH 233 MMT | 1 |
| 5050016 | T'ROD SUB-ASY LH UP (233) | 1 |
| 5050017 | T'ROD SUB-ASY RH UP (233) | 1 |
| 5050018 | T'ROD SUB-ASY LH LWR (233) | 1 |
| 5050019 | T'ROD SUB-ASY RH LWR (233) | 1 |
| 7002817 | A/SPG SUP'T PLT 233CMT | 2 |
| 8170022 | X-CHNL 233T 13K | 1 |
| 1120047 | BUSH 2.020 x 1.314 x 3.325L 88D | 8 |
| 9090079 | SLV 1.31 OD x .813 ID x 4.111 LG | 8 |
Installation Notes
- Frame crossmember required within 6 inches of hanger leading or trailing edge
- Additional crossmember required above upper air spring mounting plates
- All welding must meet AWS specifications with minimum 70,000 psi tensile strength
- Suspension must be raised or locked during reverse operation
- Wheel toe-in must be set between 1/32" and 3/32"
Maintenance Notes
- Re-torque all fasteners after first 6,000 miles of operation
- Inspect bushings, torque rods, and wear washers at regular service intervals
- Lubricate kingpin thrust bearings and steering components per service schedule
- Inspect air springs for wear, cracking, or leakage
- Check air system for leaks and drain moisture from air reservoirs
Warranty Notes
- Warranty applies to Ridewell suspension components only
- Coverage limited to defects in materials and workmanship
- Suspension must be installed, maintained, and operated within rated capacity
- Warranty is non-transferable and requires prior Ridewell approval
Add-On Products (Sold Separately)
- Lift Axle Control Module (LACM)
- Lift-In-Reverse Control System
- Pressure Protection Valve (PPV)
- Steer Lock Air Control Components
