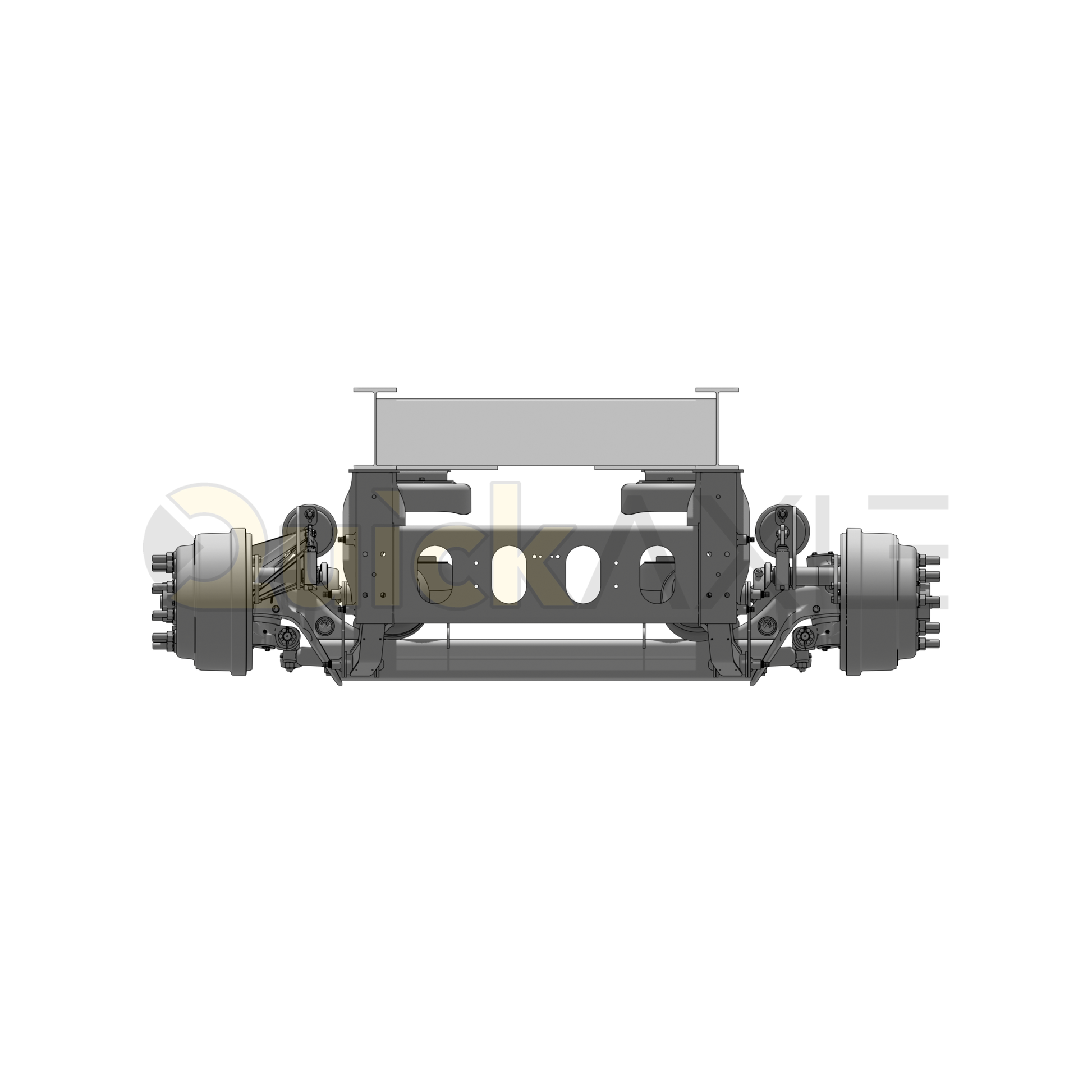

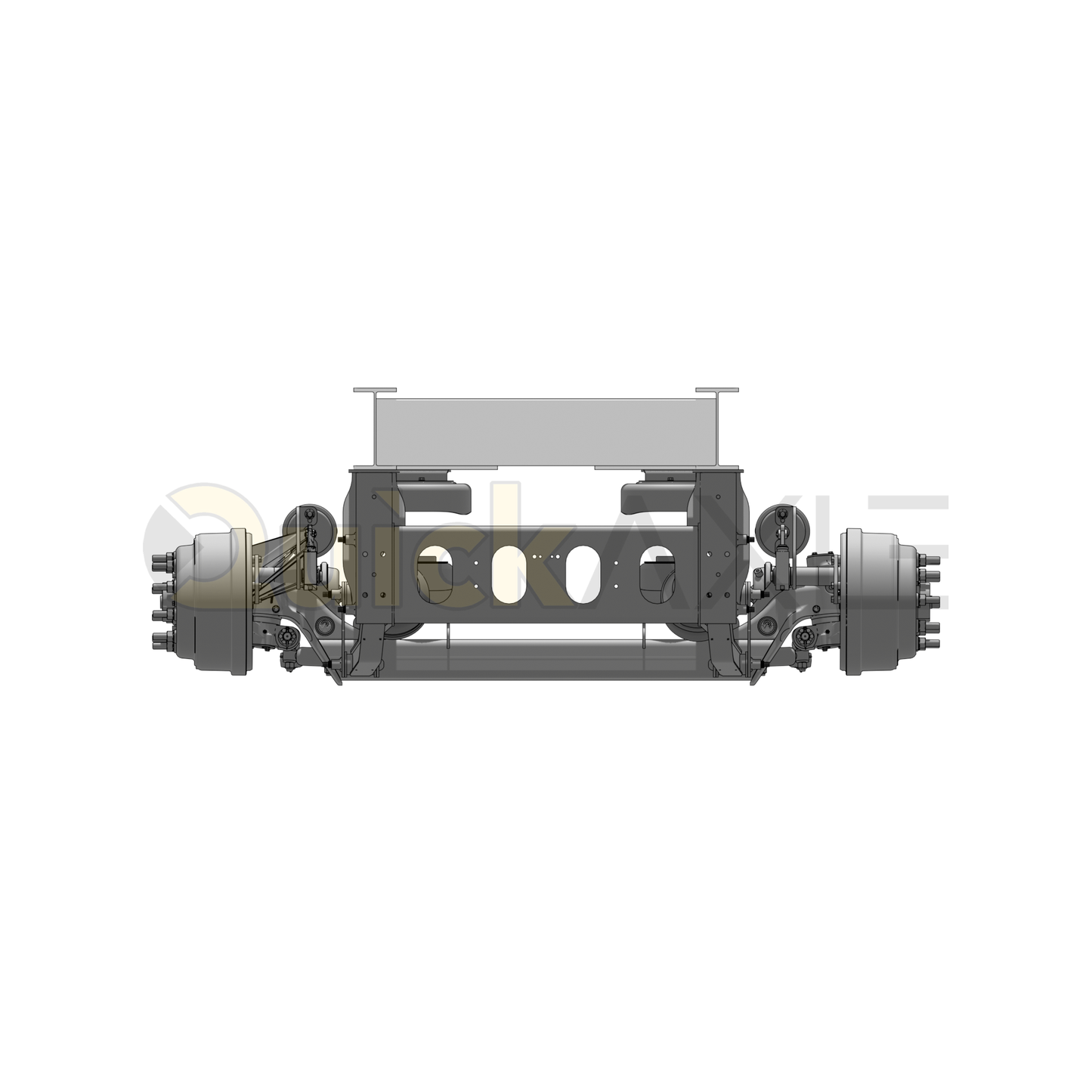

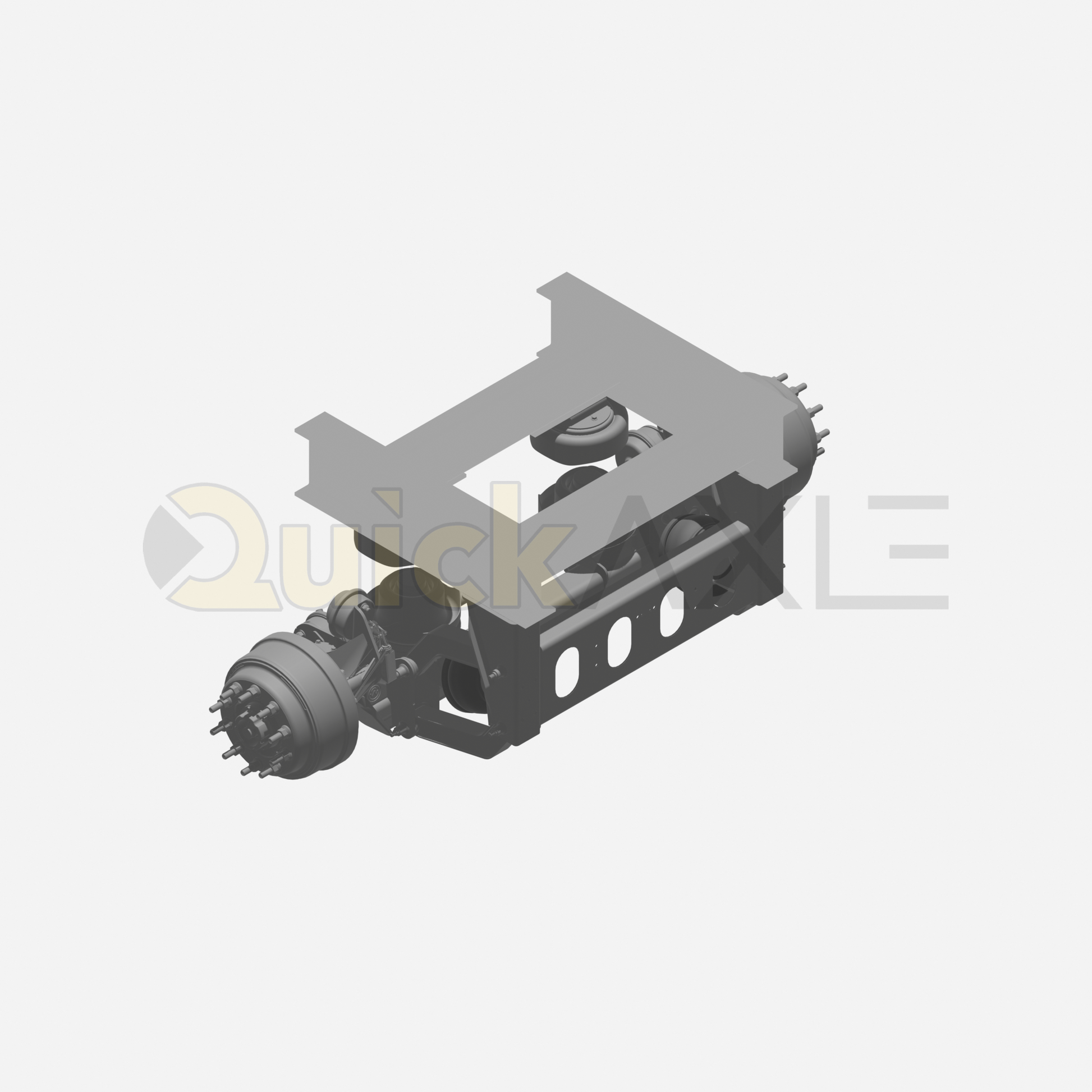

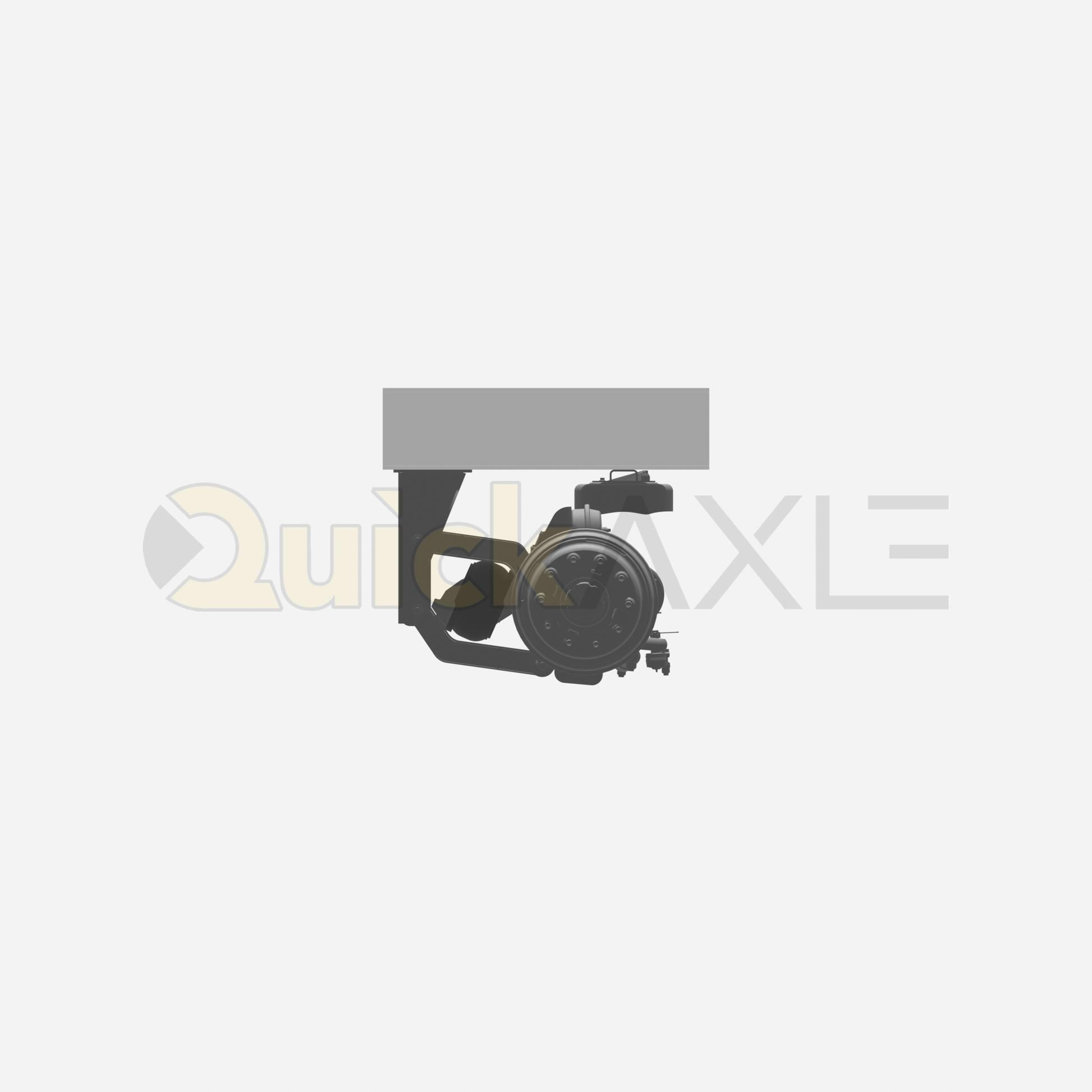

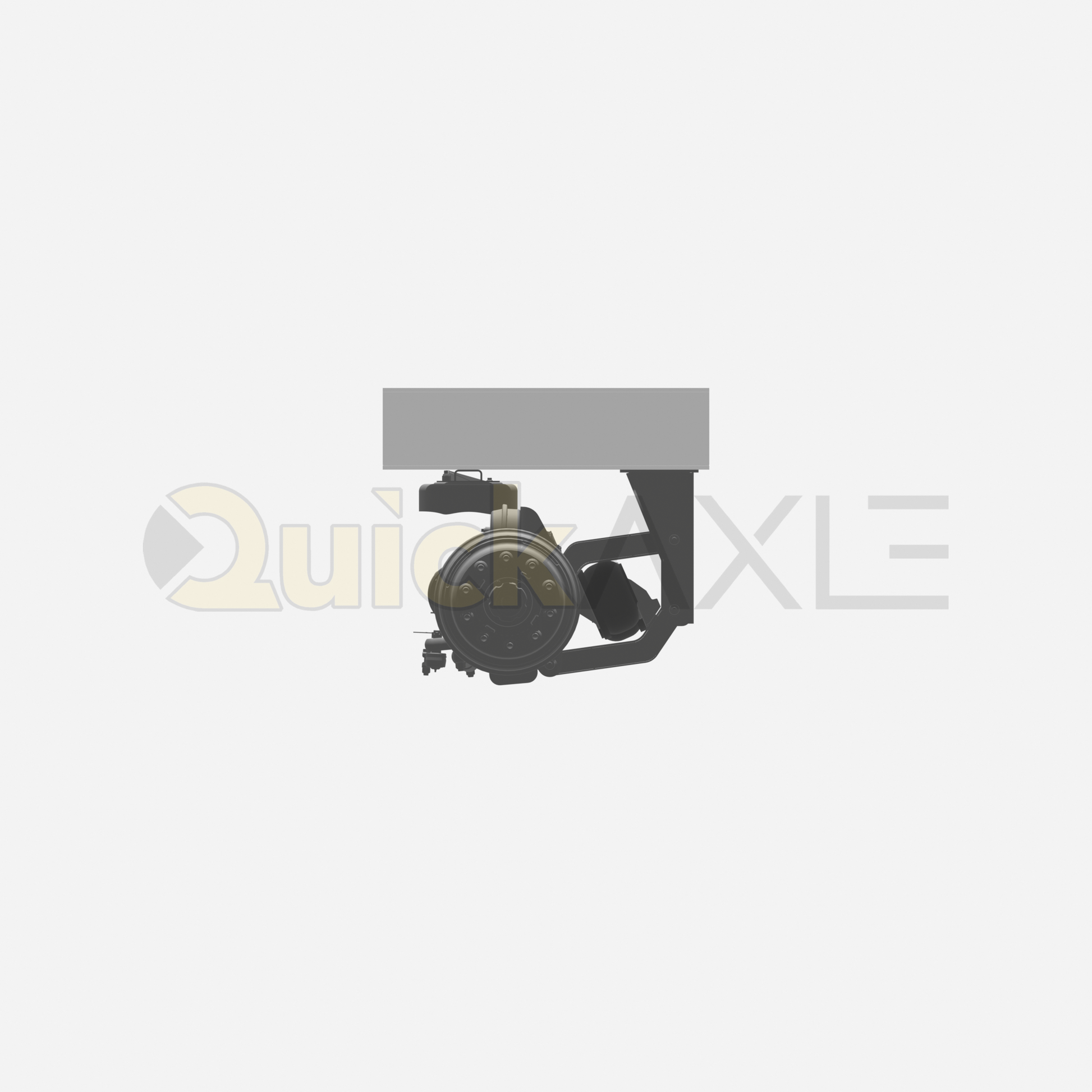

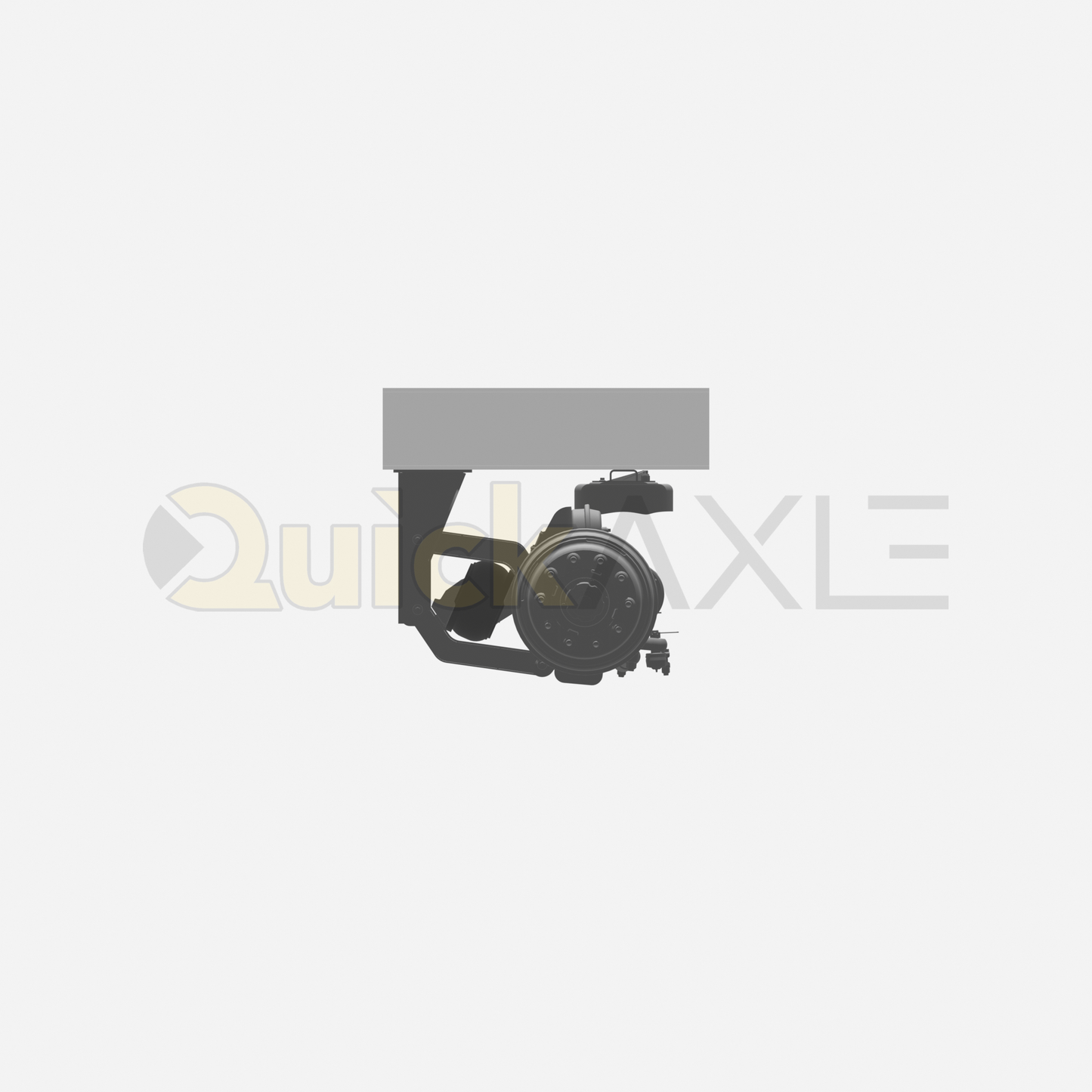

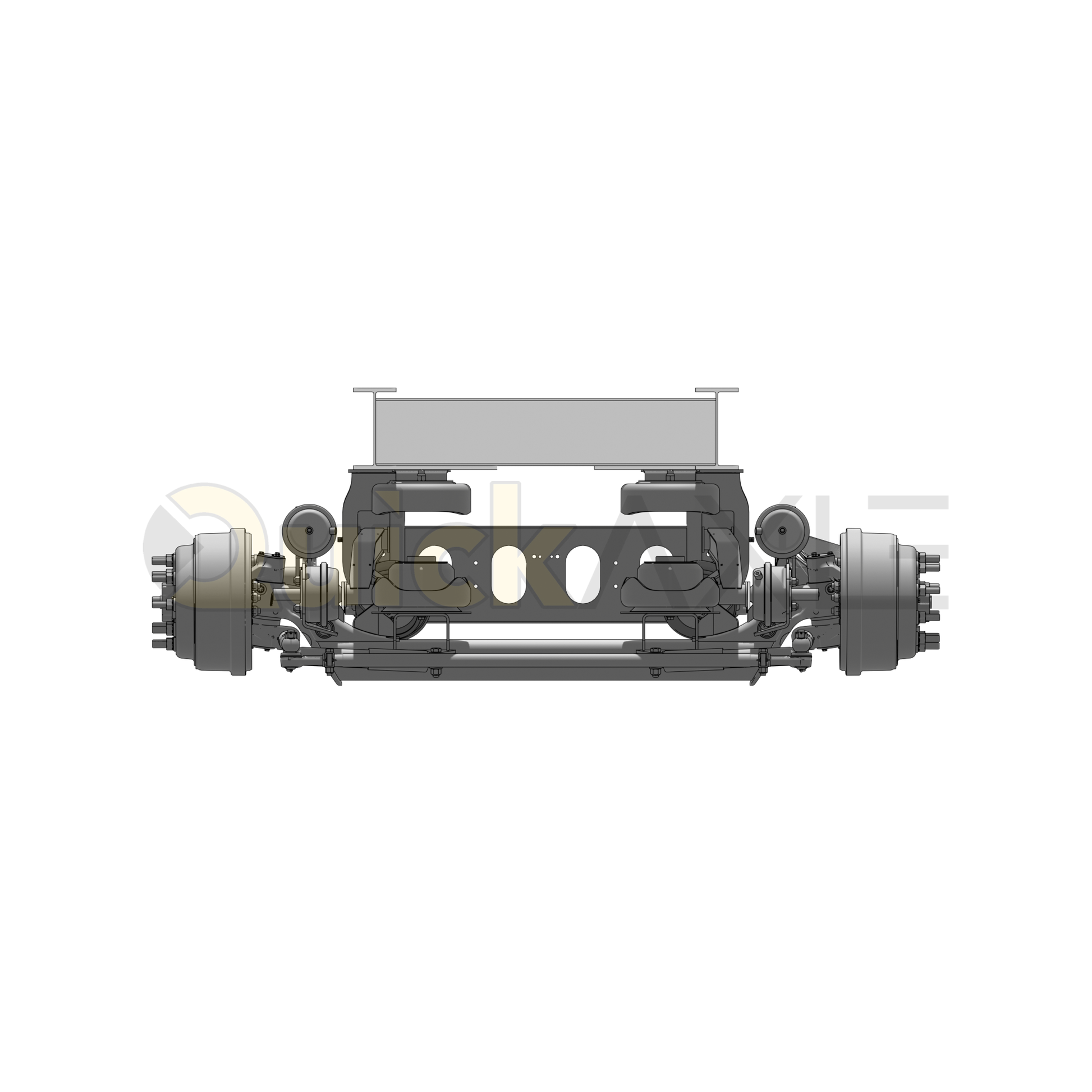

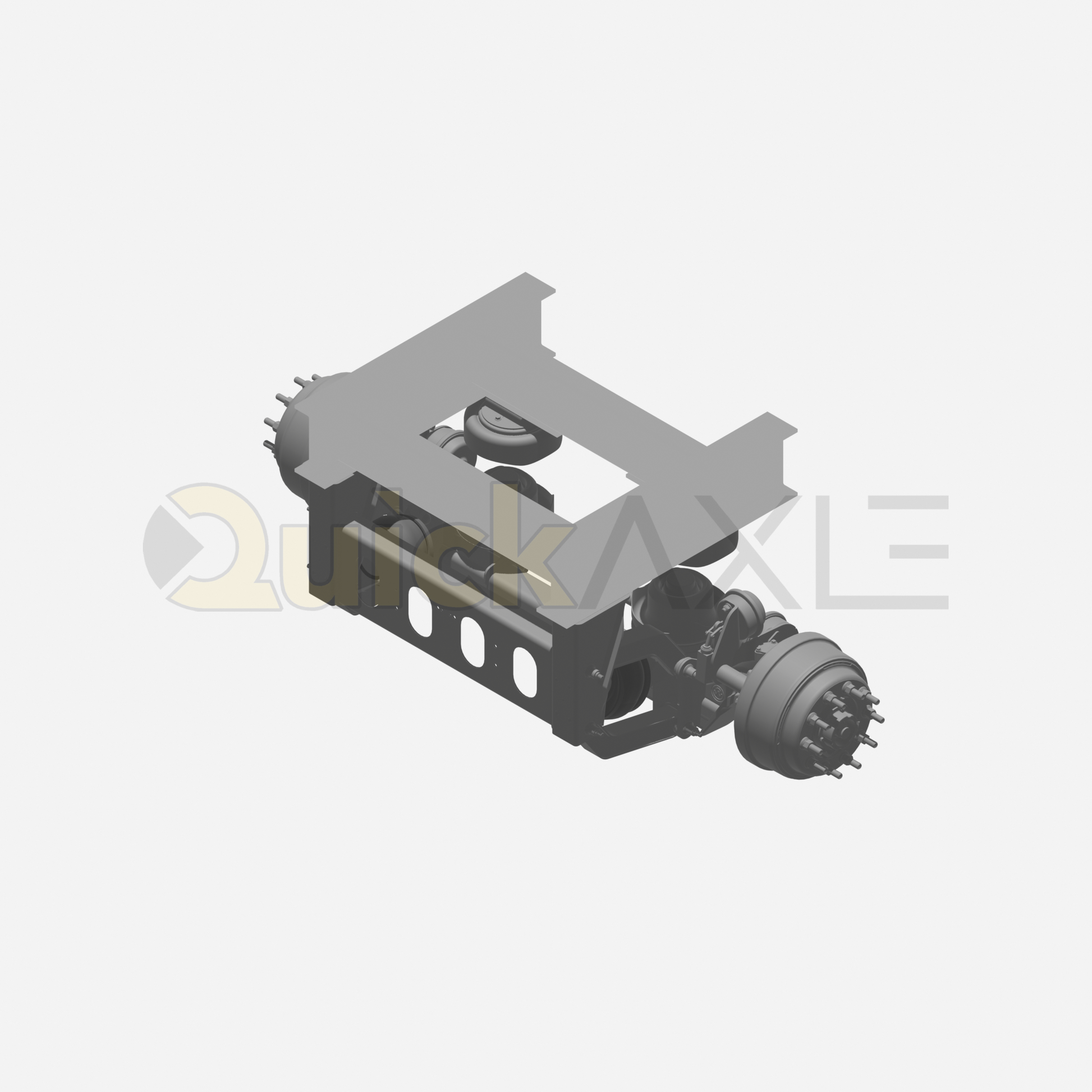

Ridewell RSS-233T 14K Truck Lift Axle Suspension - Self-Steer with Steer Locks - Weld-On - 2339103S

Name: Ridewell RSS-233T 14K Truck Lift Axle Suspension - Self-Steer with Steer Locks - Weld-On -
Brand: Ridewell
SKU: 2339103S
Price: 8587.18 USD
Availability: InStock

$8,587.18 USD

~~$0.00 USD~~ $8,587.18 USD

Sale

Shipping calculated at checkout.

Product variants

Quantity

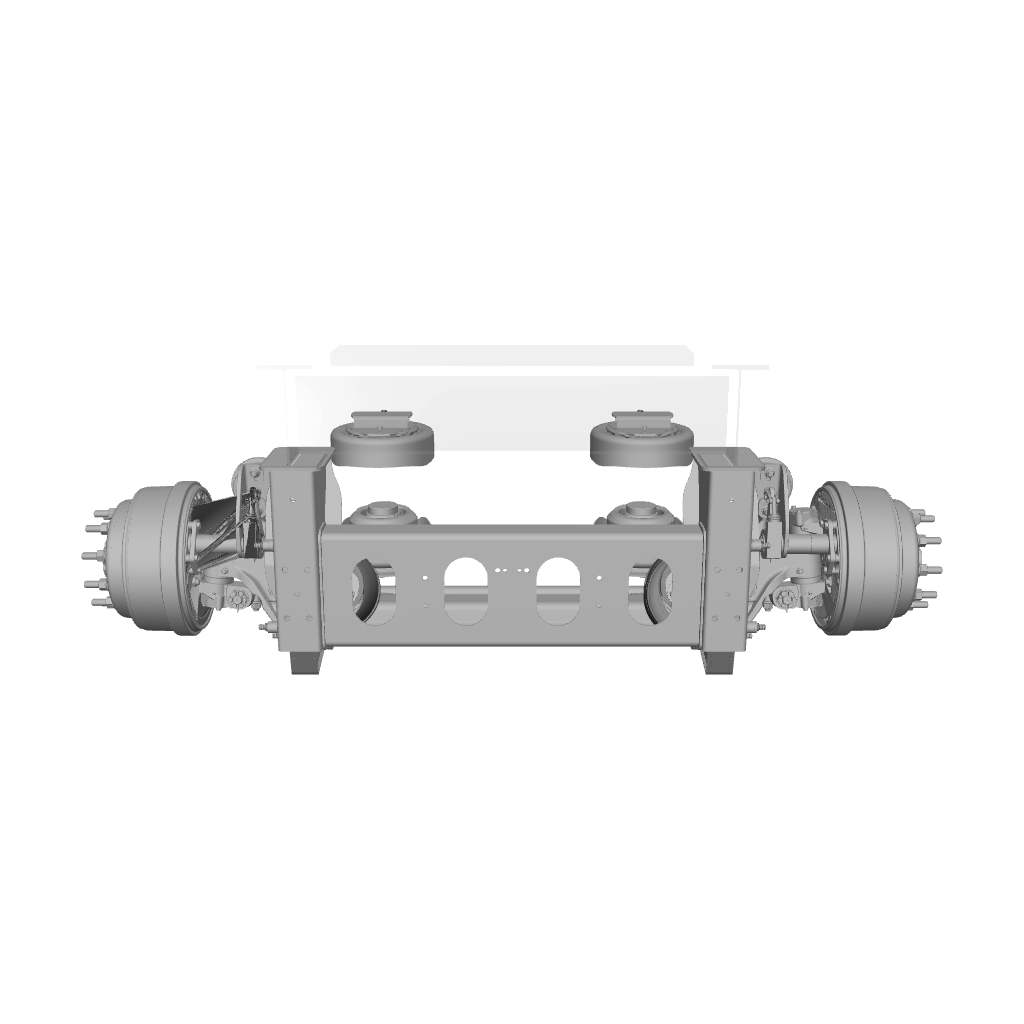

The Ridewell RSS-233T 2339103S is a self-steering, liftable auxiliary air suspension designed for truck applications requiring controlled tracking and added stability. This configuration includes factory-installed steer locks, allowing the axle to be locked straight when required for reverse operation or specific duty cycles.

Key Features

Self-steering auxiliary lift axle suspension for truck applications
Integrated steer lock system (S suffix configuration)
Liftable axle using air spring load control
Weld-on hanger attachment style
Carbon steel hanger construction
Huck fasteners for maintenance-free pivot joints
Designed for wide track configurations
Suspension may be locked during reverse travel

Technical Specifications

Model	RSS-233T
Application	Lift and Steer Axle – Truck
Suspension Type	Auxiliary Air Suspension
Steerability	Self-Steering with Steer Locks
Rated Capacity	14,000 lbs.
Ride Height Range	12.5 in. to 17 in.
HF to HF	95 in.
Brake Type	Drum
Brake System	16.5 x 6.0
Wrap	No
Hanger Attachment Style	Weld-On
Hanger Material	Carbon Steel
Axle Assembly	1640476S (Steer Lock Axle)

Torque Specifications

Fastener Size	Torque (ft-lb)	Torque (N.m)
.50-13NC	50	68
.50-20NF	25	34
.75-16NF	50	68
.75-10NC	160	217
.375-16NC	25	34

Ride Height / Travel

Ride Height (in)	Up Travel (in)	Down Travel (in)
12.5	5.0	7.5
13.0	5.5	7.0
13.5	6.0	6.5
14.0	6.5	6.0
14.5	7.0	5.5
15.0	7.5	5.0
15.5	8.0	4.5
16.0	8.5	4.0
16.5	9.0	3.5
17.0	9.5	3.0

Included Components (Bill of Materials)

Part Number	Description	Qty
1000043	A/SPG SP 552584-KP10-118	2
1003586946C	A/SPG DOUBLE CONVOLUTE	2
1120043	BUSH 2.140 x 1.428 x 3.300L	8
1130051	WHIZ-LOCK FL SCR 3/8-16 .75LG	6
1130060	HUCK BLT 7/8 4.75–5.12 GL GR8	8
1143401B105	HHCS 1/2-13NC 1-1/2 LG GR5	4
1150011	L'NUT 3/4-16NF GR2 NYL	2
1150078	L'NUT 1/2-20NF JAM NYL	2
1150065	HUCK COLLAR 7/8 BOBTAIL	8
1154700B102	L'NUT 3/4-16NF JAM NYL	2
1160026	SHIM WASH .25 x 3.25 x 1.50	16
1167053B100	WASH 1/2 FLAT ASTM F436	4
1167482B000	L'WASH 1/2 INT TOOTH	4
1640476S	AX 233T 16.6K MKP WT – STEER LOCK	1
3170125	HGR ASY 2339008	2
3450286	UP A/SPG MTG ASY	2
5050022	T'ROD SUB-ASY LH UP	1
5050023	T'ROD SUB-ASY RH UP	1
5050024	T'ROD SUB-ASY LH LOW	1
5050025	T'ROD SUB-ASY RH LOW	1
5480043	X-CHNL ASY 233T-20K WT	1
7003011	A/SPG SUPPORT PLATE	2
9090082	SLV 1.44 OD x .938 ID x 4.111	8

Installation Notes

Frame crossmember required within 6 inches of hanger leading or trailing edge
Additional crossmember required over upper air spring mounting
Steer lock system must be plumbed per Ridewell recommendations
All fasteners must be re-torqued after first 6,000 miles

Maintenance Notes

Inspect air springs, bushings, and torque rods at service intervals
Re-torque suspension fasteners after 6,000 miles and every 36,000 miles thereafter
Inspect steer lock operation and air lines regularly
