Ridewell 12V VIAIR 450C-IG Air Compressor - 150 PSI, 23 Amp - 1230171 / 45050

Ridewell 12V VIAIR 450C-IG Air Compressor - 150 PSI, 23 Amp - 1230171 / 45050

143 in stock

$929.61 USD
$0.00 USD $929.61 USD
Sale
Shipping calculated at checkout.

Product Overview

The Ridewell 1230171 air compressor is a VIAIR 450C-IG 12V industrial-grade compressor, VIAIR part number 45050. This compressor is designed for air reservoir tank applications and features a 150 PSI maximum working pressure, 100% duty cycle at 100 PSI, and a permanent magnetic motor.

Key Details

  • Ridewell Part Number: 1230171
  • VIAIR Part Number: 45050
  • Brand / Manufacturer: VIAIR
  • Series: 450C-IG
  • Product Type: 12V air compressor
  • Motor: Permanent magnetic motor
  • Duty Cycle: 100% at 100 PSI
  • Maximum Working Pressure: 150 PSI
  • Maximum Air Tank Size: 5.0 gallon
  • Maximum Amp Draw: 23 amps

Specifications

Specification Value
Voltage 12V DC
Supply Voltage for Performance Data 13.8 volts
Maximum Amp Draw 23 amps
Inrush Current 89.45 amps at 0 PSI
Maximum Working Pressure 150 PSI
Duty Cycle 100% at 100 PSI
Maximum Air Tank Size 5.0 gallon
Free Air Flow at 0 PSI 1.80 CFM
Free Air Flow at 90 PSI 0.97 CFM
Free Air Flow at 150 PSI 0.72 CFM
Connection Size 1/4 in NPT
Leader Hose Stainless steel braided PTFE-lined leader hose
Check Valve Heavy-duty 1/4 in NPT check valve
Thermal Protection Thermal overload protector
Ingress Protection IP67
Sound Level 67.2 dB at 0 PSI
Operating Temperature Range -40 deg F to +158 deg F

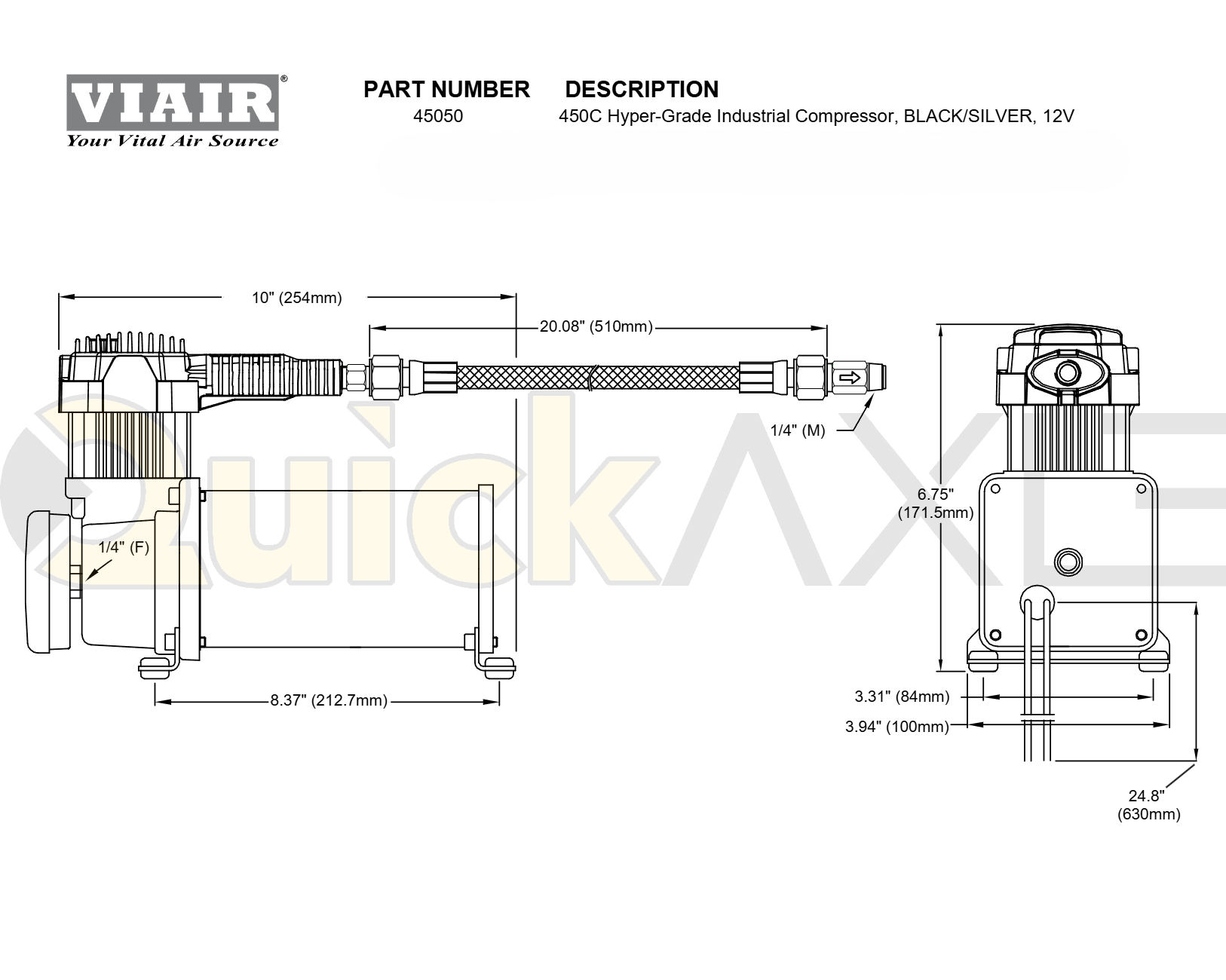

Dimensions 11.25 in L x 4 in W x 6.75 in H
Weight 10.4 lb

12V Compressor Performance

Performance data shown below is for the 12V compressor at 13.8 volts.

PSI CFM Amps BAR LPM Amps
0 1.80 12 0 51.0 12
10 1.75 14 1.0 47.6 15
20 1.60 16 2.0 43.3 17
30 1.52 17 3.0 38.2 18
40 1.39 18 4.0 34.0 19
50 1.27 19 5.0 30.5 20
60 1.18 19 6.0 28.1 21
70 1.09 20 7.0 26.4 22
80 1.04 20 8.0 25.0 23
90 0.97 21 9.0 23.0 22
100 0.90 22 10.0 21.0 21
110 0.90 23
120 0.86 23
130 0.81 22
140 0.76 21
150 0.72 21

12V Compressor Fill Rates

Tank Size Pressure Range Fill Rate
2.5 gallon 0 to 105 PSI 1 min. 55 sec. +/- 10 sec.
2.5 gallon 85 to 105 PSI 28 sec. +/- 5 sec.
2.5 gallon 0 to 145 PSI 3 min. 02 sec. +/- 10 sec.
2.5 gallon 110 to 145 PSI 59 sec. +/- 5 sec.
5.0 gallon 0 to 105 PSI 4 min. 00 sec. +/- 10 sec.
5.0 gallon 85 to 105 PSI 58 sec. +/- 5 sec.
5.0 gallon 0 to 145 PSI 6 min. 25 sec. +/- 15 sec.
5.0 gallon 110 to 145 PSI 2 min. 11 sec. +/- 10 sec.

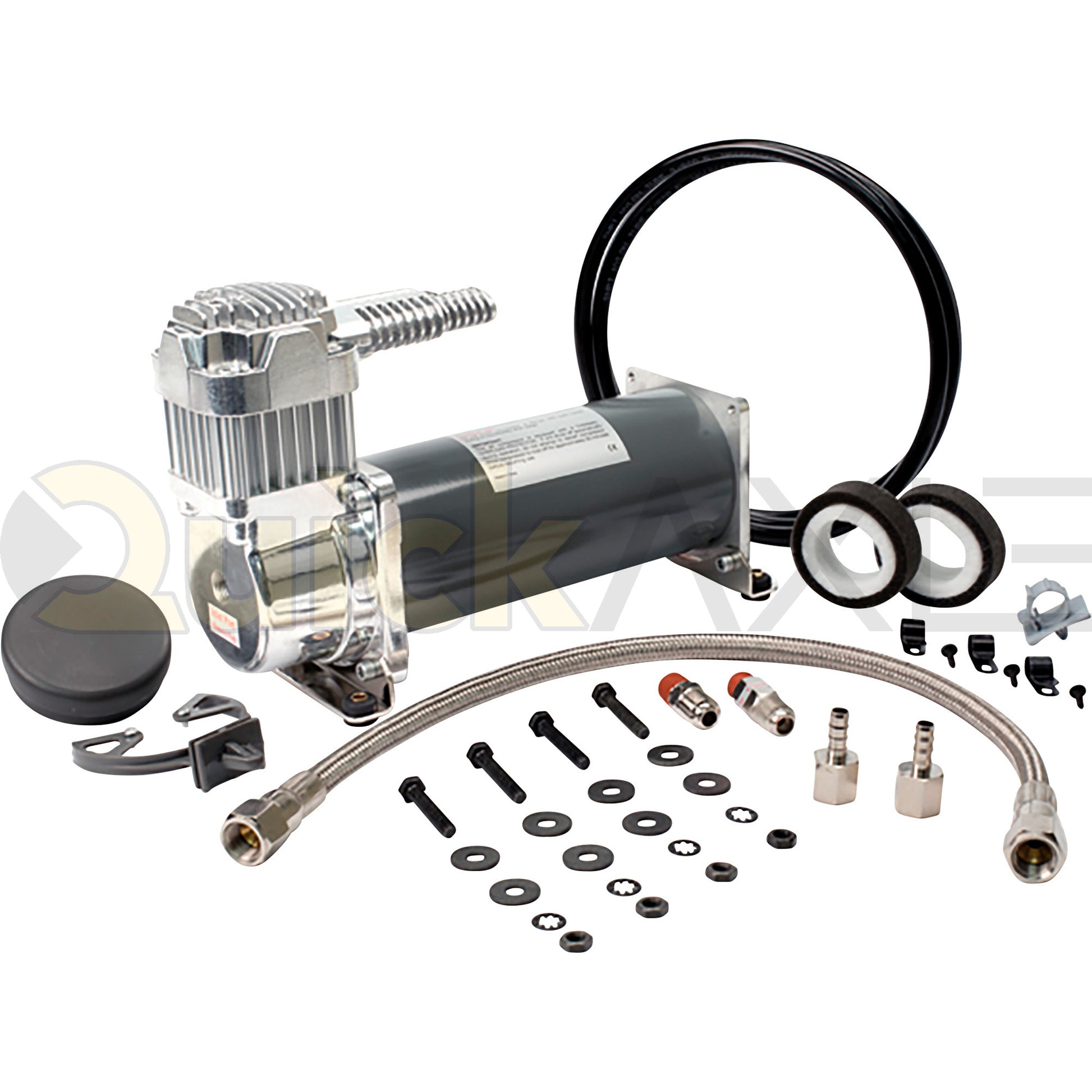

Included Items

  • Air compressor
  • Stainless steel braided PTFE-lined leader hose
  • Heavy-duty 1/4 in NPT check valve
  • Vibration isolators
  • Mounting hardware
  • Air line for remote mount air filter
  • Remote mount air filter assembly
  • Two replacement air filter elements
  • Installation instructions

Notes

  • This listing is for the 12V VIAIR 450C-IG compressor, VIAIR part number 45050.
  • Recommended tanks, relays, and pressure switches are sold separately unless specifically included with another kit.
  • Performance and fill-rate specifications are for the 12V compressor only.
