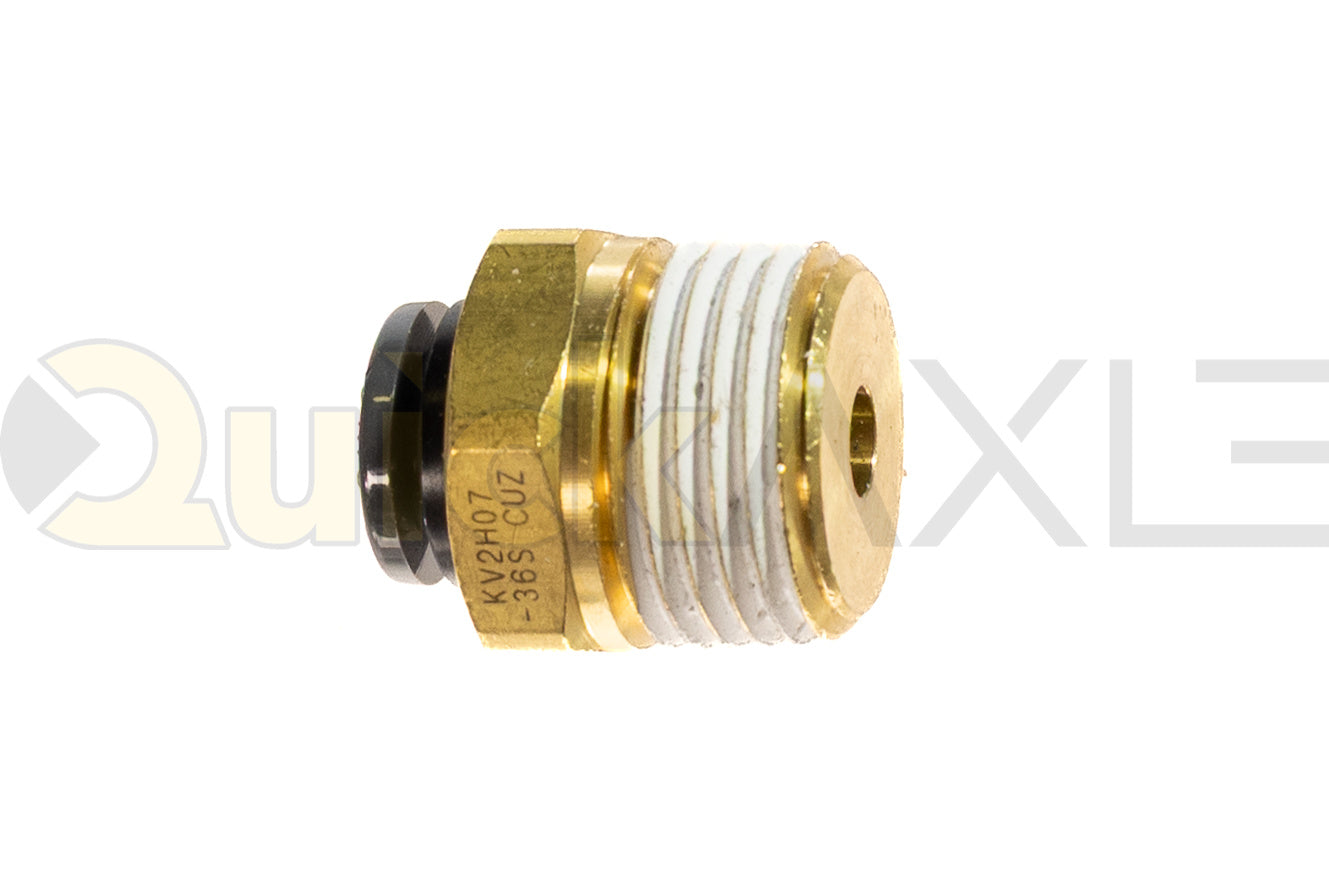

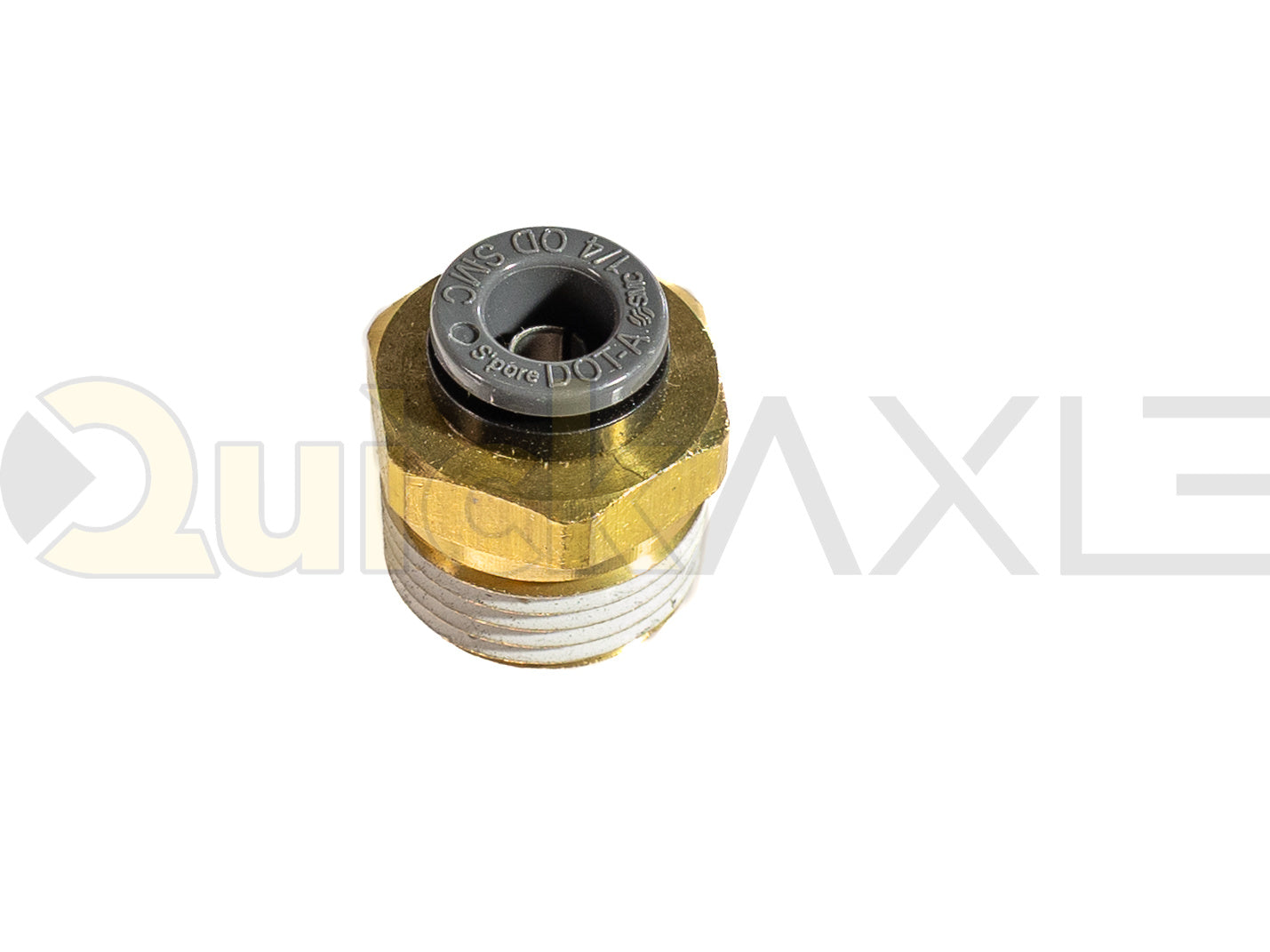

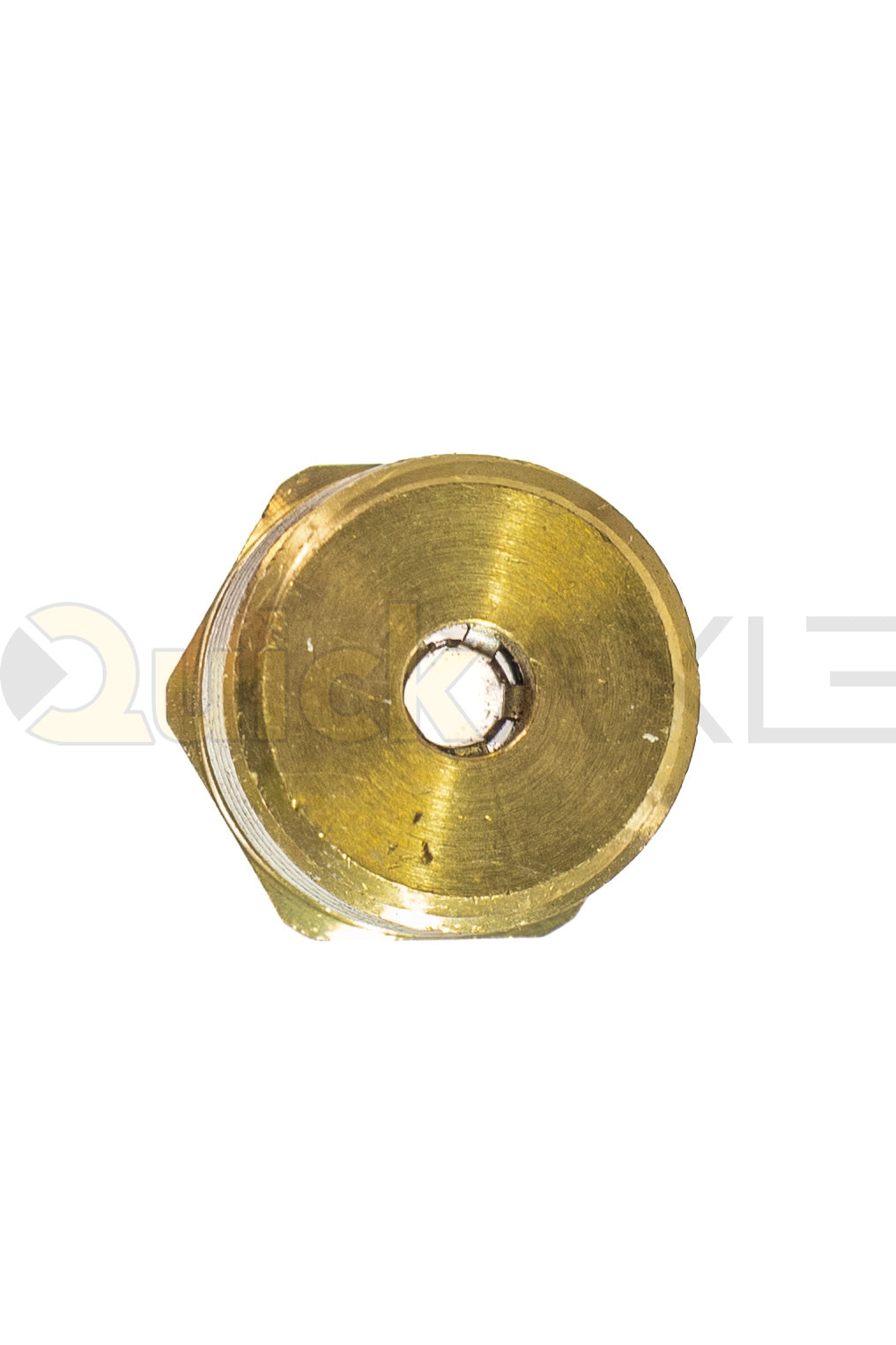

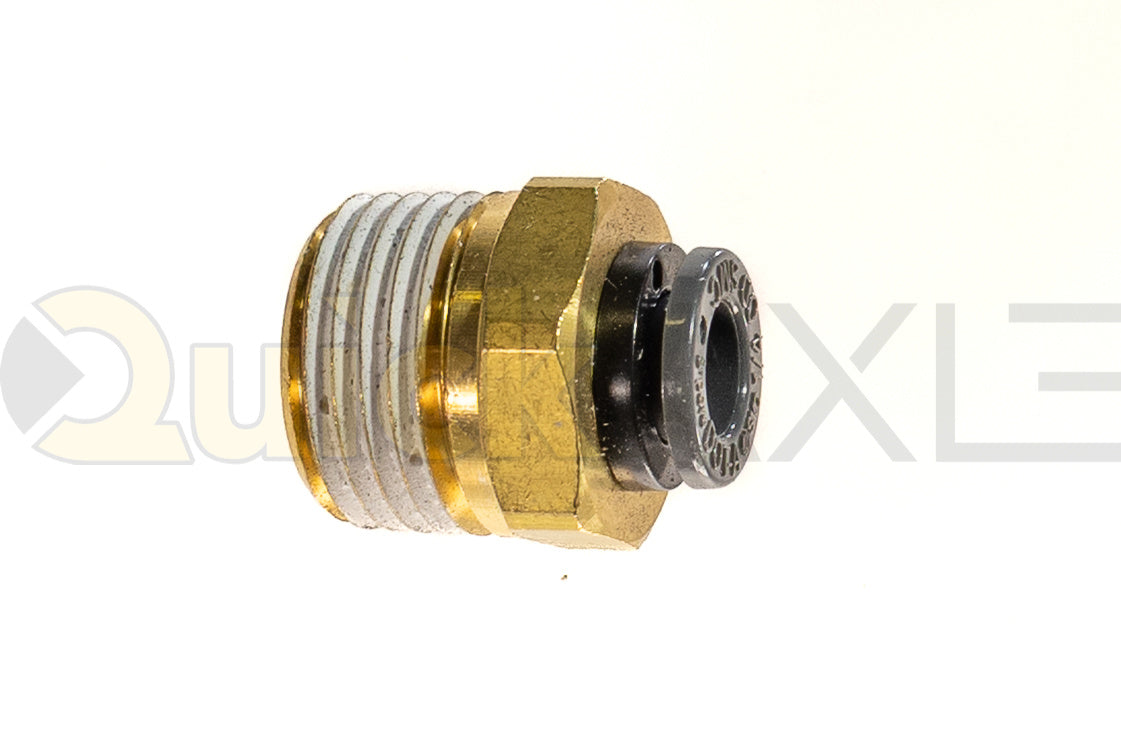

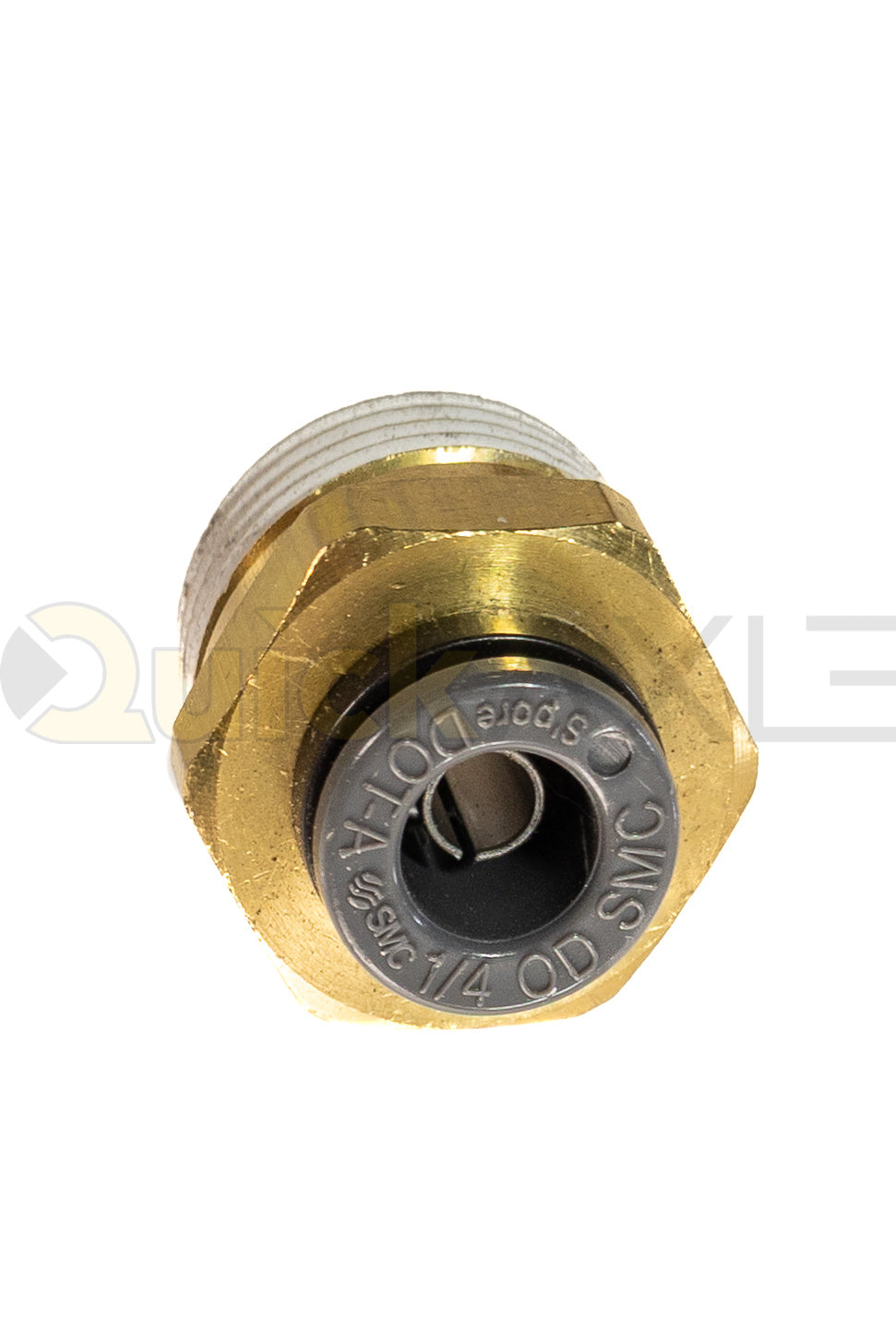

The KV2H07-36S is a straight male push-to-connect connector for pneumatic air line service. The highlighted reference row identifies this fitting for 1/4 in tube OD with 3/8-18 NPT male thread. Listed dimensions include a 17.46 mm hex, 21.7 mm L dimension, 15.6 mm A dimension, 17 mm M dimension, and 3.5 mm minimum flow diameter.
Product Details
SKU 1350071
Brand: SMC
Part Number: KV2H07-36S
Product Type: Straight male connector
Tube Size: 1/4 in OD
Thread: 3/8-18 NPT
Supplier: Engineered Sales Inc.
Common Uses
Push-to-connect pneumatic tubing installation
Air control and height-control valve plumbing
Replacement fitting for matching SMC KV2 series connections
Confirm tube OD, NPT thread size, and application fitment before ordering.
