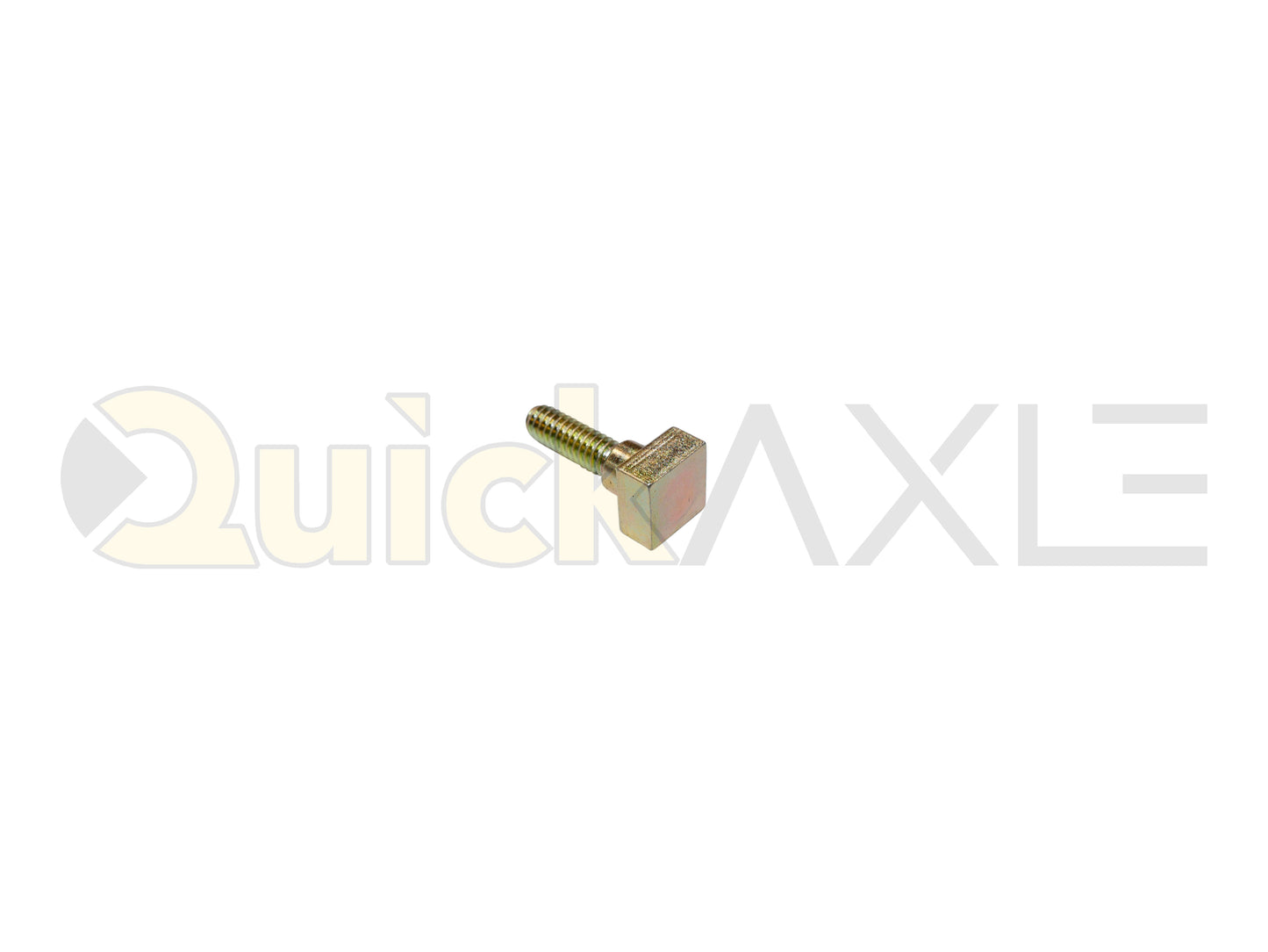

T-Bolt Mounting Stud, 1/4-20 UNC, 0.750″ thread, 0.498″ square head - 1130020

T-Bolt Mounting Stud, 1/4-20 UNC, 0.750″ thread, 0.498″ square head - 1130020

2666 in stock

$1.22 USD
$0.00 USD $1.22 USD
Sale
Shipping calculated at checkout.
  • QA Part Number: HCV-00010
  • Part Number: 1130020
  • Cross Part Number: H16376A
  • Component: T-bolt mounting stud for HCV06/HCVO6 bracket
  • Thread: 1/4-20 UNC
  • Thread Length: 0.750"
  • Head: Square, 0.498 × 0.498", 0.261" thick
  • Typical Torque: 60–80 in-lb (per HCV/HCK install guide for T-bolts)
  • Included Items (this SKU): Stud only
  • Notes: Dimensions taken from engineering drawing; use with specified flange nuts on the mounting assembly

Click here for: Height Control Valve / HCK Installation Guide
