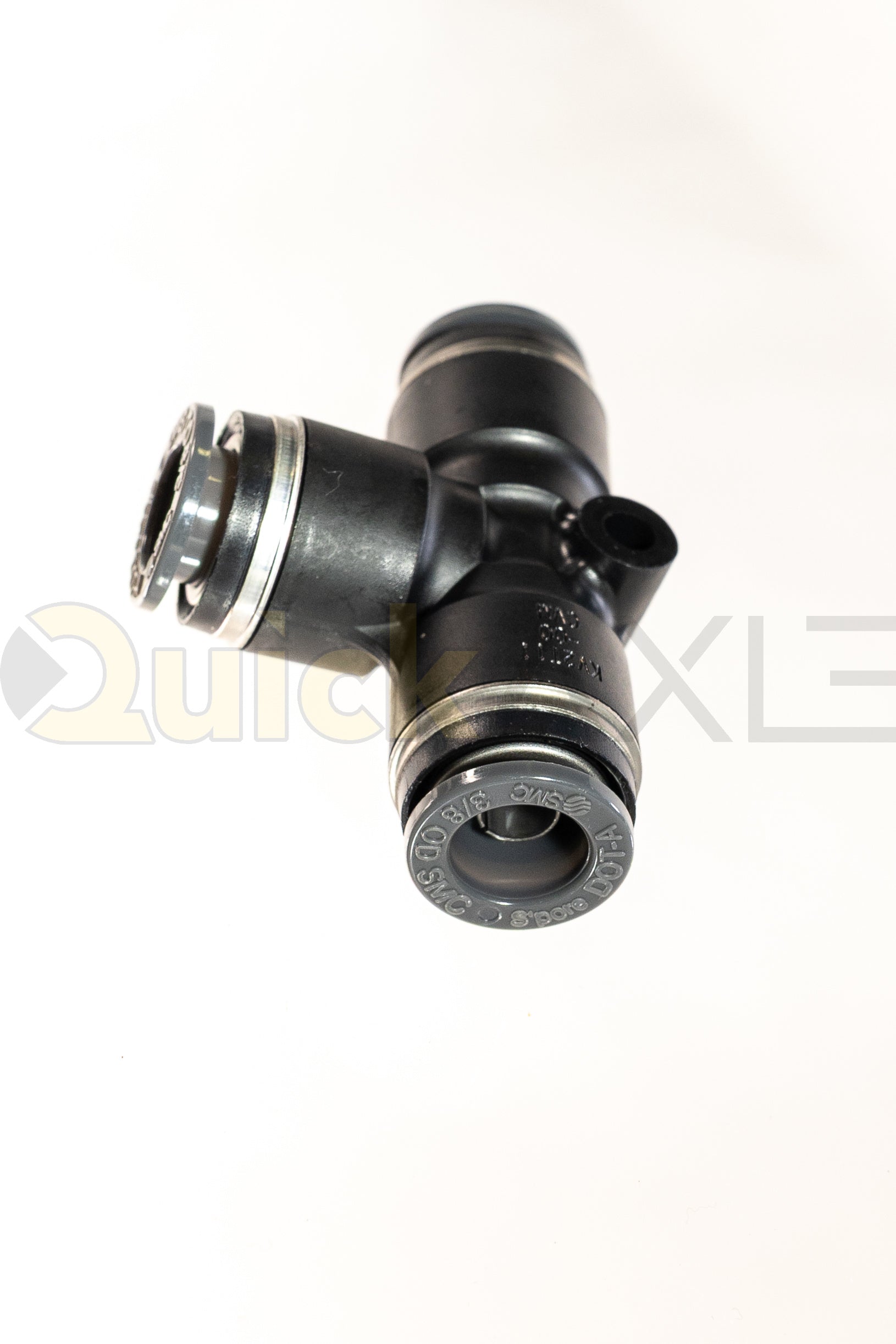

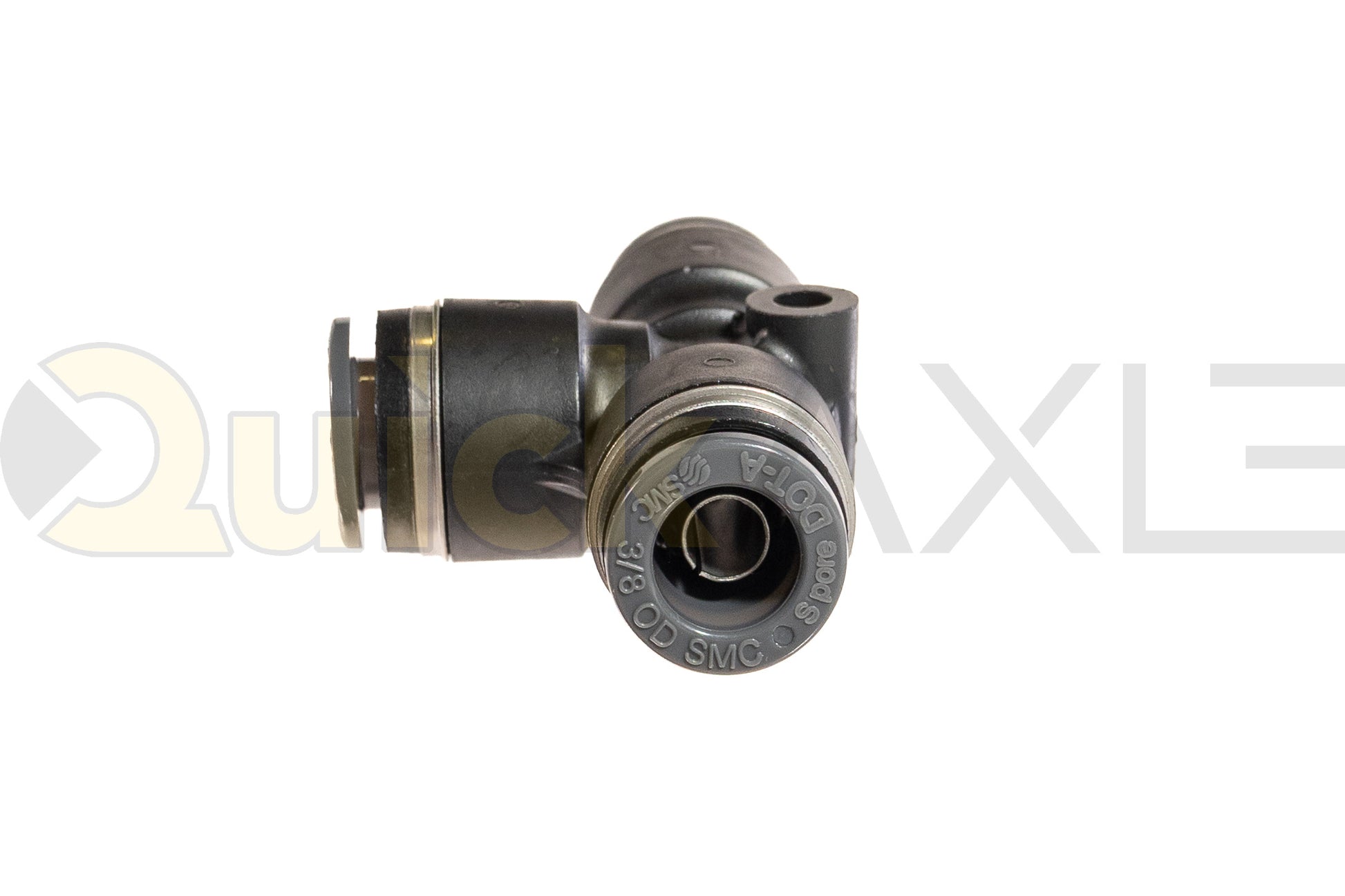

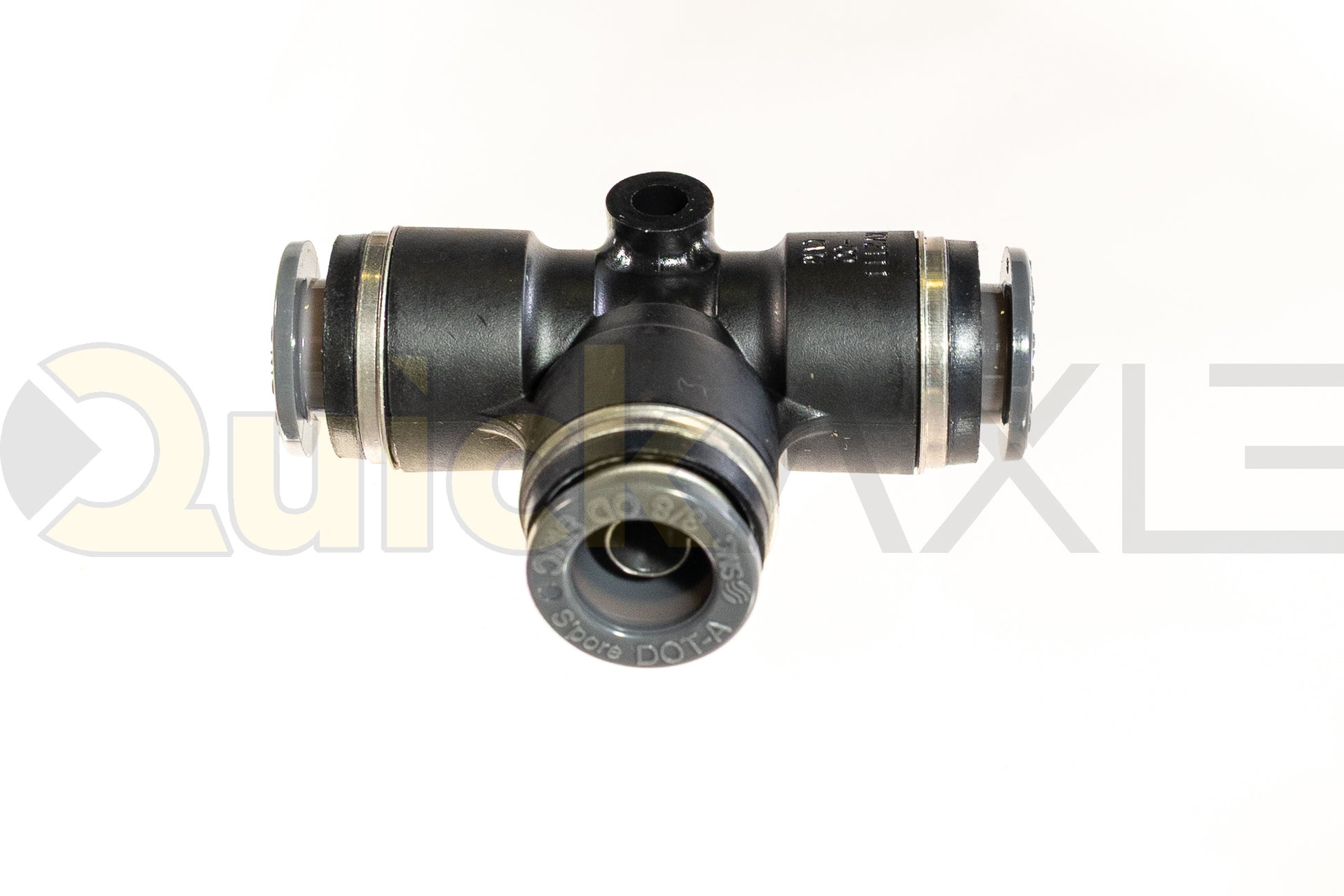

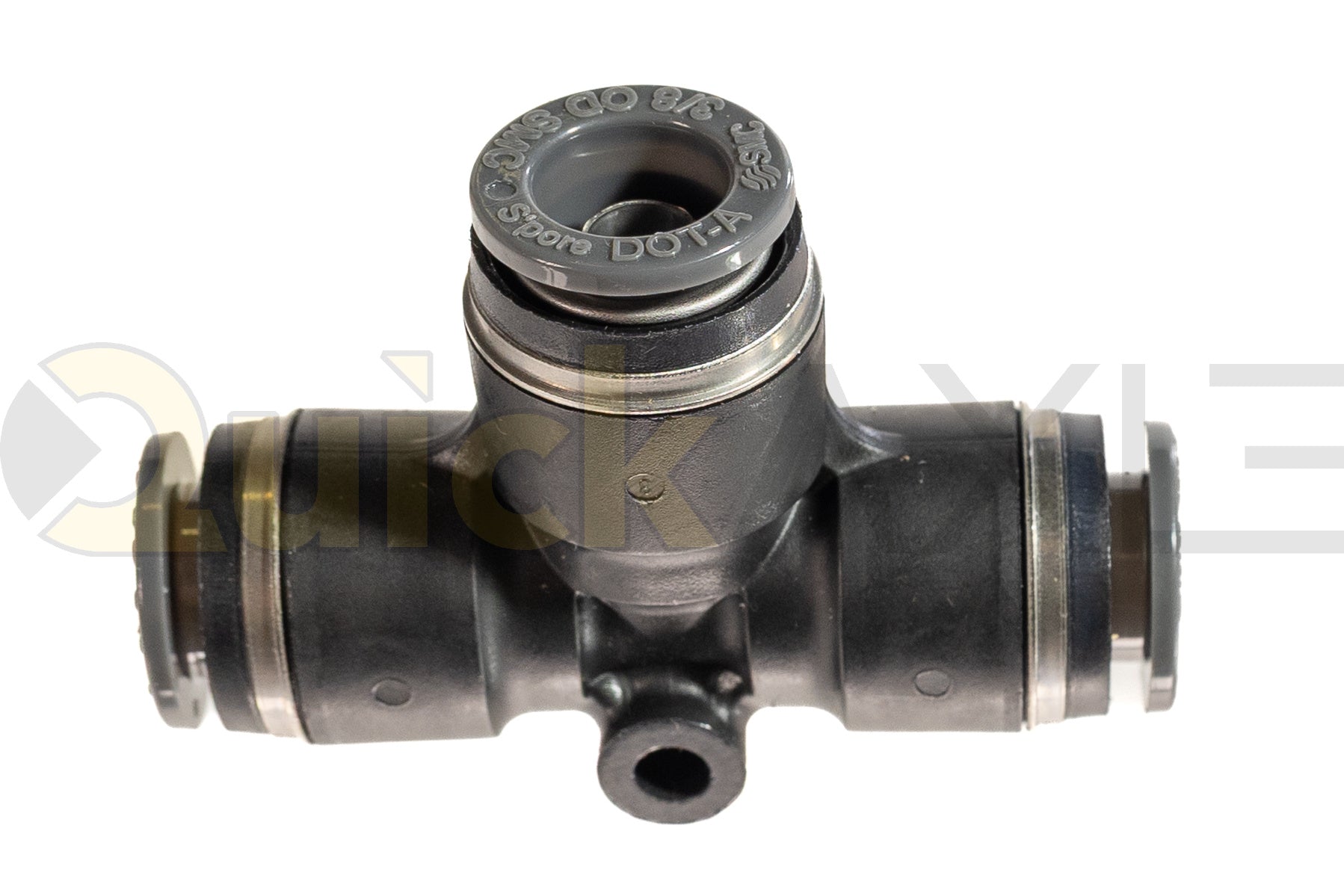

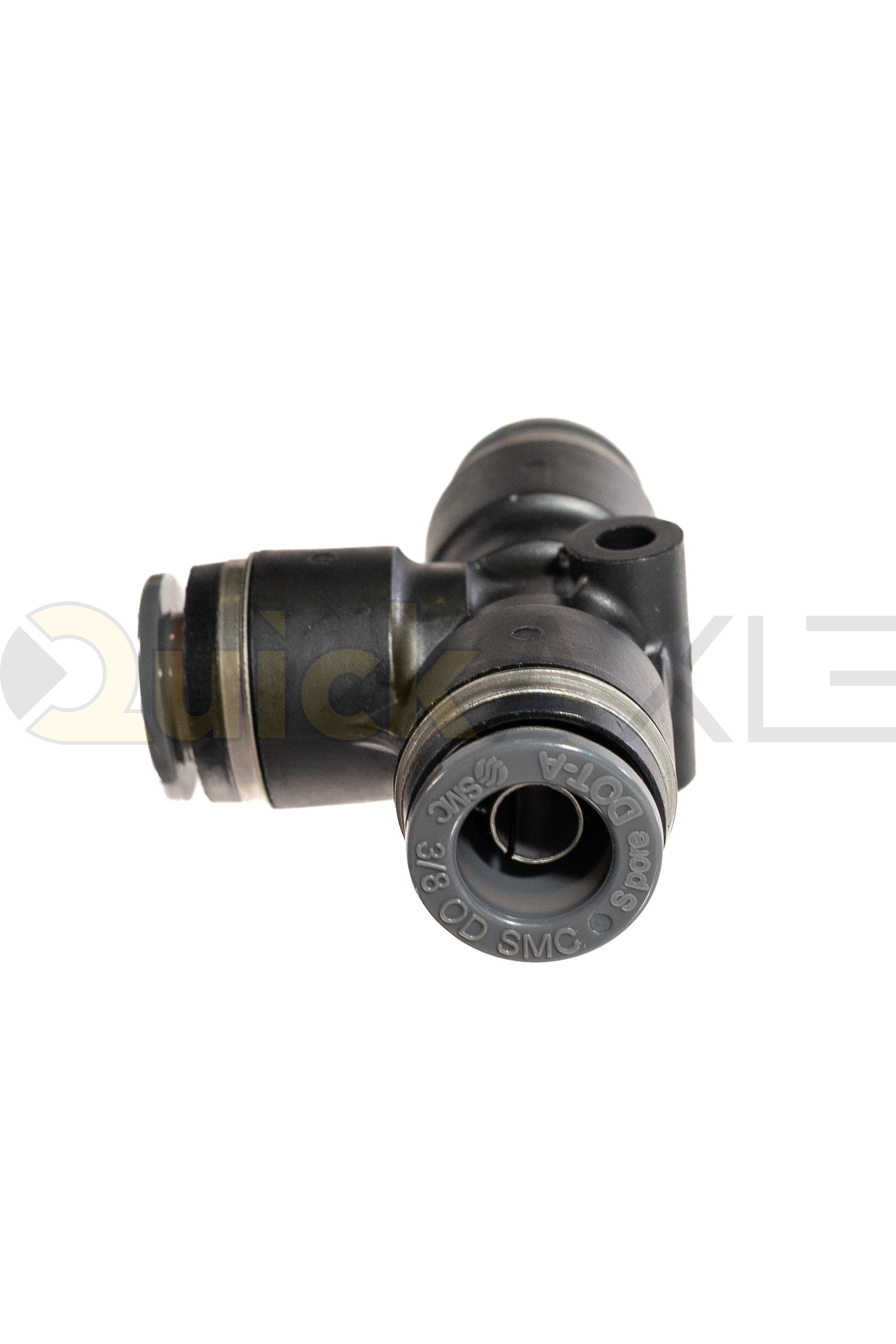

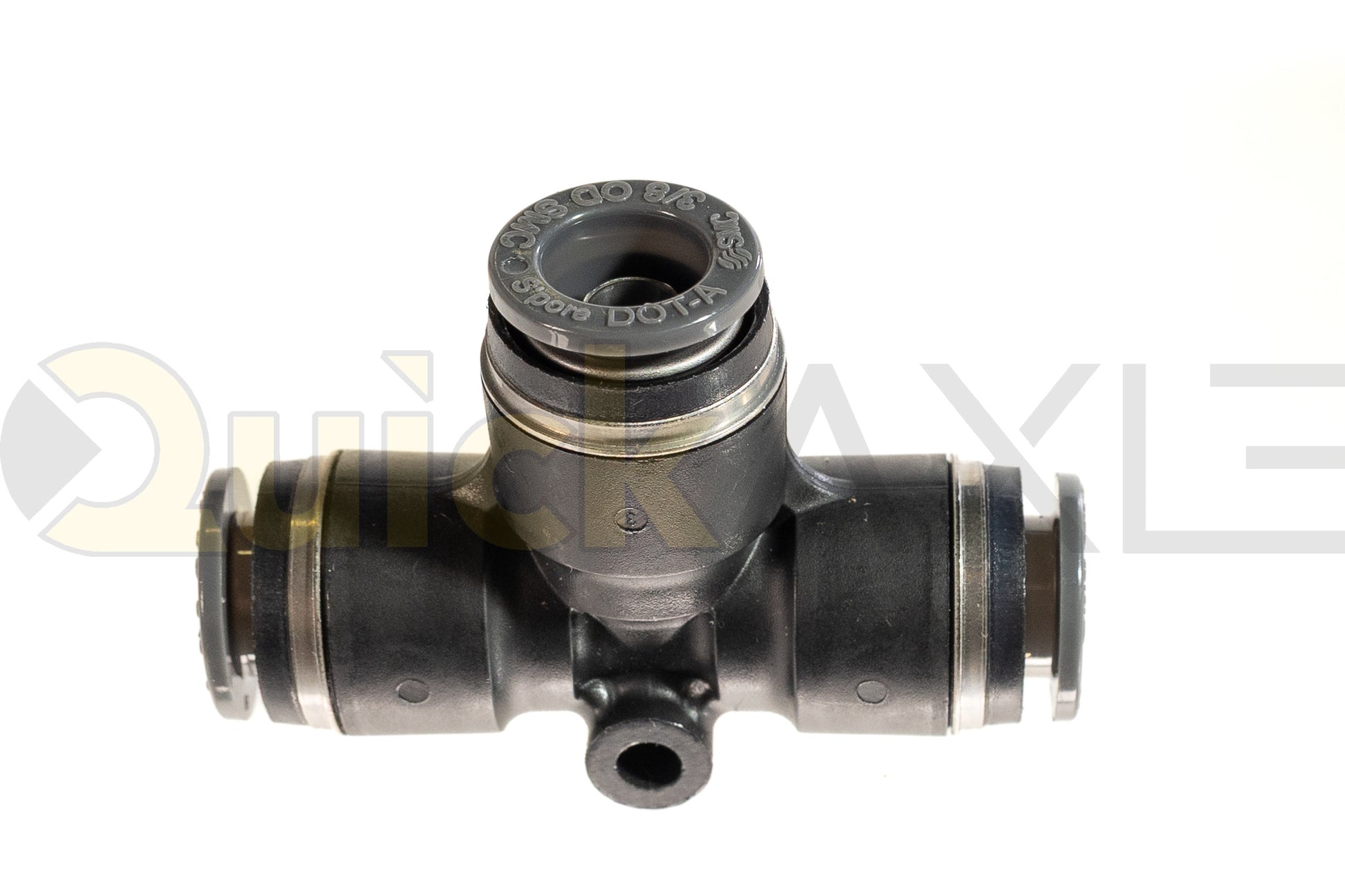

The SMC KV2T11-00 is a union tee push-to-connect fitting used to join or branch three pneumatic tube lines. The SMC reference chart identifies the highlighted configuration with 3/8 in tube outside diameter on all three tube connections. It is used where a 3/8 in pneumatic line must be split or joined in an air control system.
Product Details
Brand: SMC
Part Number: KV2T11-00
Product Type: Union Tee
Applicable Tube OD A: 3/8 in
Applicable Tube OD B: 3/8 in
Applicable Tube OD C: 3/8 in
D1: 17.9 mm
D2: 18.1 mm
L1: 26.2 mm
L2: 26.2 mm
Minimum Flow Diameter: 5.4 mm
Common Uses
Pneumatic tube branching
Height control valve plumbing
Truck and trailer air system service
Verify all tube sizes and original part number before ordering.
