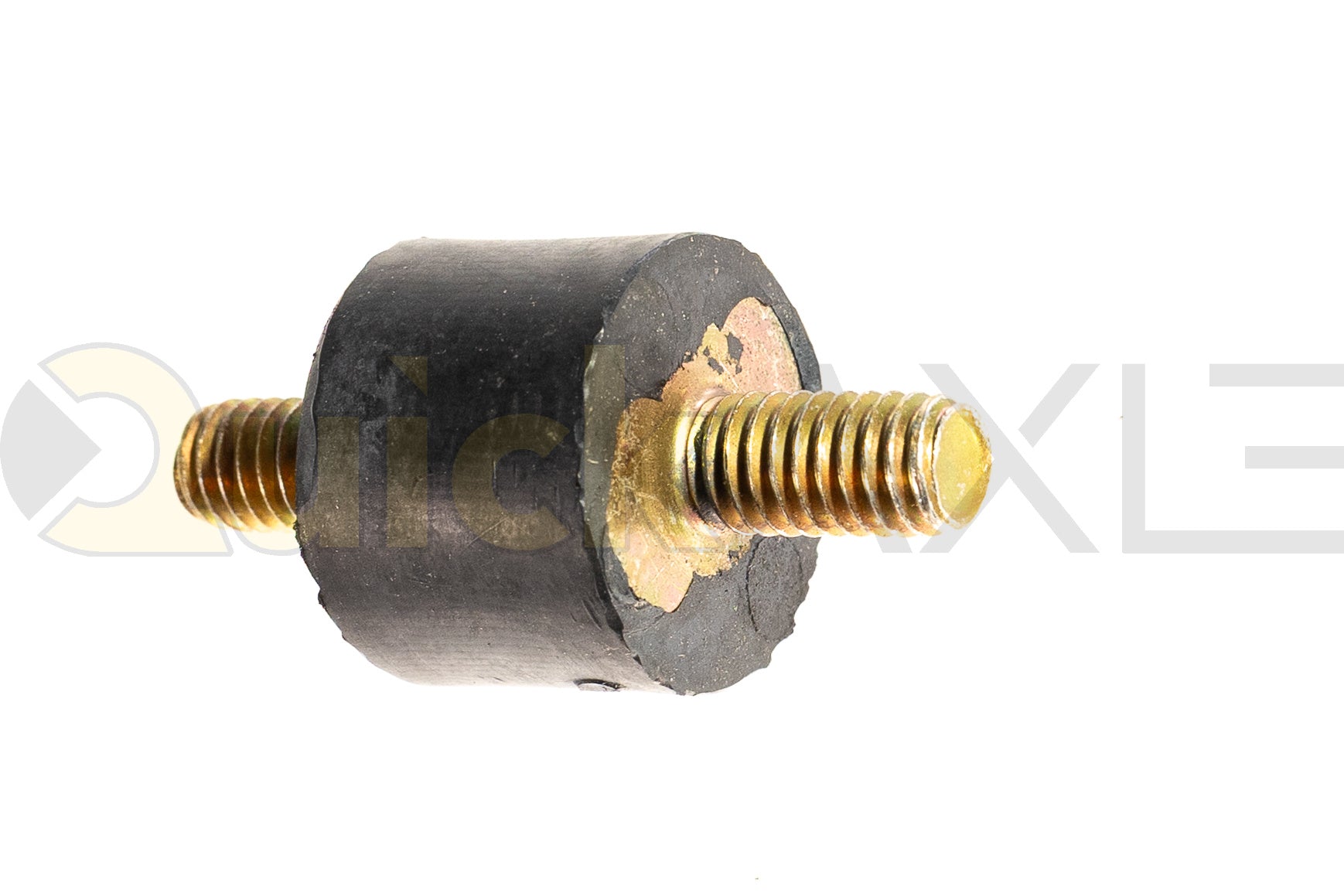

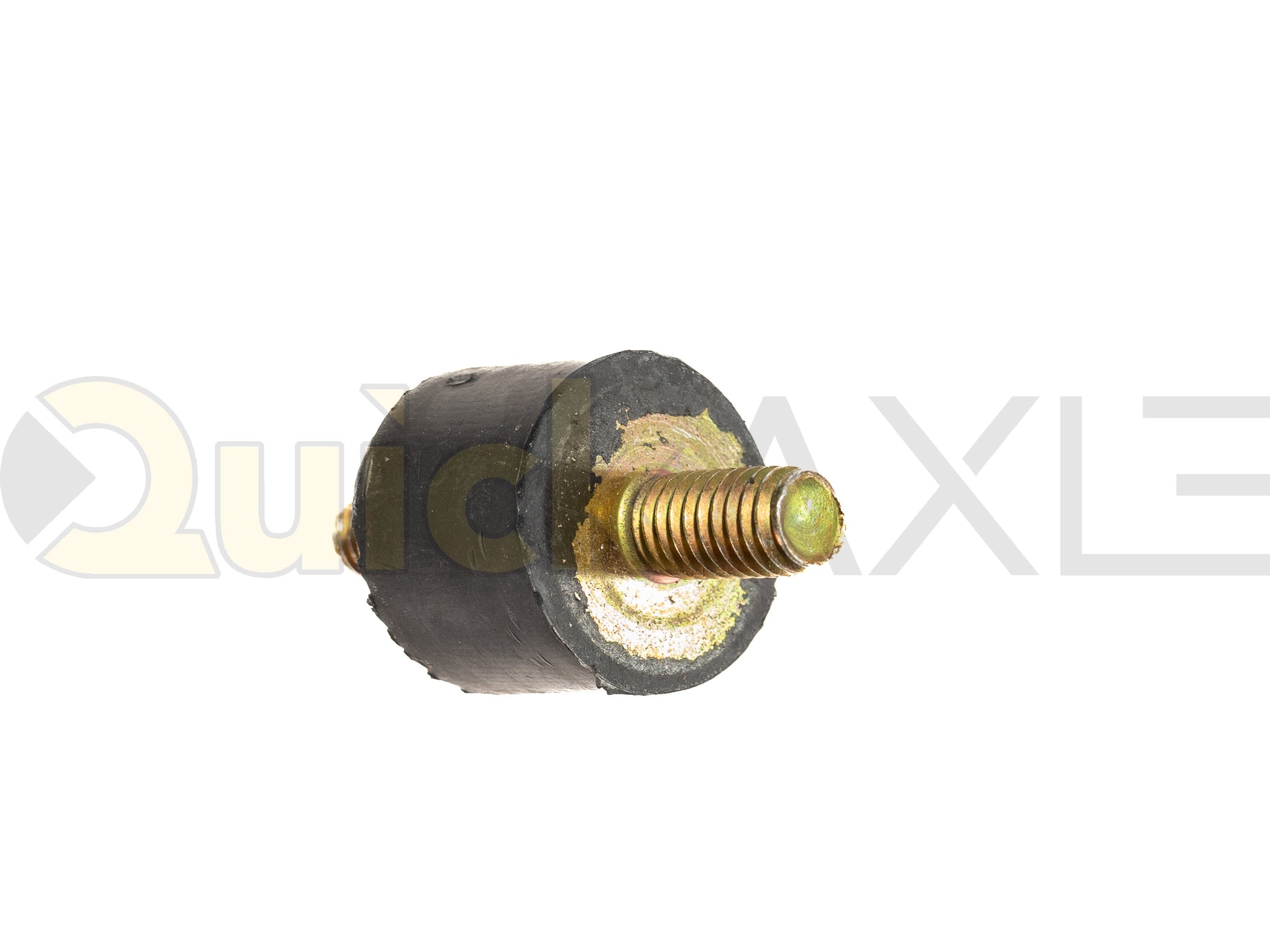

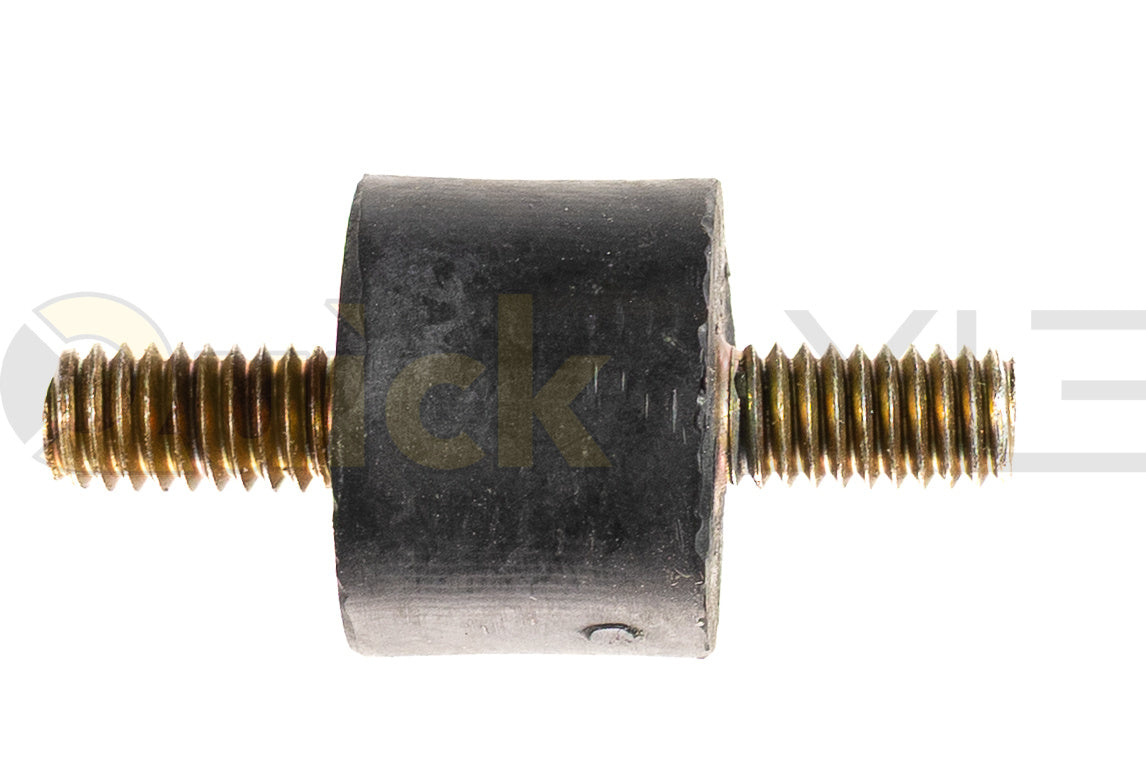

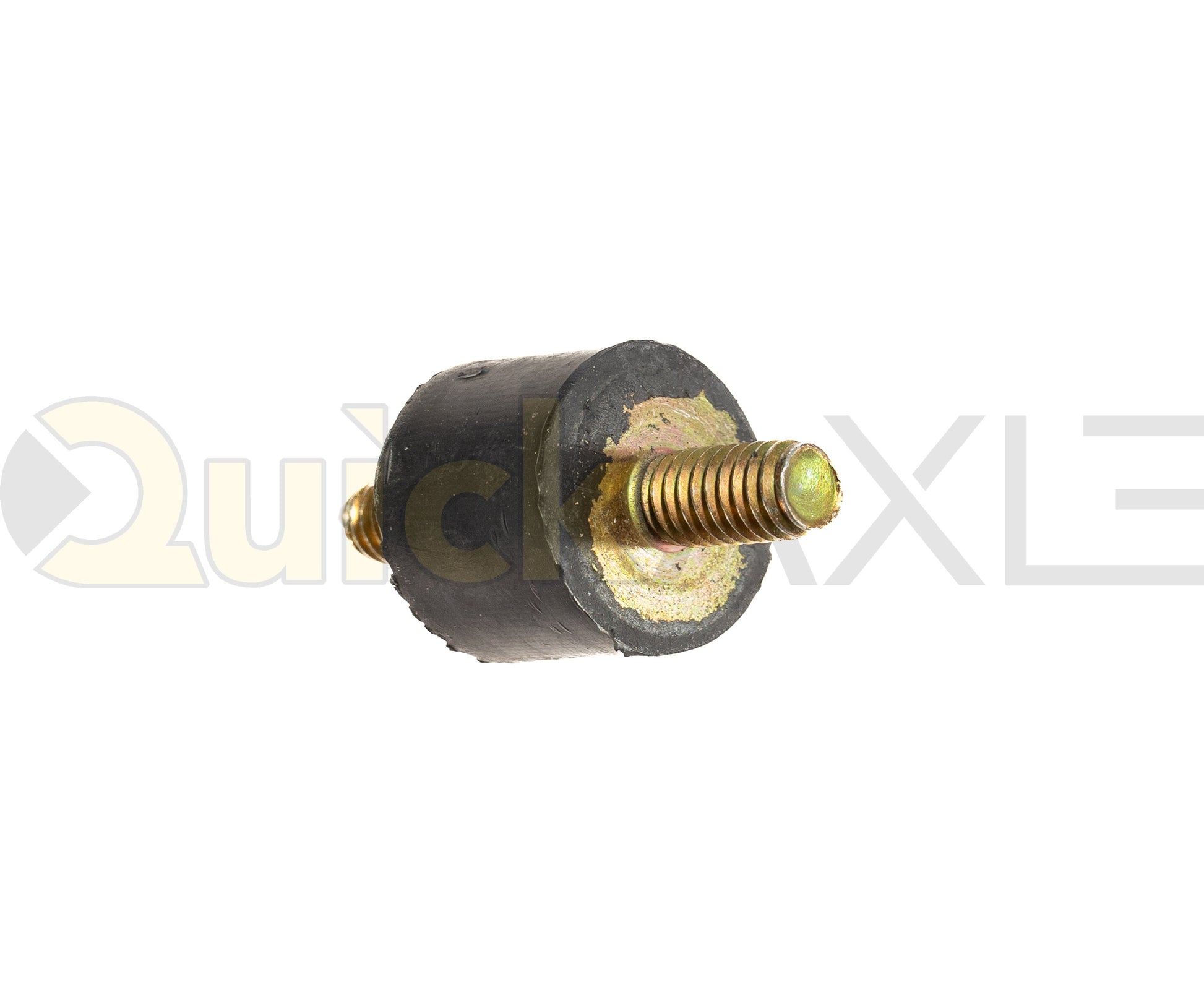

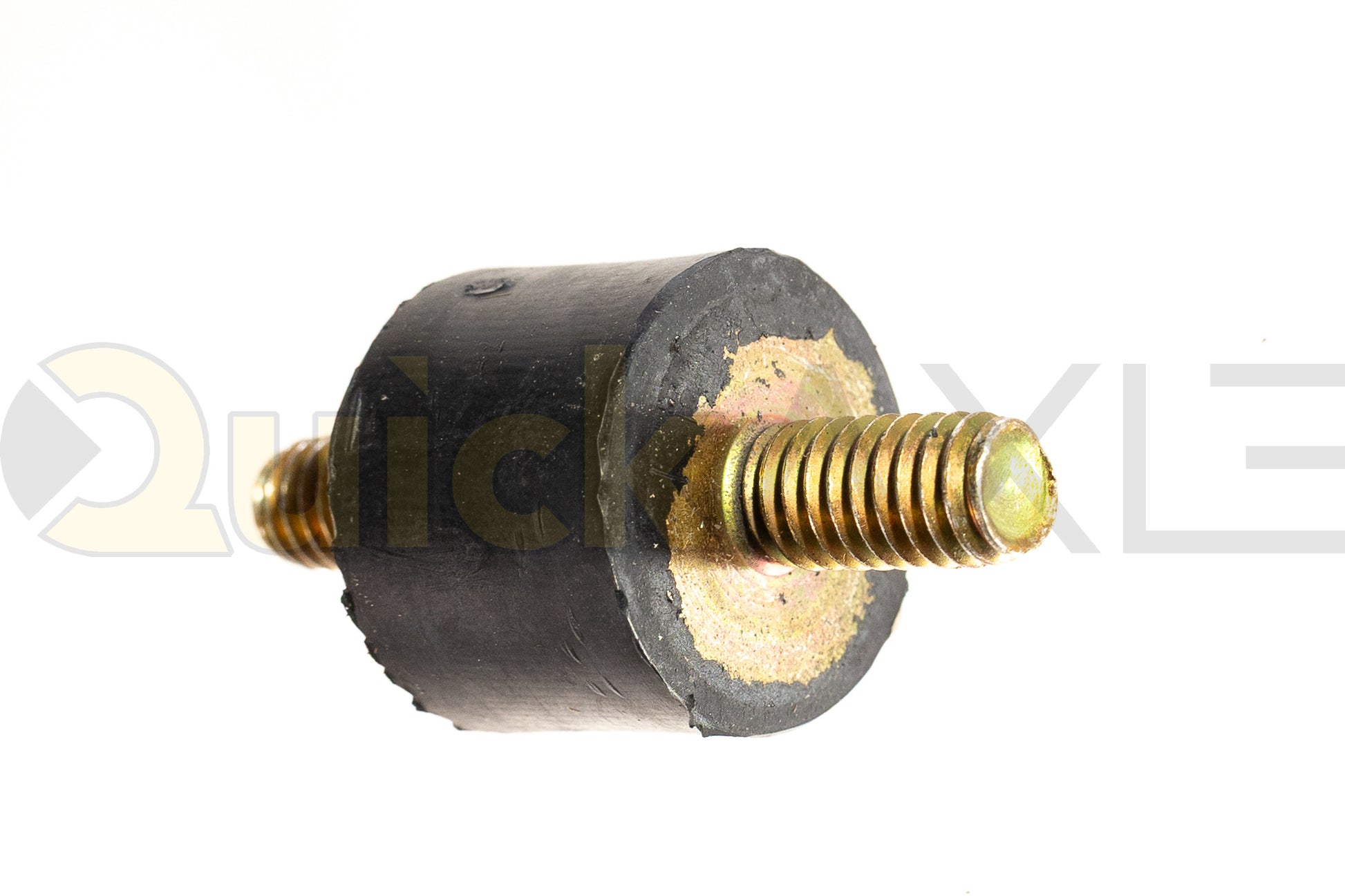

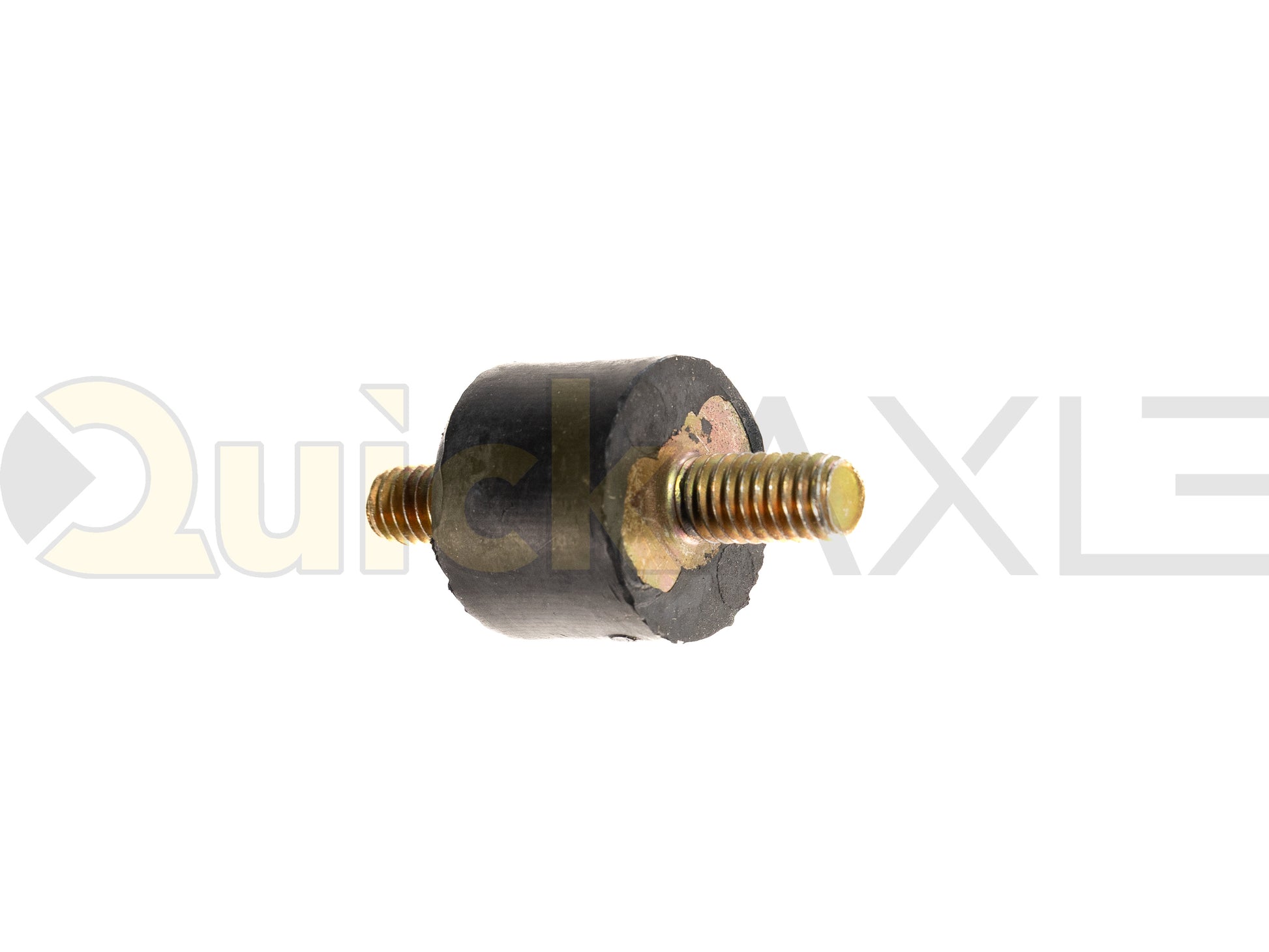

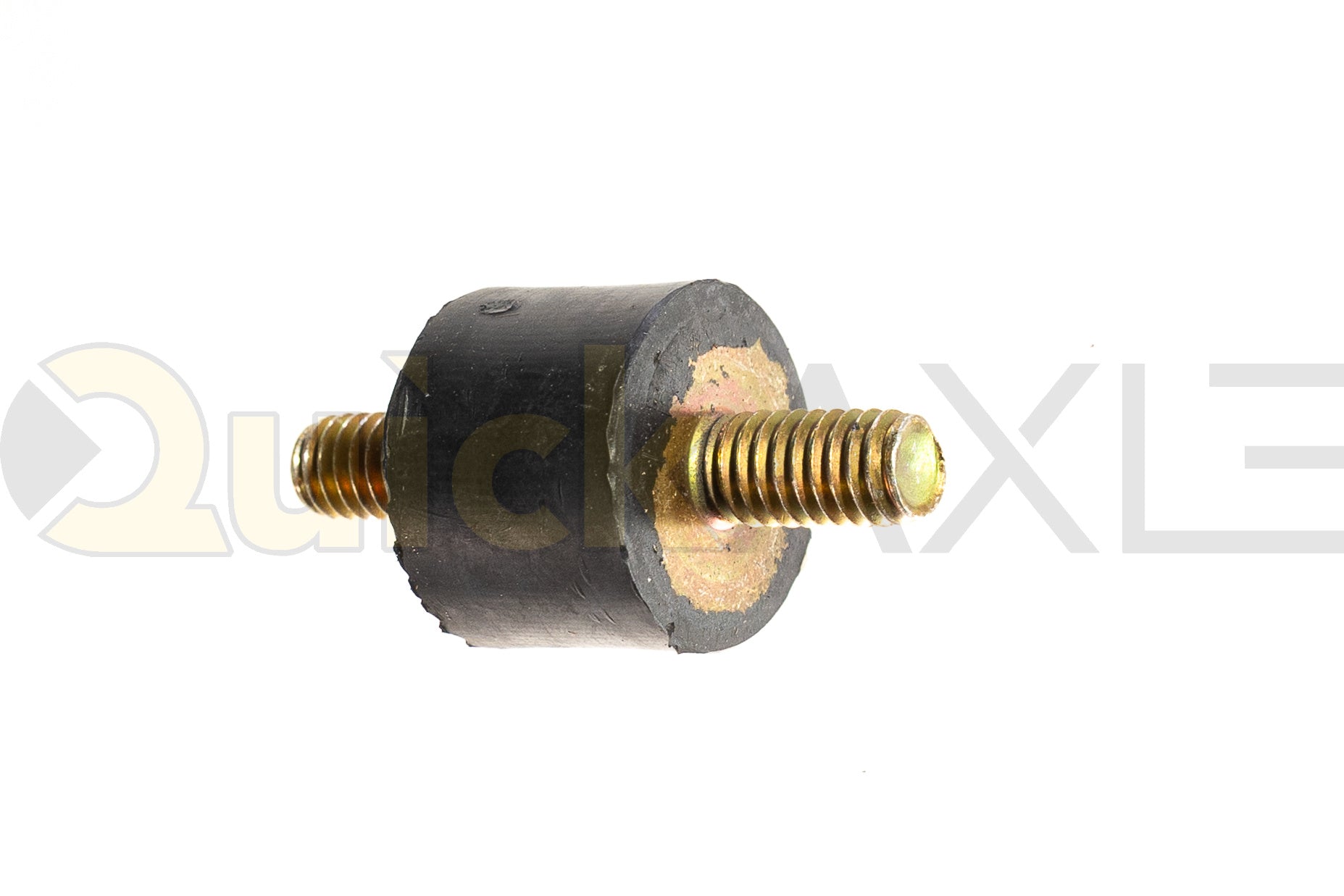

A vibration-damping sandwich mount used to isolate vibration between mounted components. The reference drawing shows a round rubber isolator body with threaded studs on both sides, a 5/16-18 thread callout, 1 in diameter reference, 3/4 in body height reference, and 5/8 in stud length reference on each side.
Product Details
Product Type: Vibration-Damping Sandwich Mount
Thread: 5/16-18
Diameter Reference: 1 in
Body Height Reference: 3/4 in
Threaded Stud Length Reference: 5/8 in each side
Load Rating Reference: 50 lb
Common Uses
Vibration isolation
Height control valve component mounting
Equipment and bracket mounting service
Verify thread size, load rating, and mounting dimensions before ordering.
