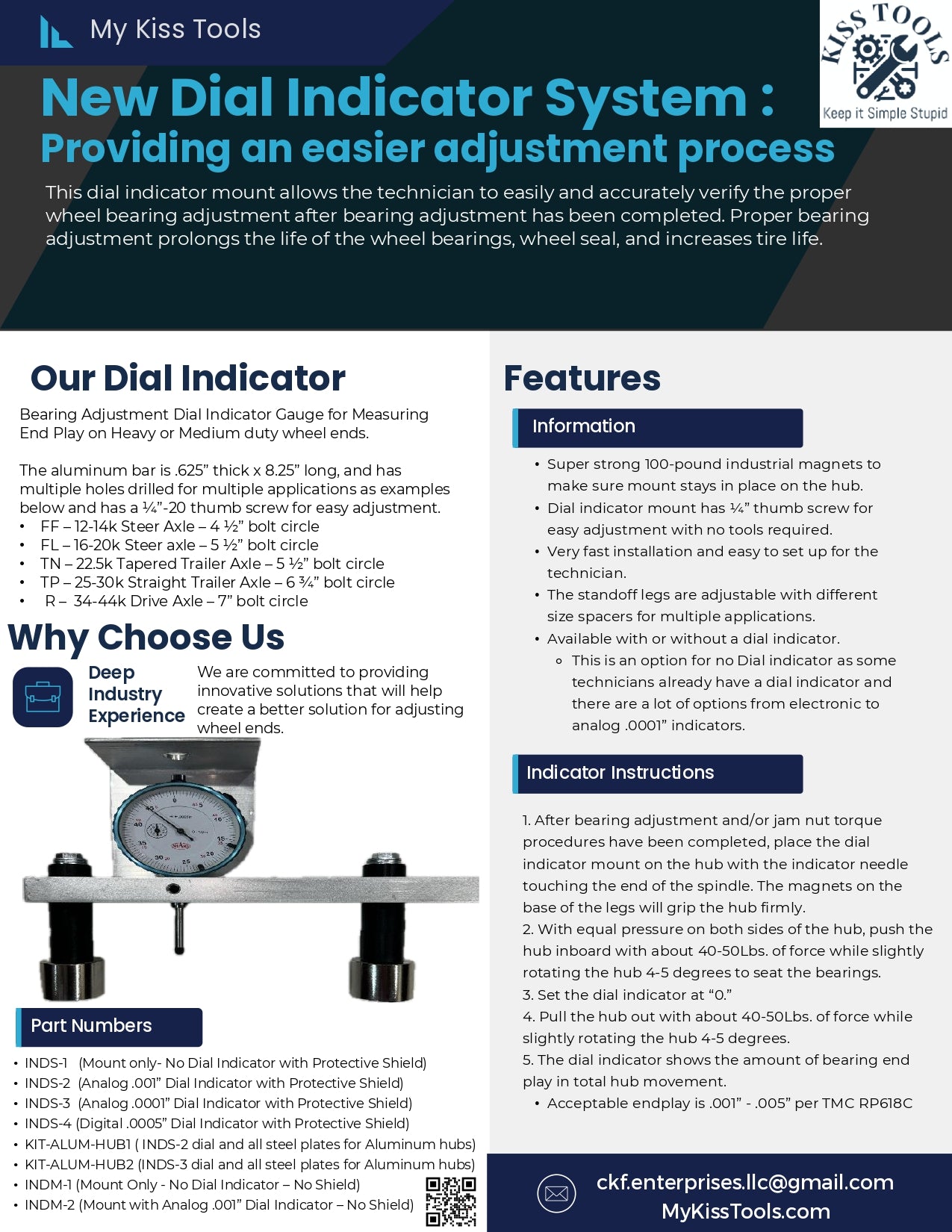

Component: Dial indicator kit for aluminum hubs, 0.001" indicator
Function: Measures wheel bearing endplay on aluminum hub applications using steel adapter plates
Fits / Applications: Aluminum hubs using FF 4.5" x 6 hub cap bolt pattern; TN trailer 5.5" x 6 hub cap bolt pattern; TP trailer 6.75" x 6 hub cap bolt pattern; FL 16-20K steer axle 5.5" x 6 bolt pattern; R drive axle with 7" on-center, 8-stud flange pattern for 5/8" and/or 3/4" studs
Key Specs: Includes INDS-2 mount with analog 0.001" dial indicator and protective shield; steel aluminum-hub adapter plates are 0.250" thick and zinc plated; two plates are used on each hub to match the dial indicator magnets

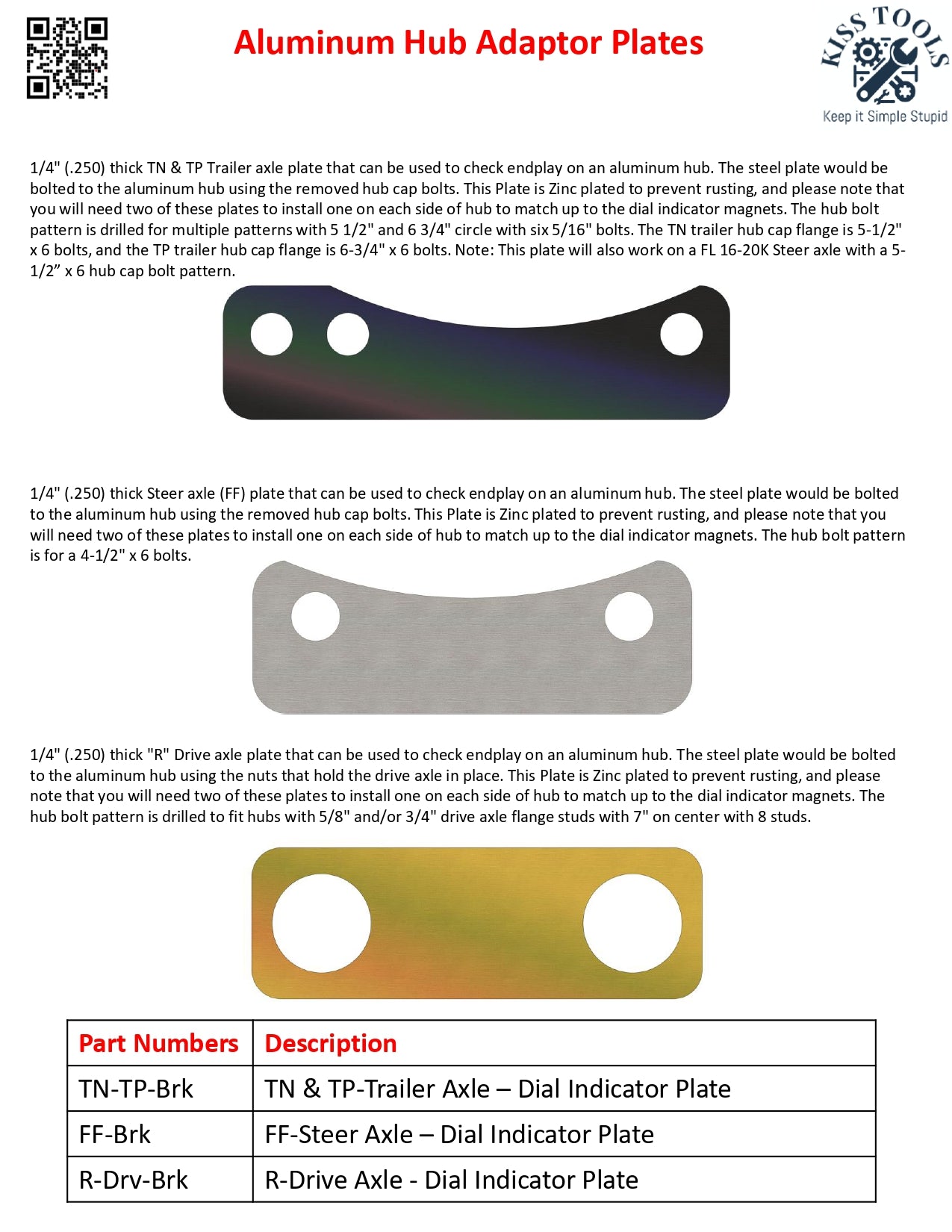

Included Items (this SKU): INDS-2 mount with 0.001" analog dial indicator and protective shield; (2) FF-Brk plates; (2) TN-TP-Brk plates; (2) R-Drv-Brk plates

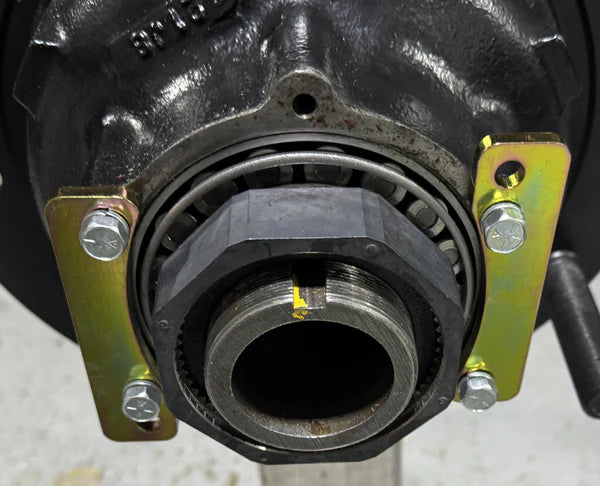

Service Notes: Adapter plates bolt to the hub using removed hub cap bolts or drive axle flange nuts, depending on application; acceptable wheel bearing endplay is 0.001" to 0.005" per TMC RP618C
